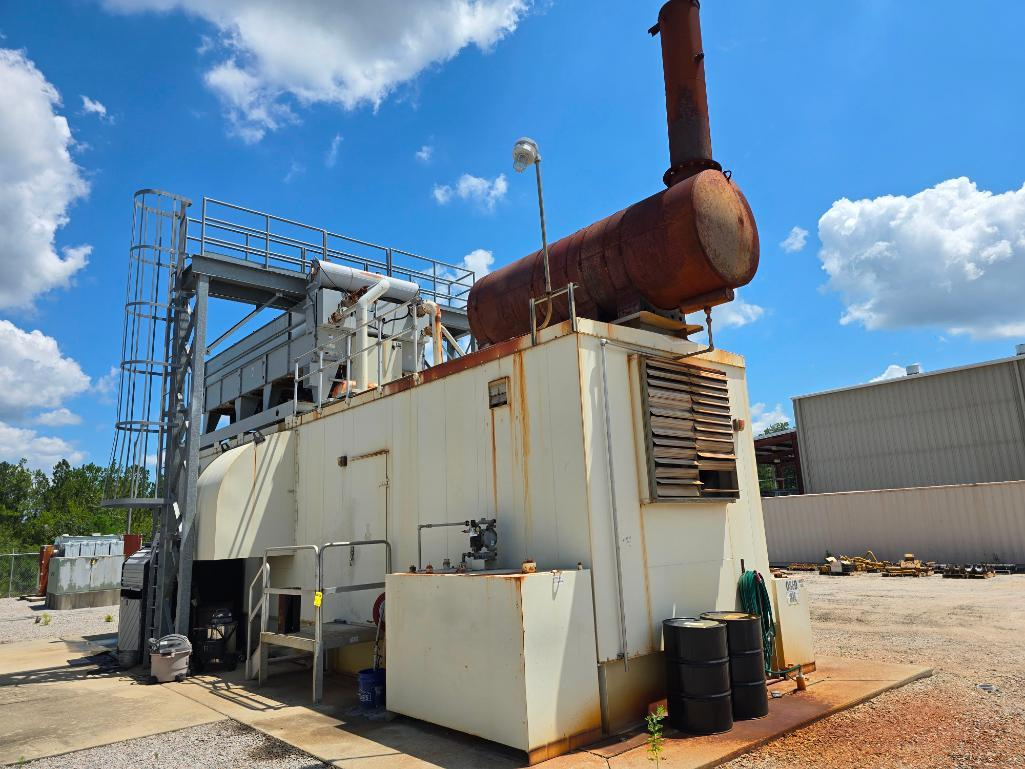

CAT G3520C — 1,600 kW nameplate — Elgin Unit 1

History, availability and verification

Engine serial number

GZJ00389

Estimated dispatch

Immediate

Dispatch conditions

Available now per owner update of September 22, 2026. Coordinate loading and transport; condition and included scope remain as described.

Condition notes

Used, former landfill-gas service. Current operability and complete included scope require inspection.

Fuel and application history

Former landfill-gas service. Natural-gas conversion requires engineering and agreed scope.

Maintenance / hours basis

64,513 lifetime hours (reported lifetime reading). Major rebuild 2018-06-22 at 33,027 h; 31,486 h since major rebuild. Separate top end completed 2021-04-14 at 48,547 h; 15,966 h since top end. The 2021 top-end record explicitly excludes bottom-end work. Latest supplied log: 2023-12-15 at 64,463 h, Hilliard filter/oil change. Historical records and calculated intervals do not guarantee present condition, remaining life or current operating hours.

Photograph basis

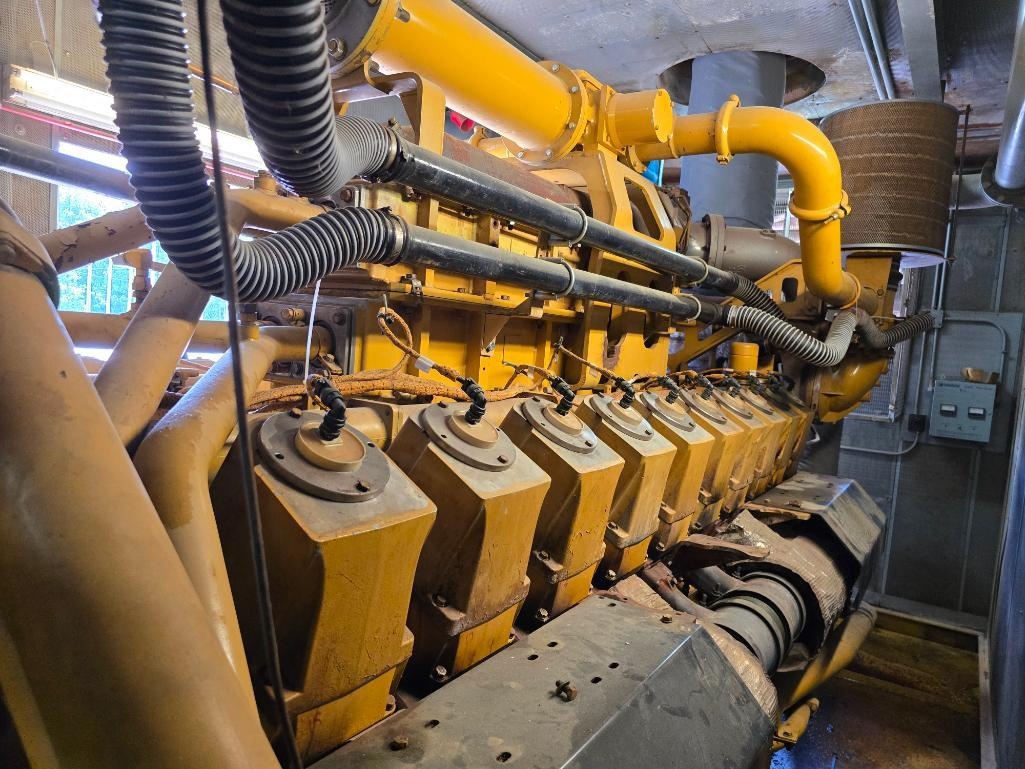

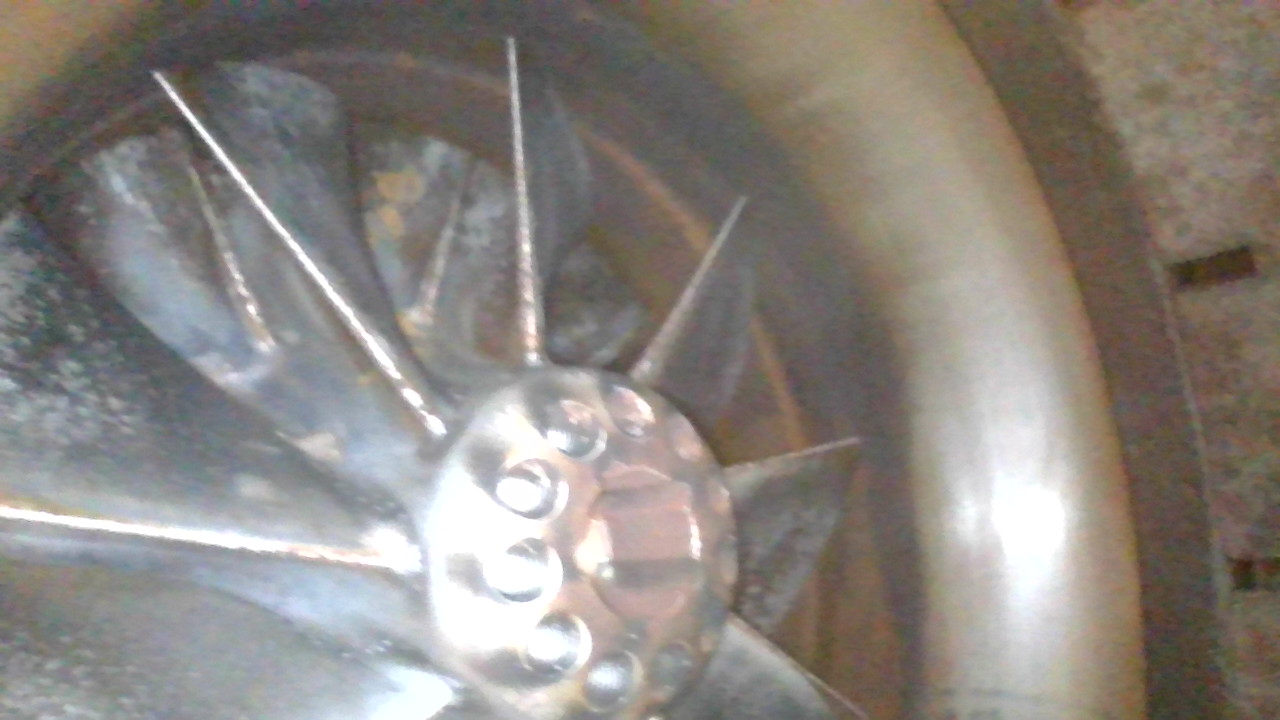

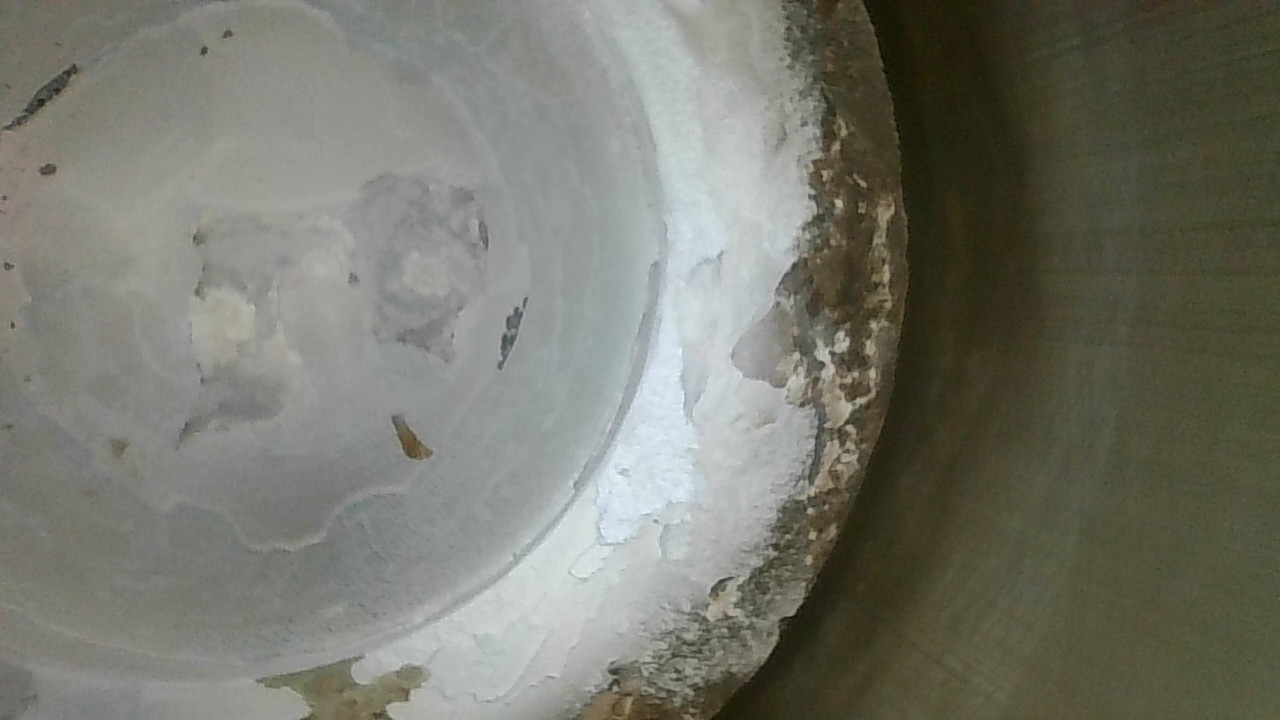

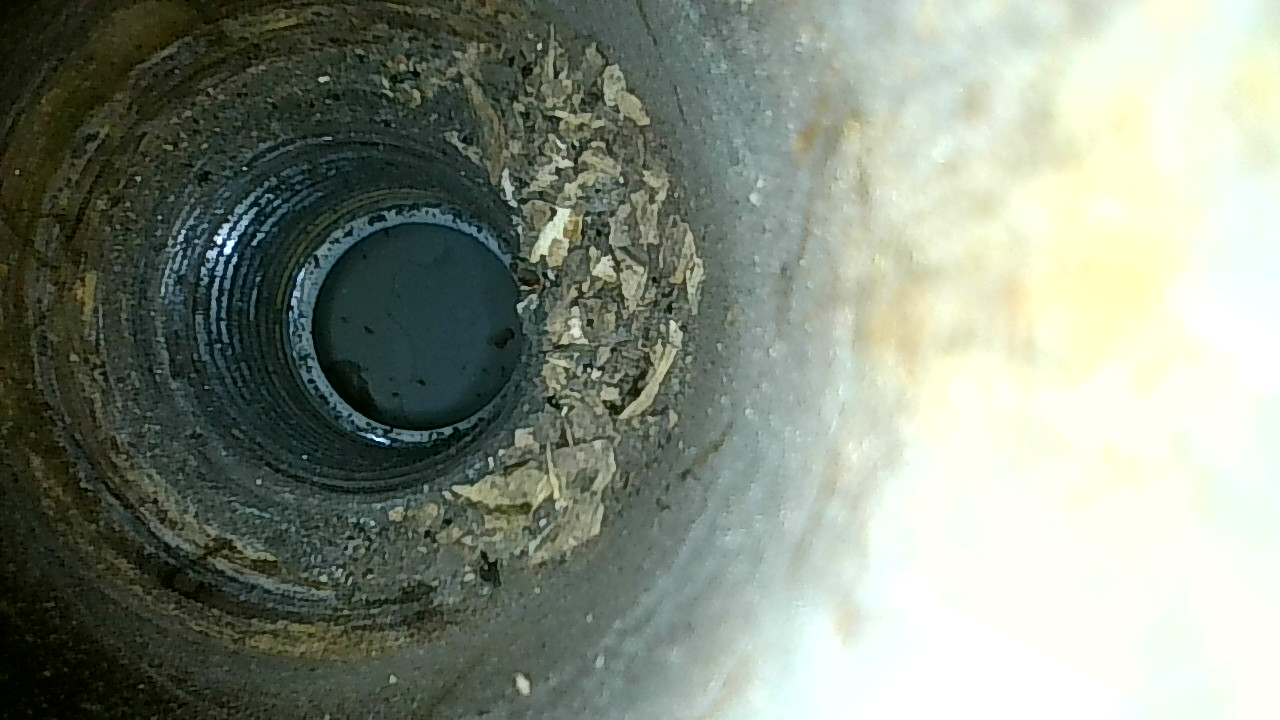

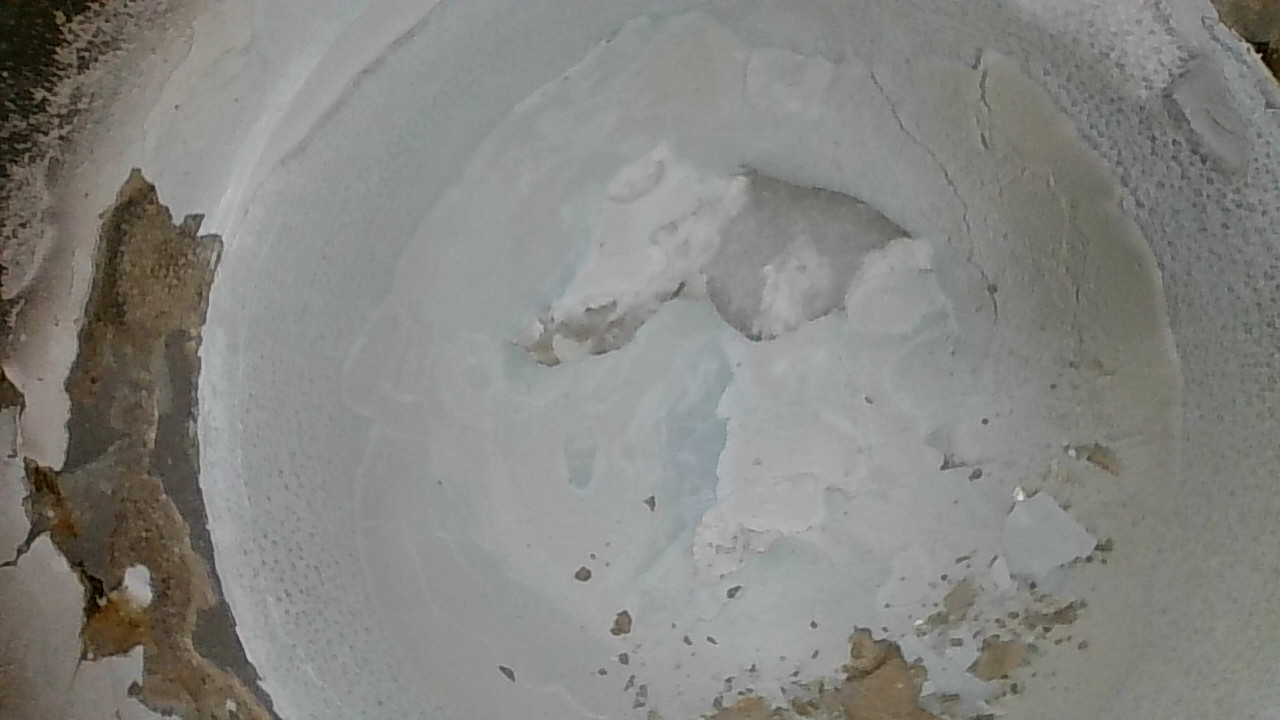

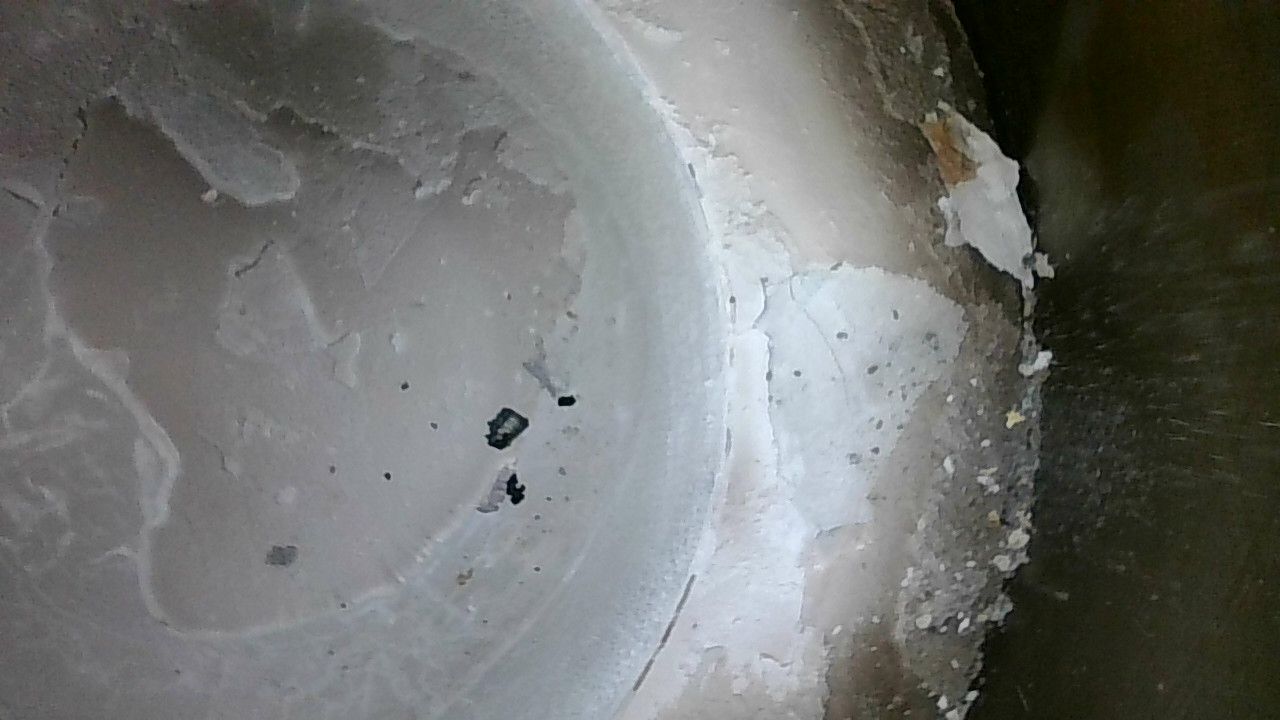

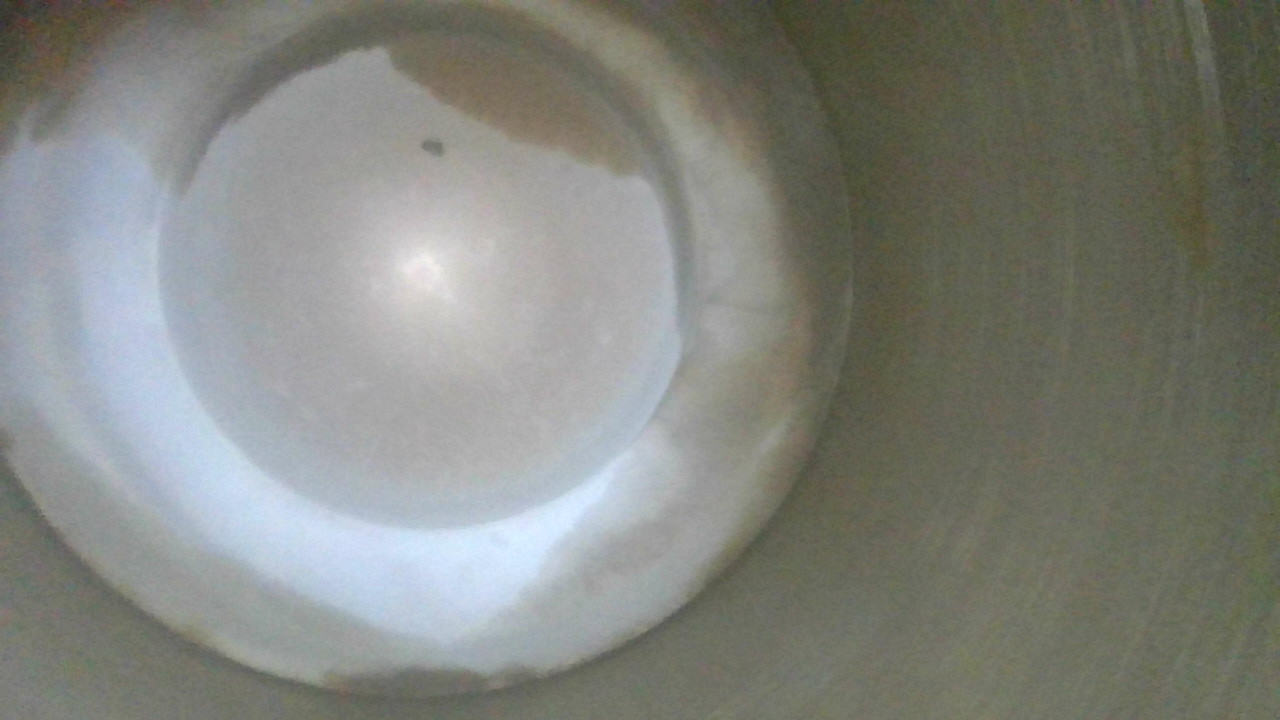

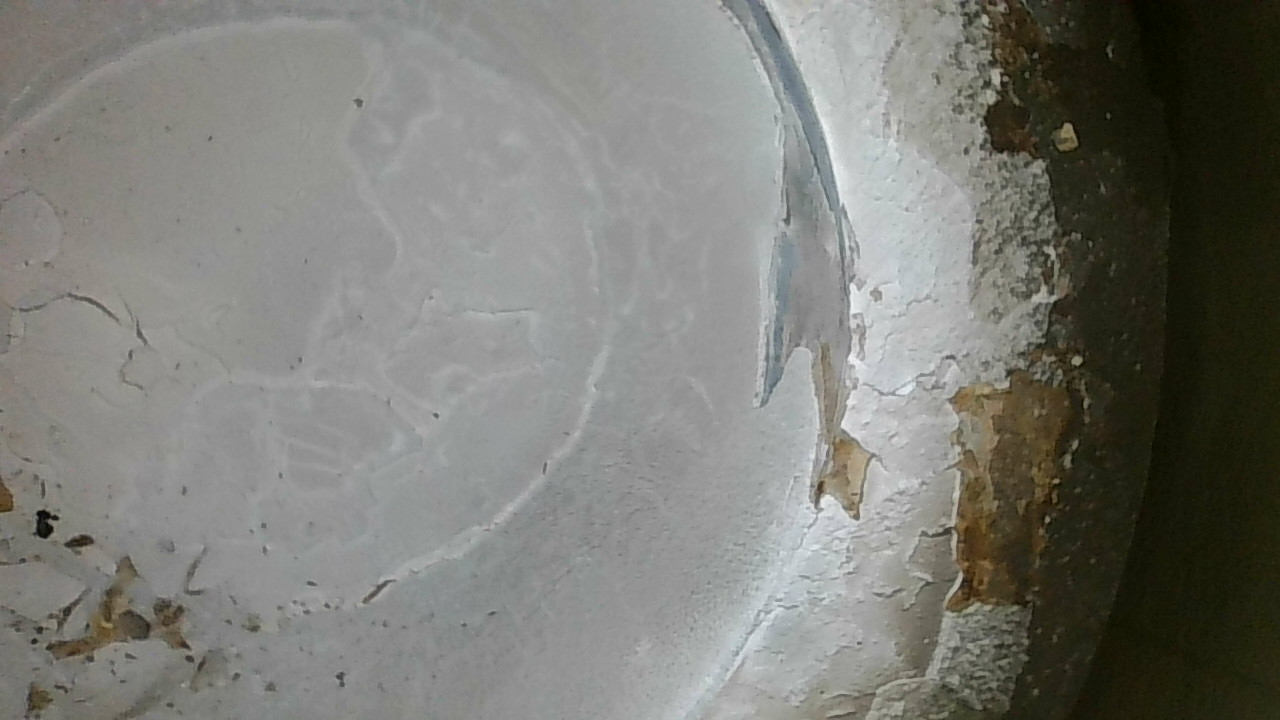

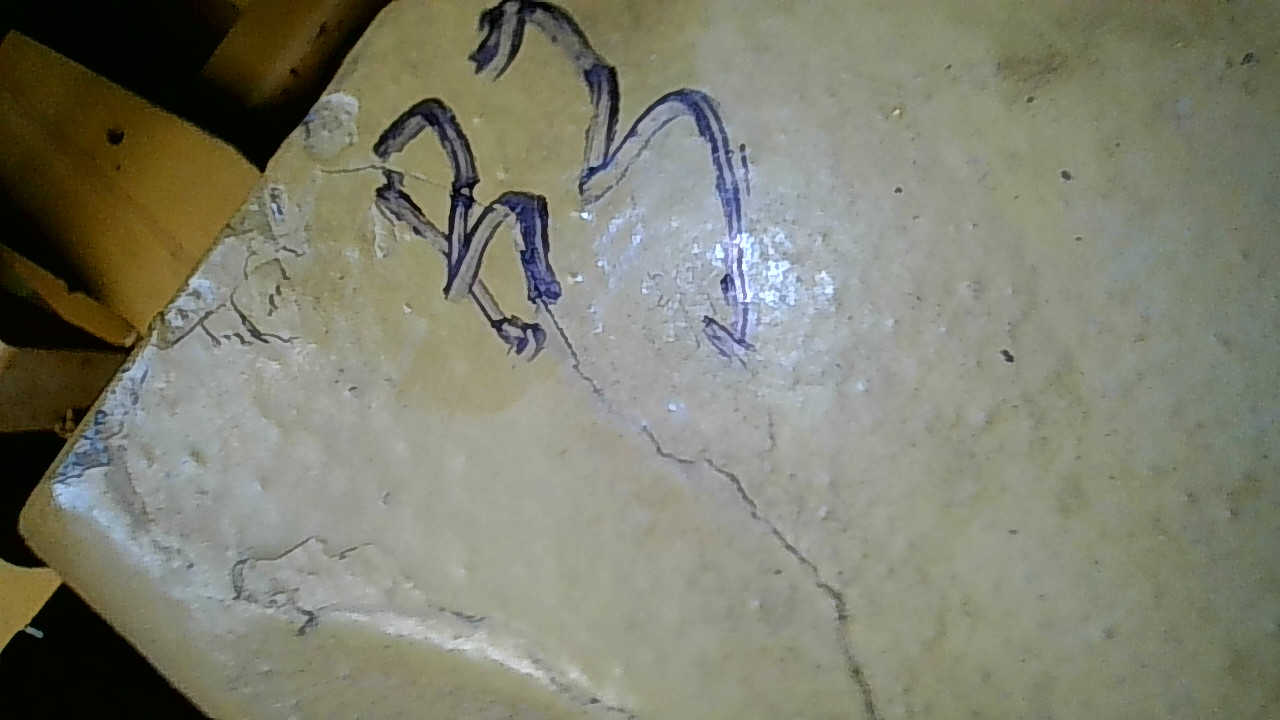

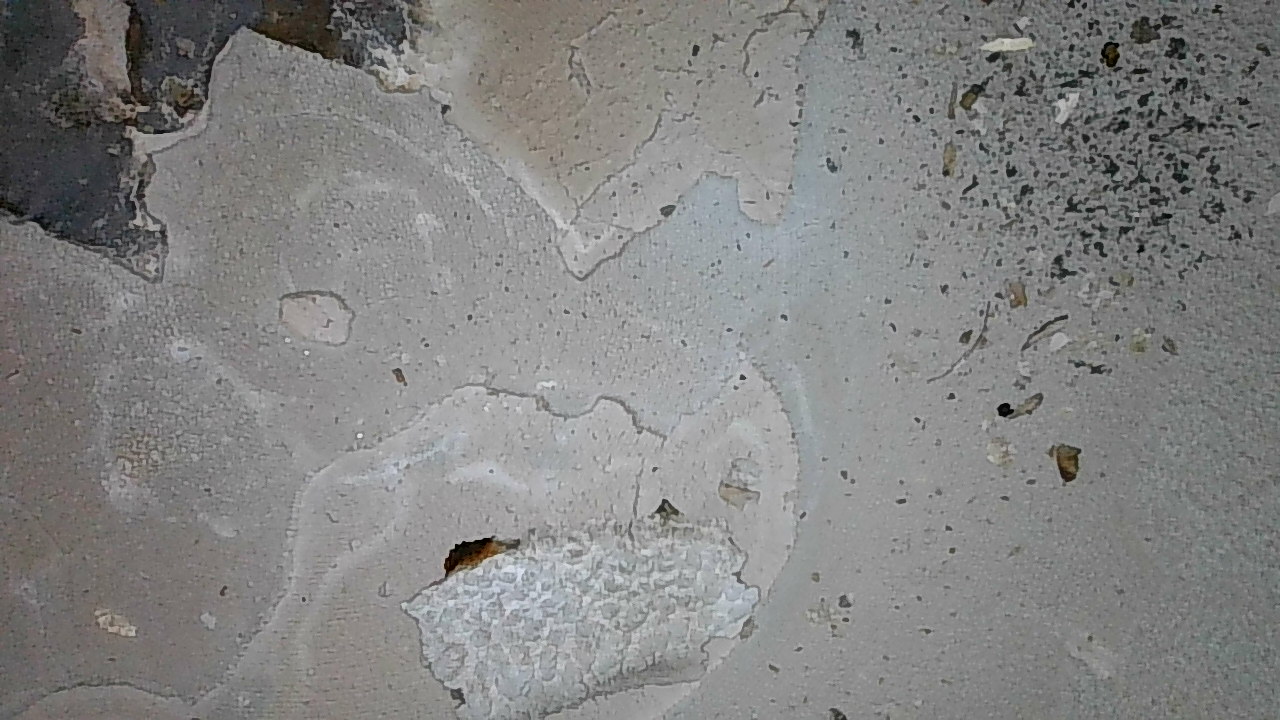

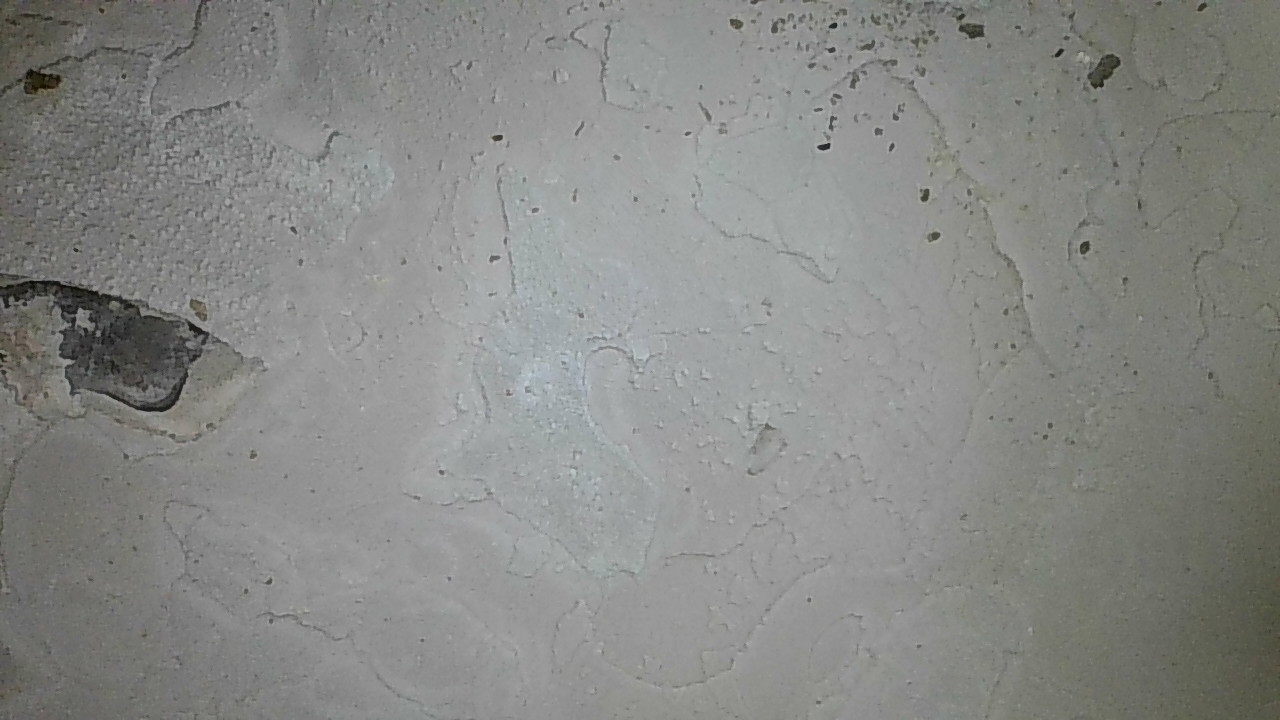

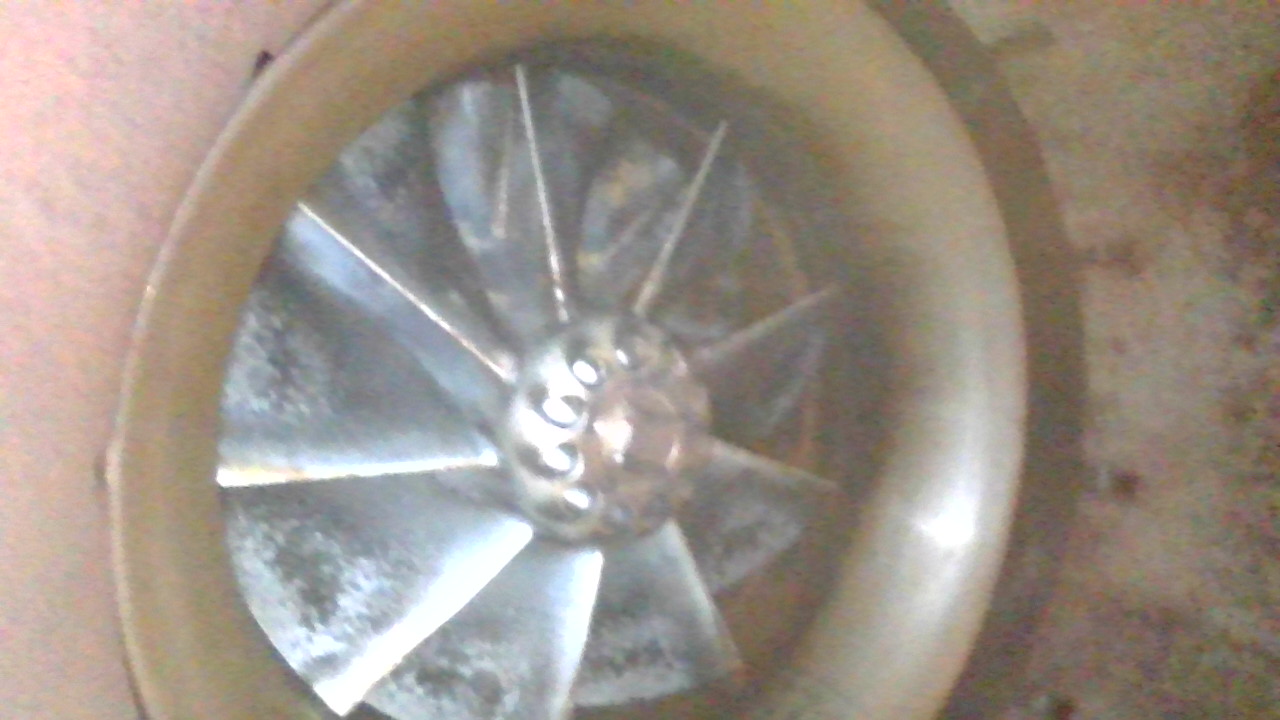

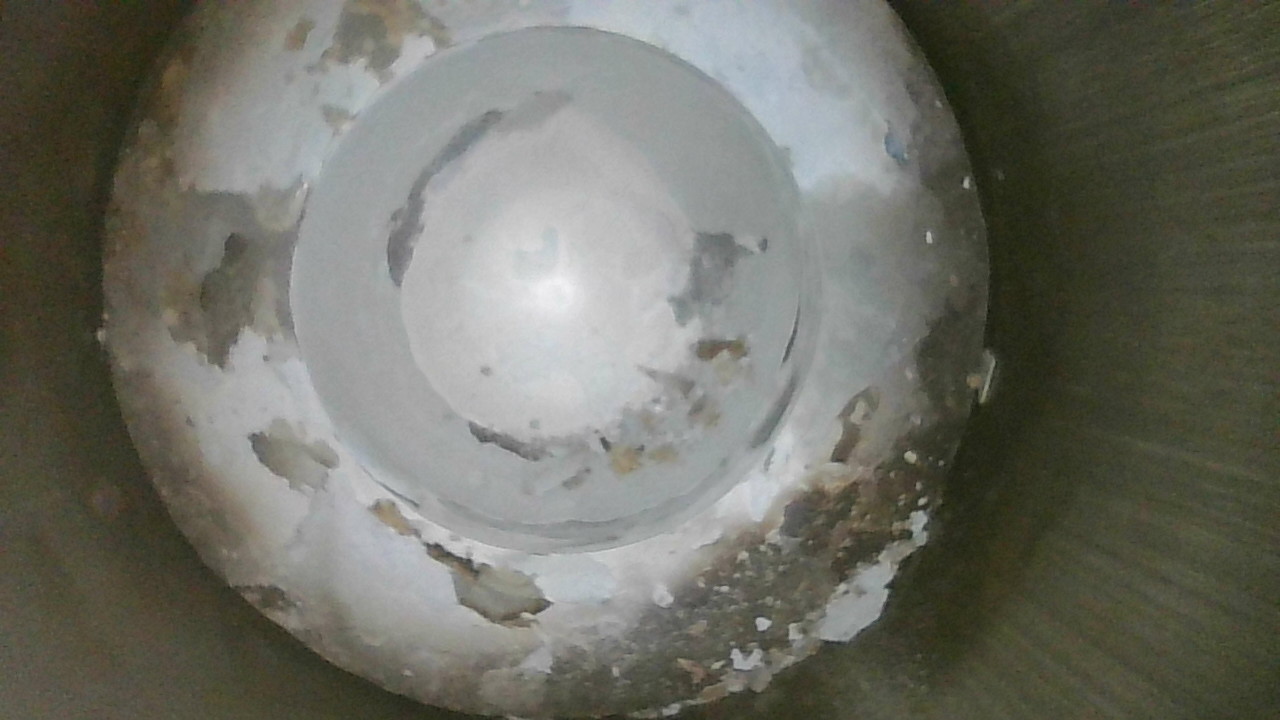

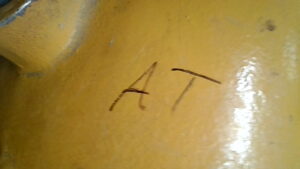

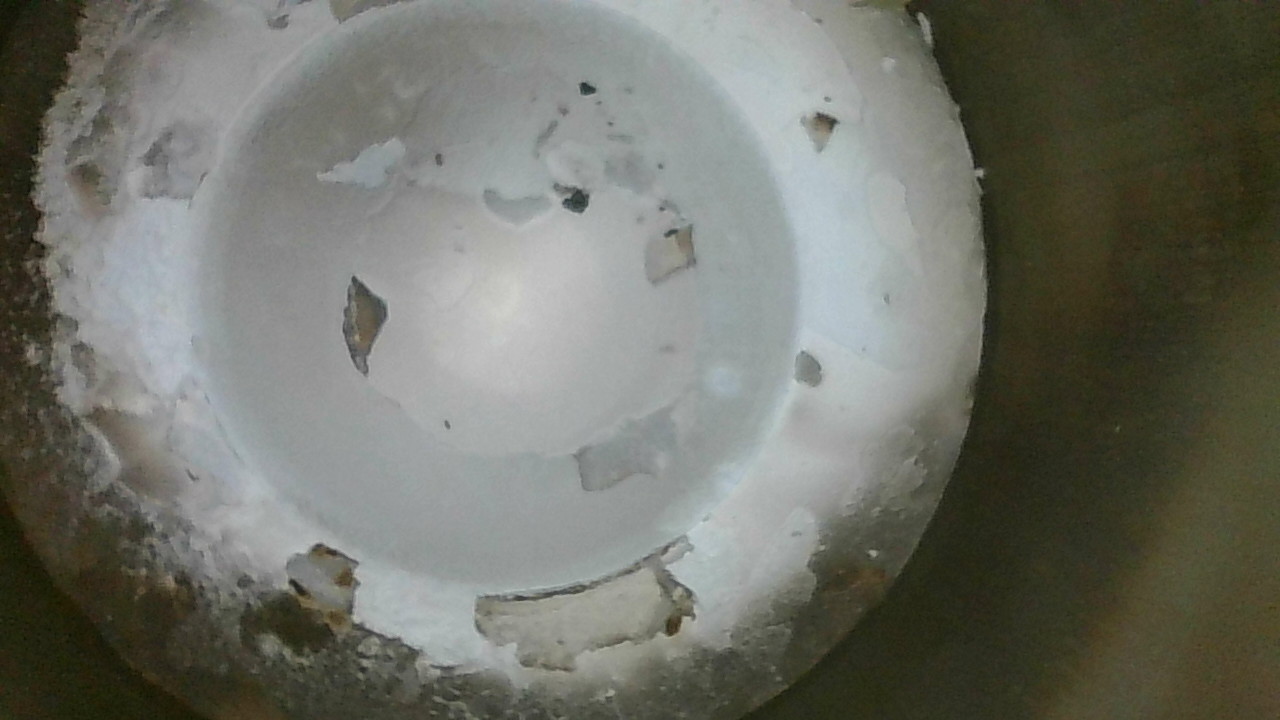

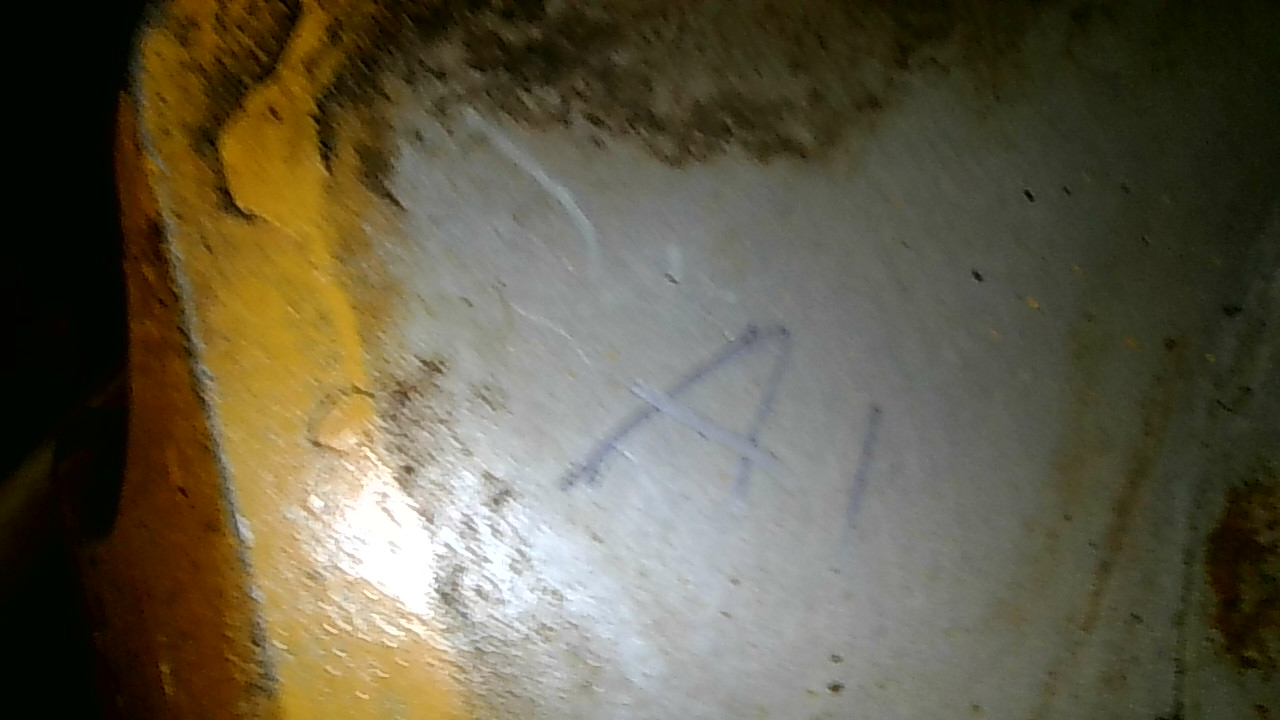

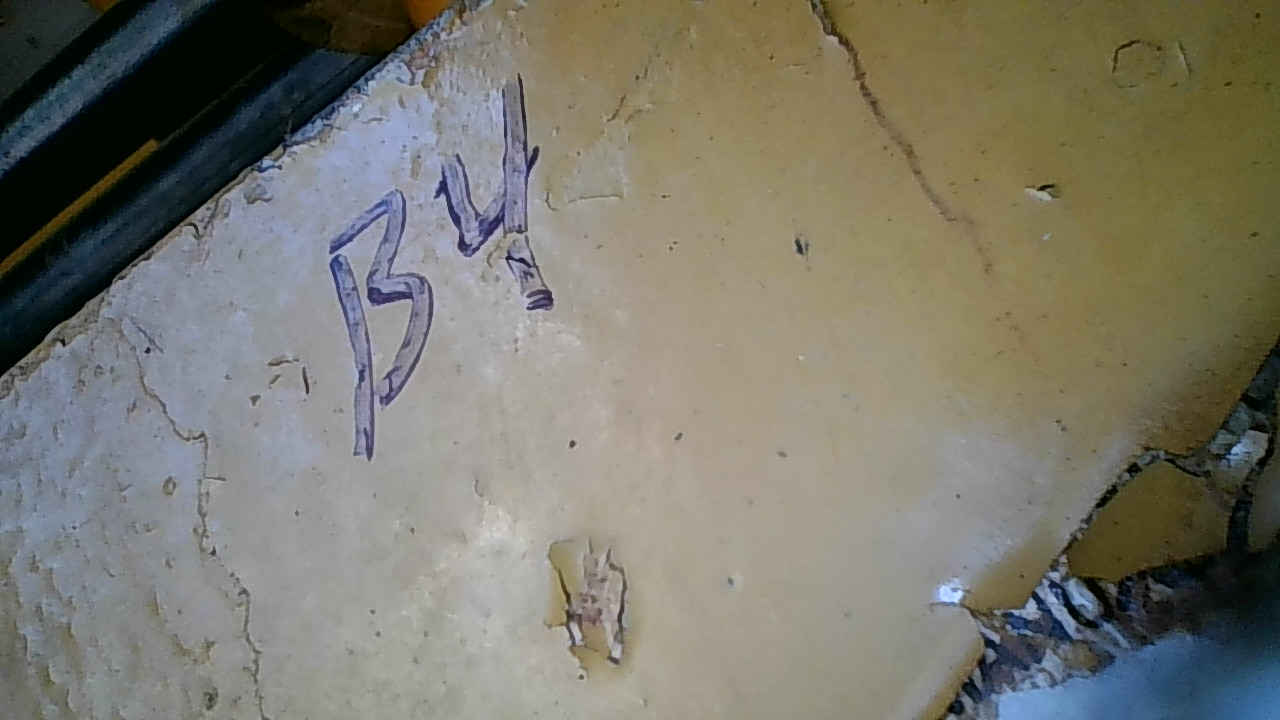

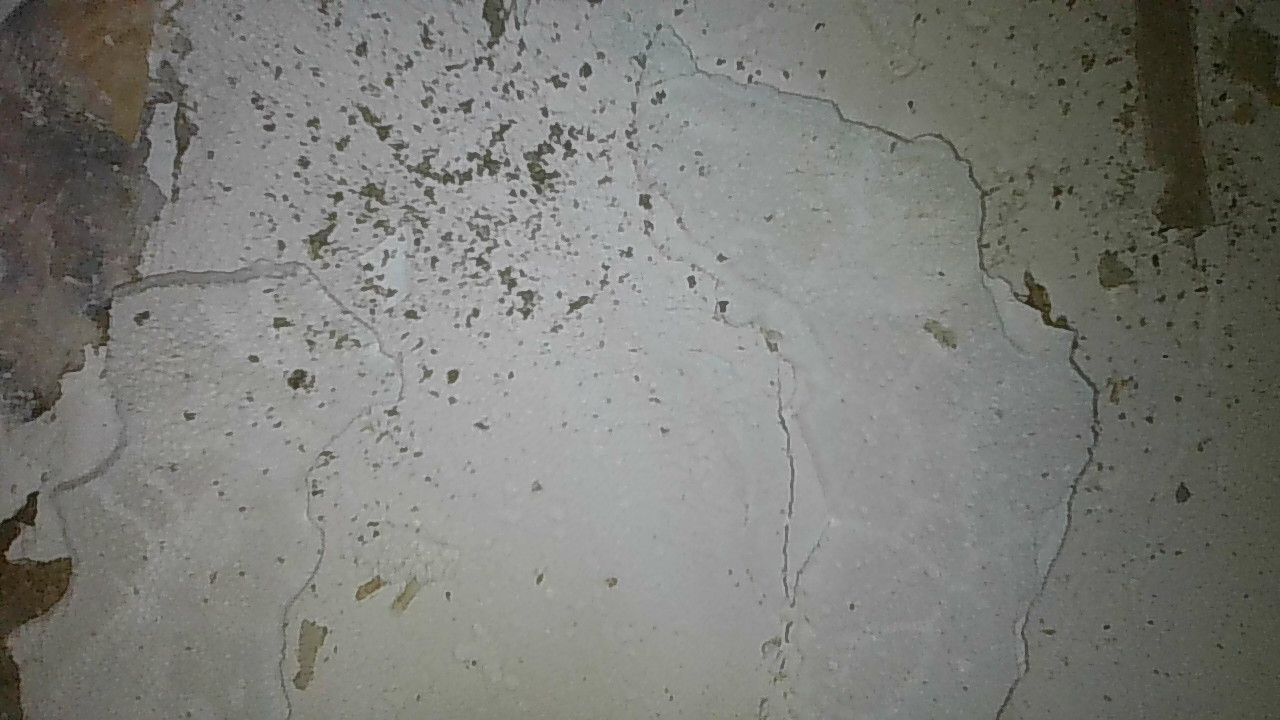

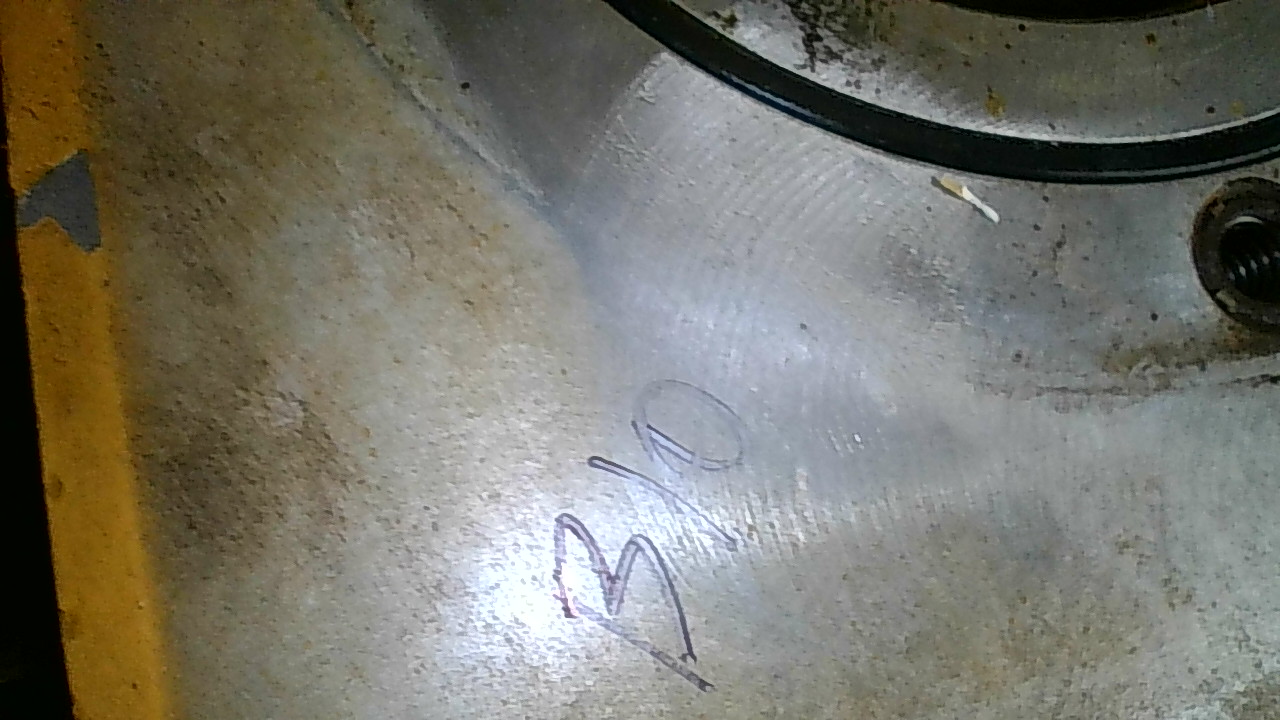

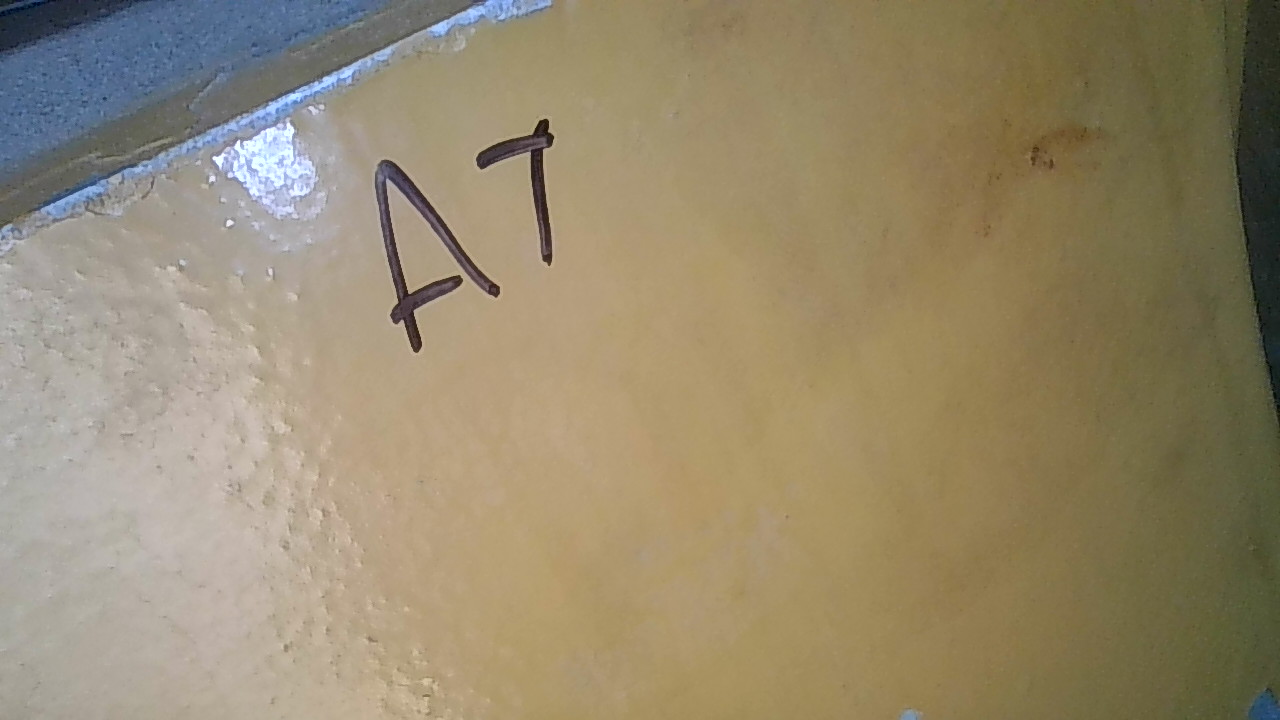

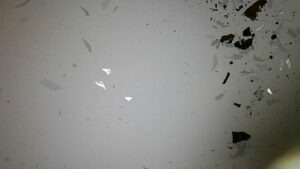

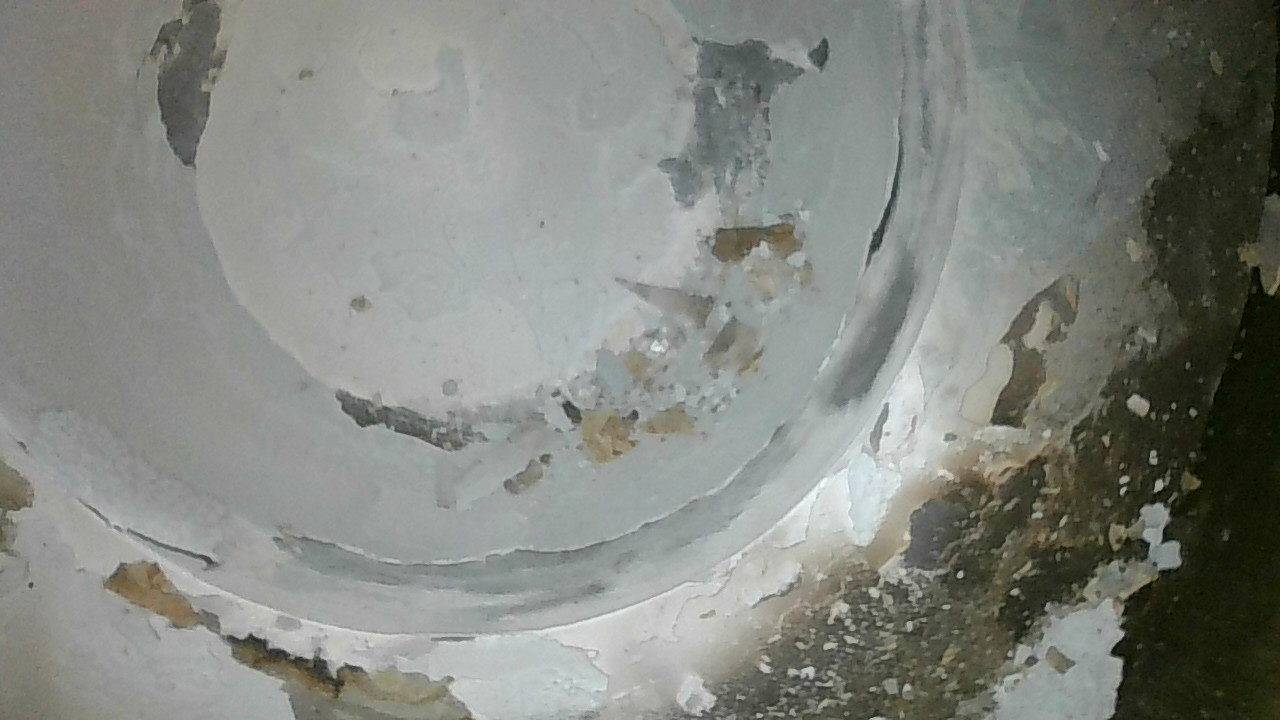

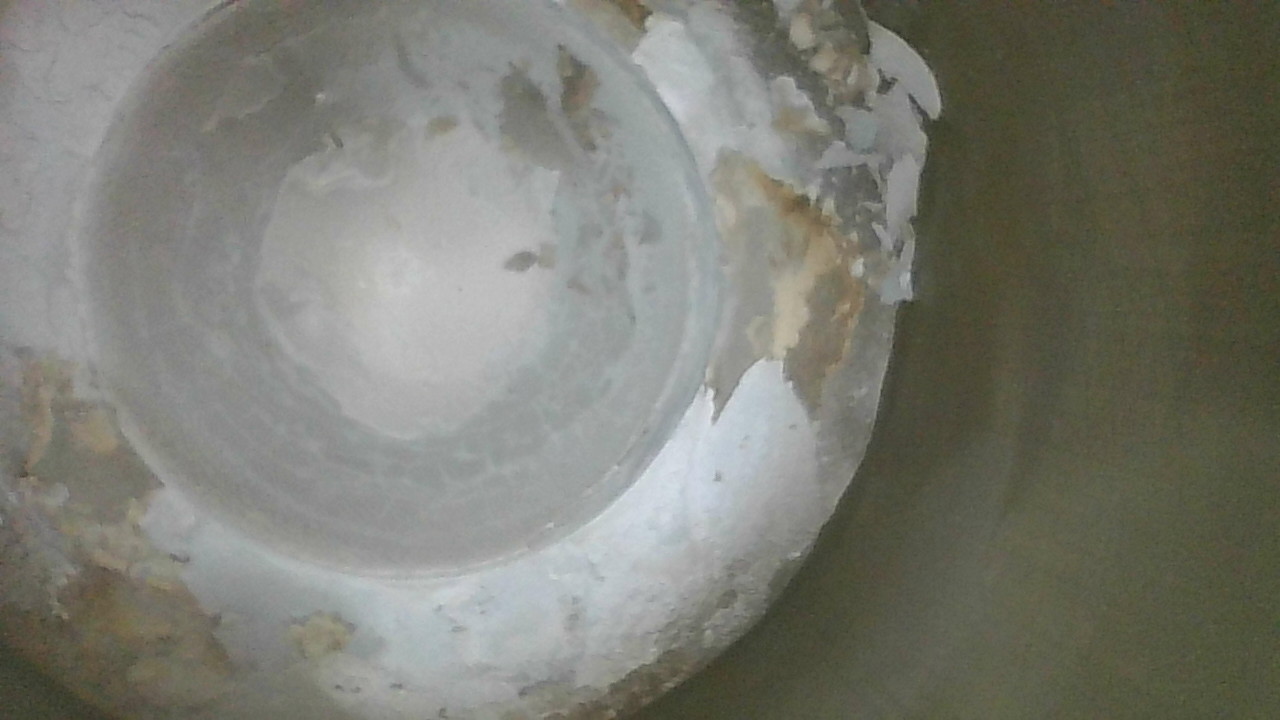

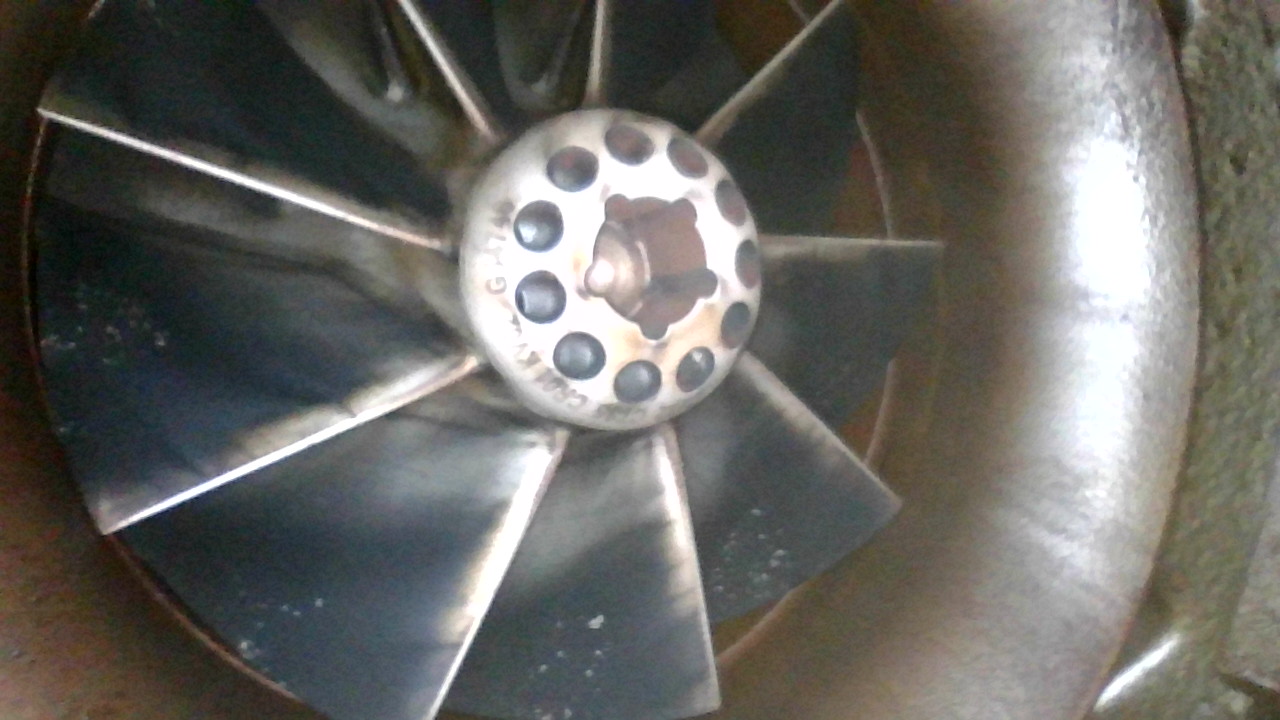

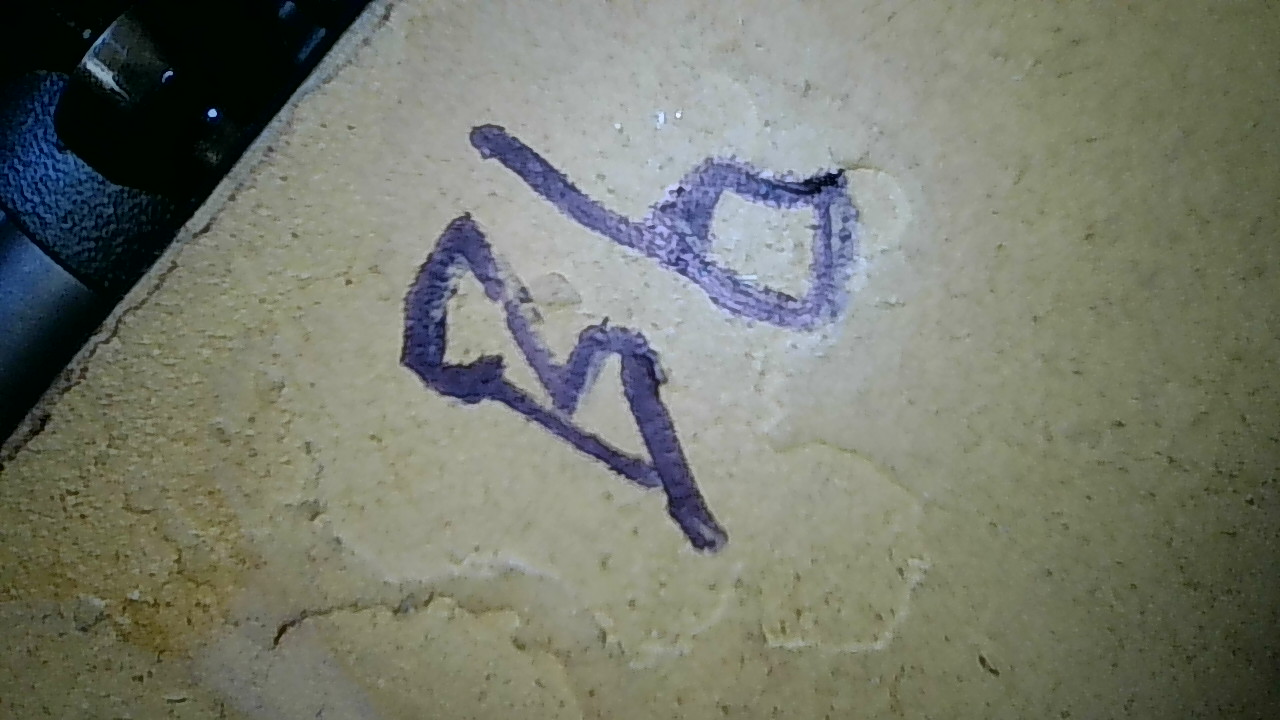

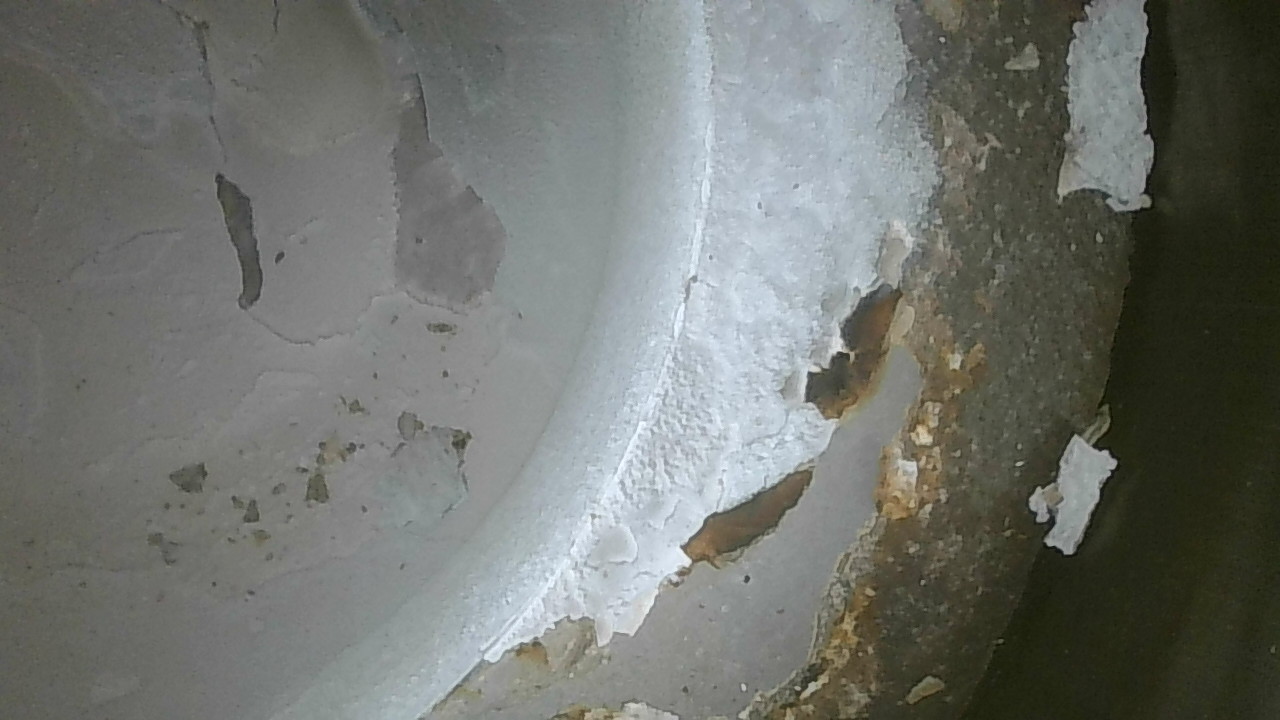

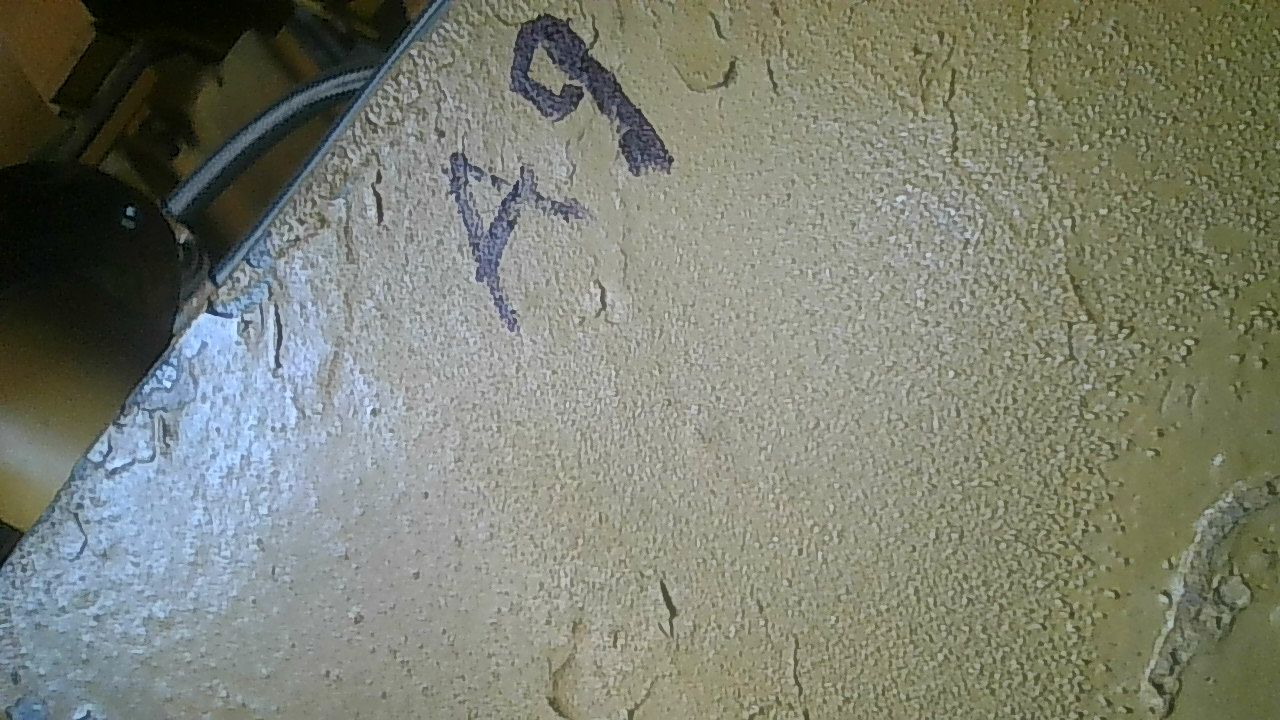

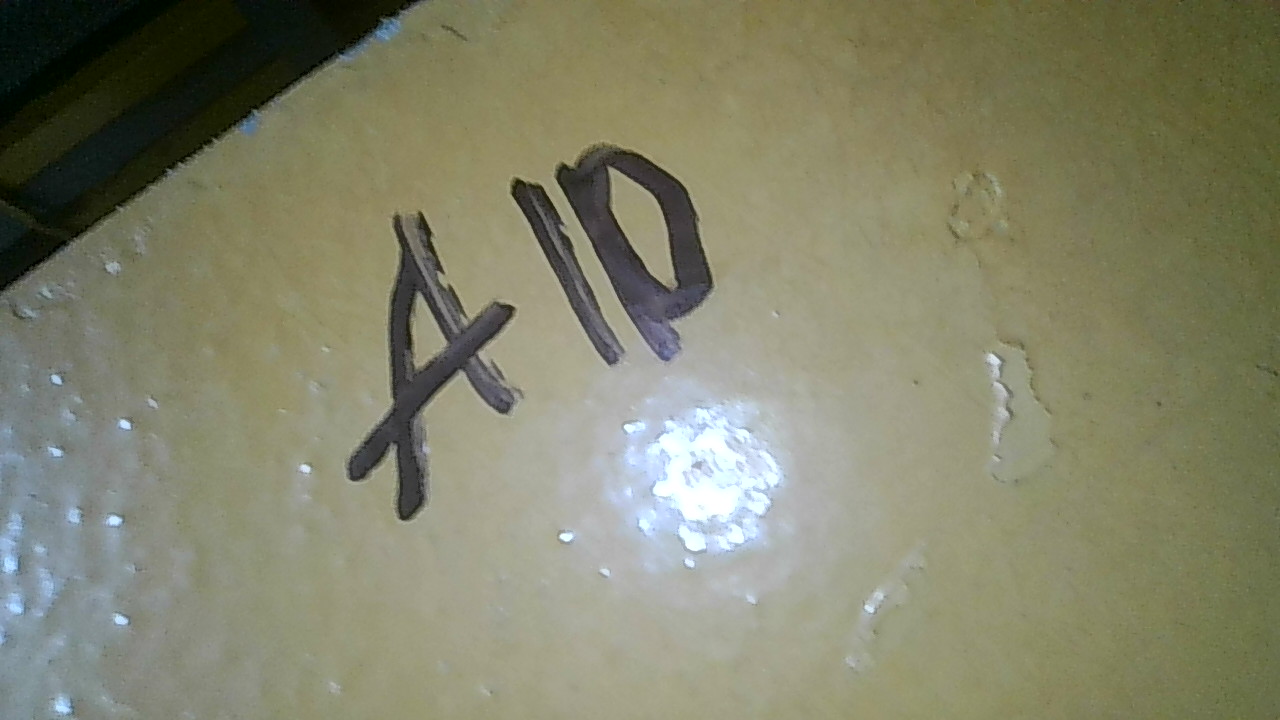

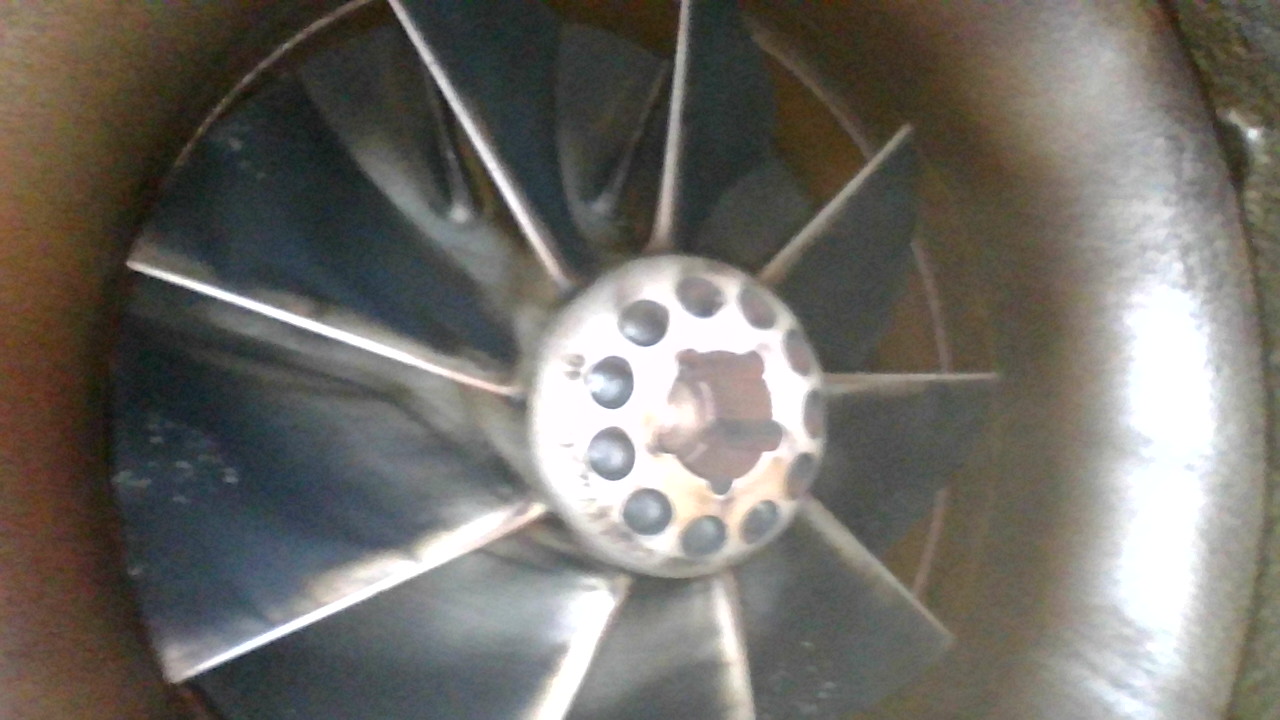

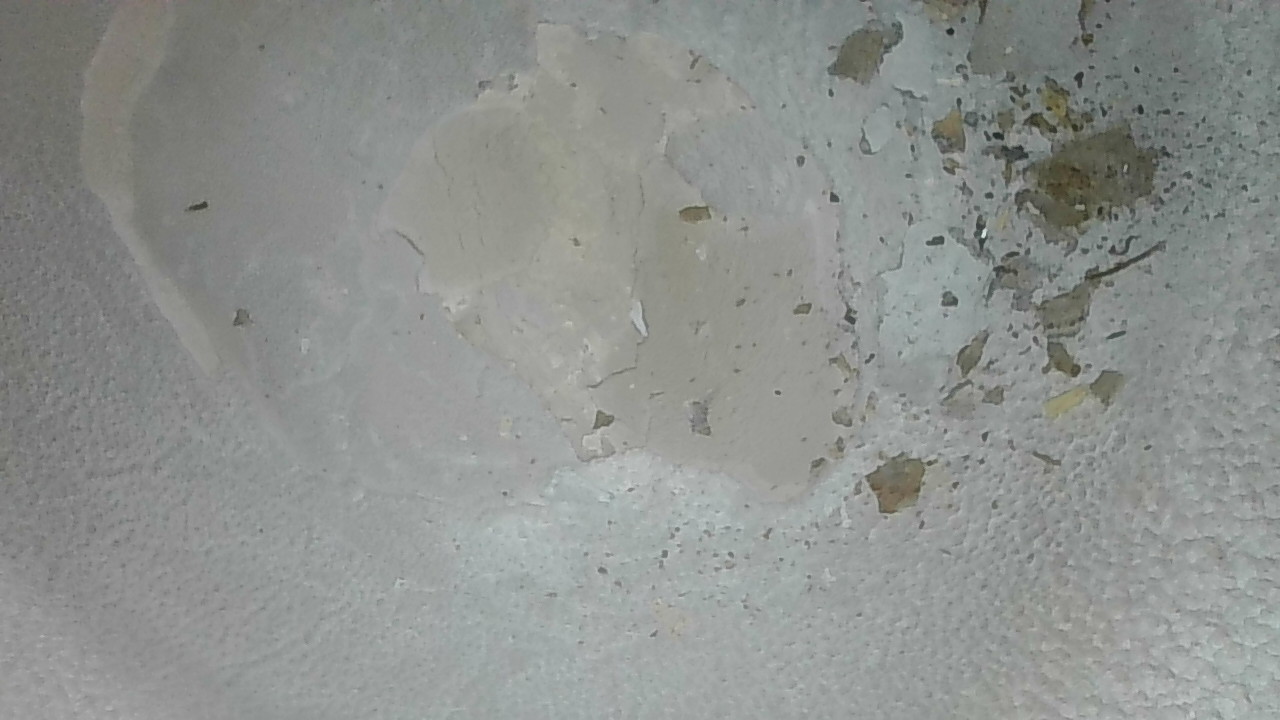

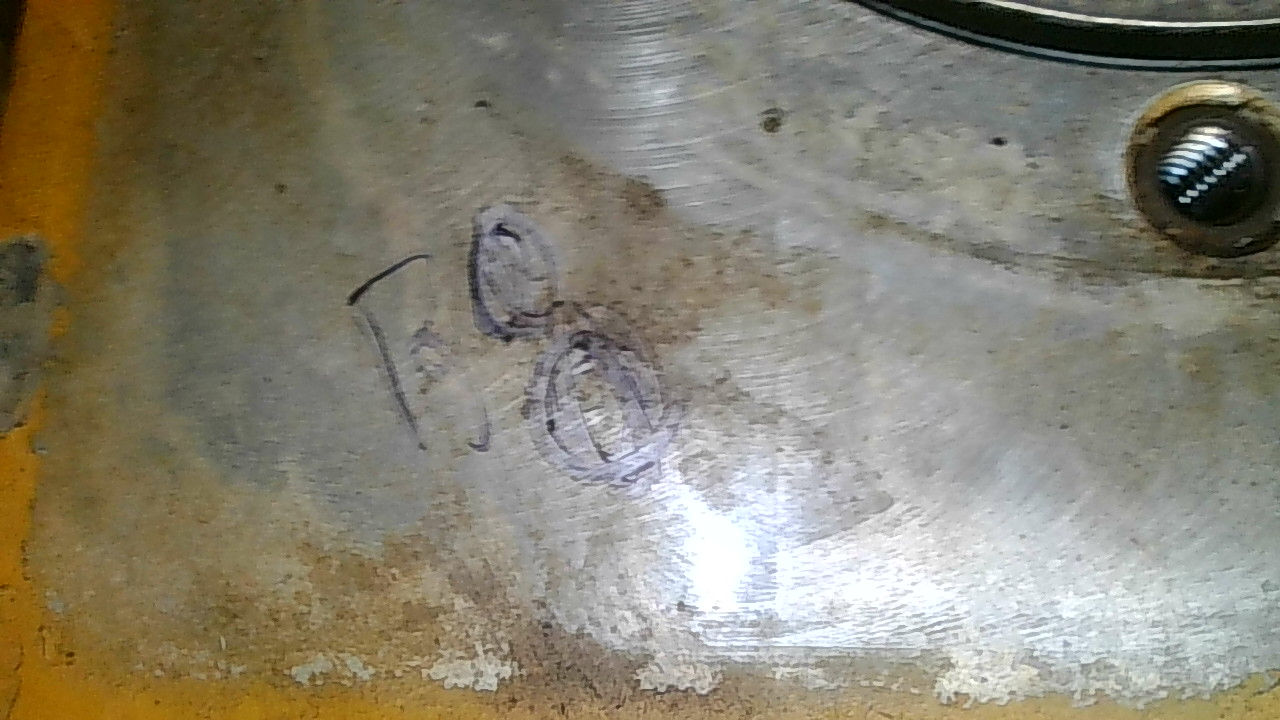

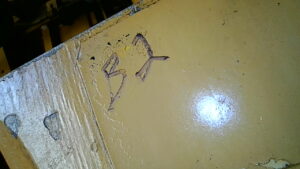

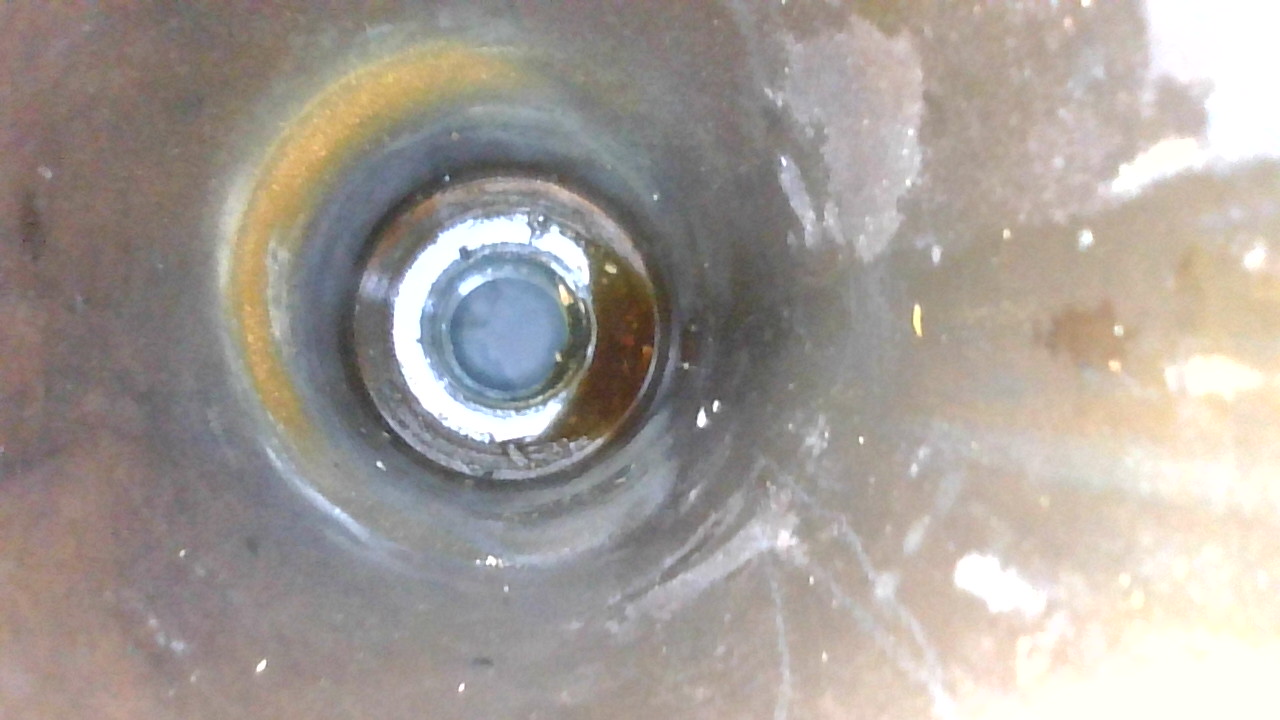

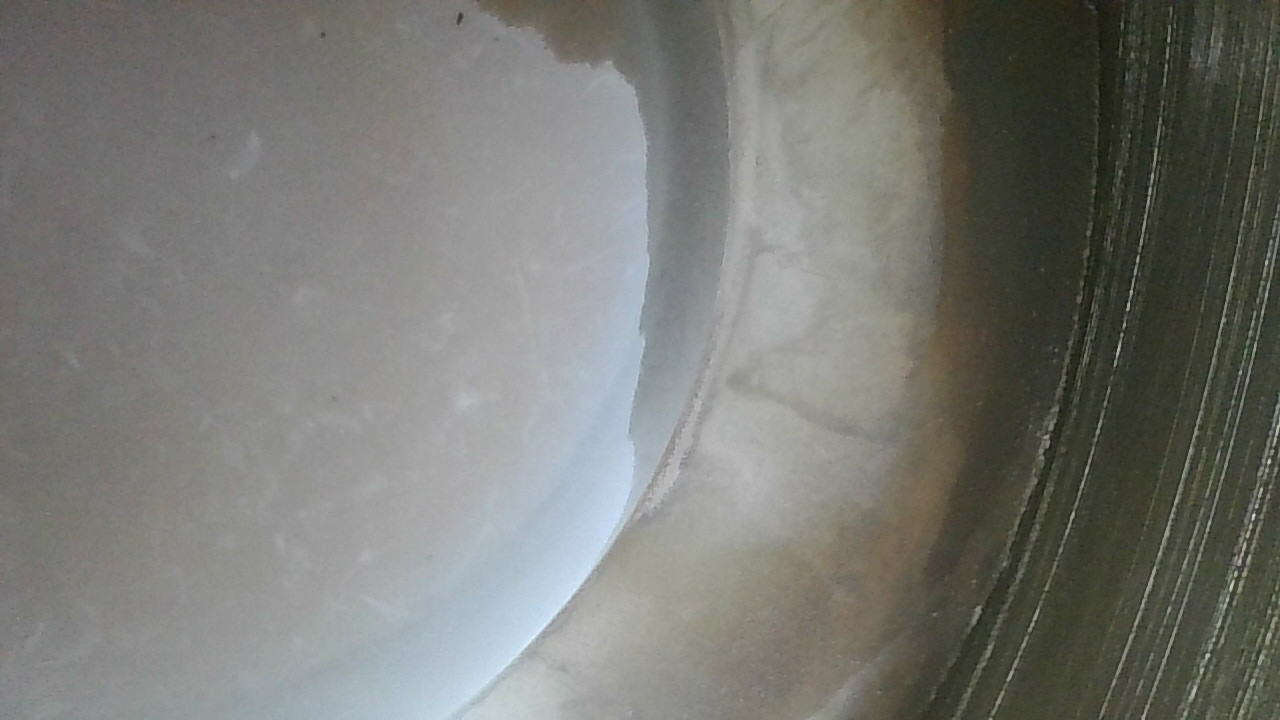

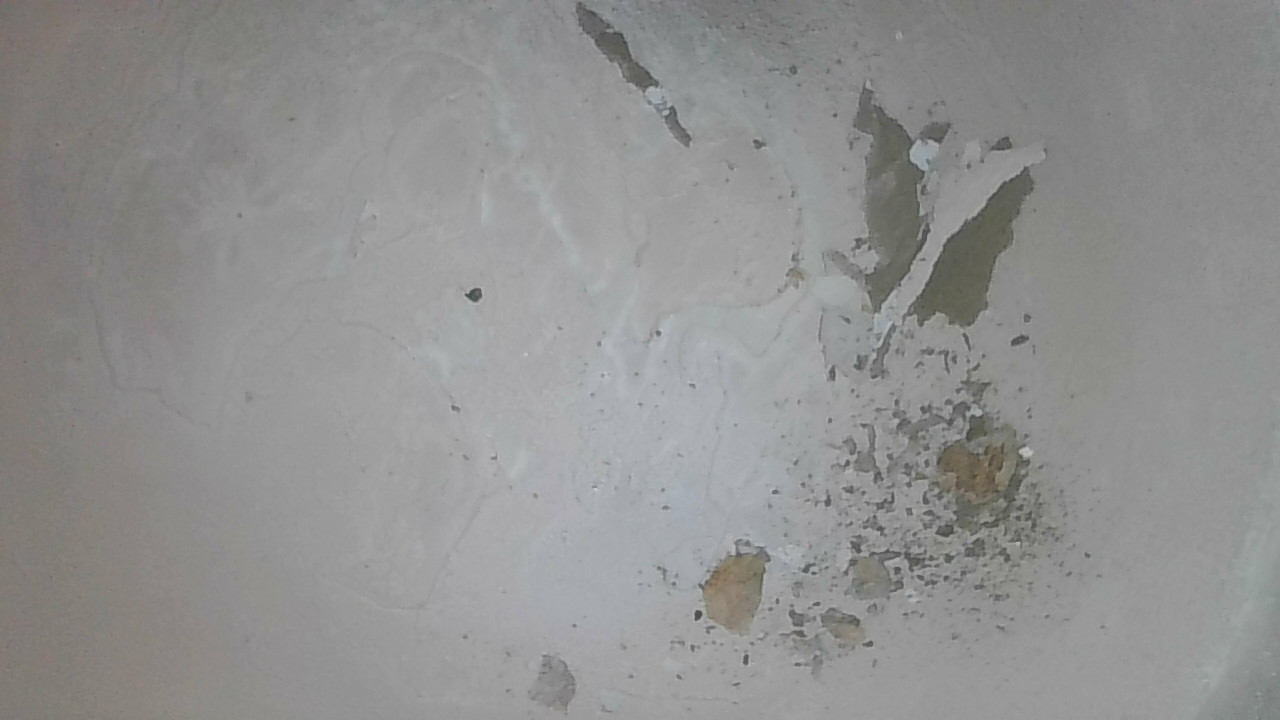

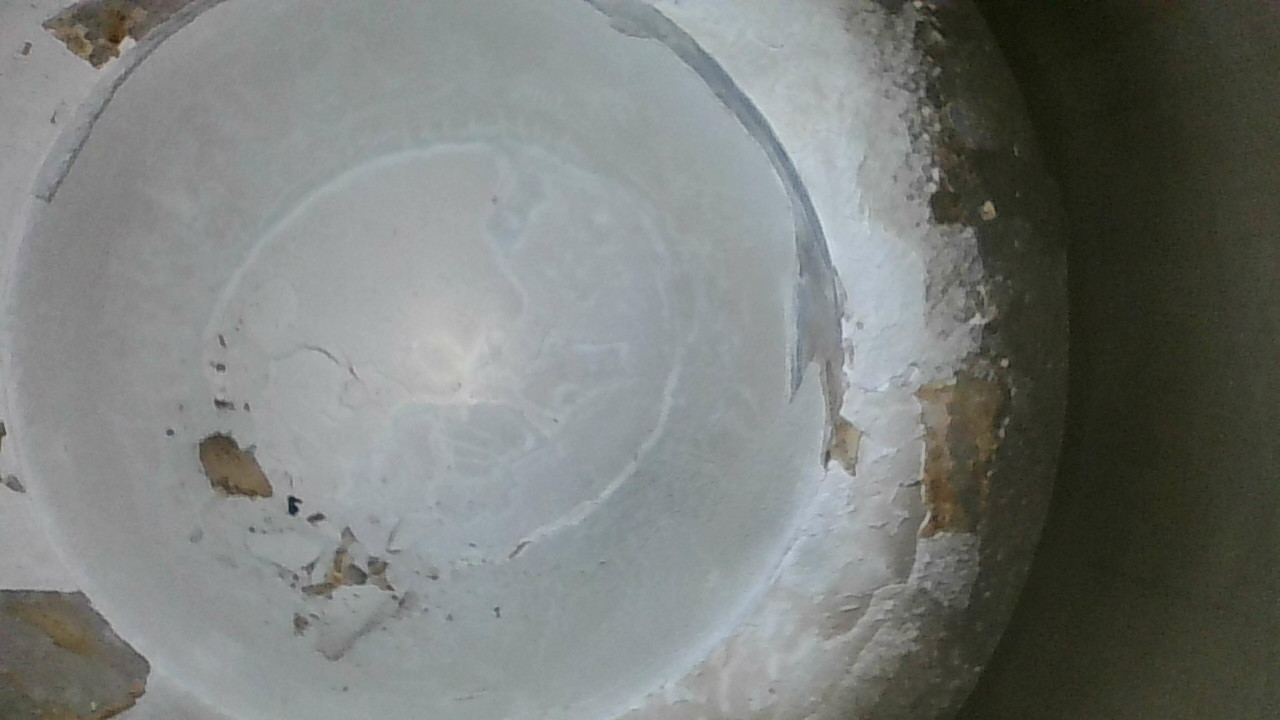

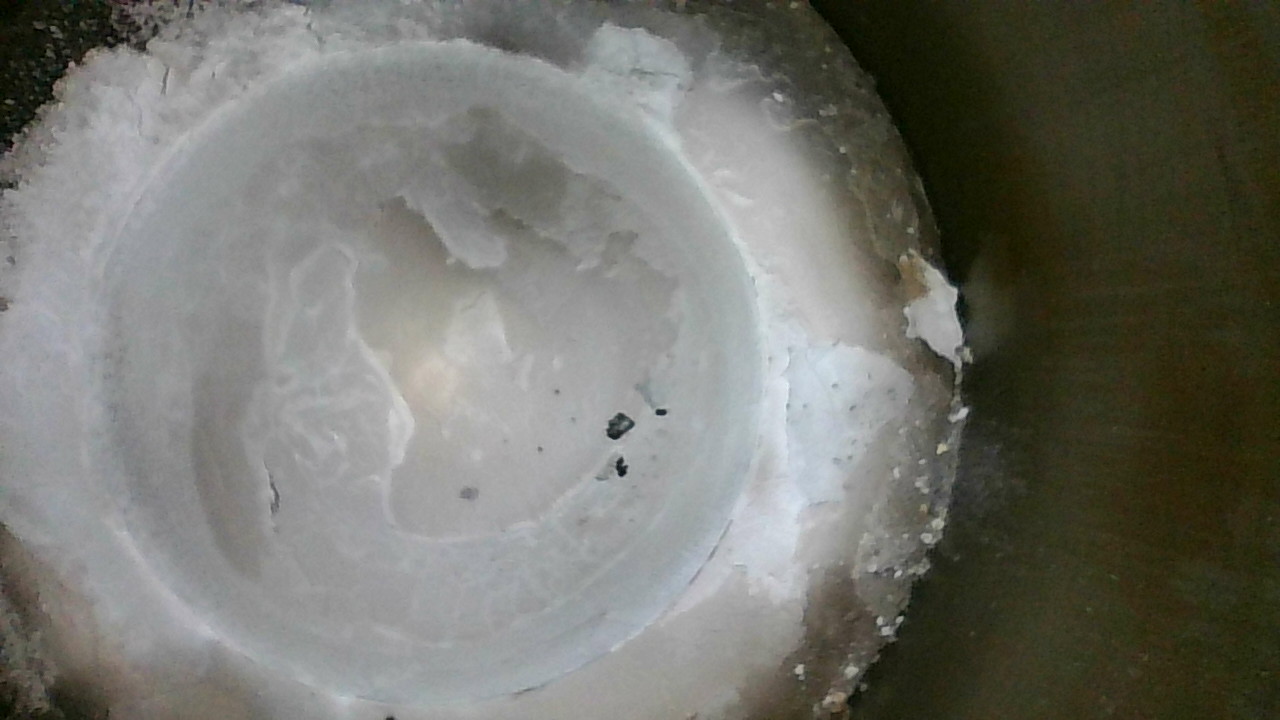

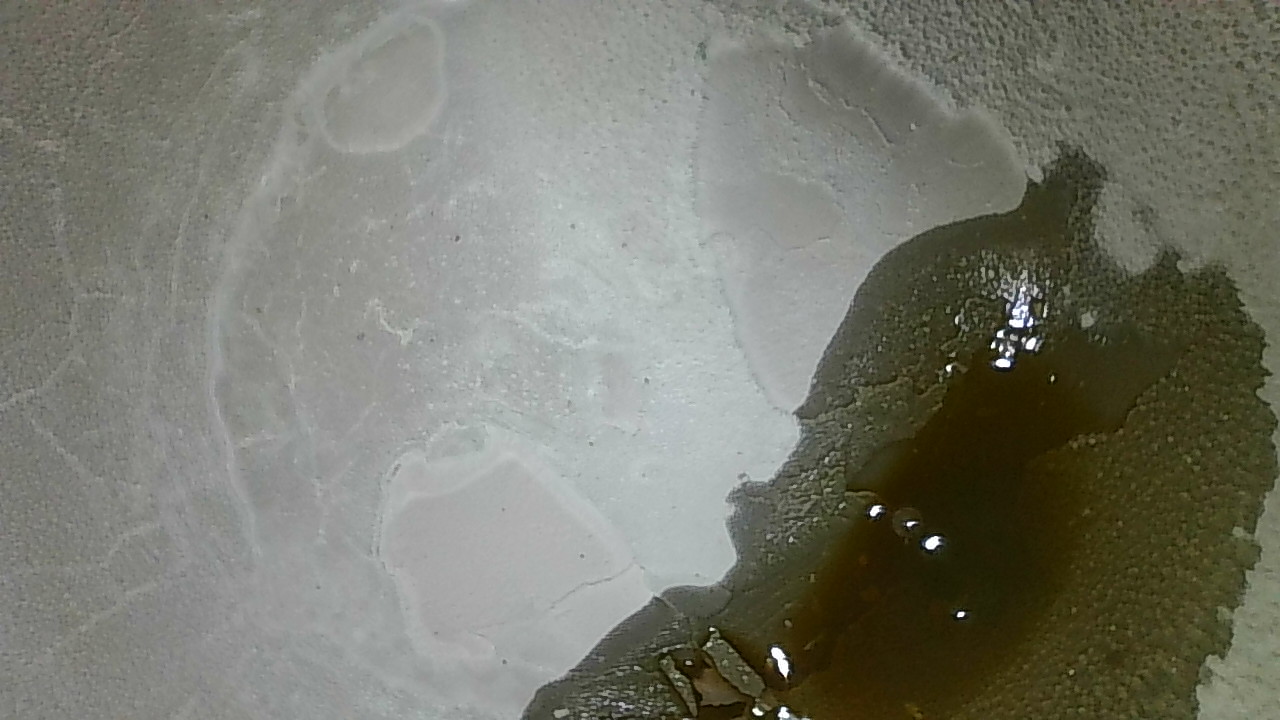

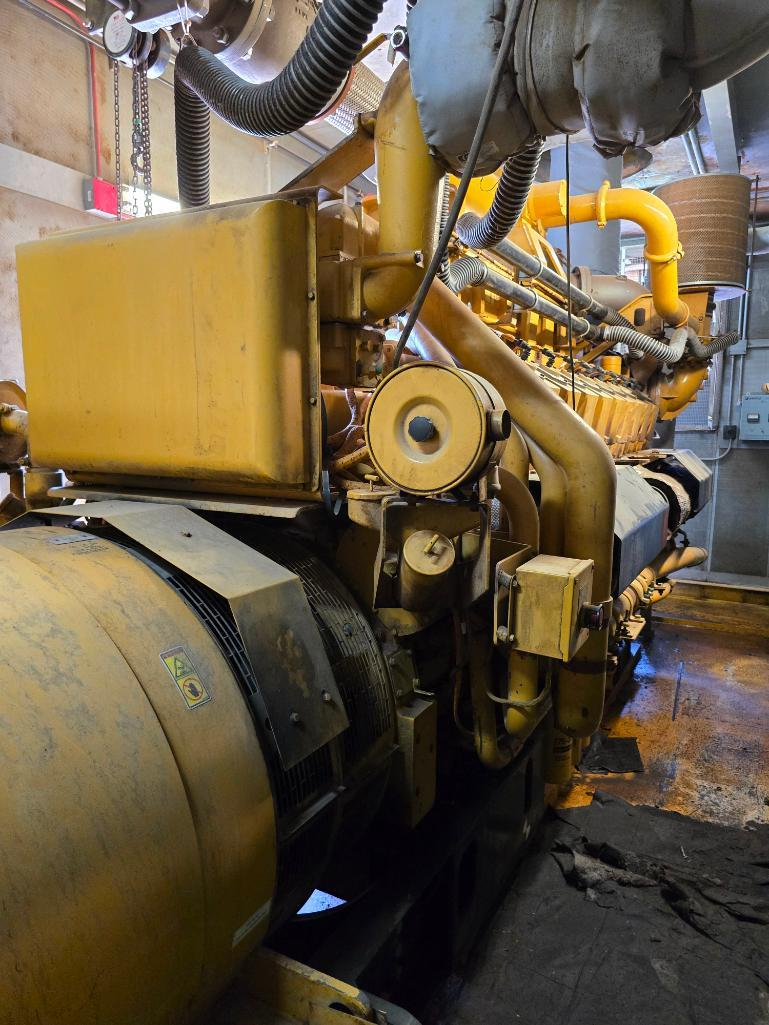

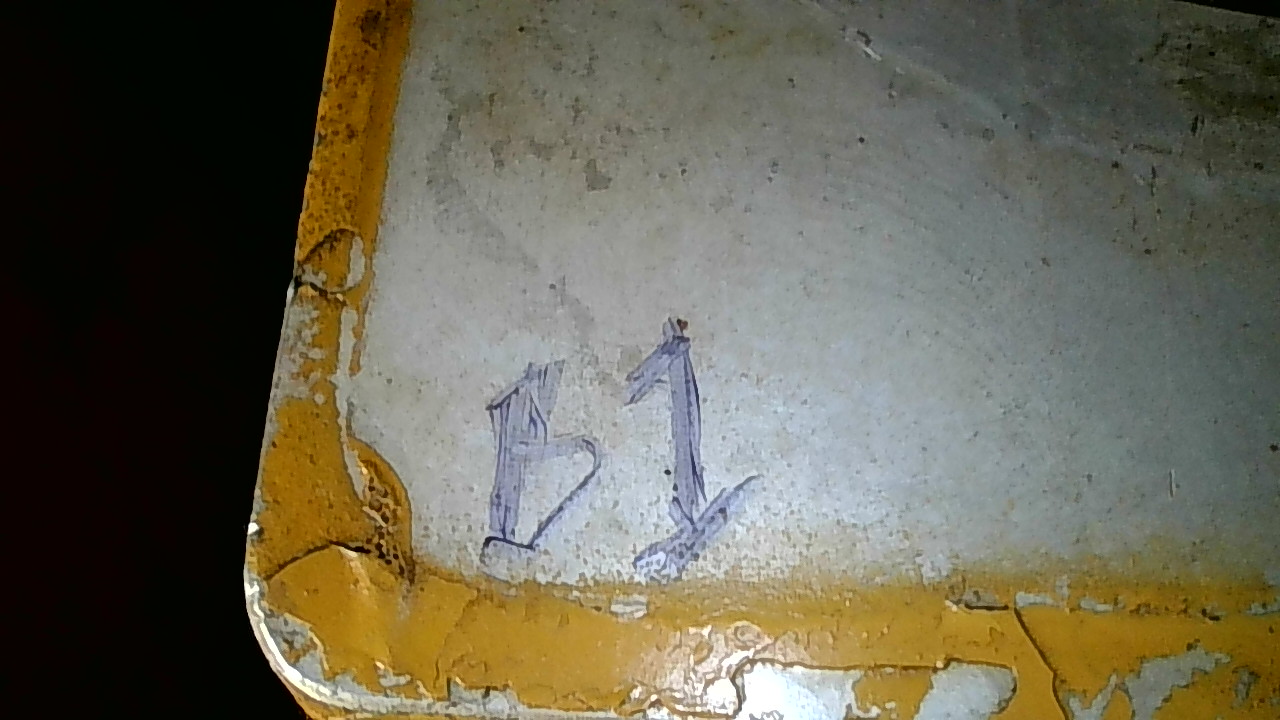

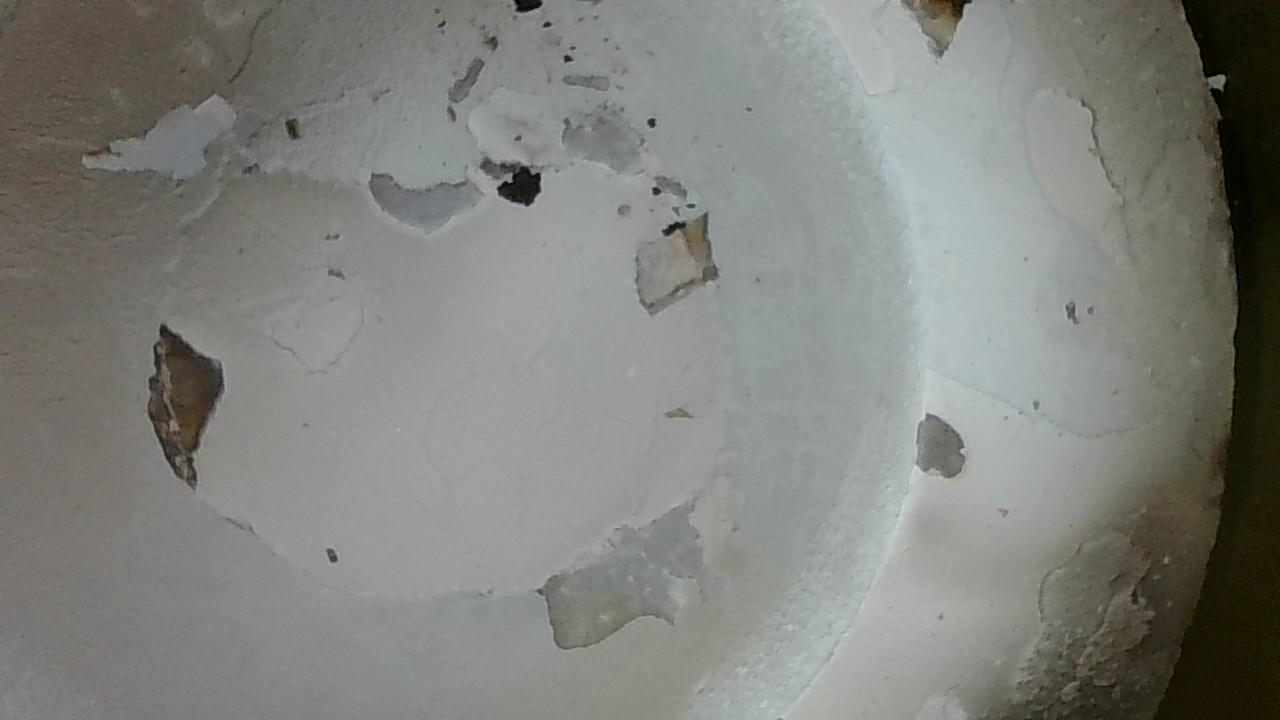

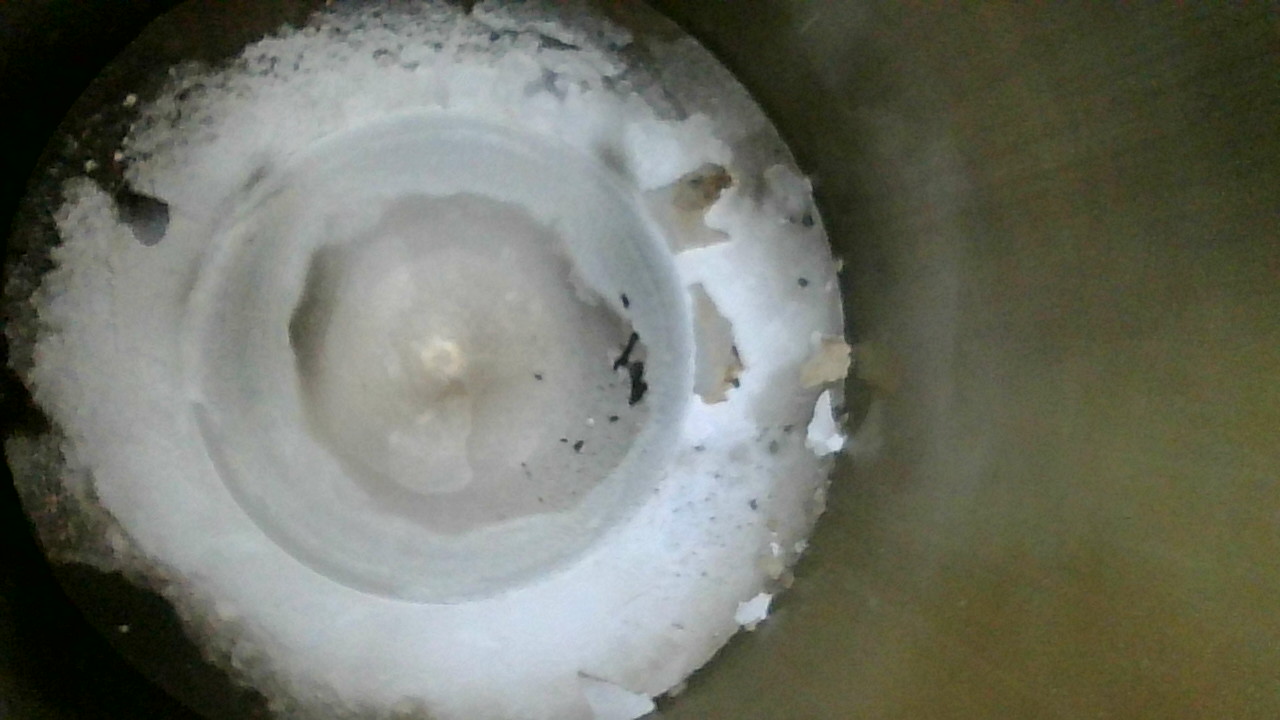

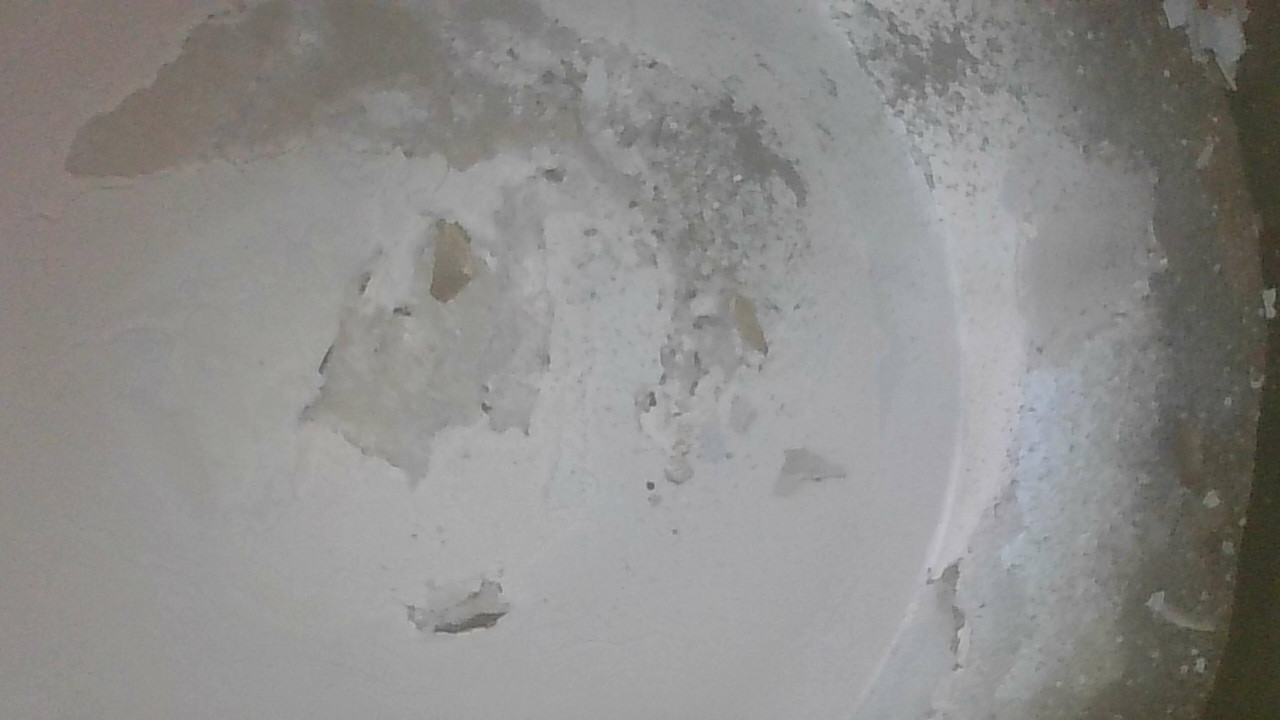

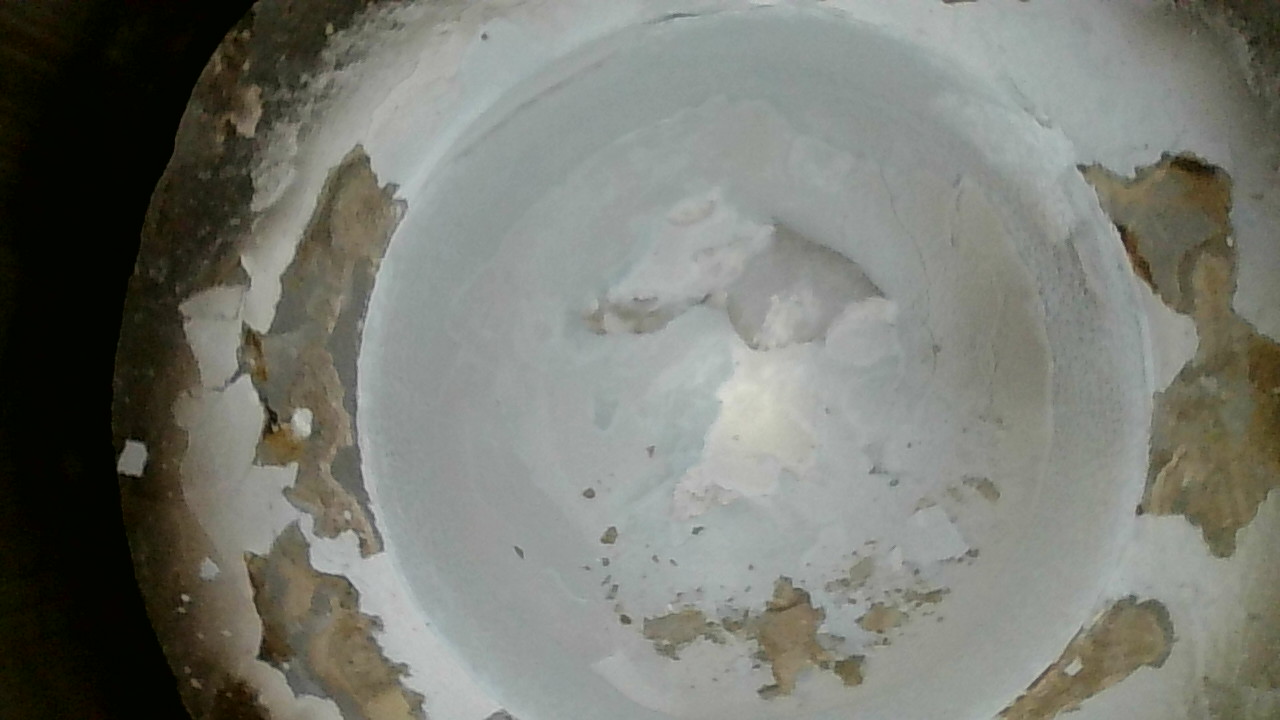

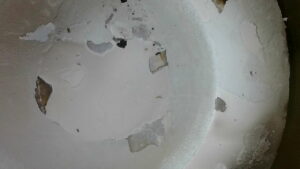

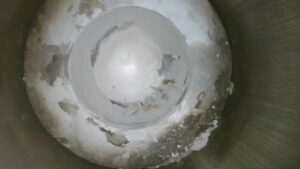

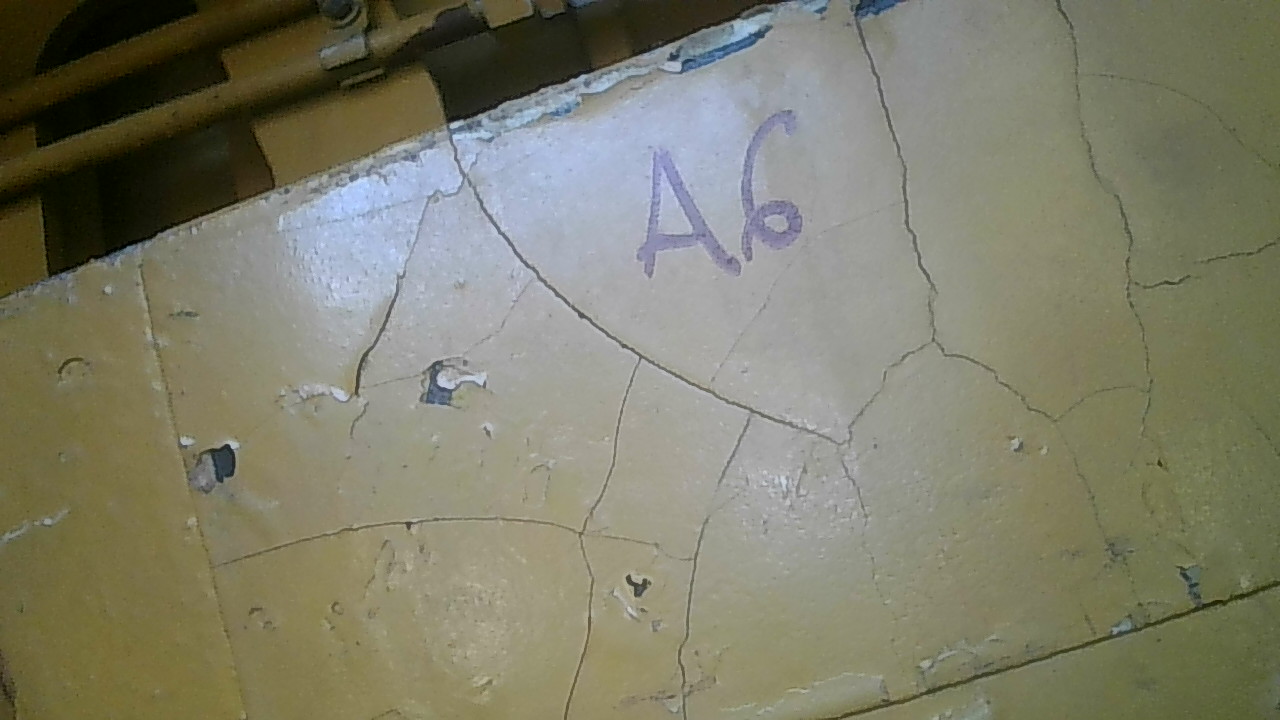

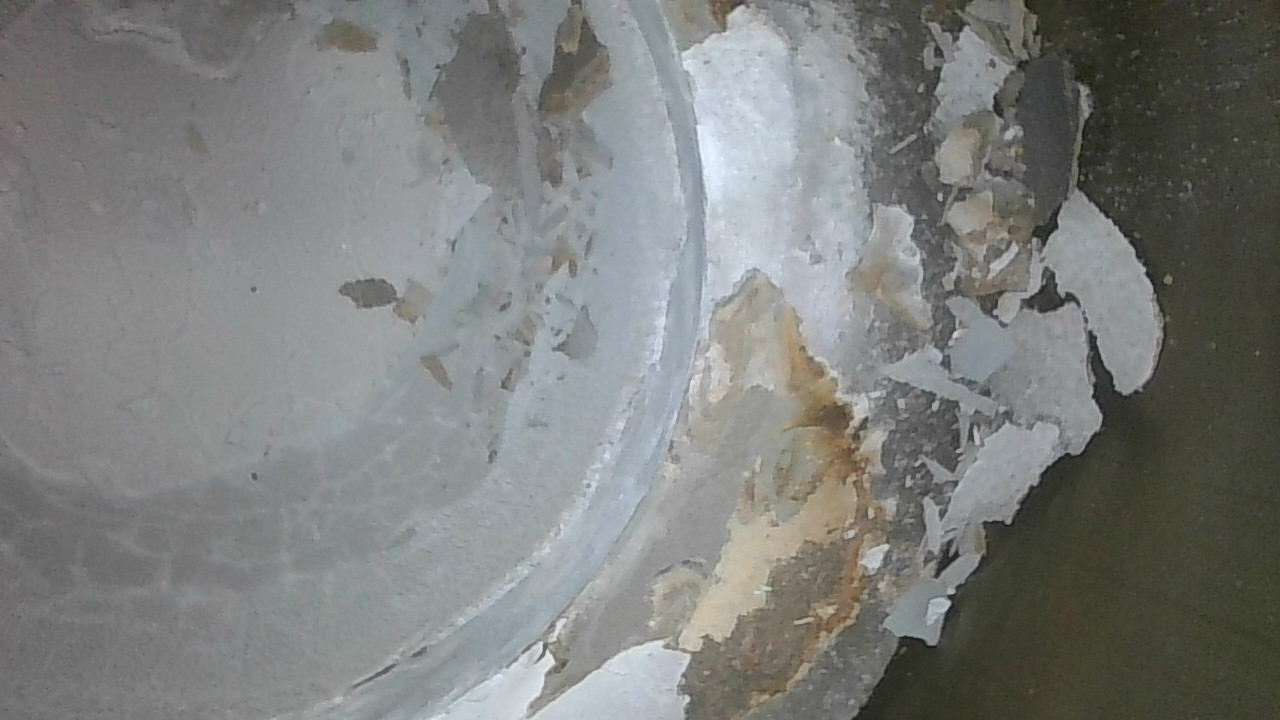

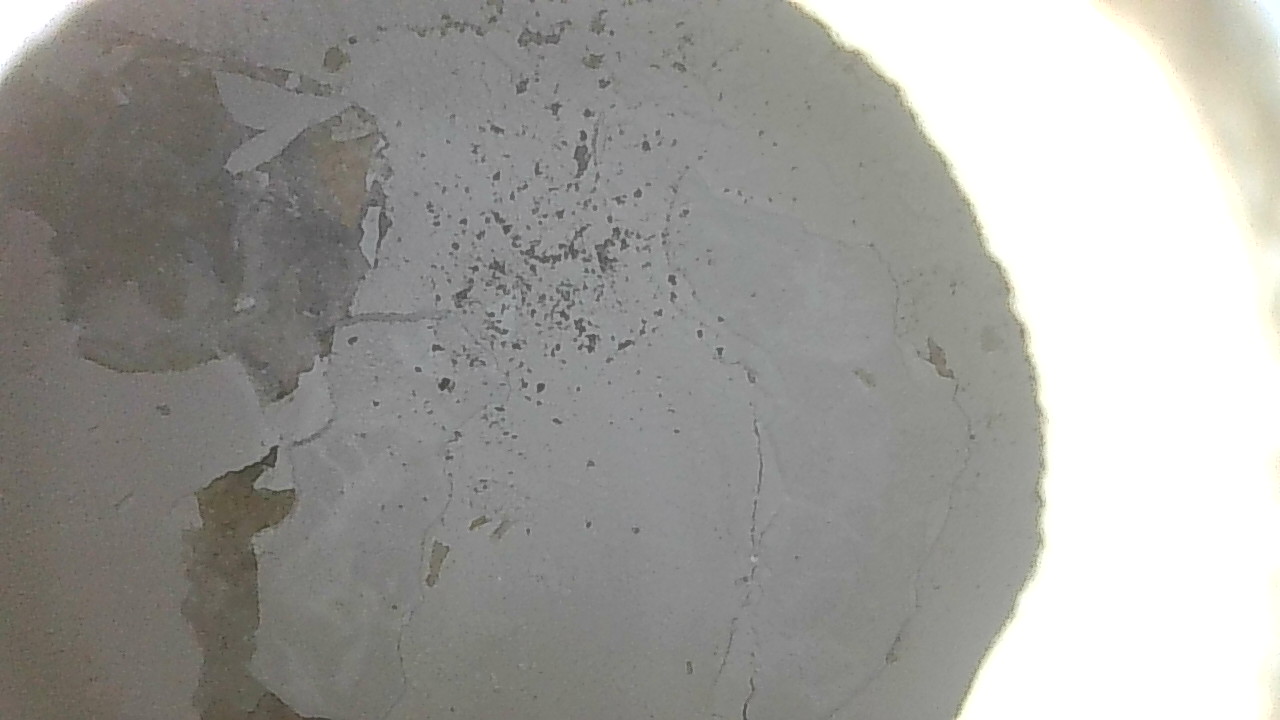

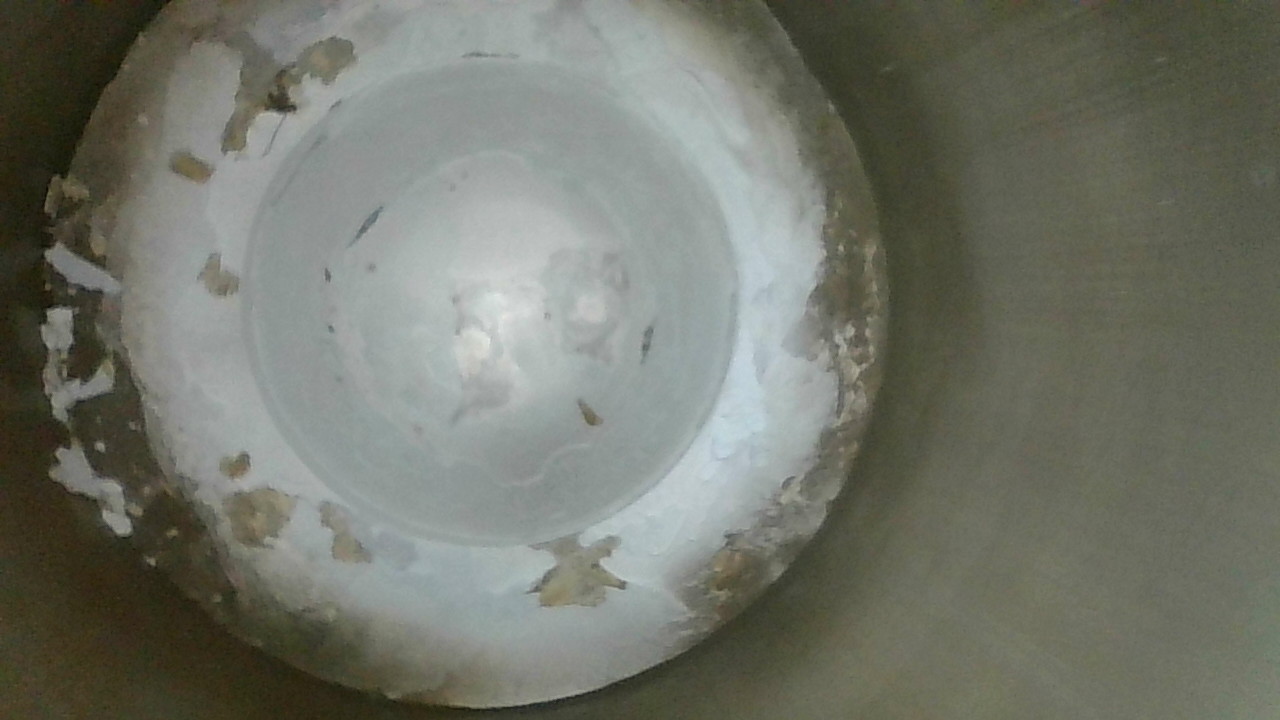

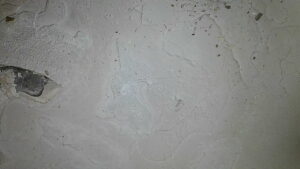

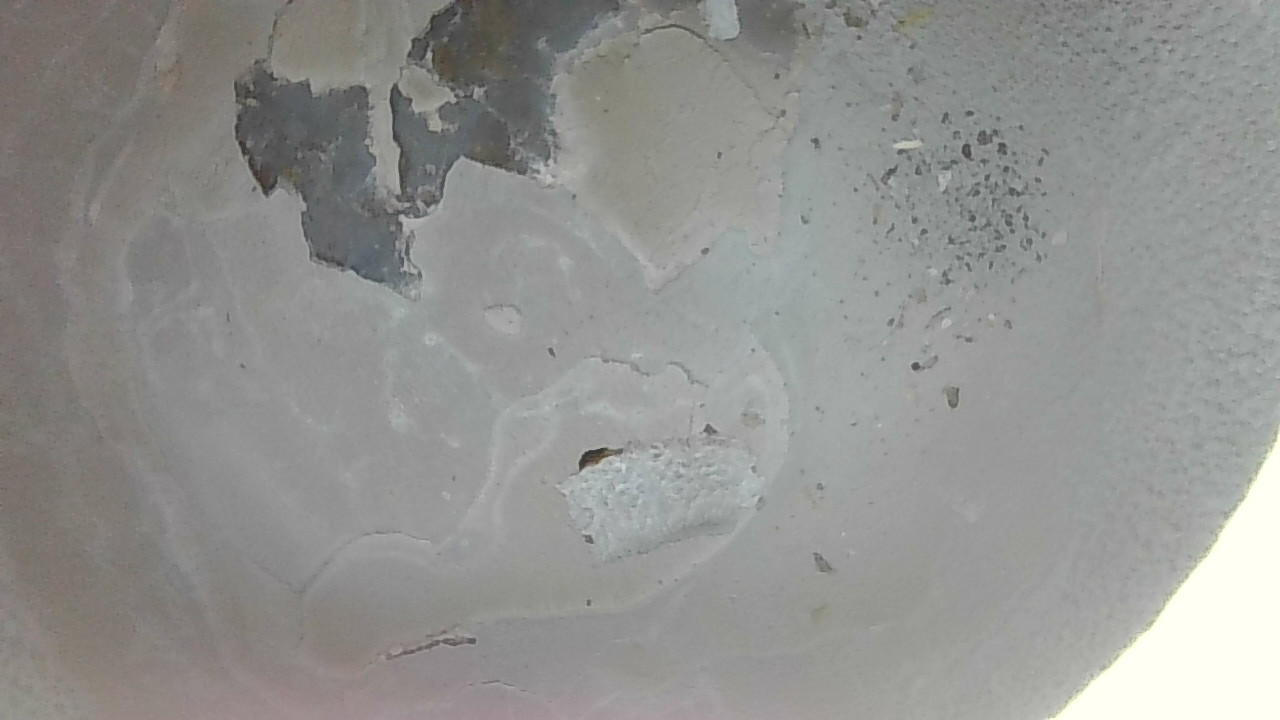

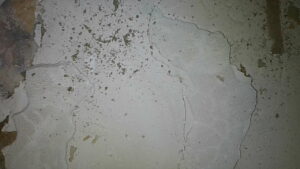

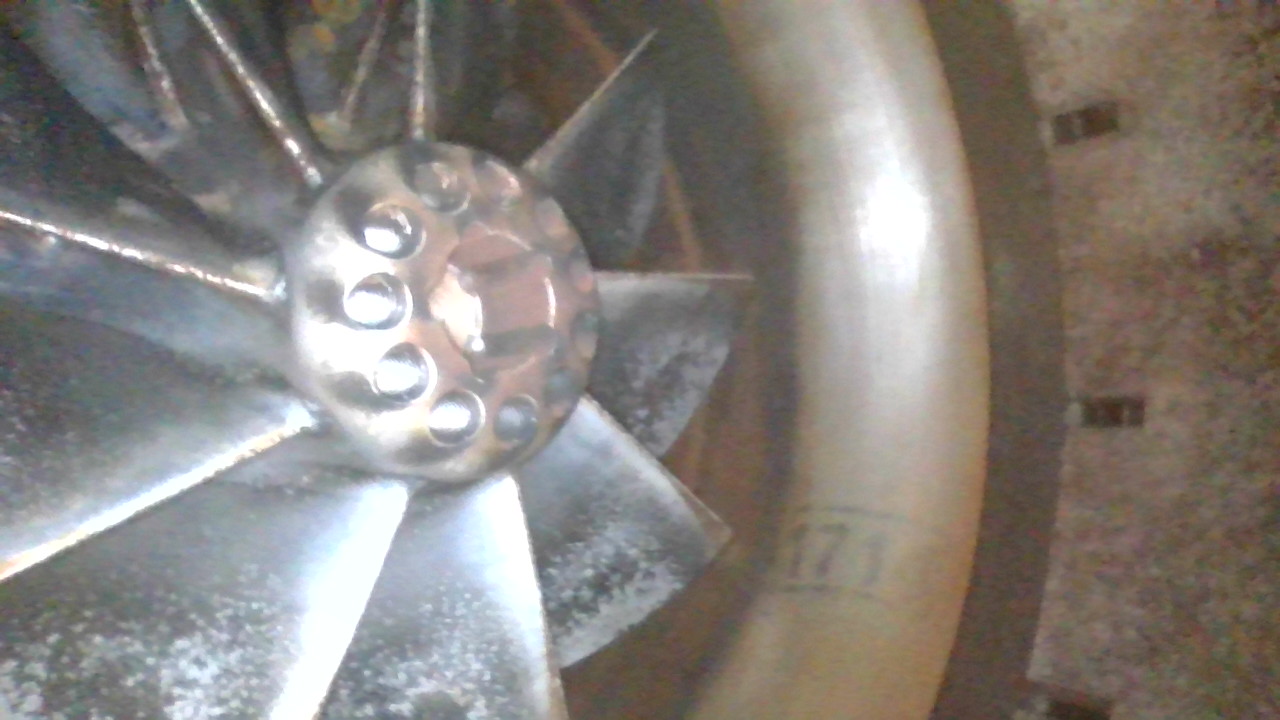

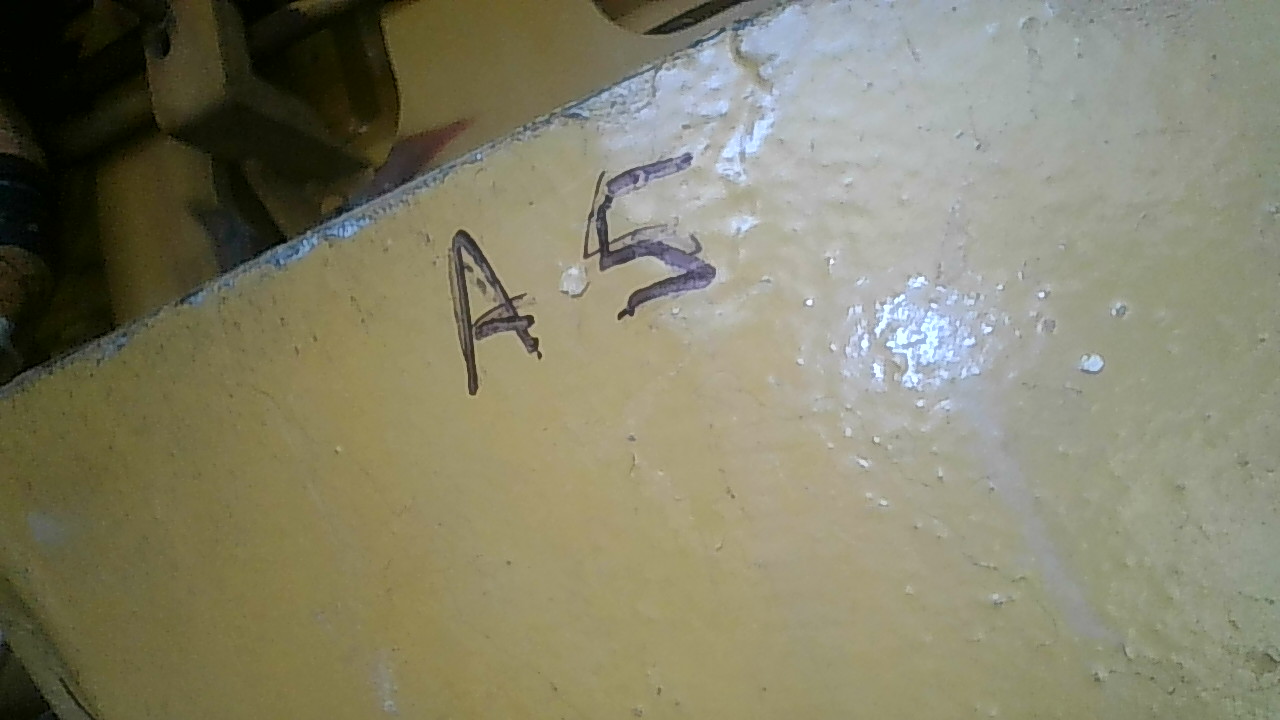

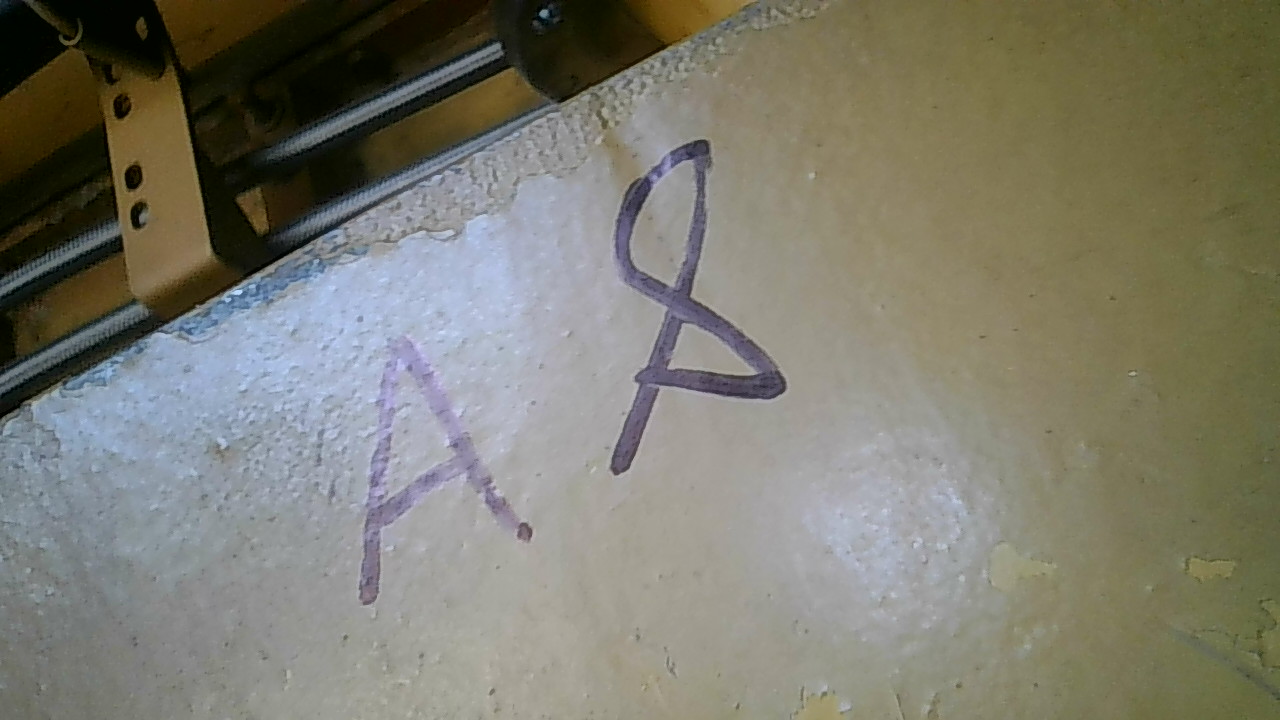

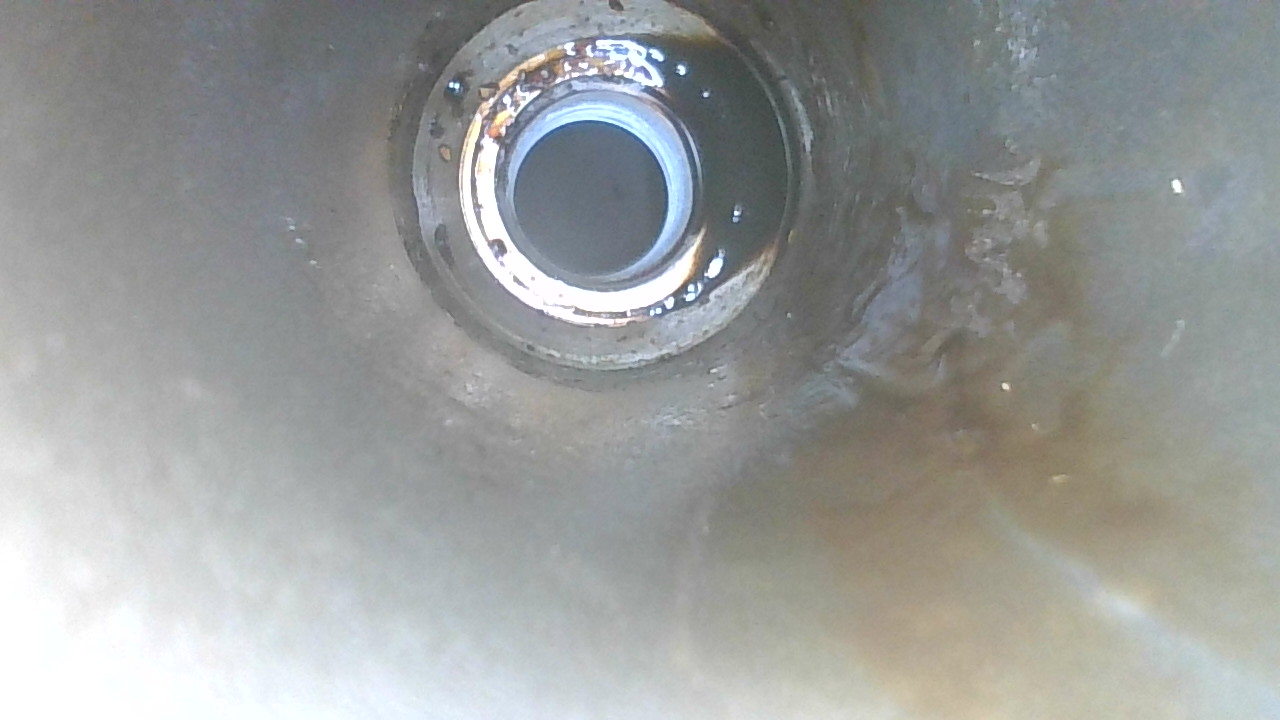

Photos assigned to this engine in the supplied 249-page CAT deck. Unassigned photos appear only on the four-unit package. Photos are historical evidence, not an operating test.

Quantity basis

Individual asset; exact included scope subject to agreement.

Availability last checked

2026-09-22

Equipment overview

Additional listing details

Listing Reference

EE-CAT-ELG-01

Last Overhaul Year

2018

Power-generation specifications

Voltage

4,160 V, 3-phase, Wye / series, 6-wire

Phase

Three Phase

Rated Speed

1,200 RPM

Recorded hours*

64,513* — historical reading; confirm meter date, lifetime basis and overhaul history.

Duty Rating

Continuous

Engine Model

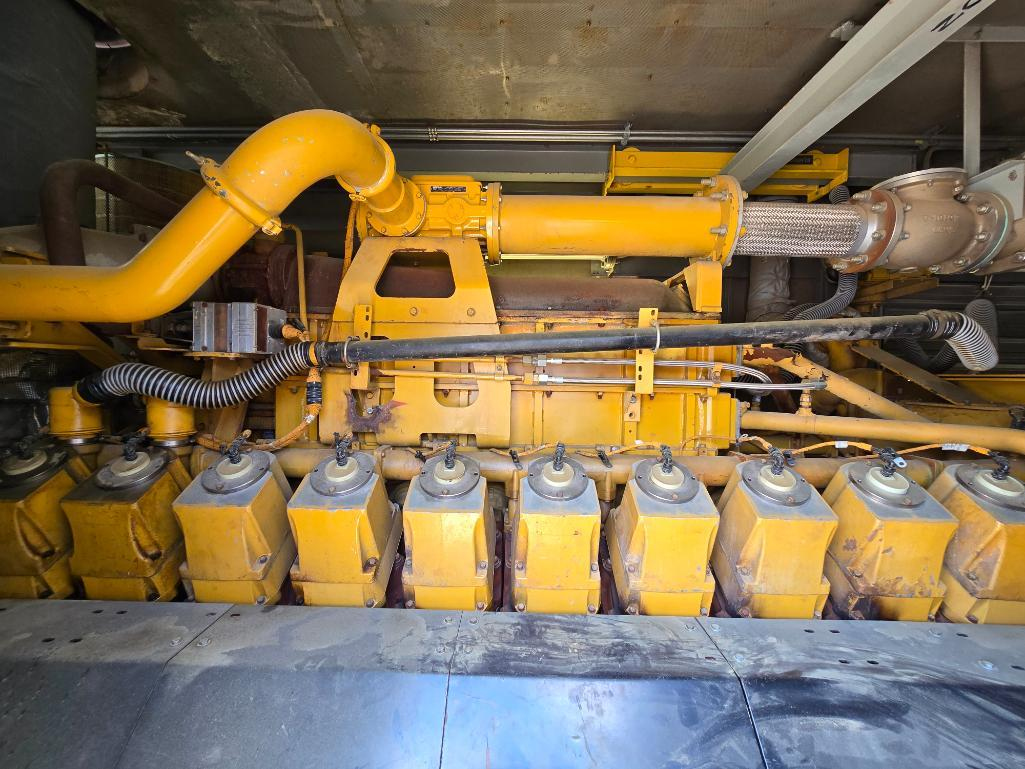

G3520C

Generator-End Model

SR4B

Enclosure / Packaging

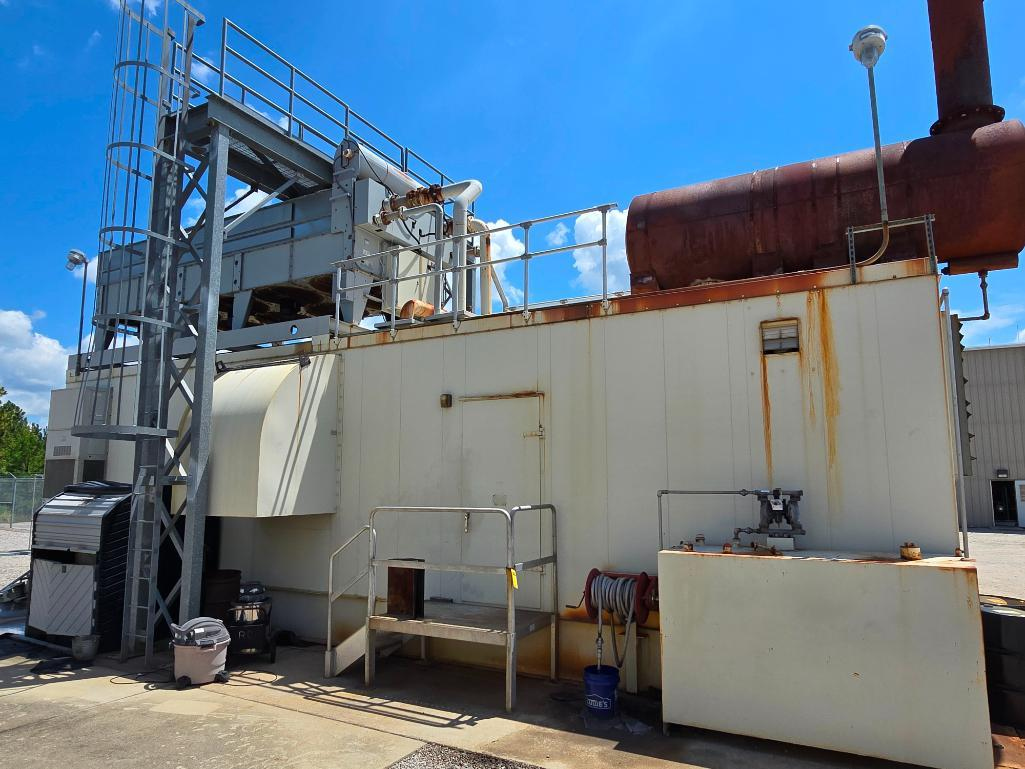

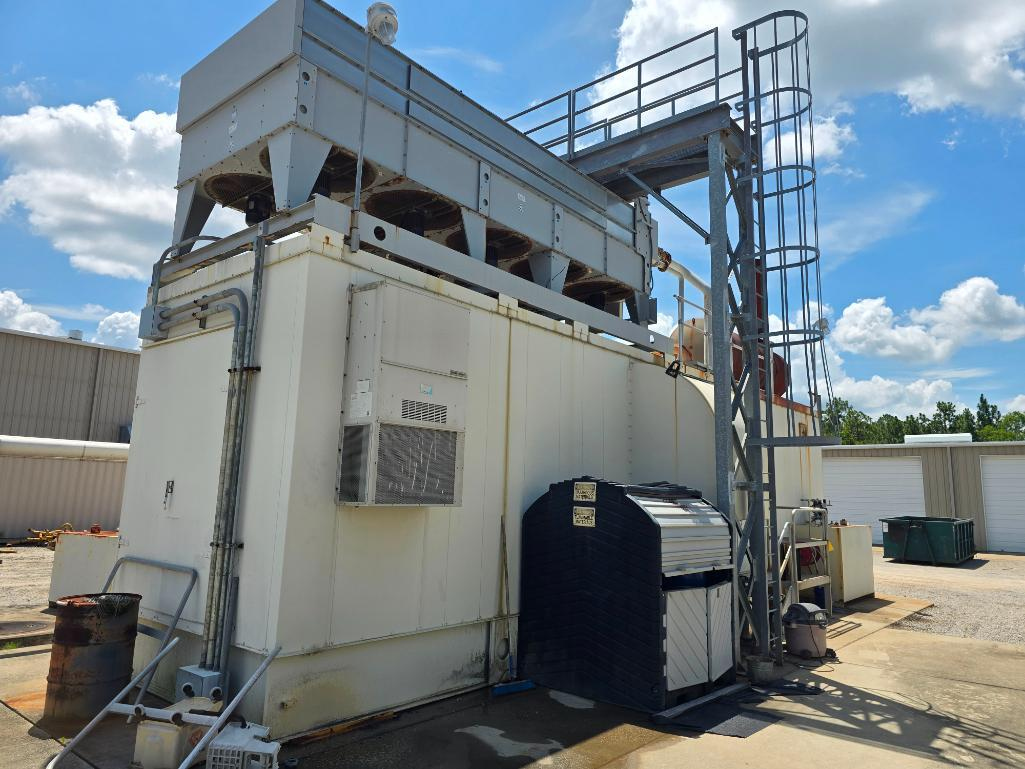

Enclosed package; inspect scope and dimensions

Cooling Arrangement

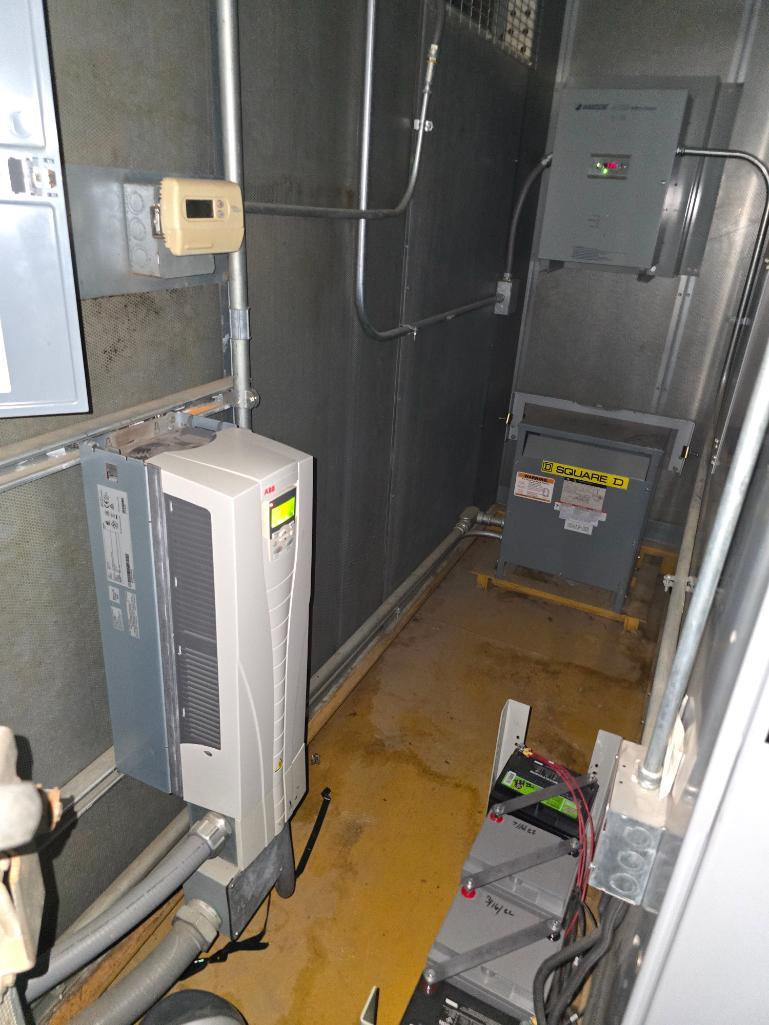

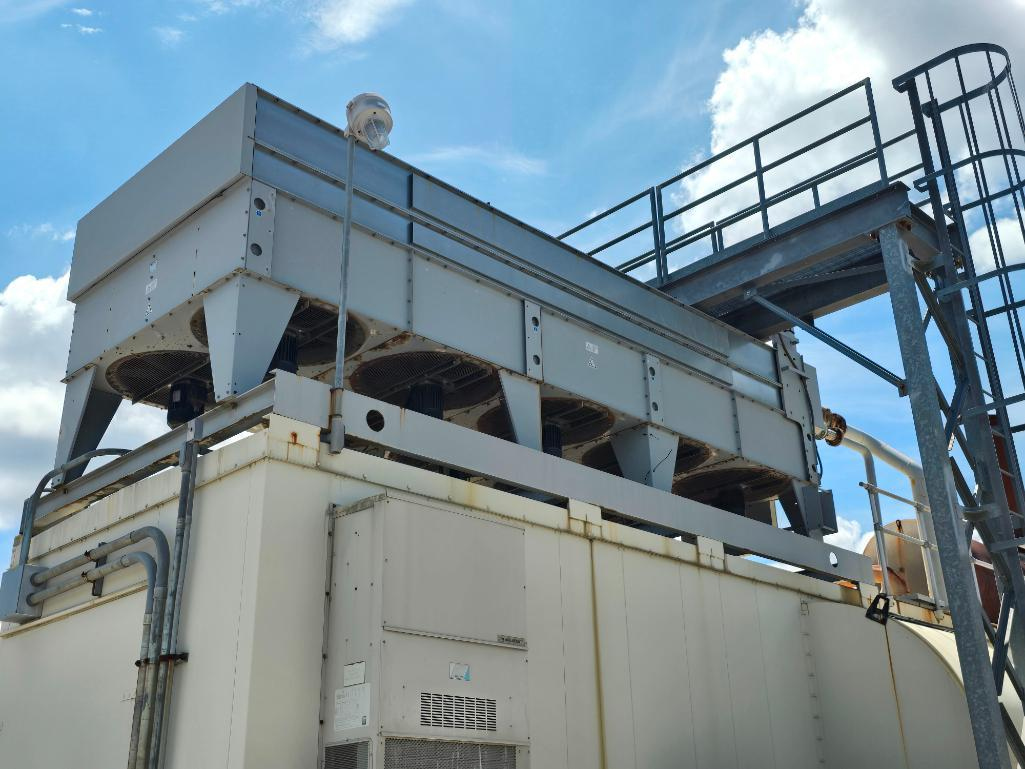

Fanned radiator with ABB VFD; mezzanine and muffler listed, final scope to confirm

Additional specifications

Engine serial number

GZJ00389

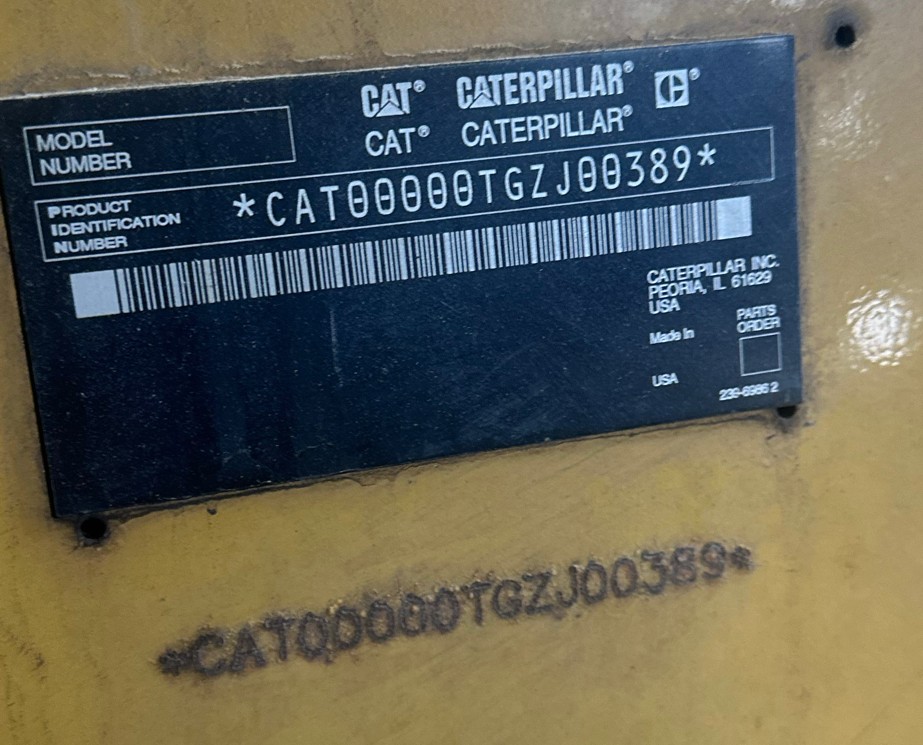

Engine PIN

CAT00000TGZJ00389

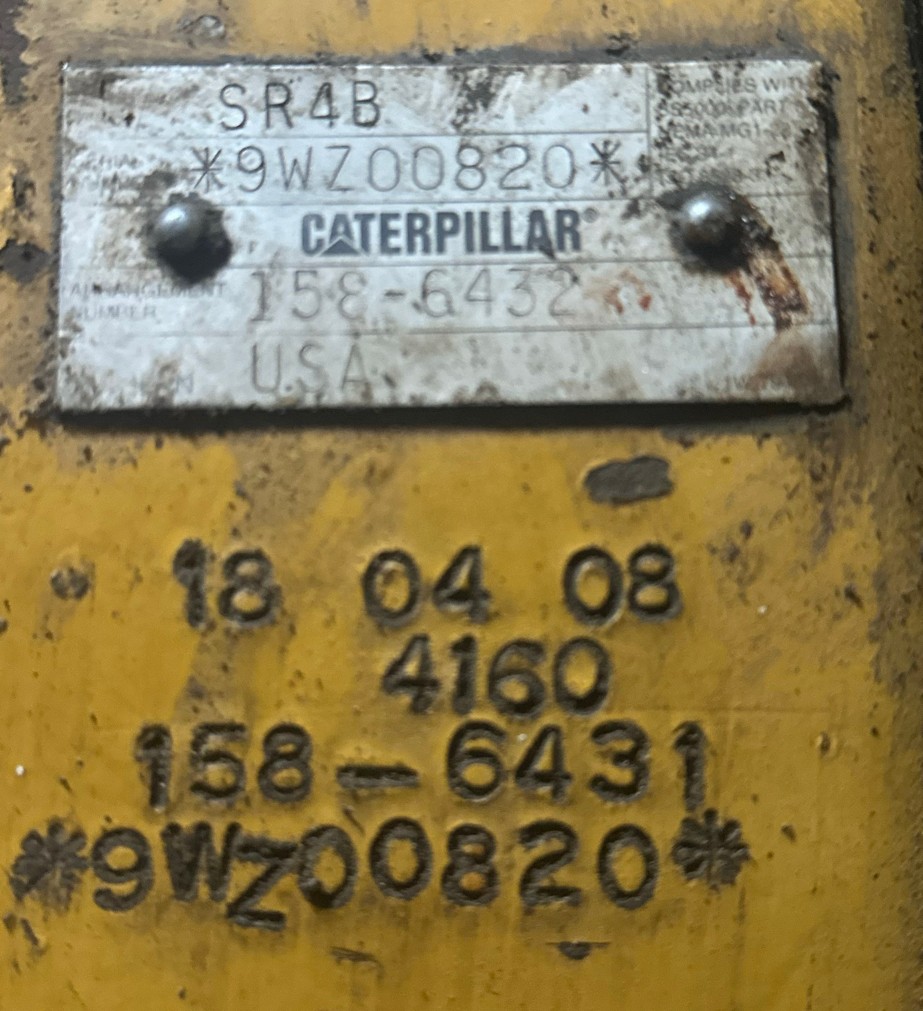

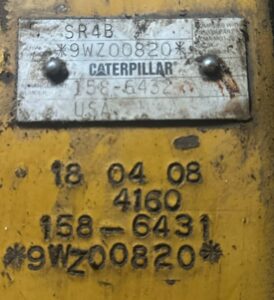

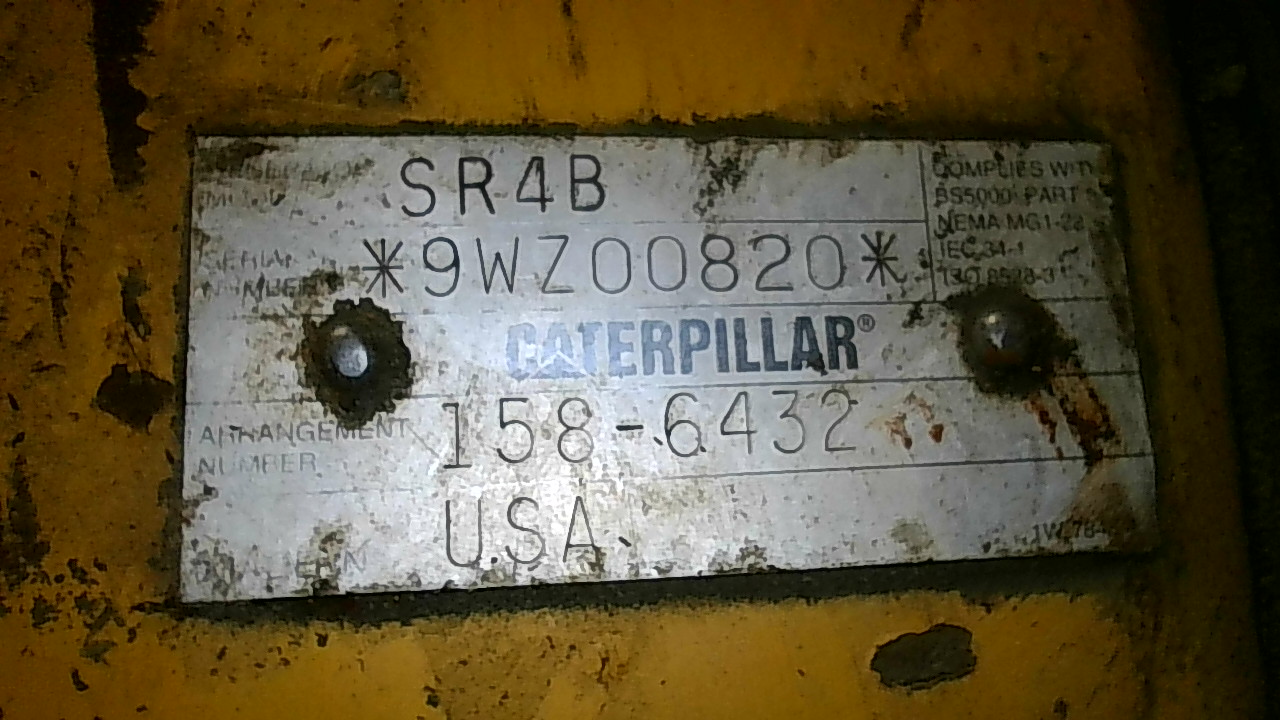

Generator-end serial number

9WZ00820

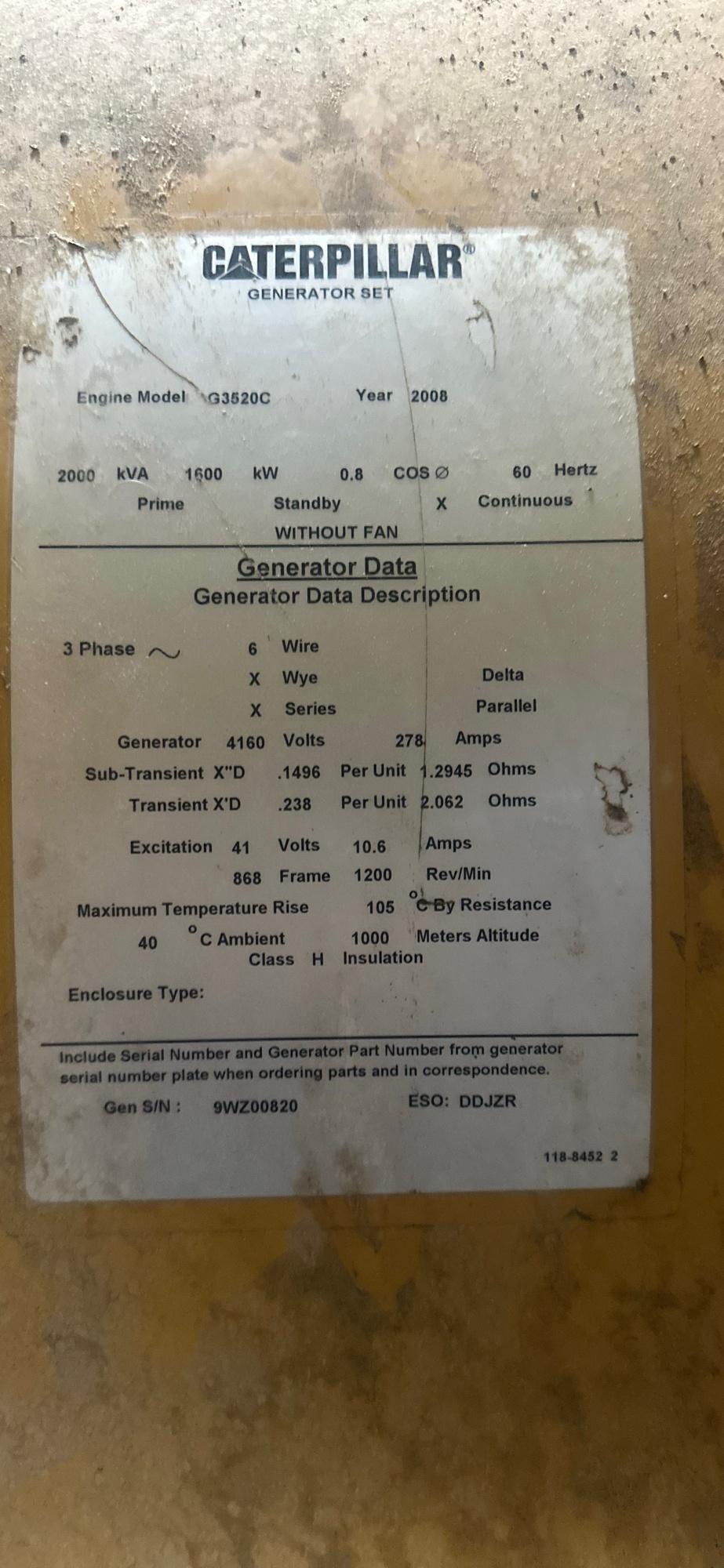

Generator model

SR4B

Generator arrangement

158-6432

Number stamped on casing

158-6431

ESO code

DDJZR

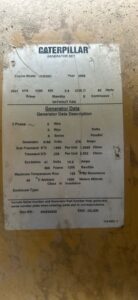

Generator apparent power

2,000 kVA

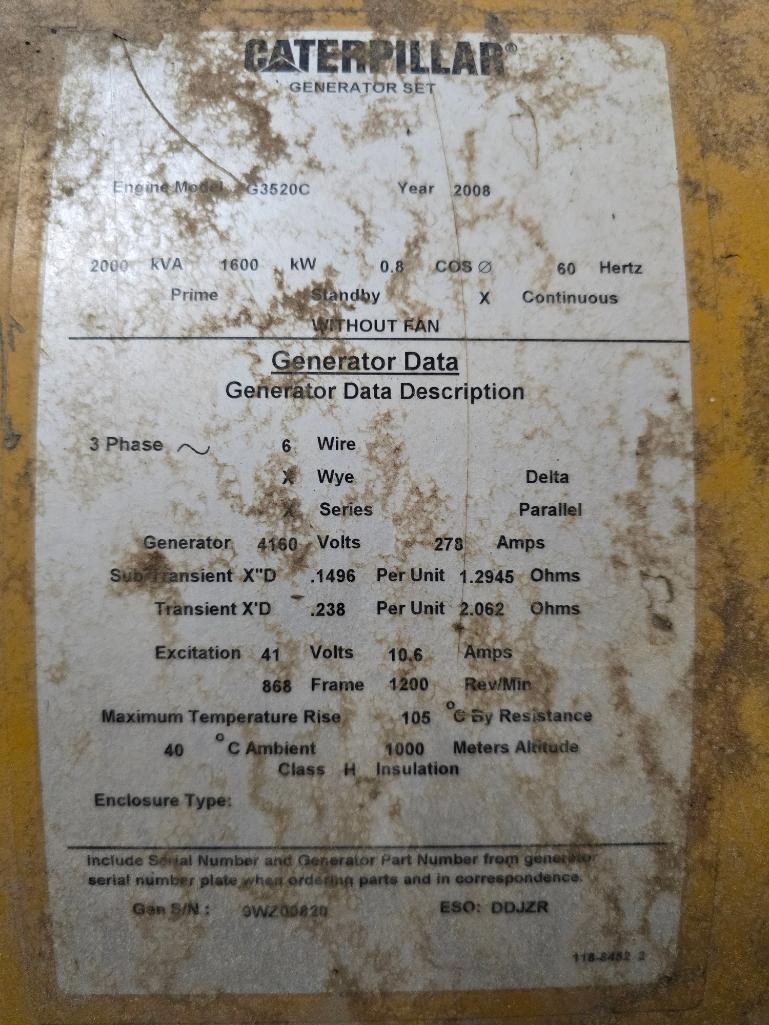

Nameplate rating basis

1,600 kW continuous, without fan; nameplate is not a statement of current operability

Power factor

0.8

Excitation

41 V / 10.6 A

Generator frame

868

Insulation / temperature rise

Class H / 105 °C

Ambient / altitude

40 °C / 1,000 m

Lifetime hours basis

Reported lifetime reading

Hours since major rebuild

31,486 h; major event 2018-06-22 at 33,027 h

Hours since top end

15,966 h; completed 2021-04-14 at 48,547 h

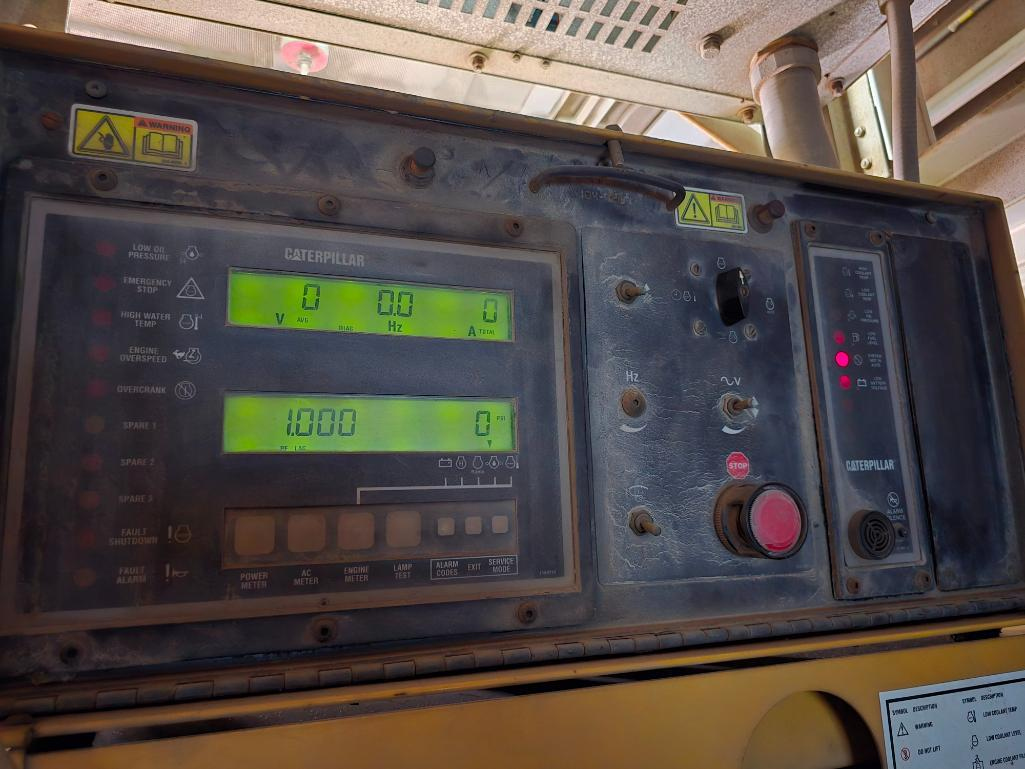

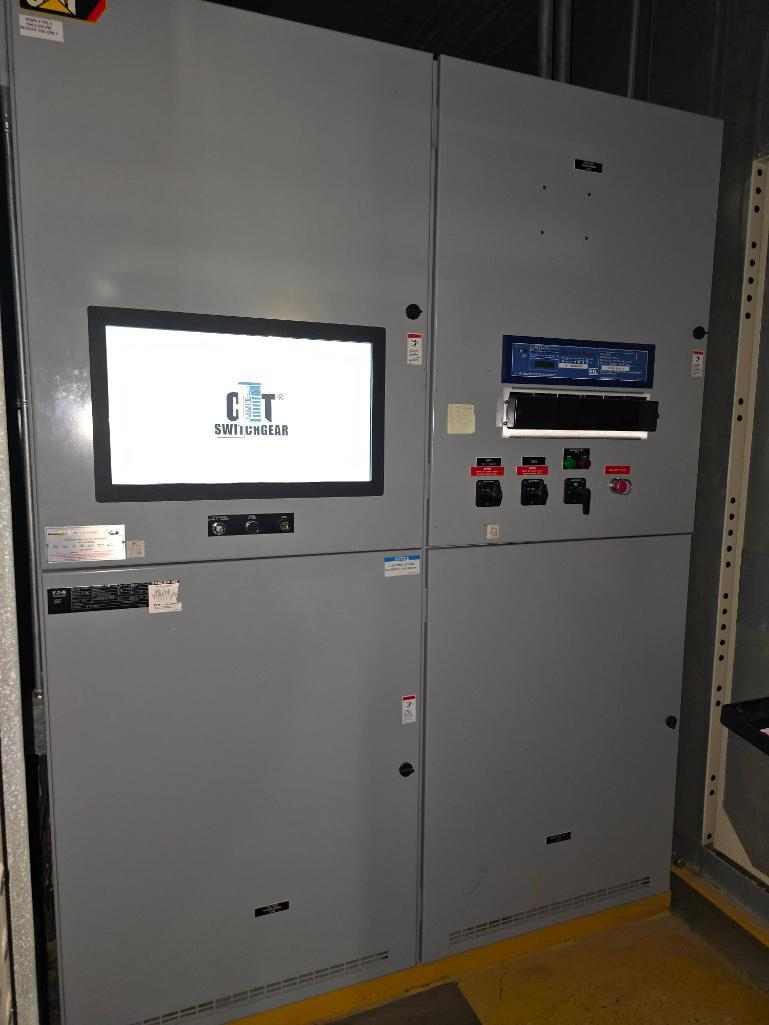

Controls upgrade

Reported installed; details to confirm

Subtransient reactance Xd double-prime

0.1496 pu / 1.2945 ohm

Transient reactance Xd prime

0.238 pu / 2.062 ohm
