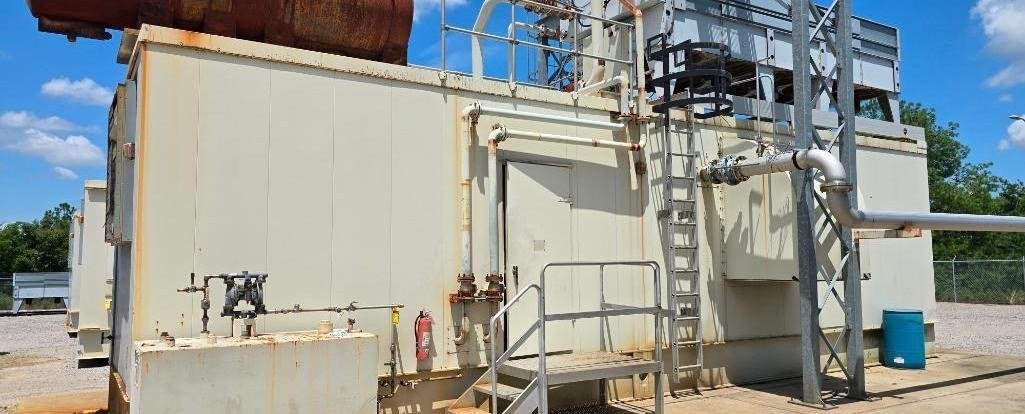

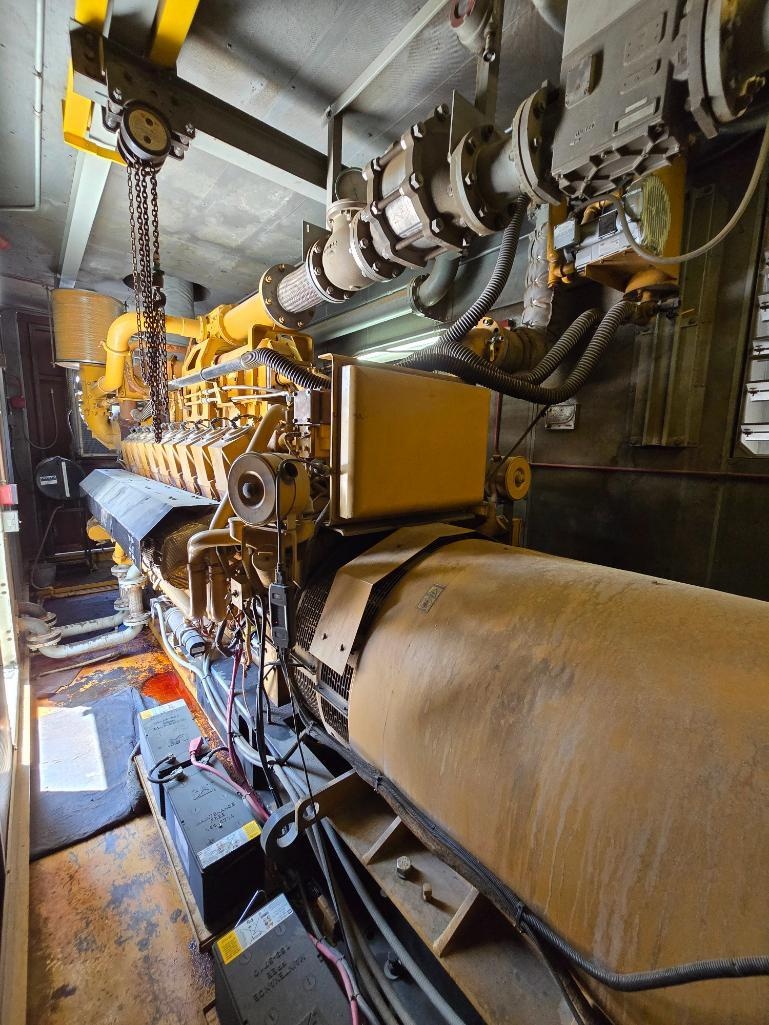

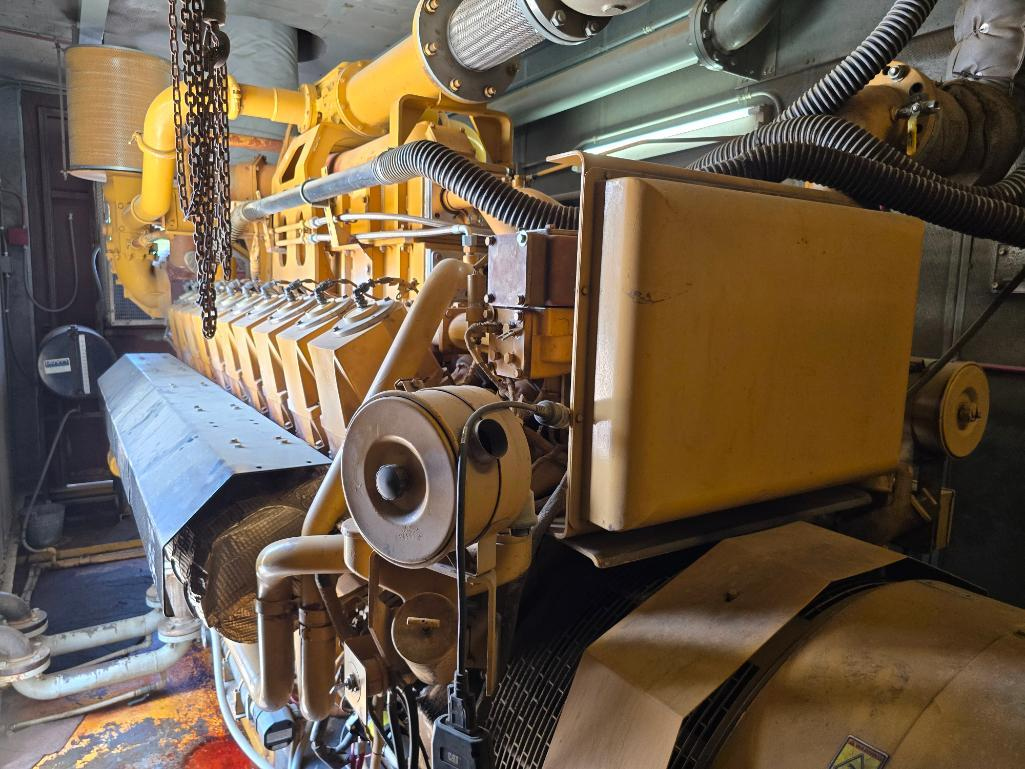

CAT G3520C — 1,600 kW nameplate — Elgin Unit 2

History, availability and verification

Engine serial number

GZJ00348

Estimated dispatch

Immediate

Dispatch conditions

Available now per owner update of September 22, 2026. Coordinate loading and transport; condition and included scope remain as described.

Condition notes

Used, former landfill-gas service. Current operability and complete included scope require inspection.

Fuel and application history

Former landfill-gas service. Natural-gas conversion requires engineering and agreed scope.

Maintenance / hours basis

69,190 lifetime hours (reported lifetime reading). Major rebuild 2020-11-04 at 37,277 h; 31,913 h since major rebuild. Separate top end completed 2023-09-26 at 53,243 h; 15,947 h since top end. Top-end completion is 2023-09-26 at 53,243 h; 2023-08-22 at 52,836 h was the start. Latest supplied log: 2026-01-23 oil sample at 69,044 h. Historical records and calculated intervals do not guarantee present condition, remaining life or current operating hours.

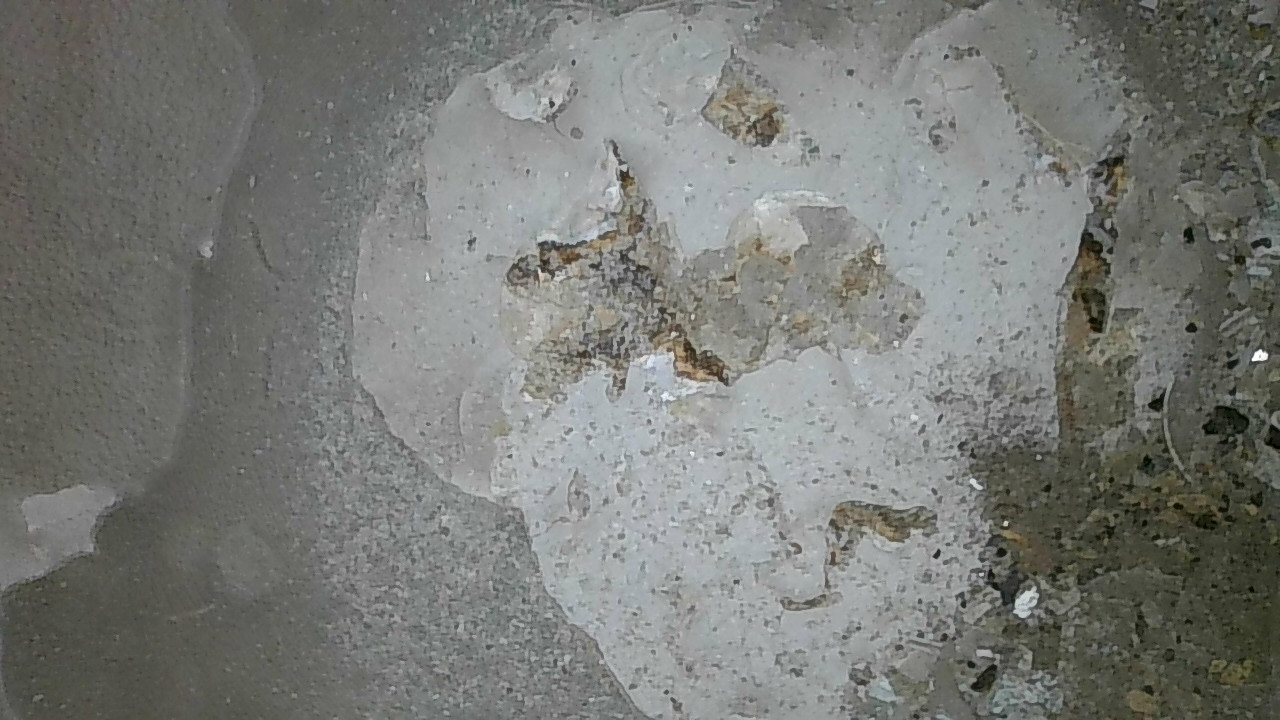

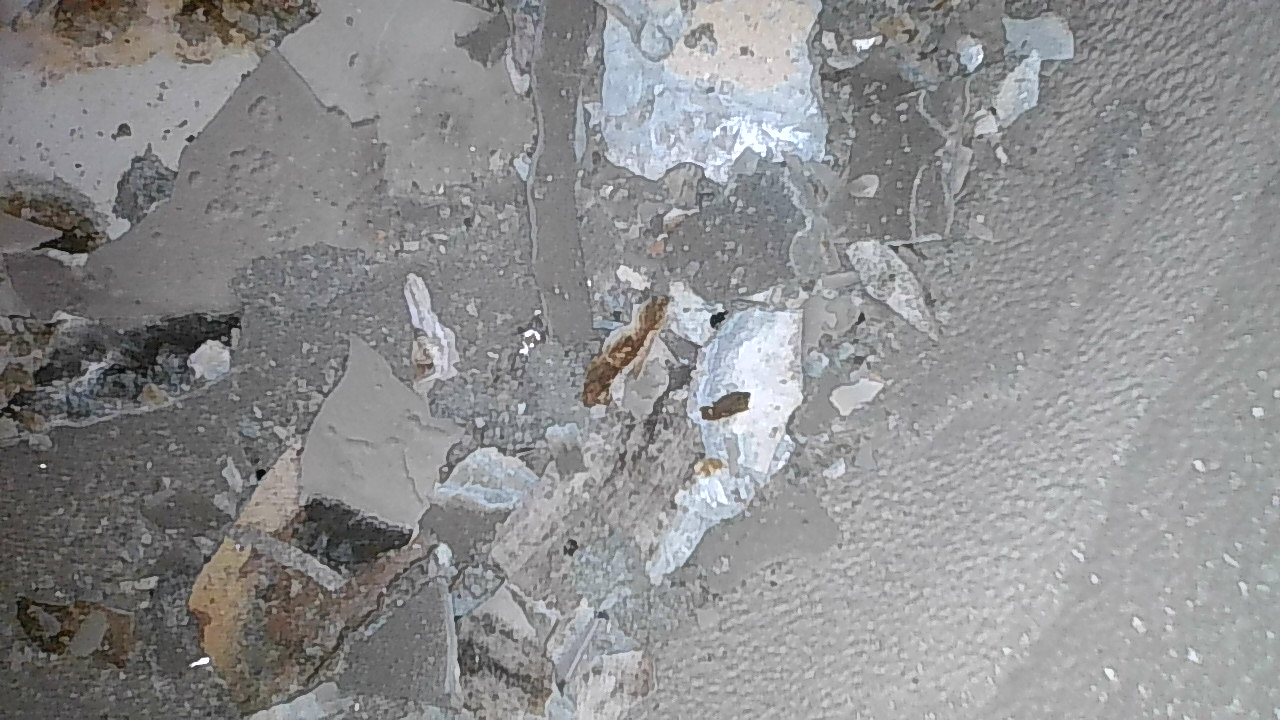

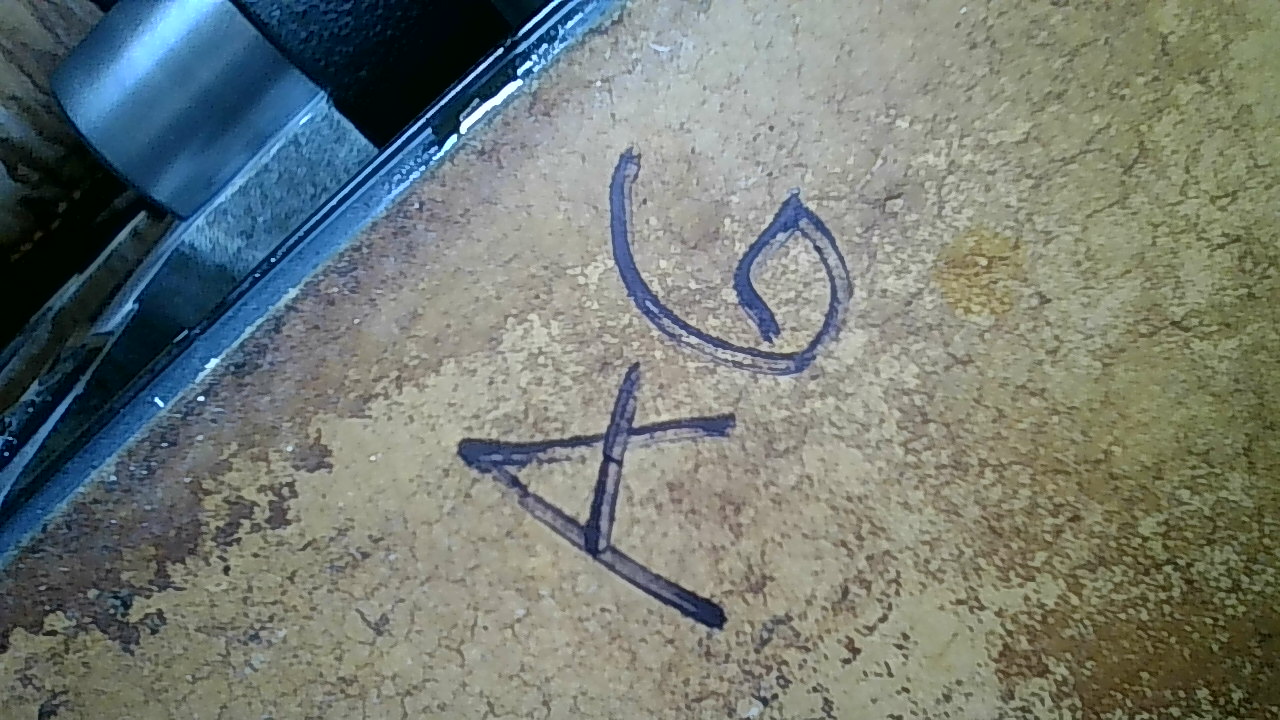

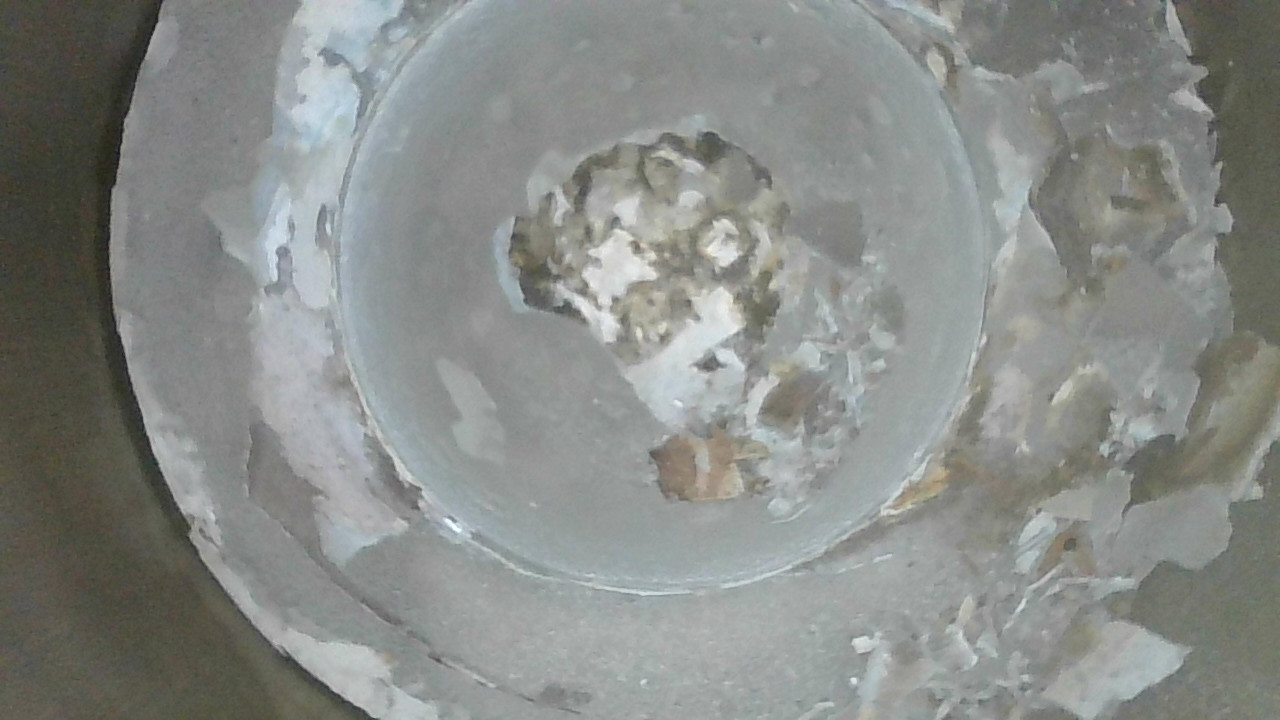

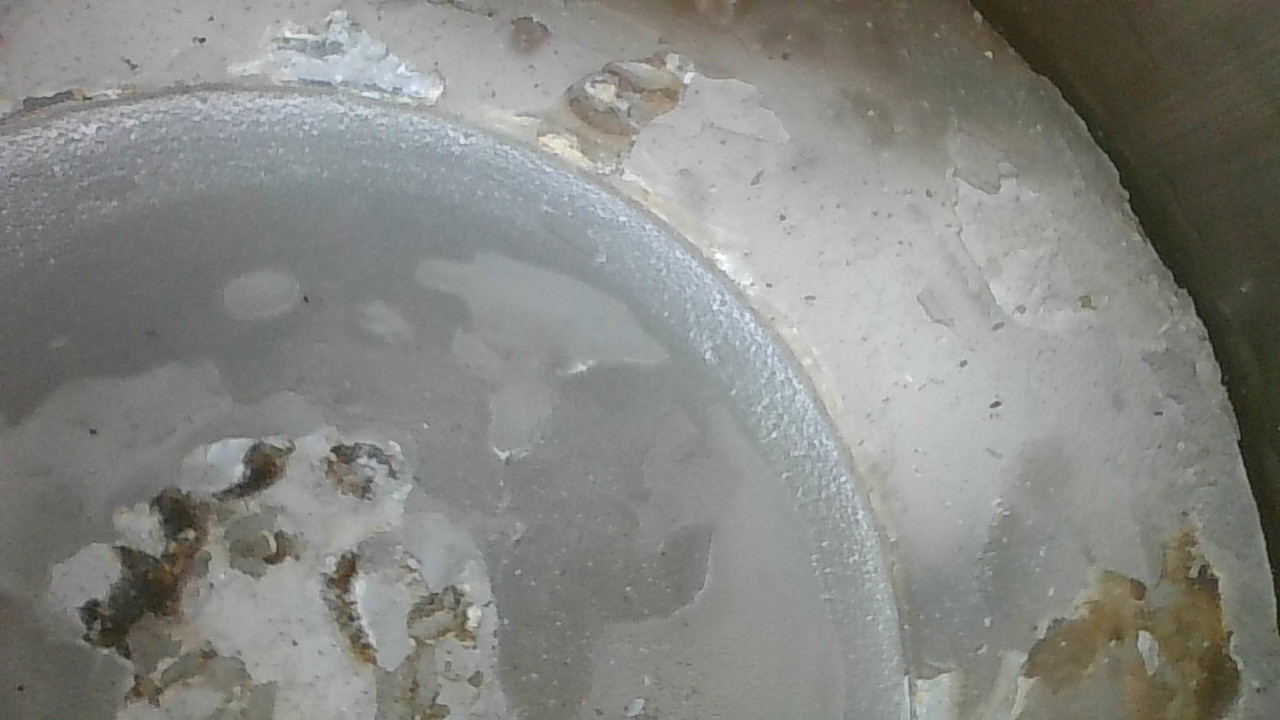

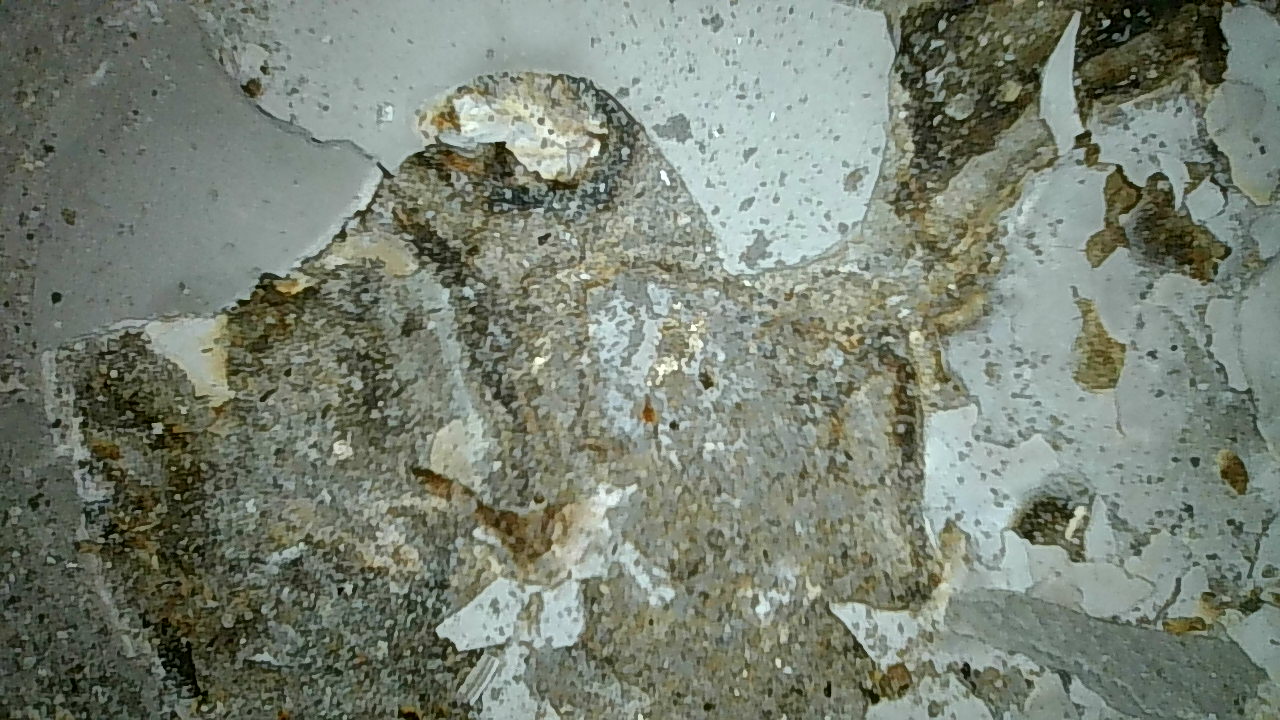

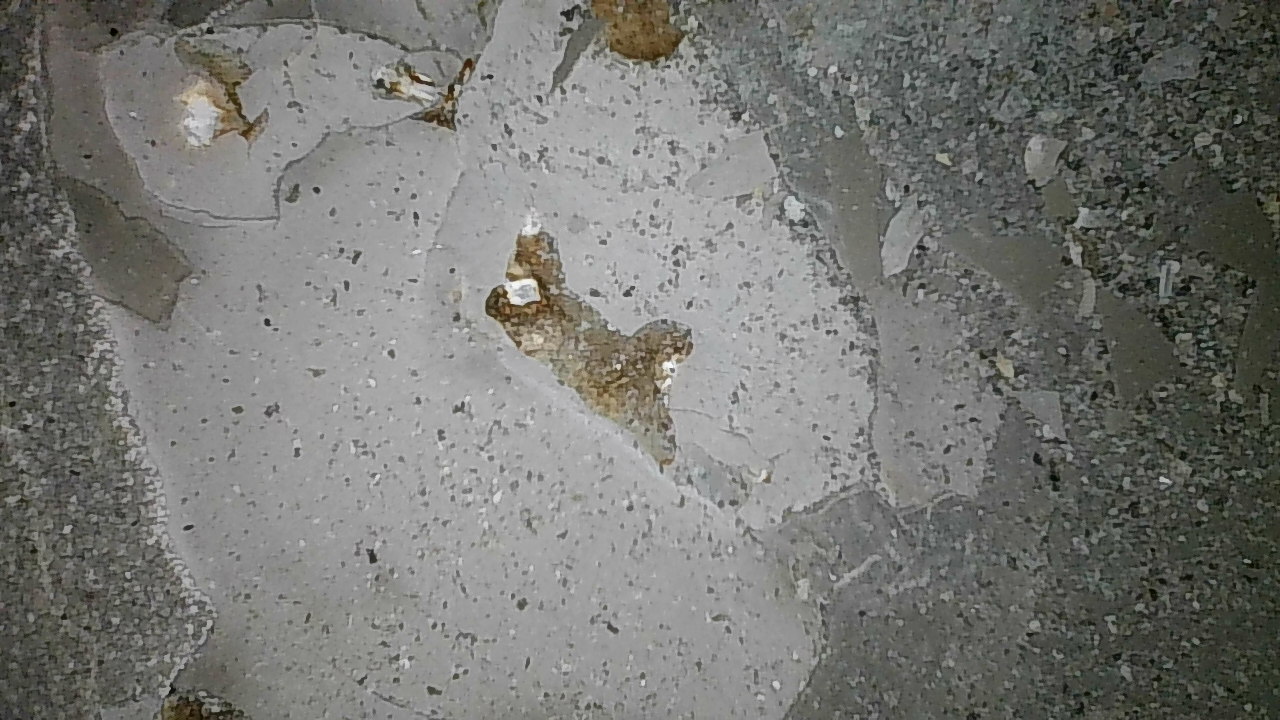

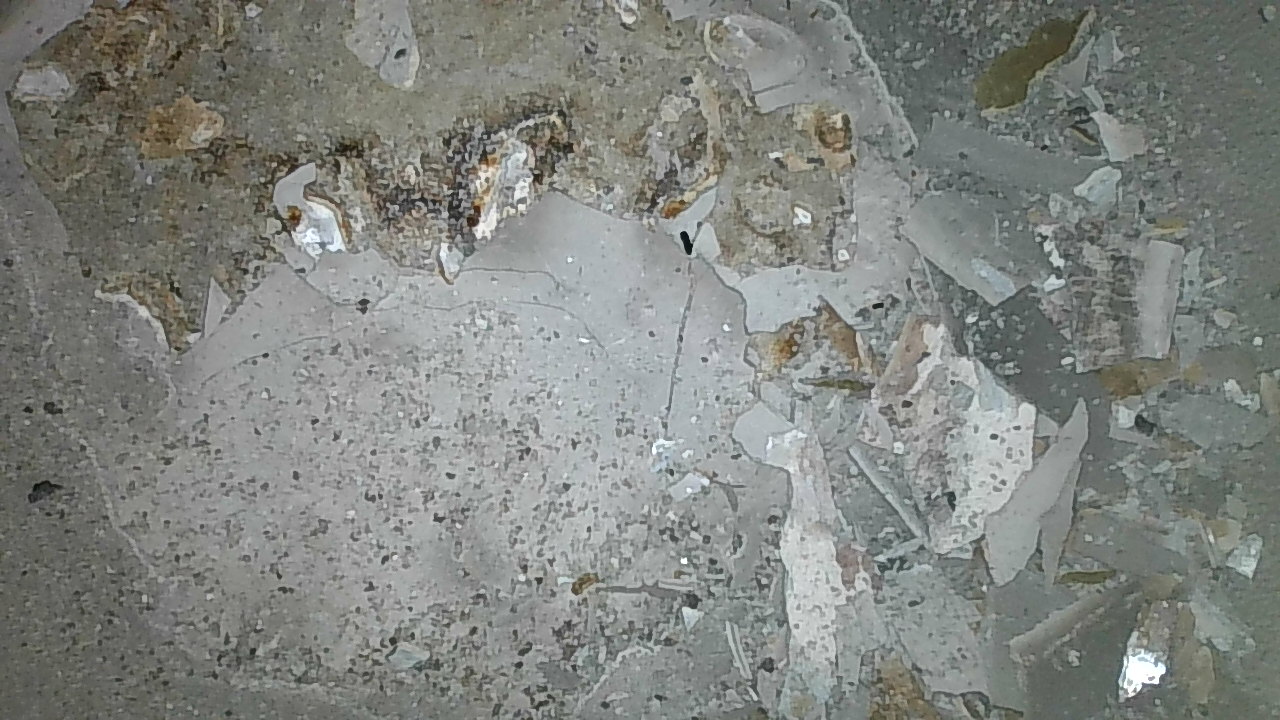

Photograph basis

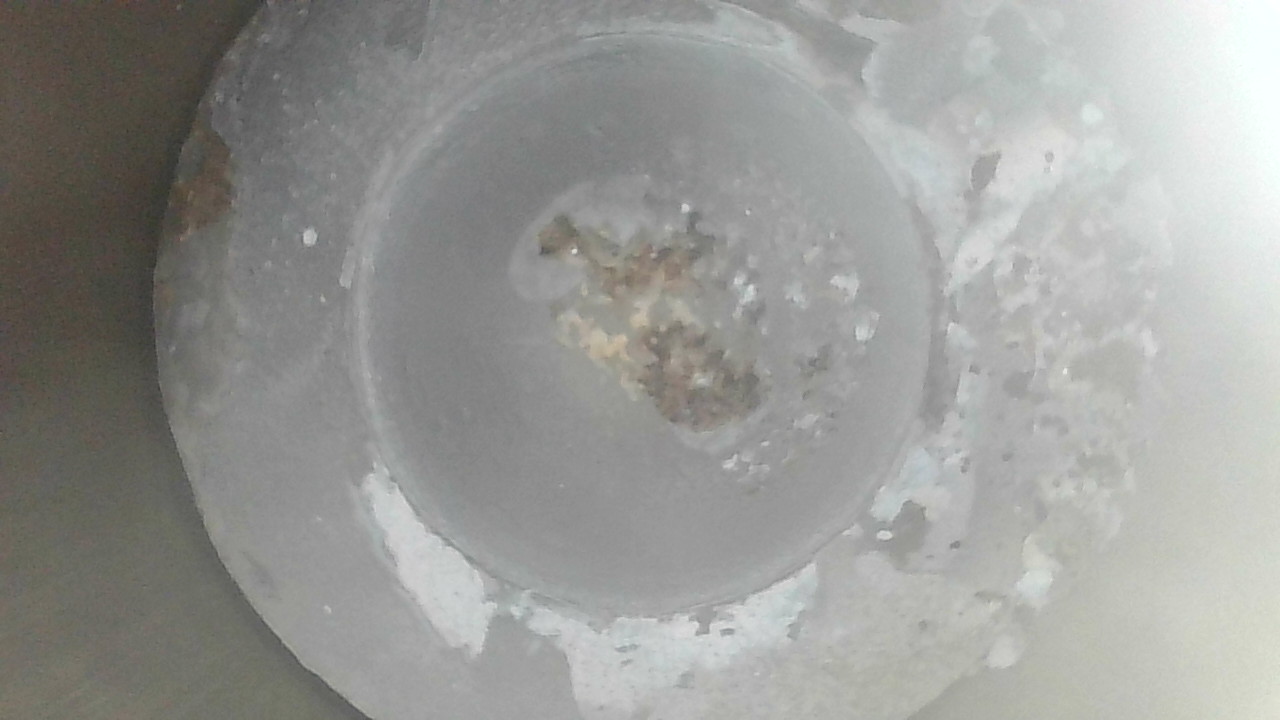

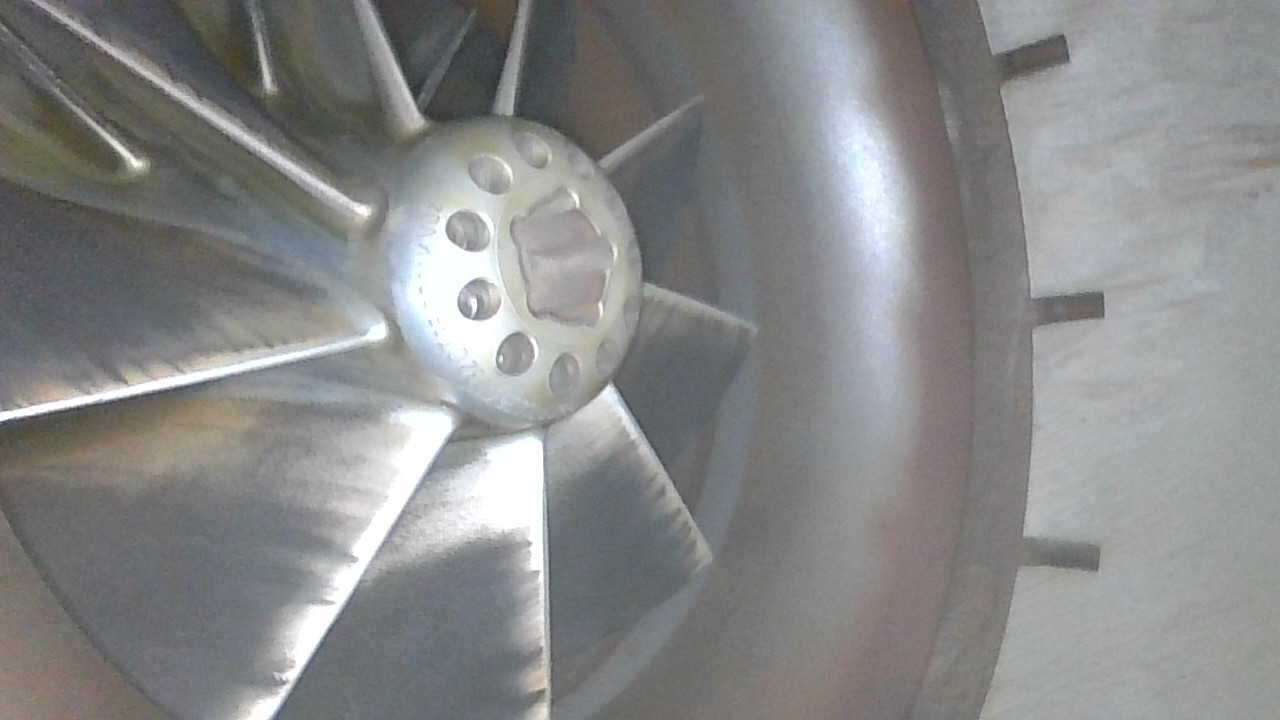

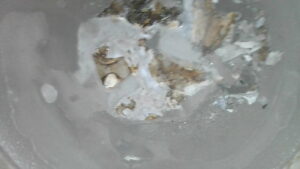

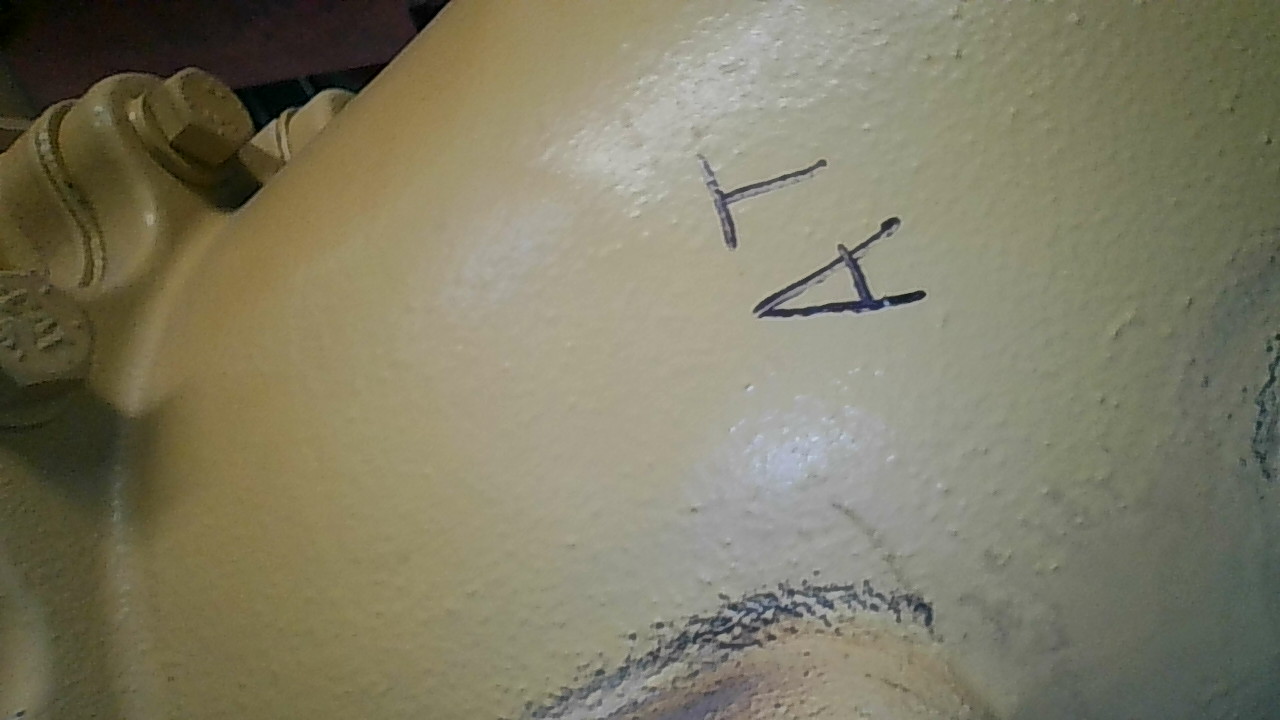

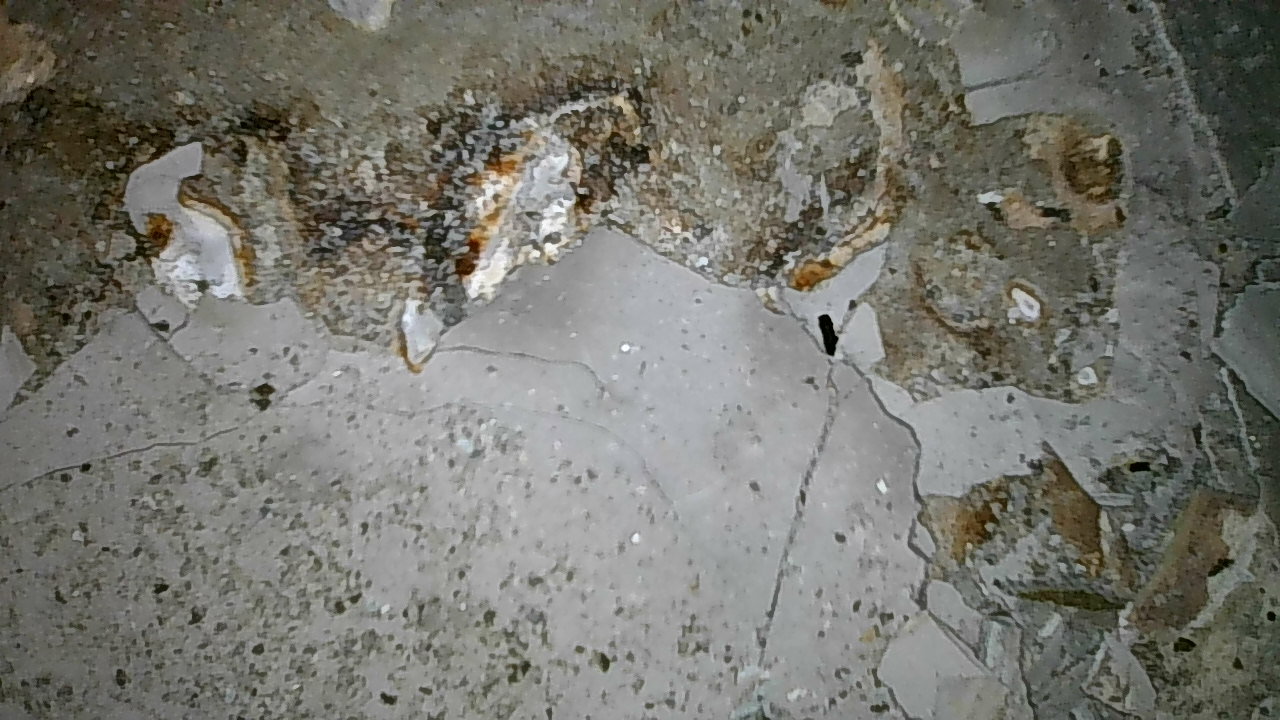

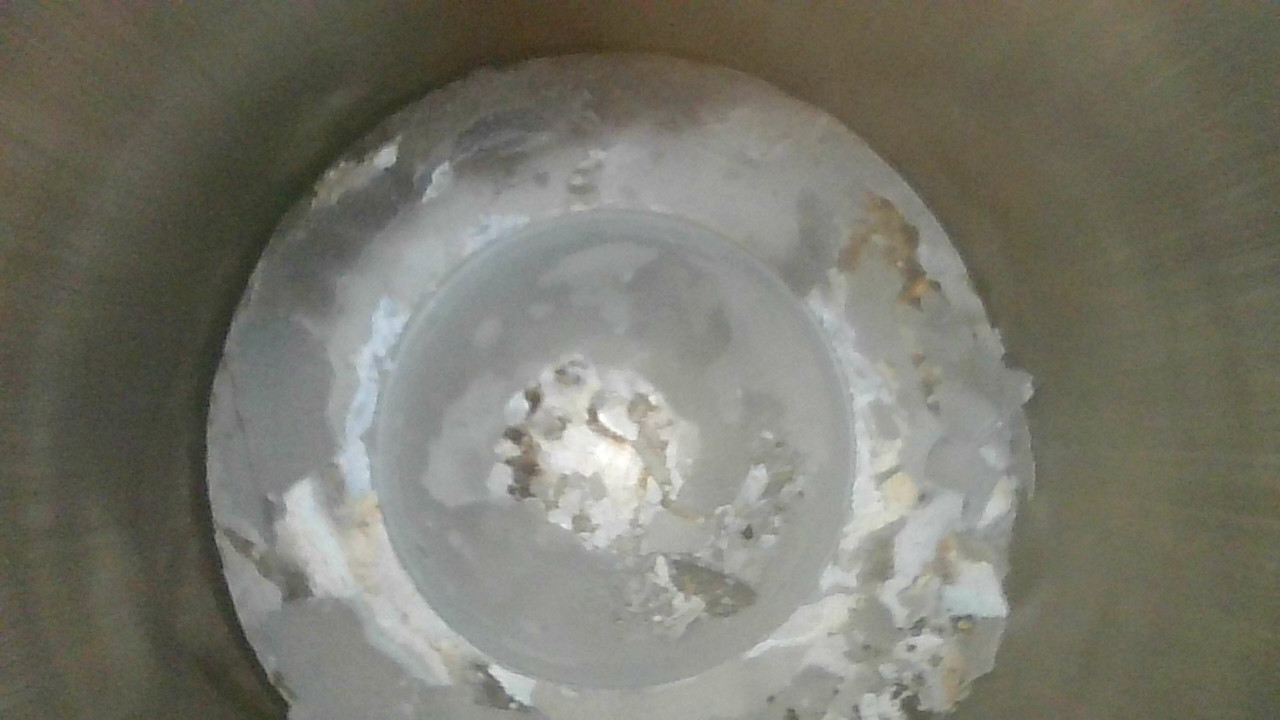

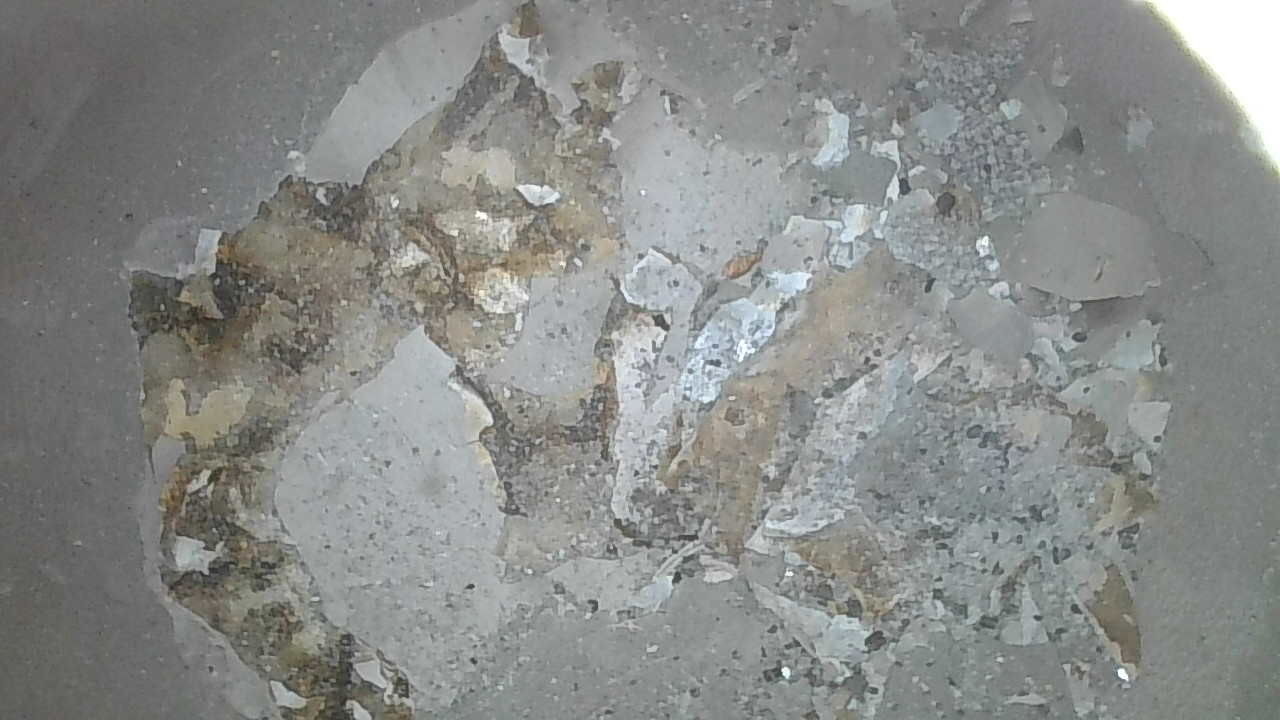

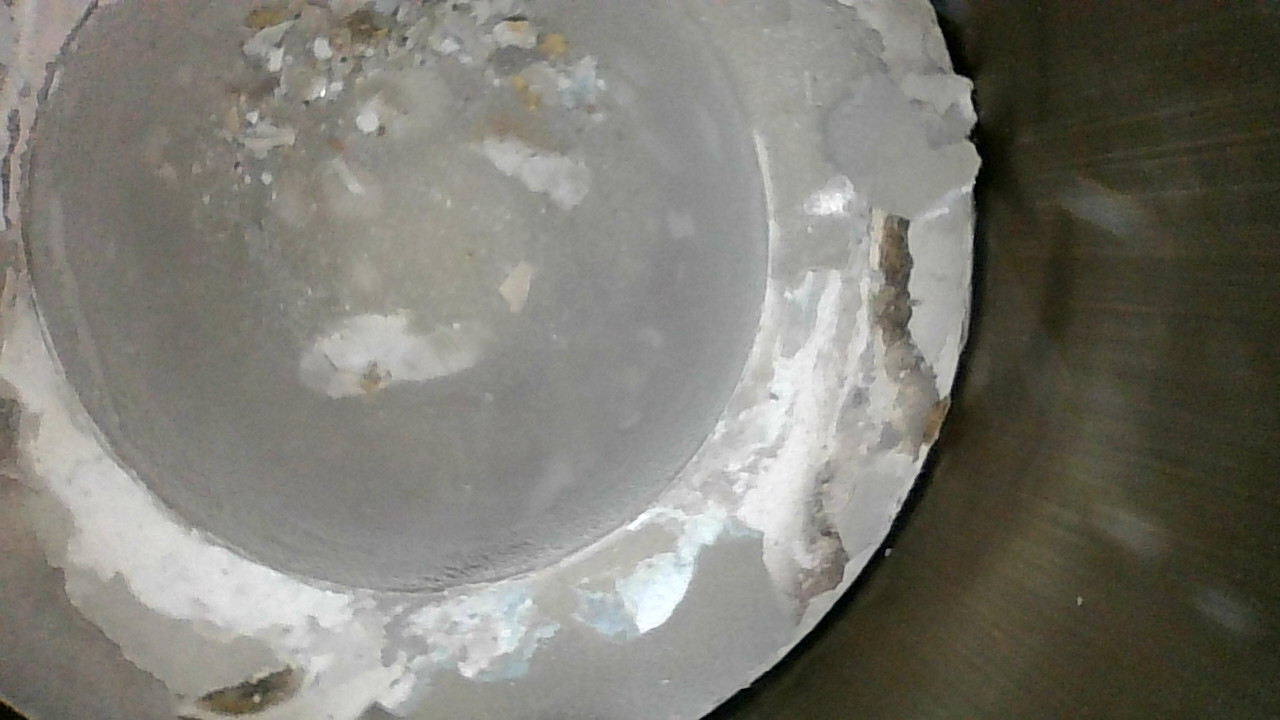

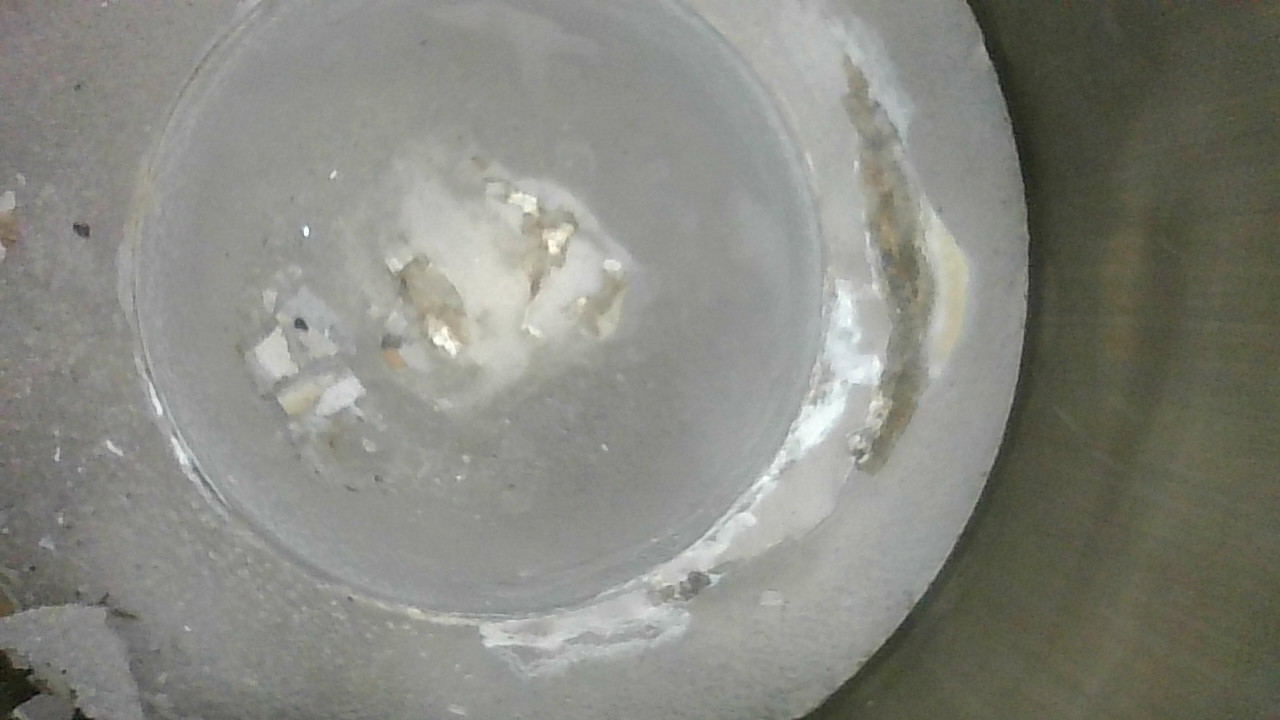

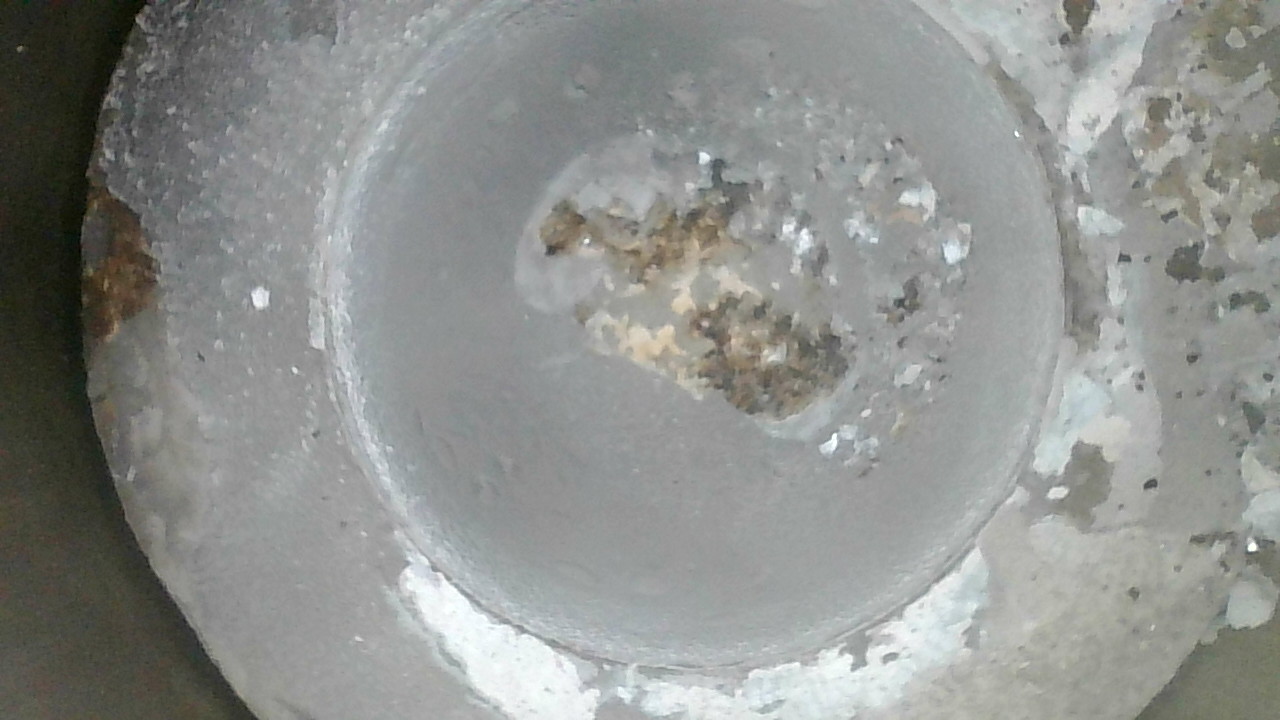

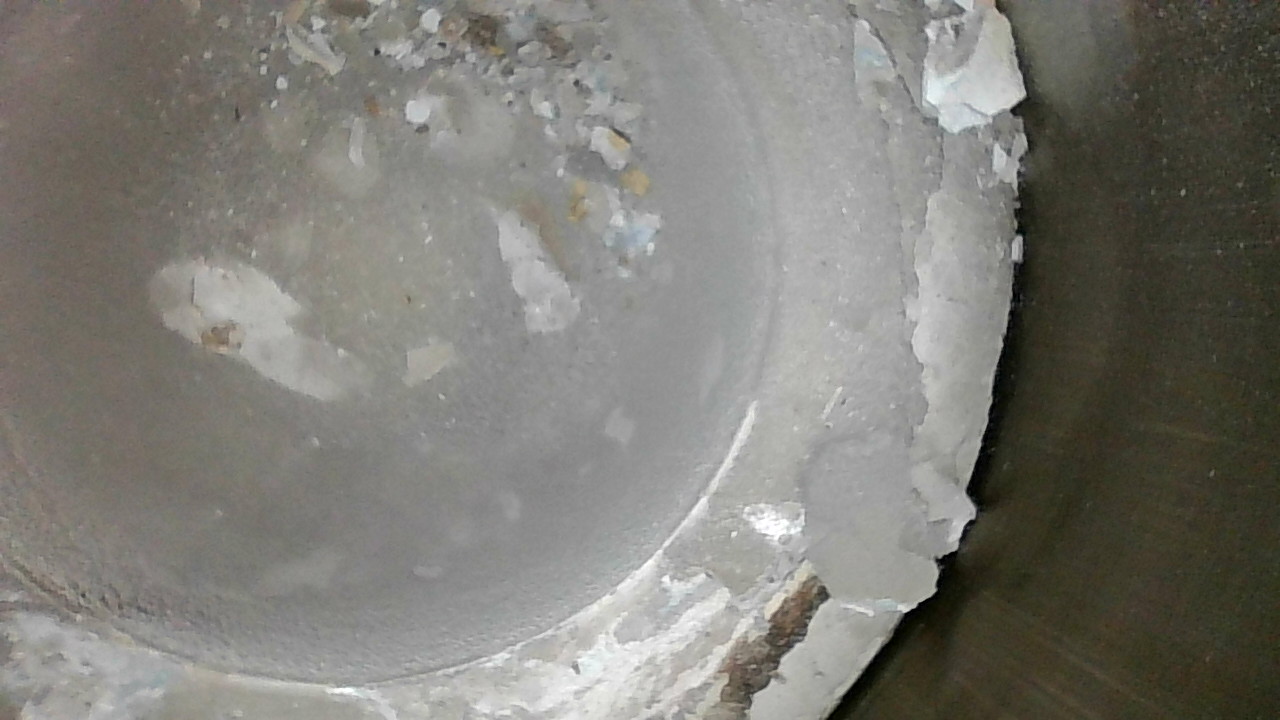

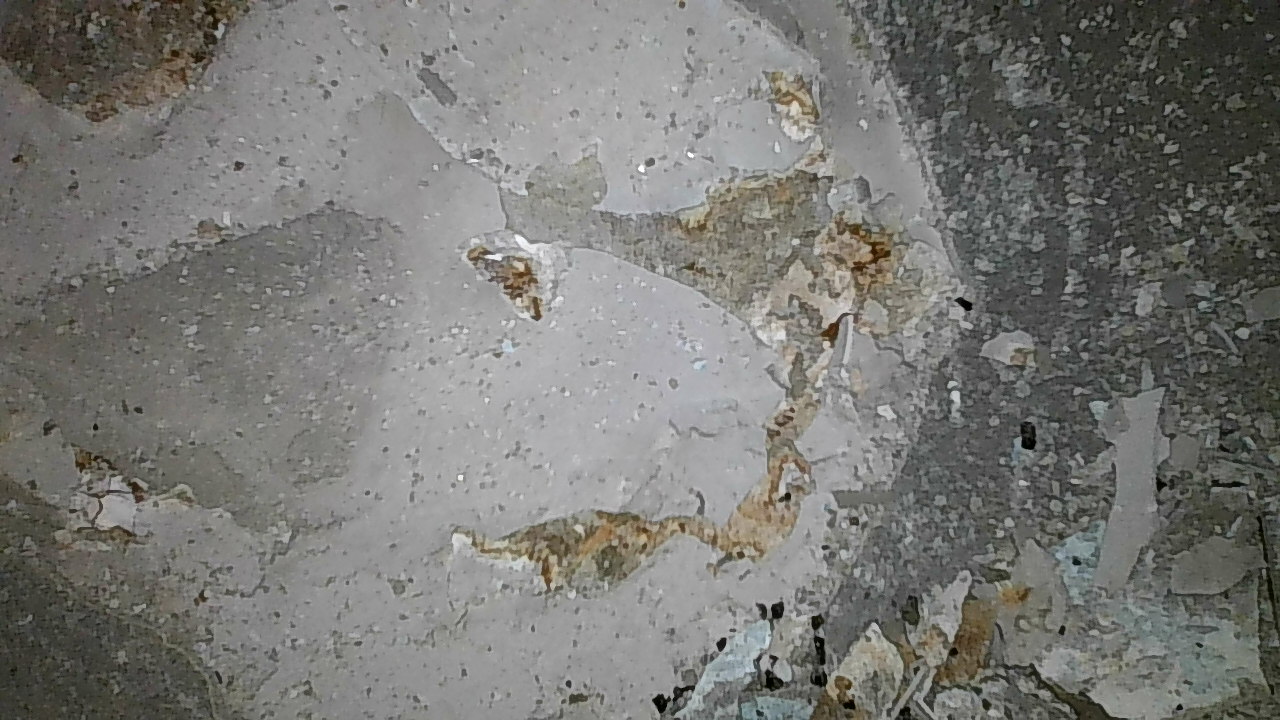

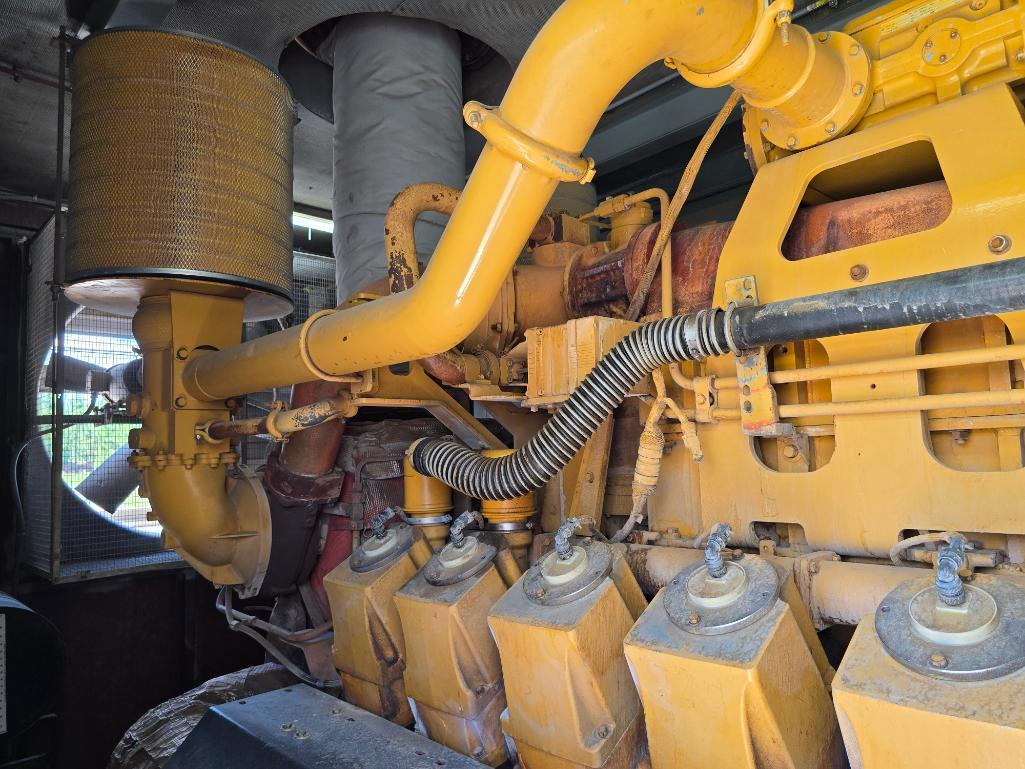

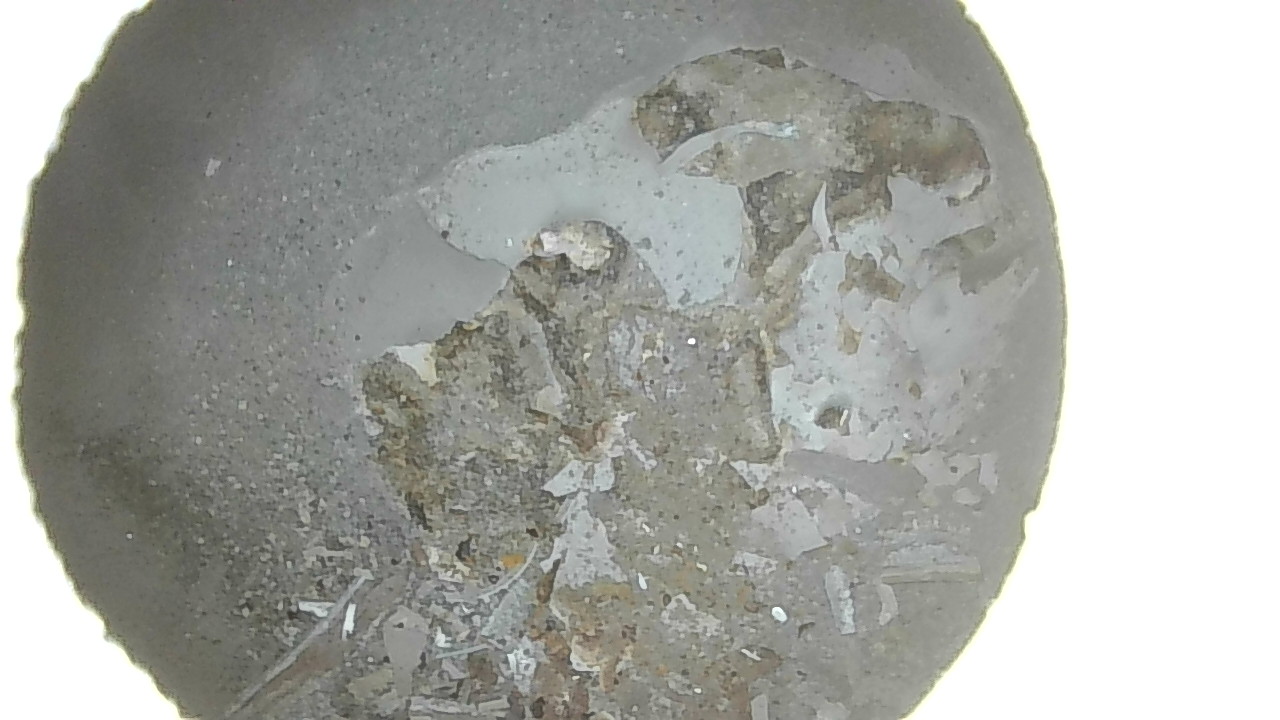

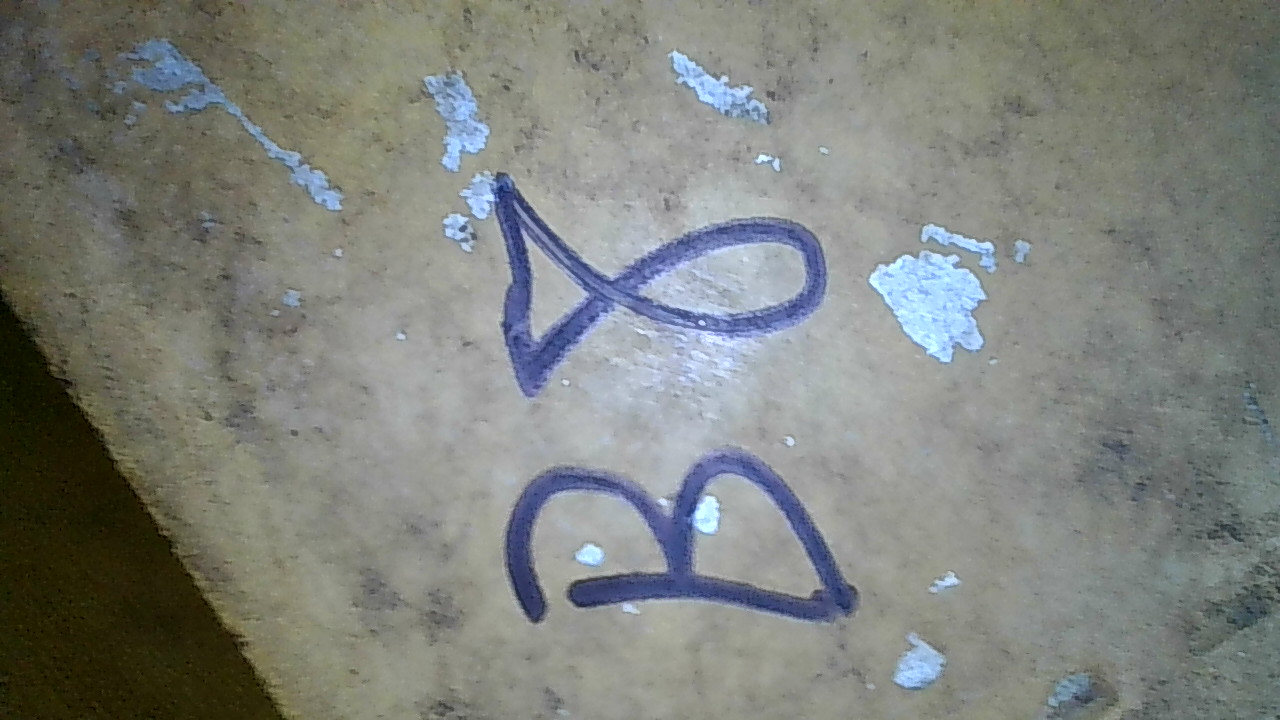

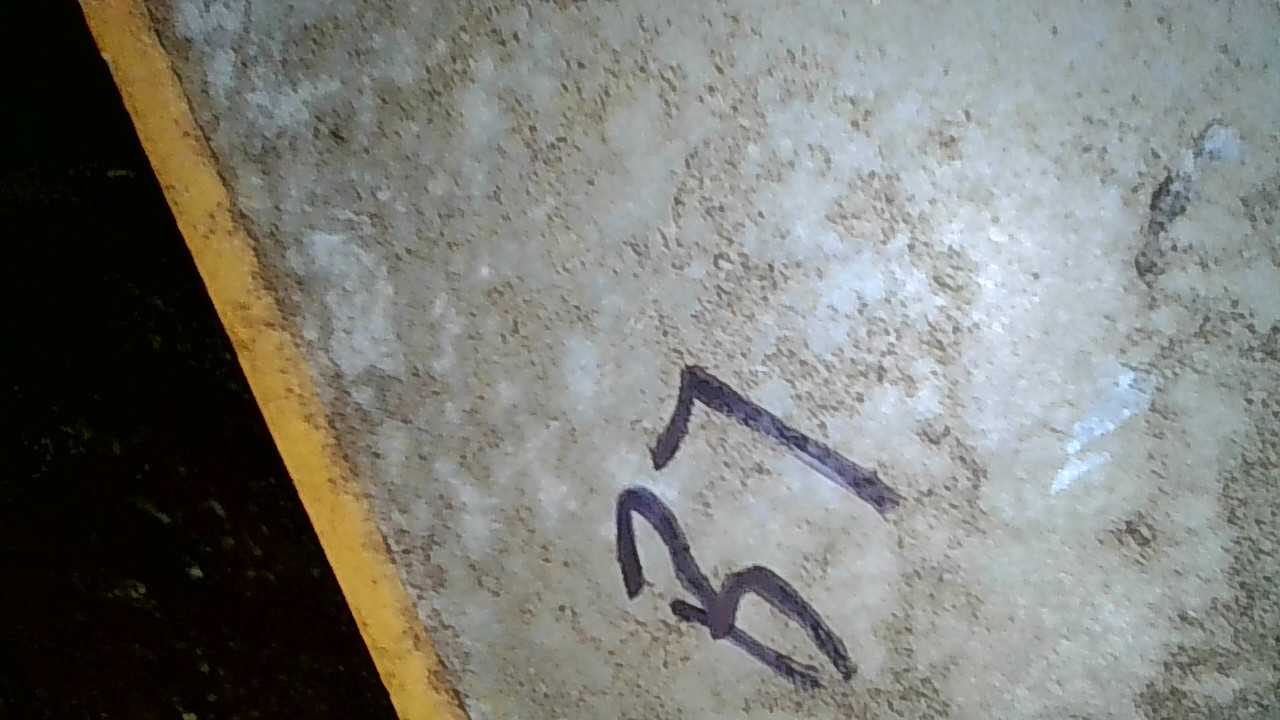

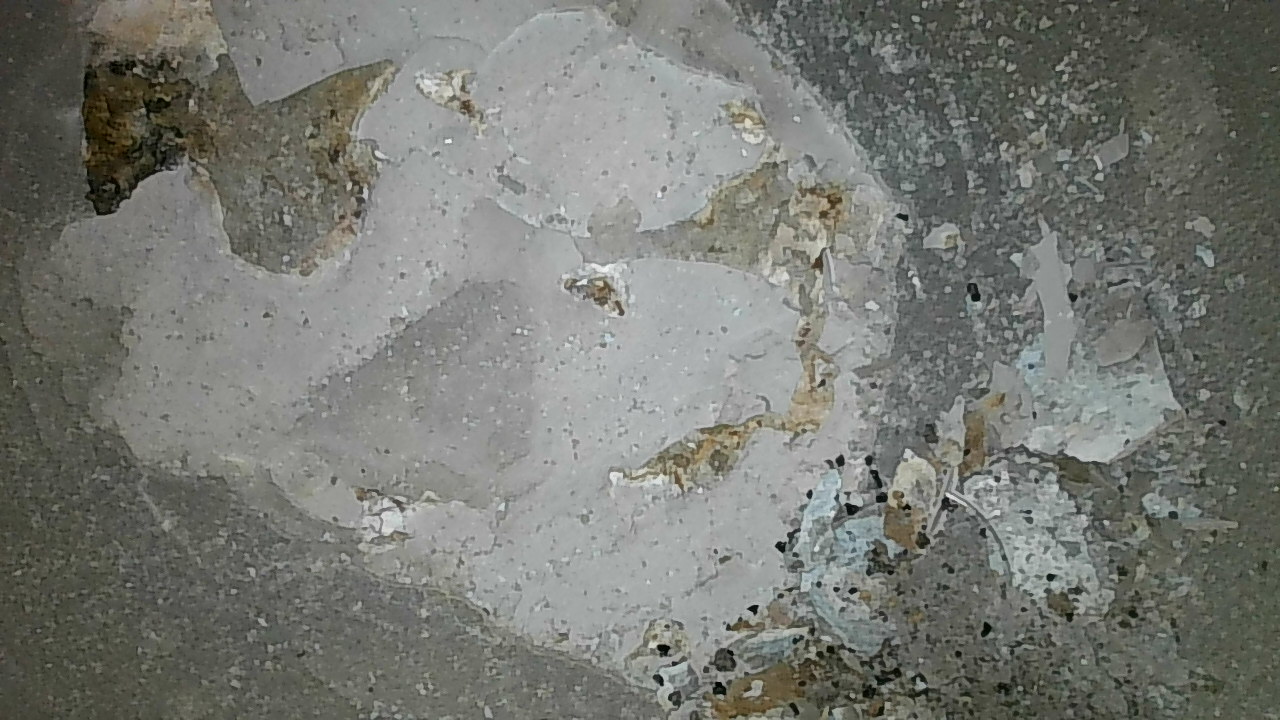

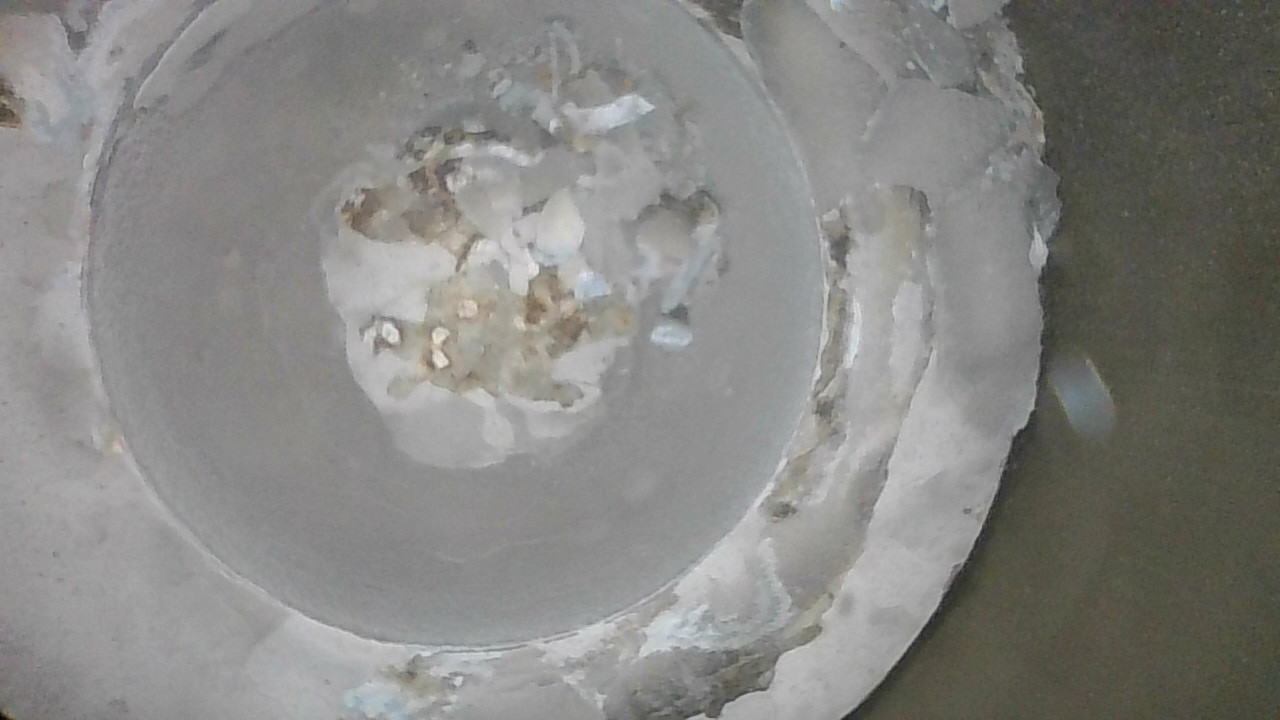

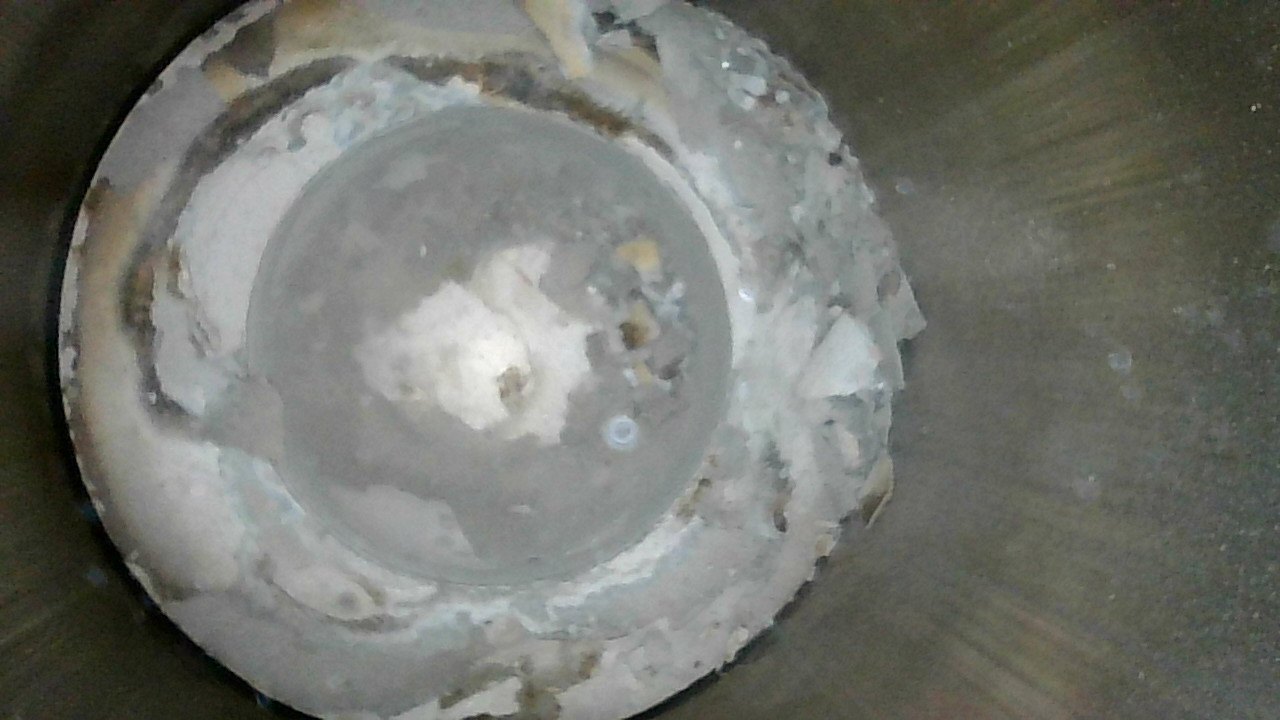

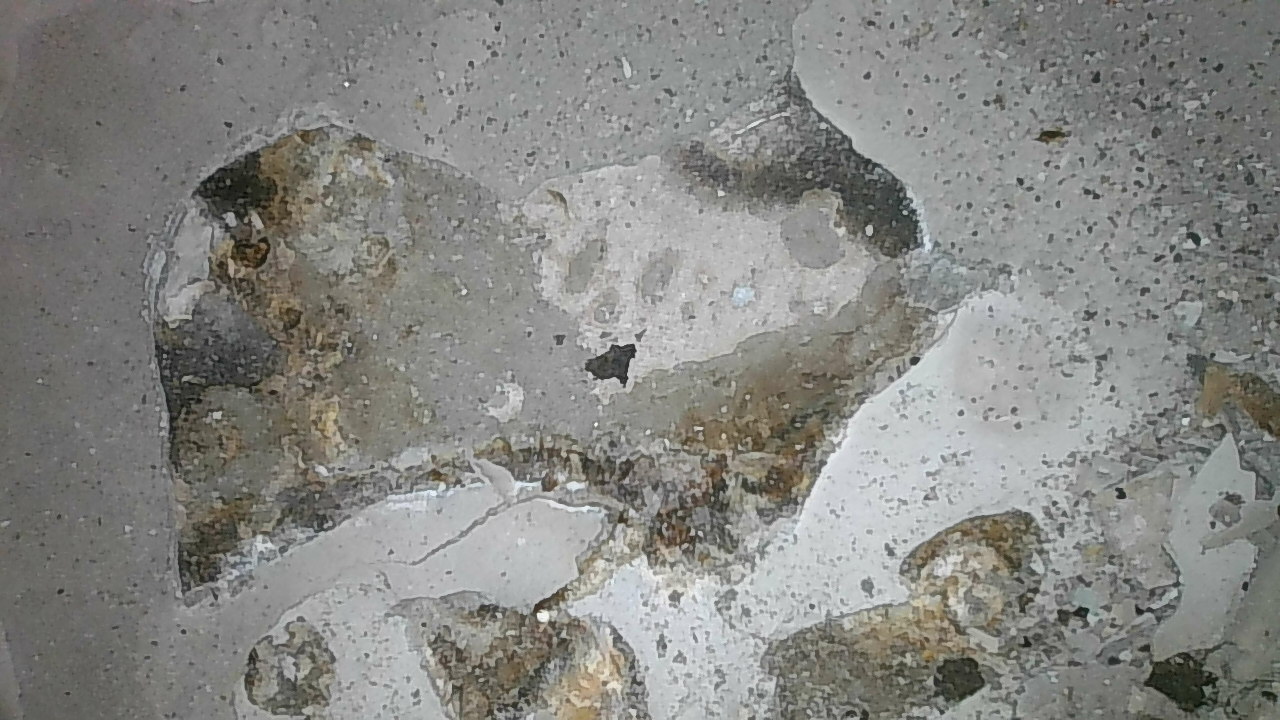

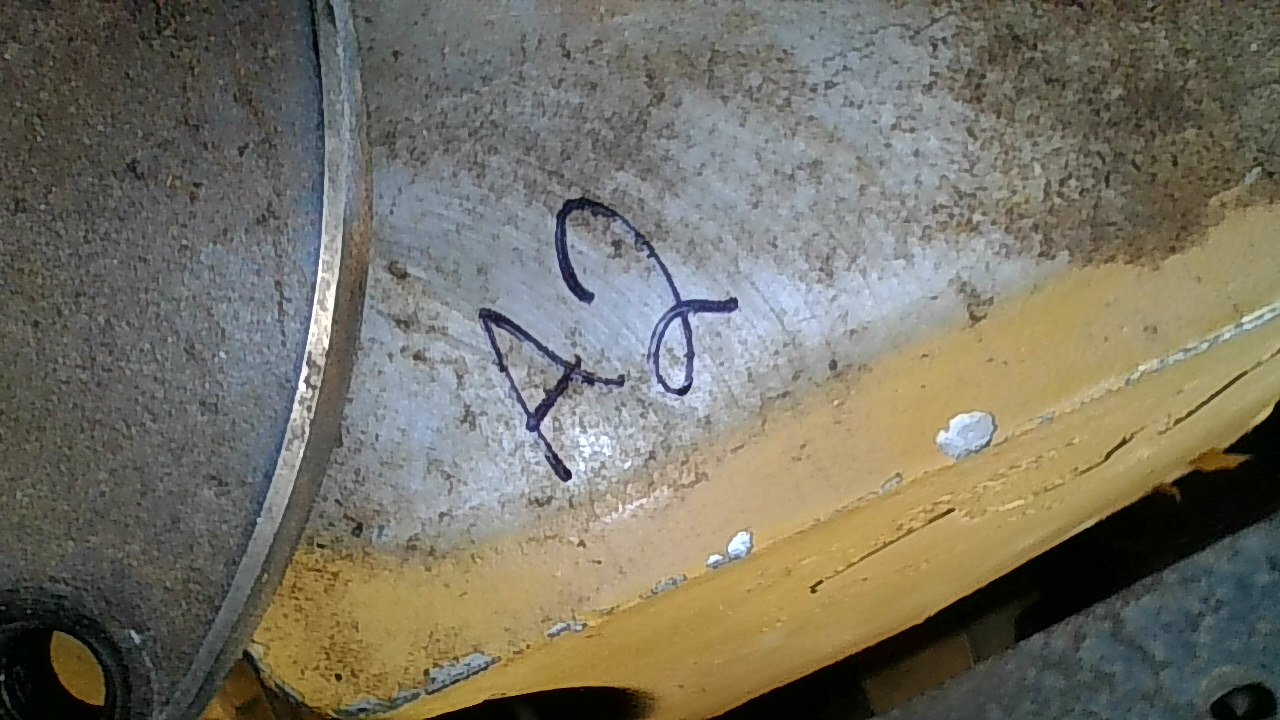

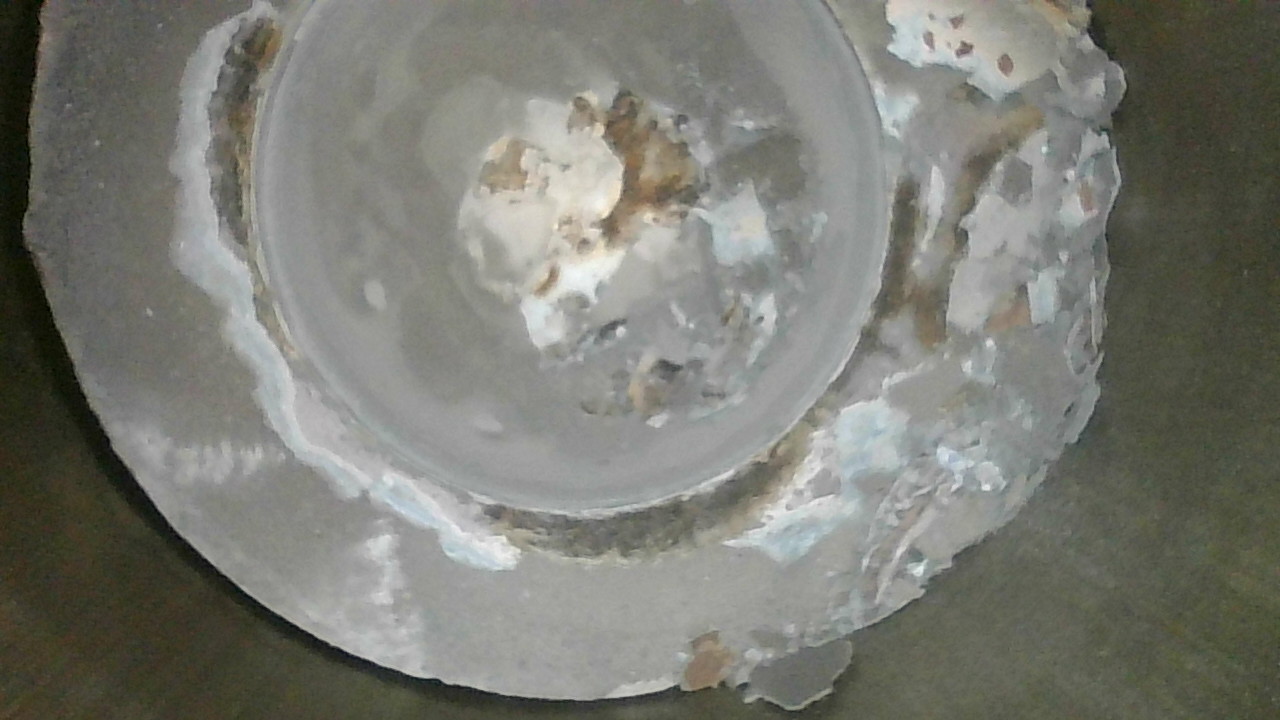

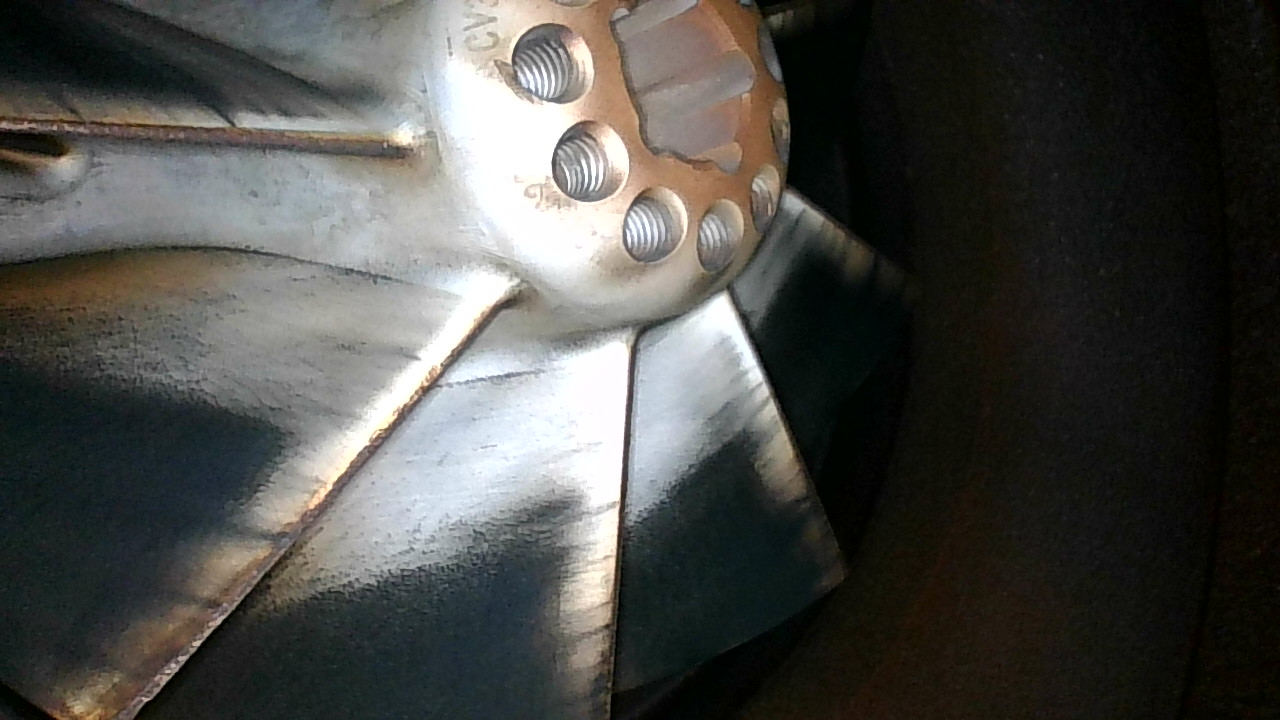

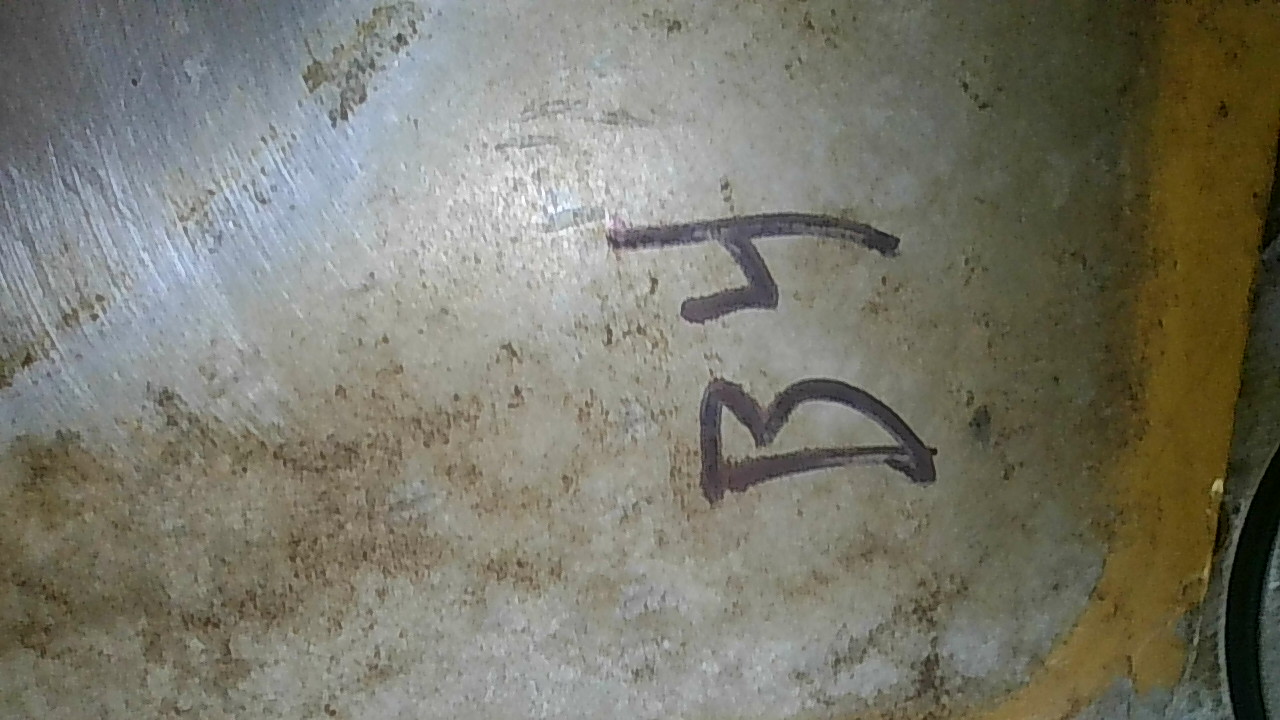

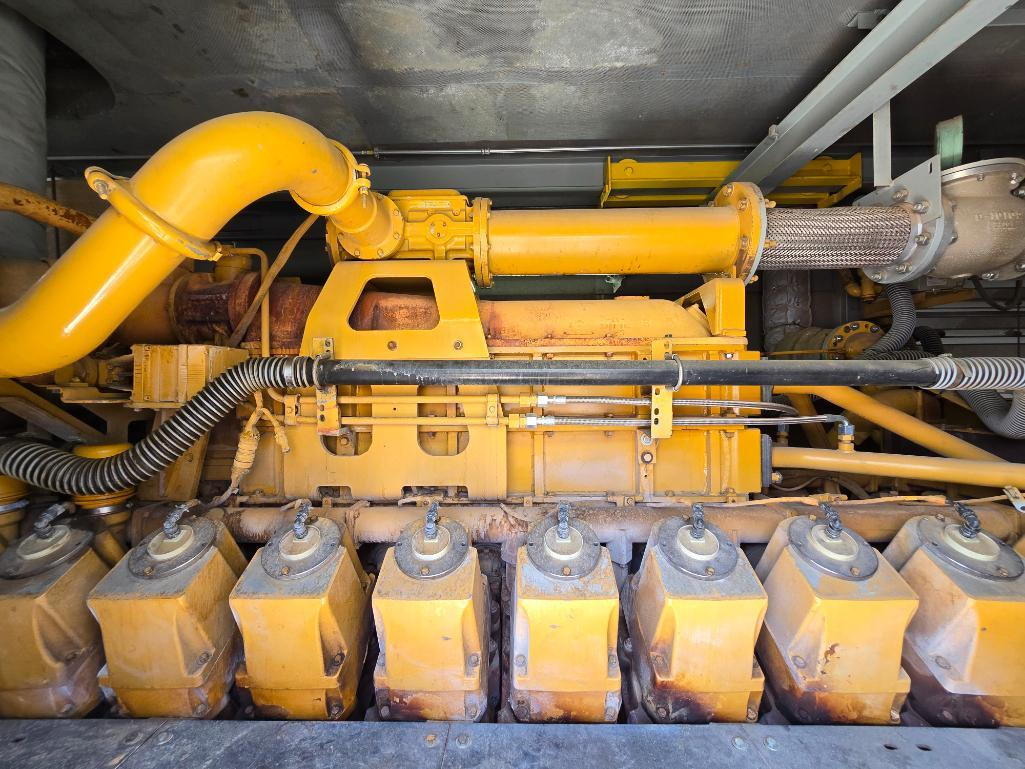

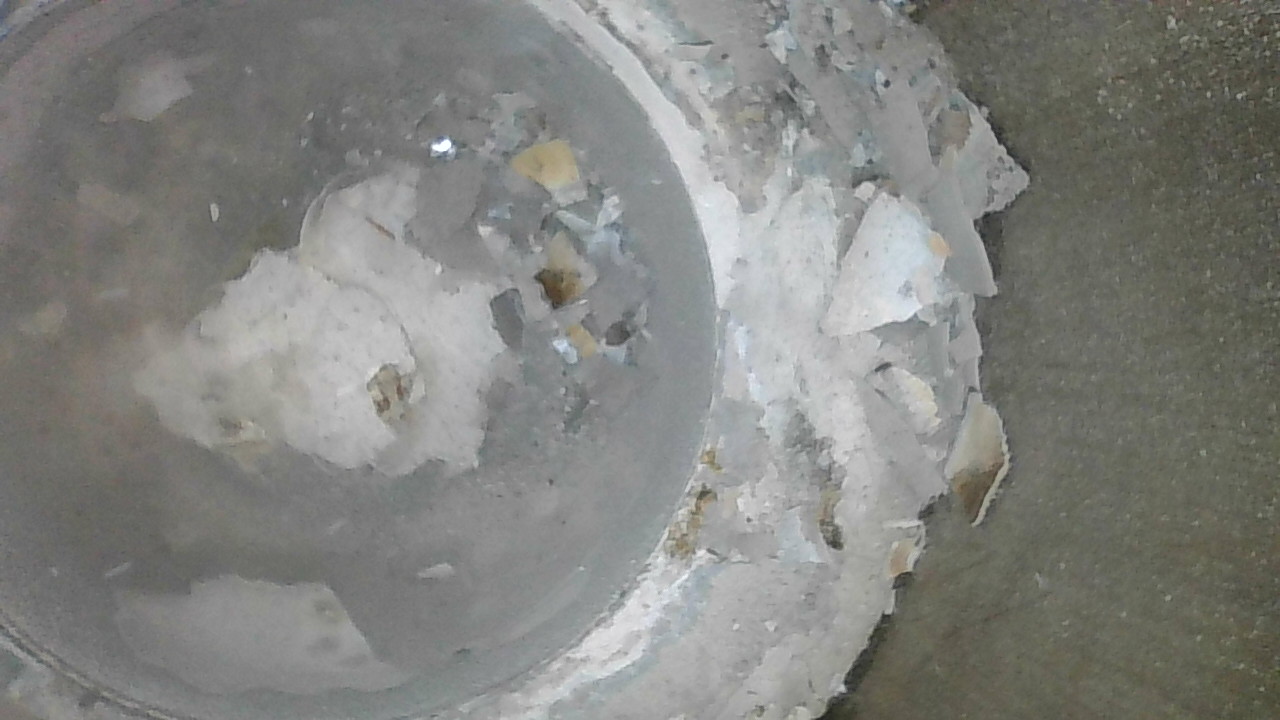

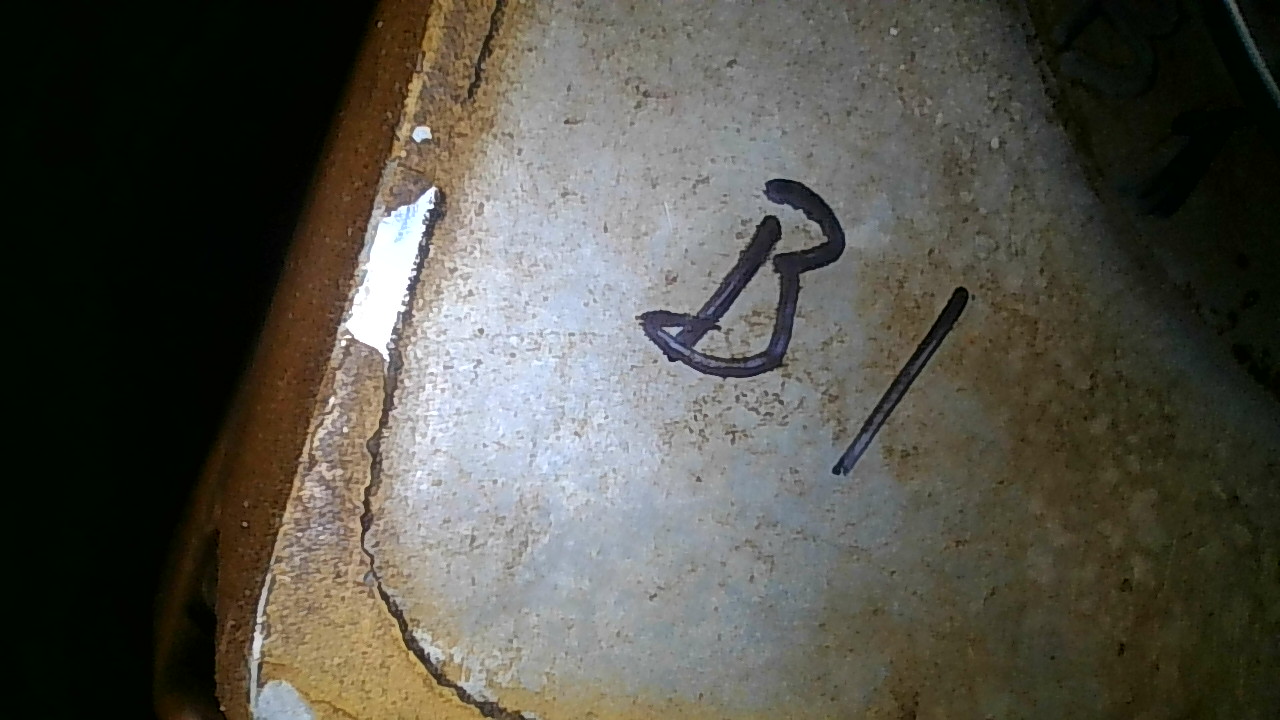

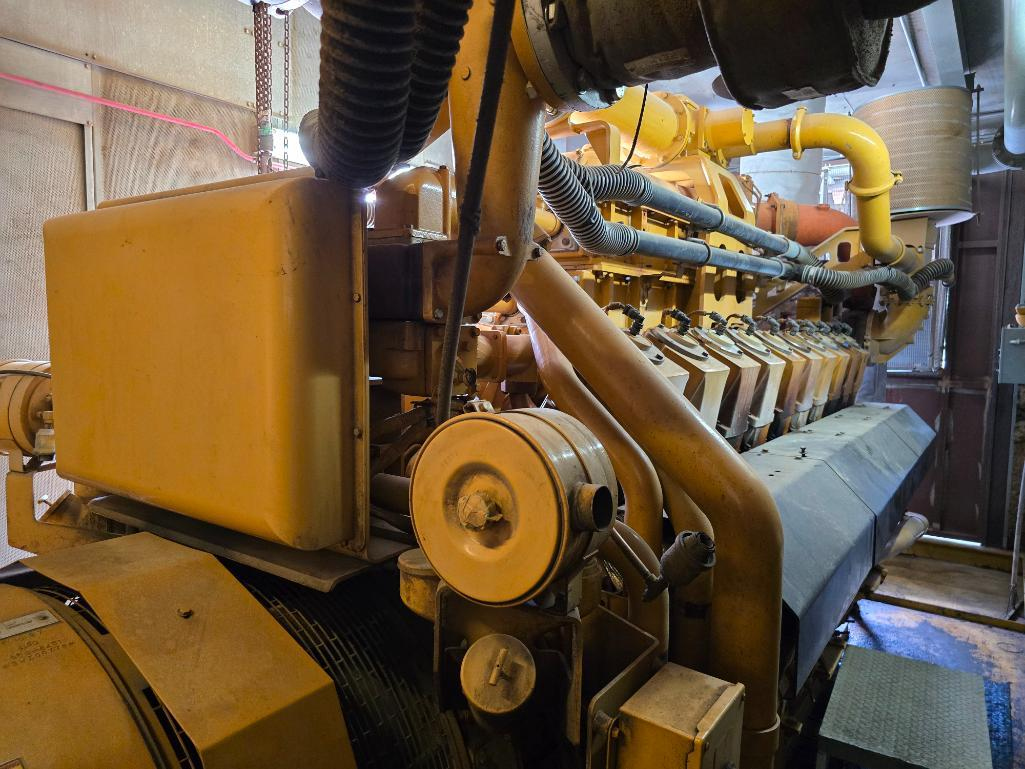

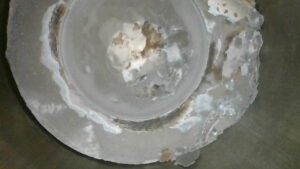

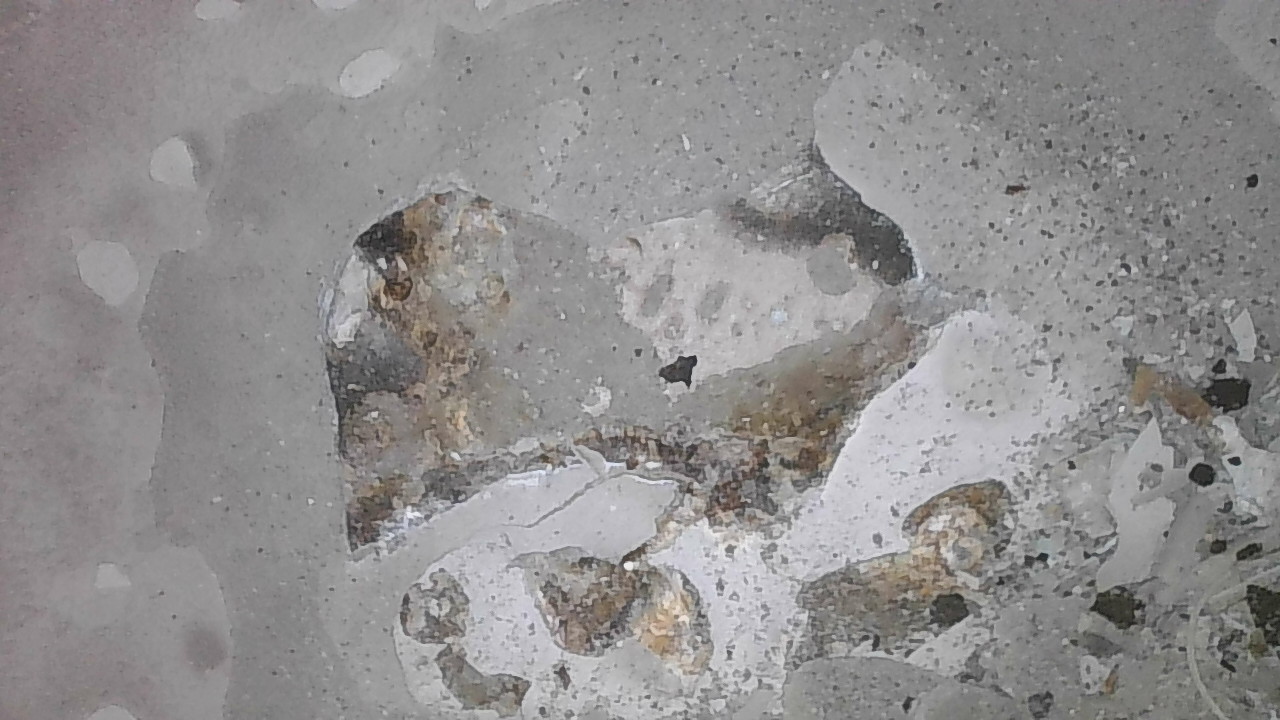

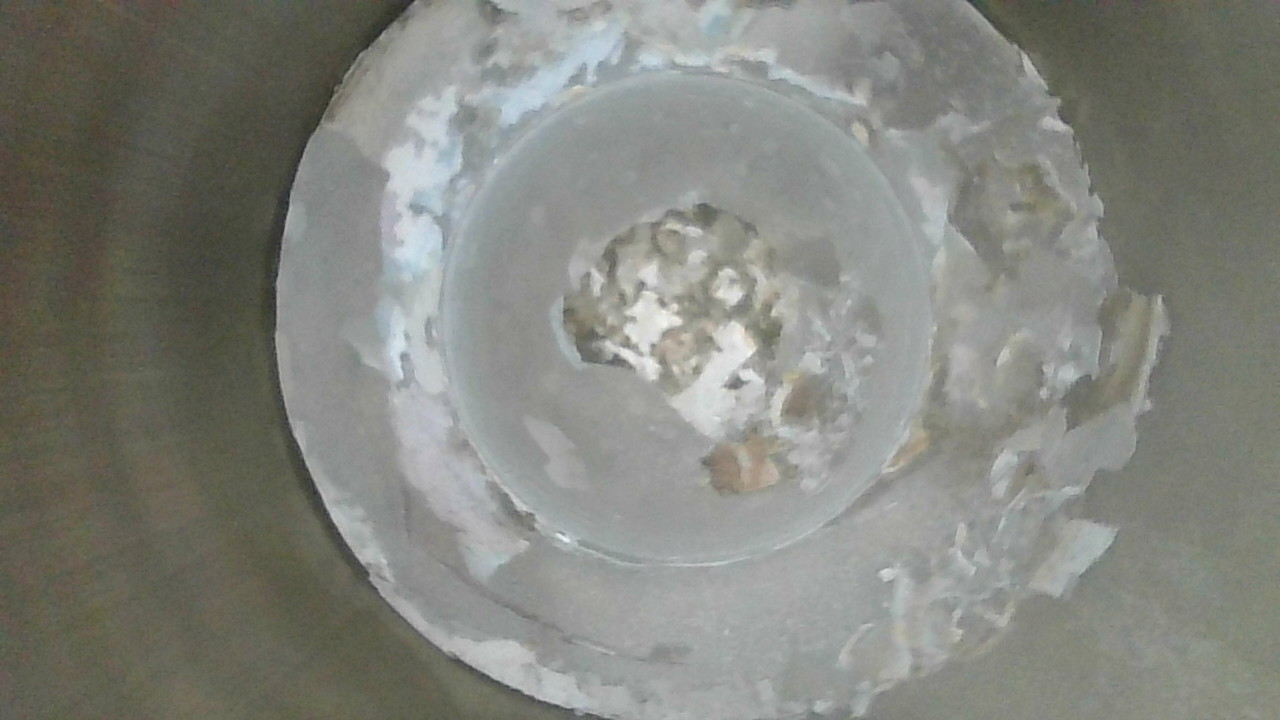

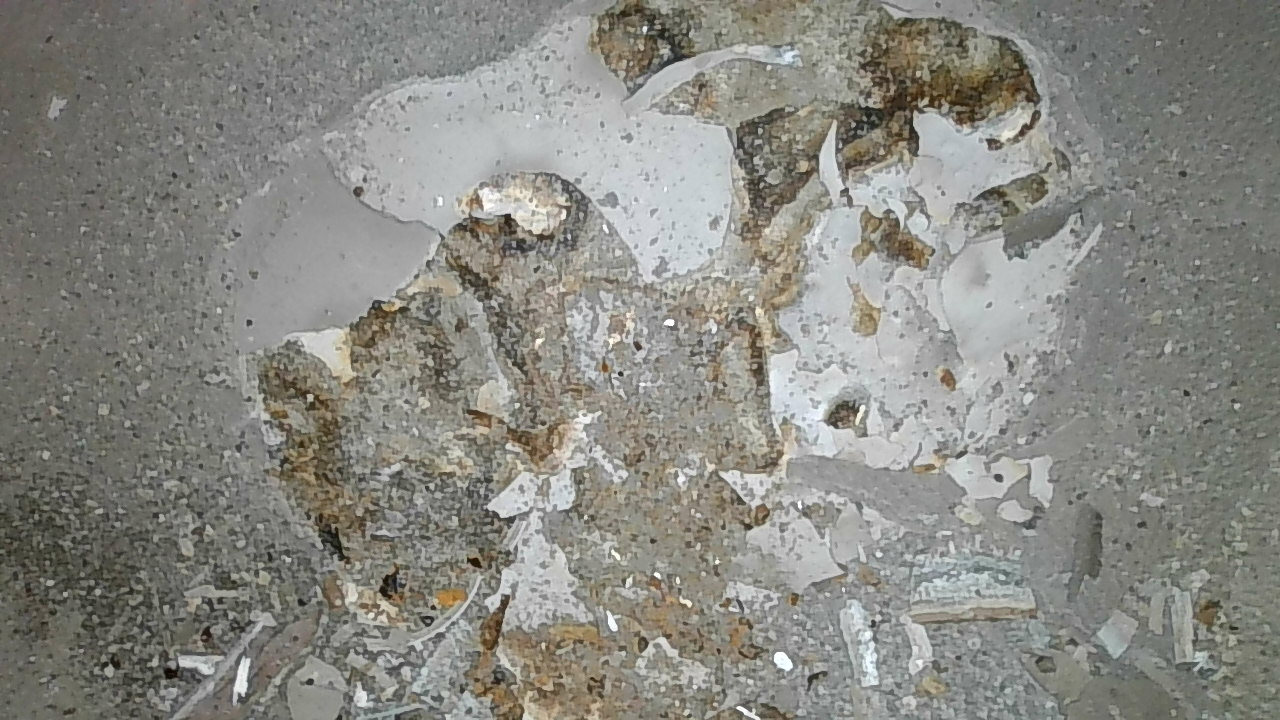

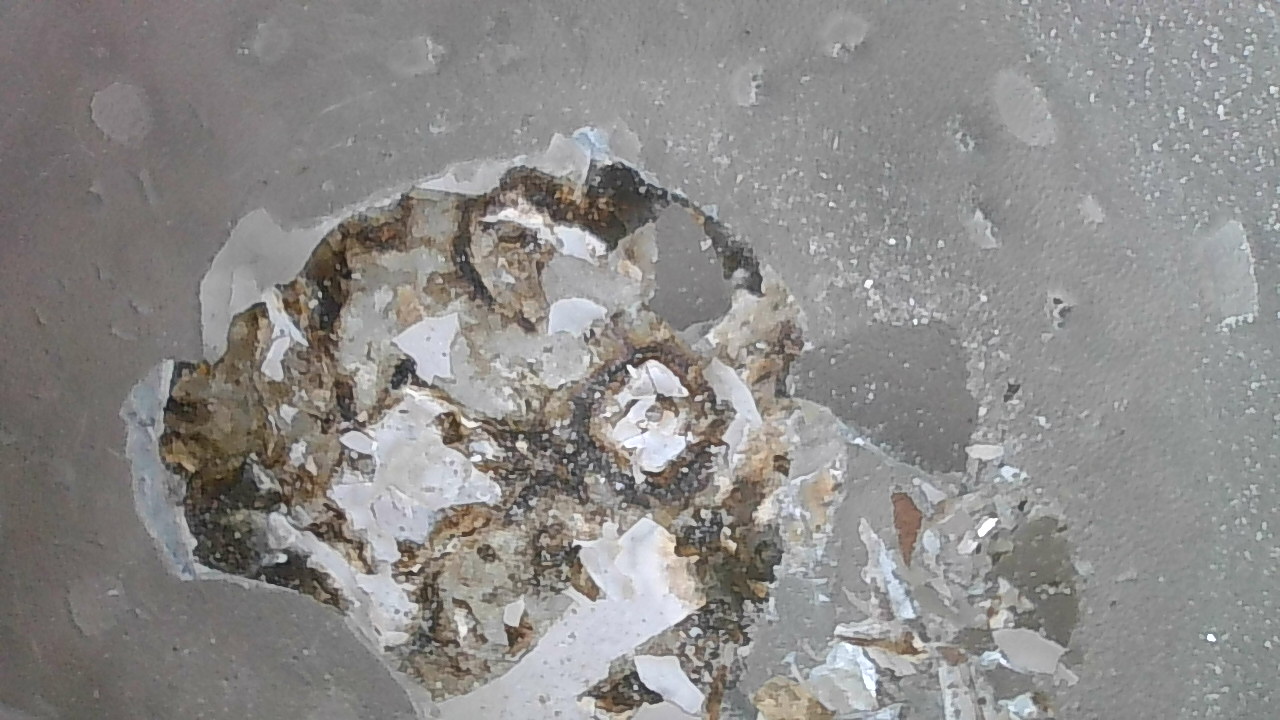

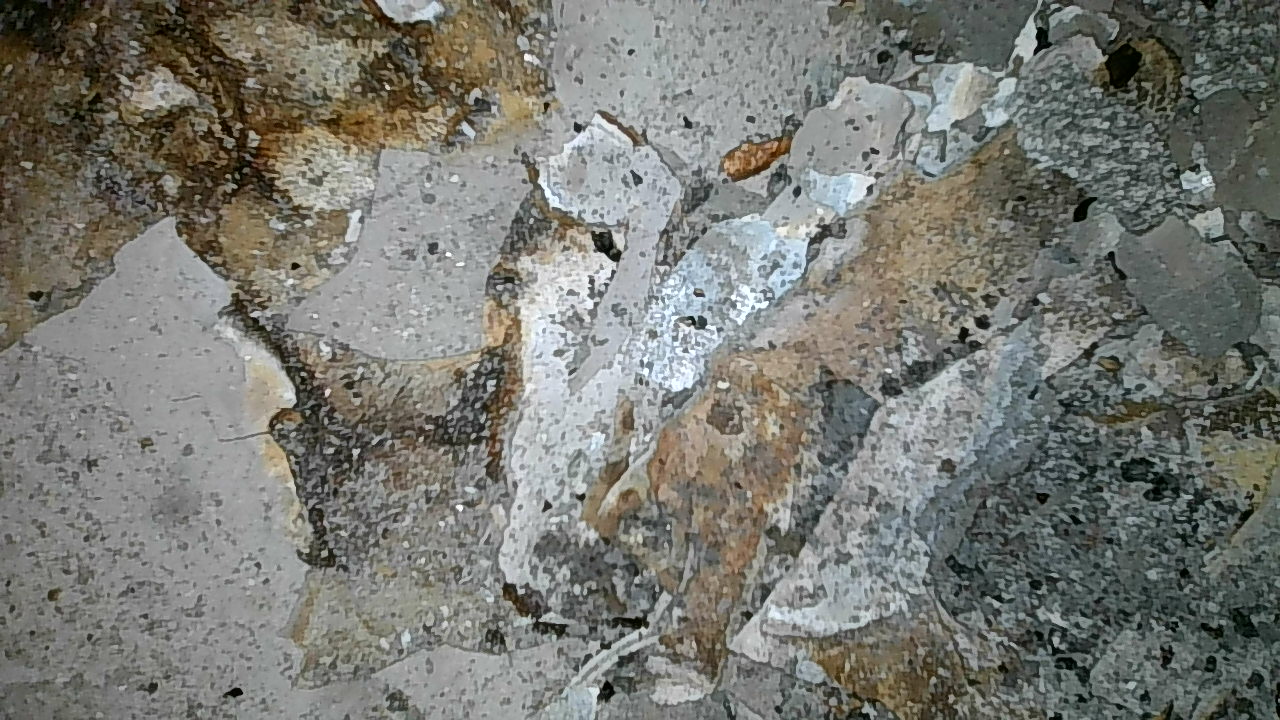

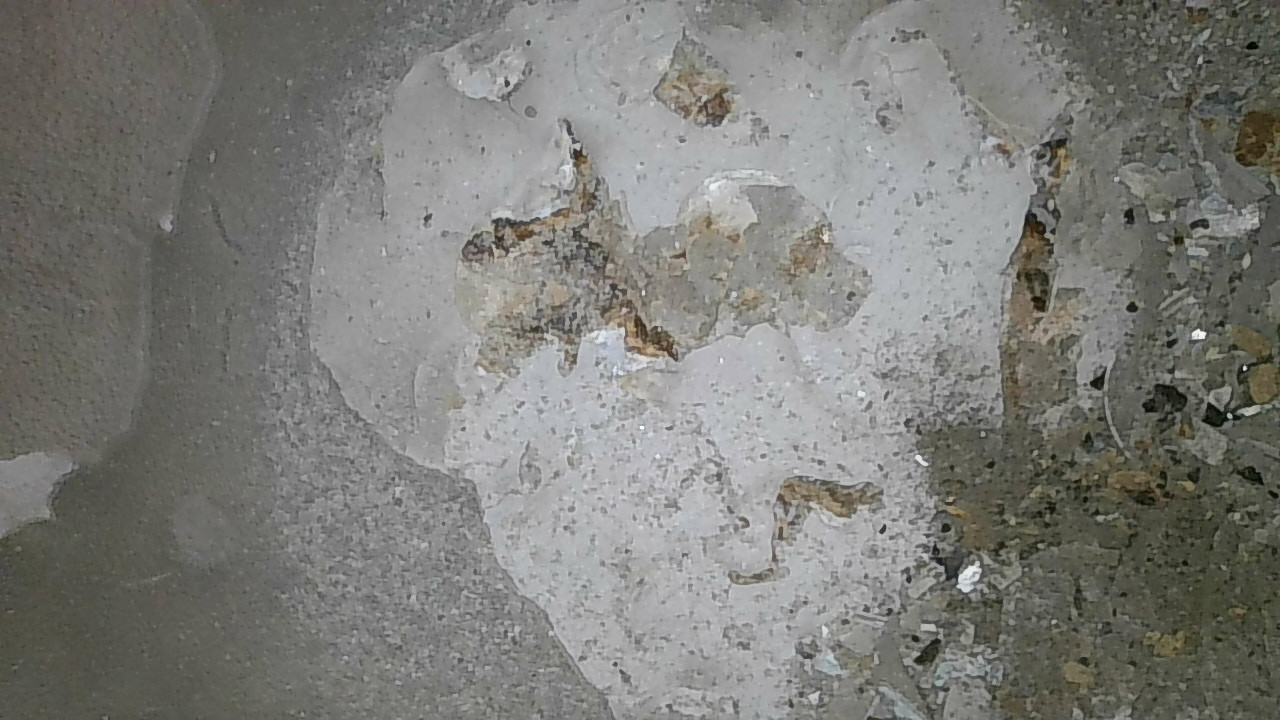

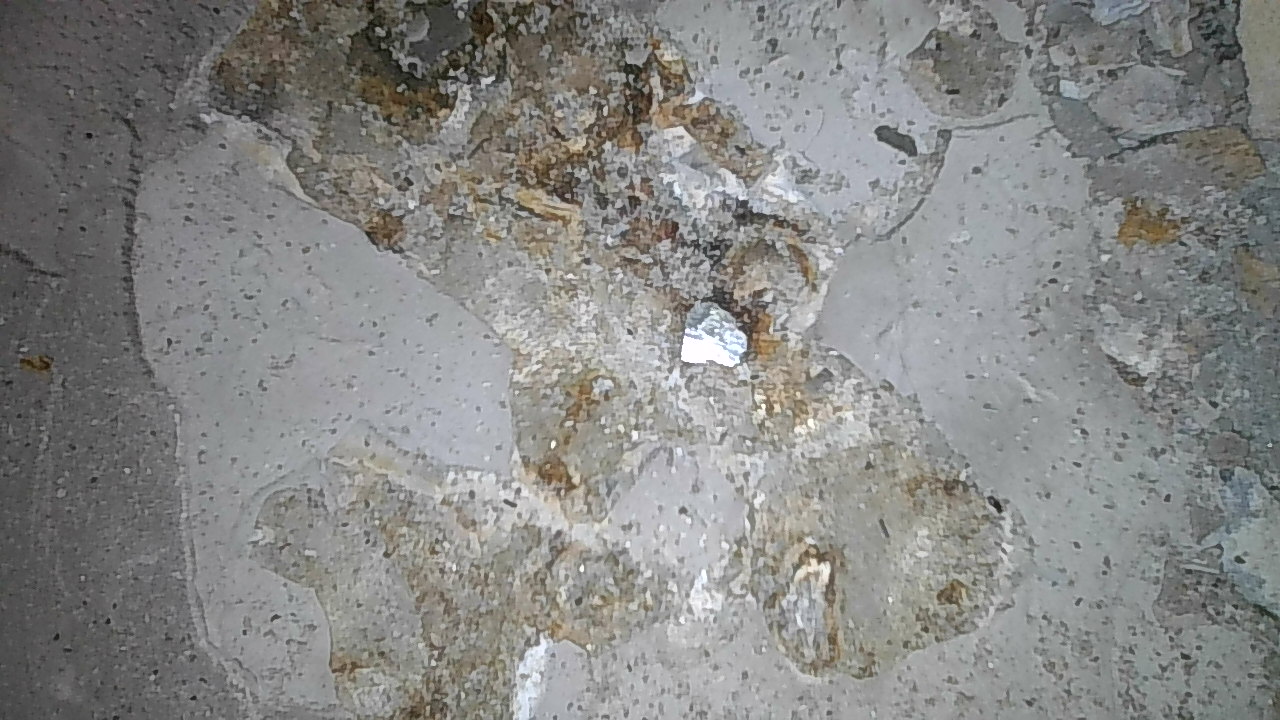

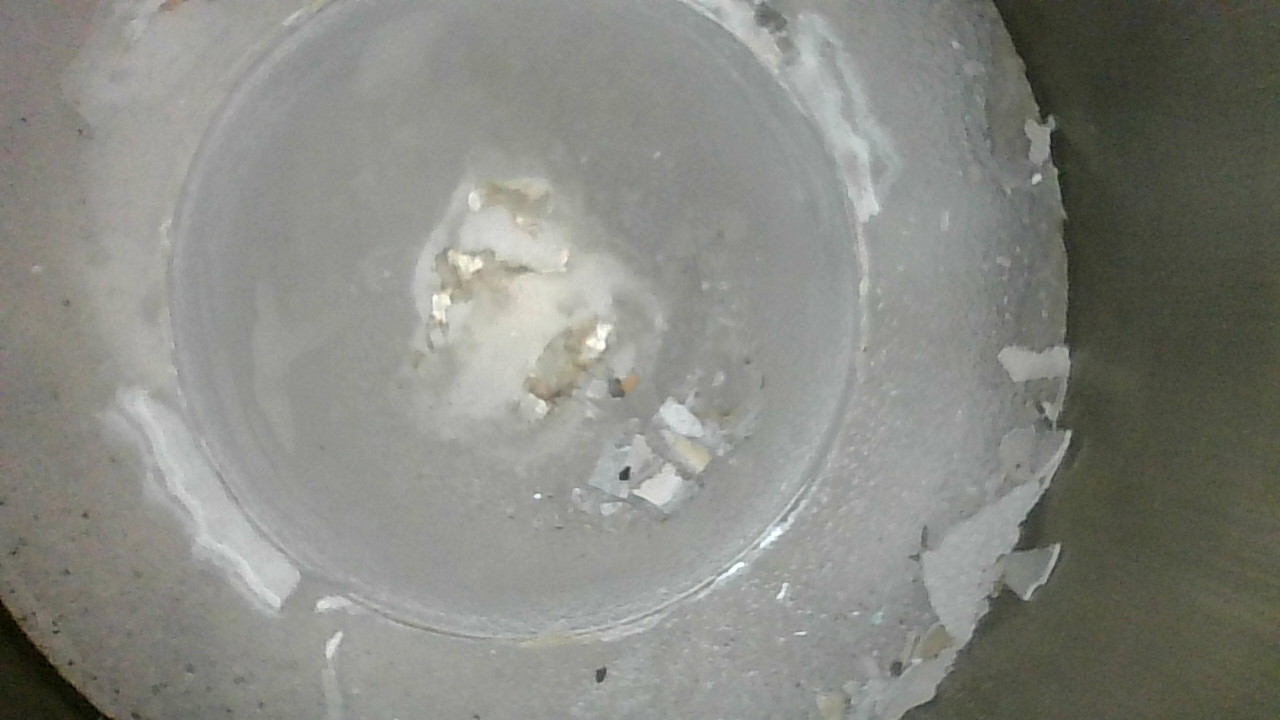

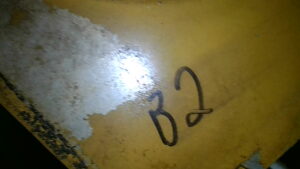

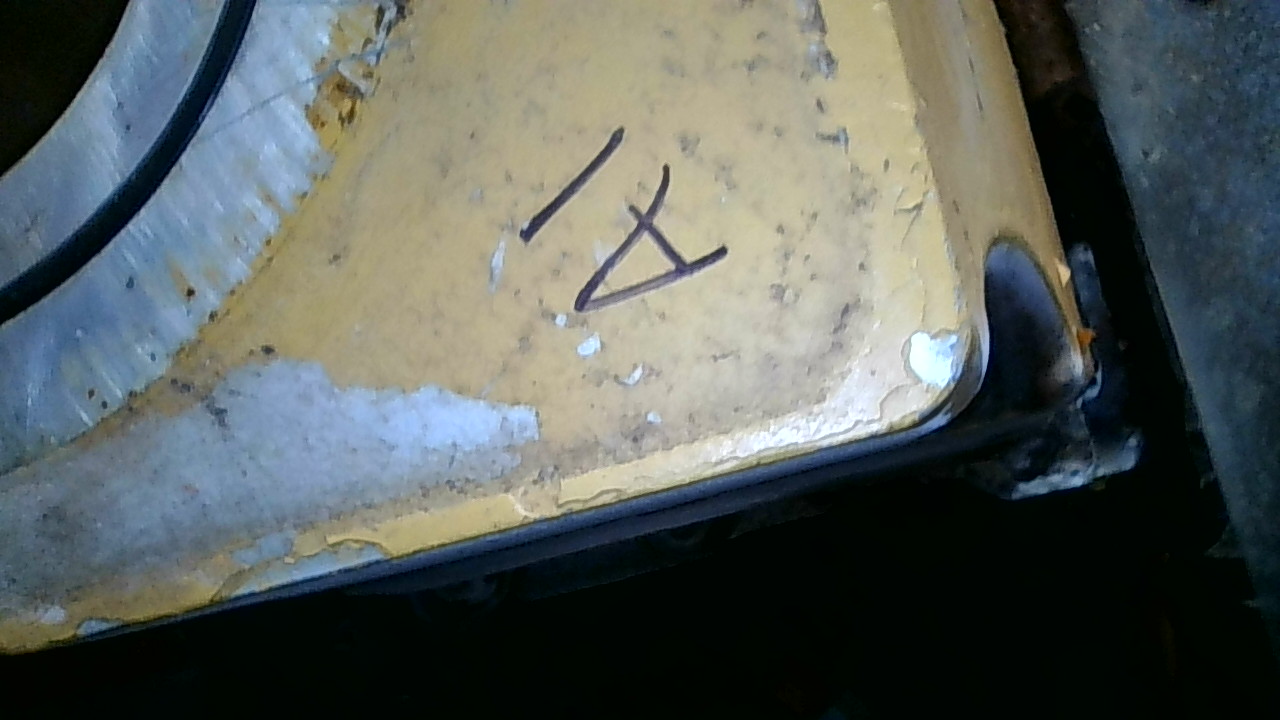

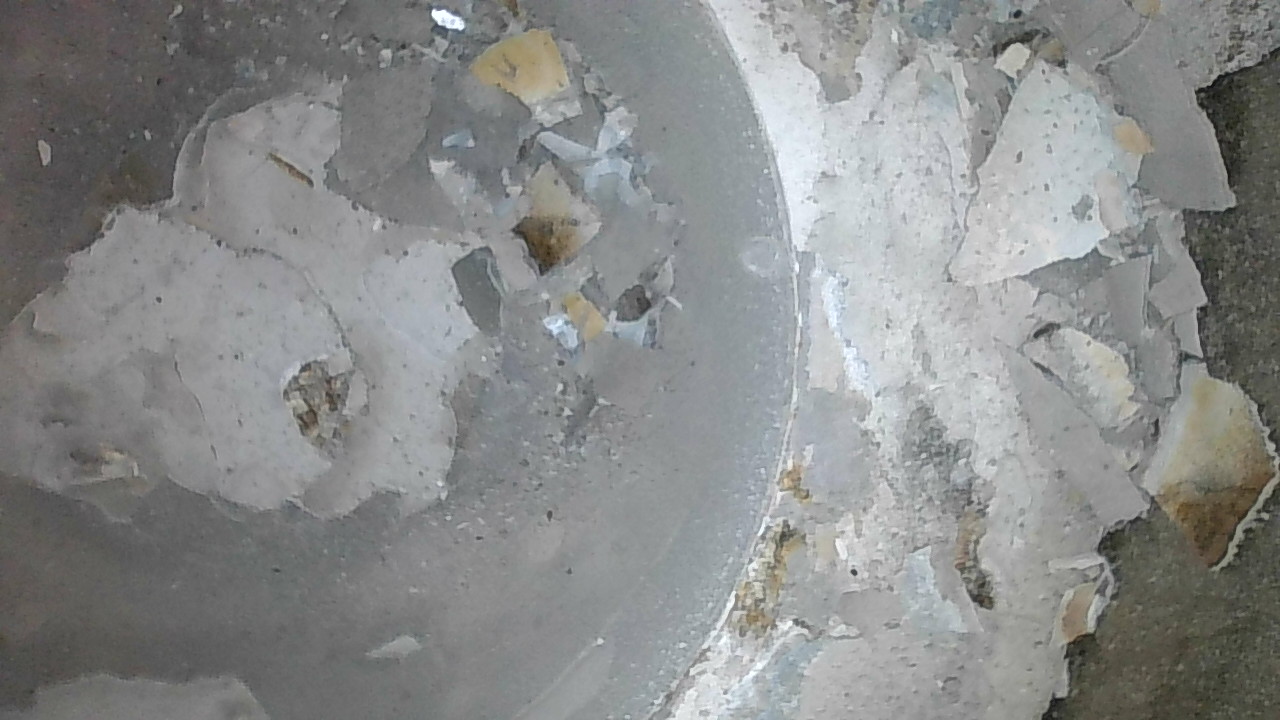

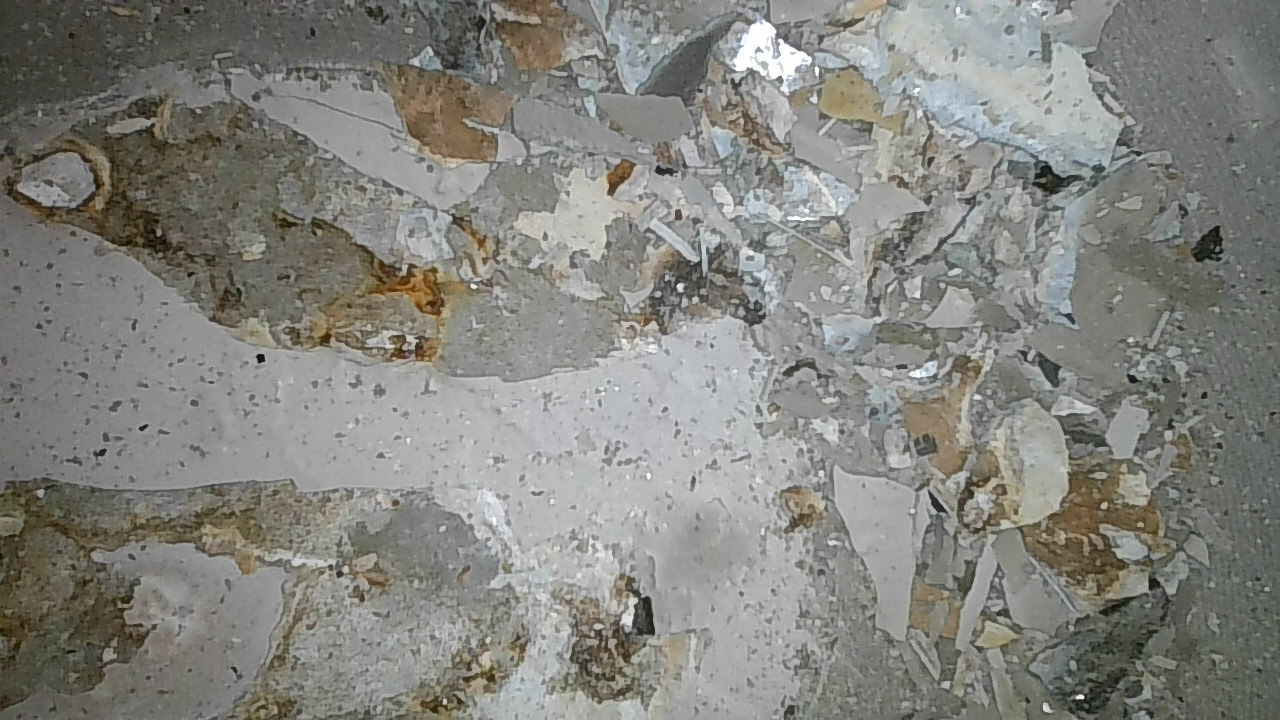

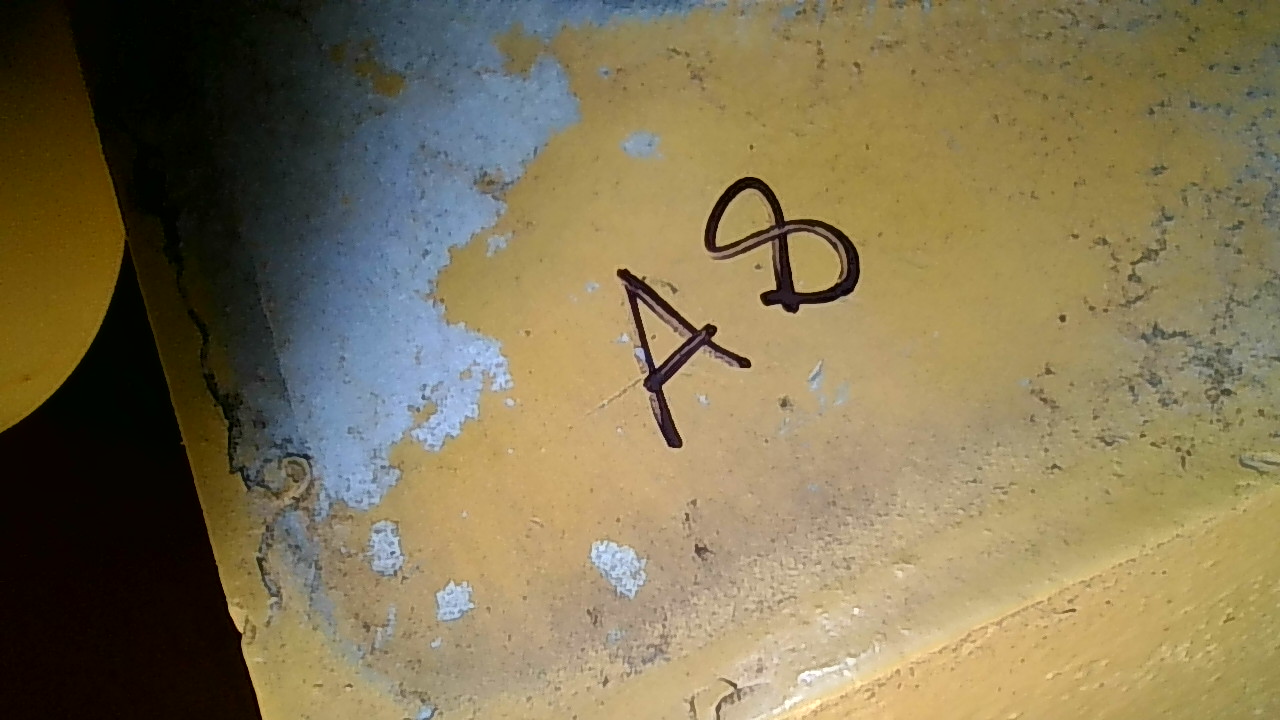

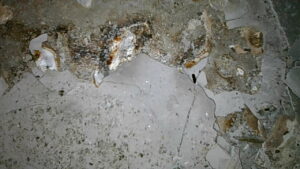

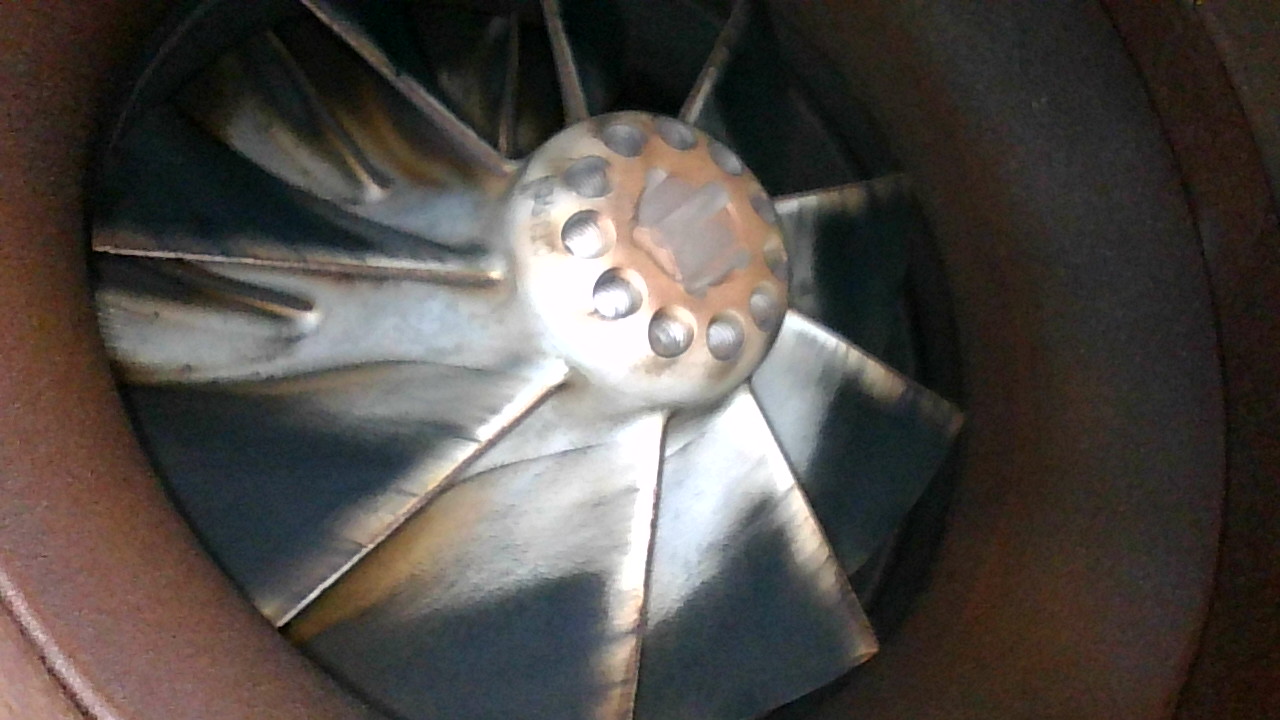

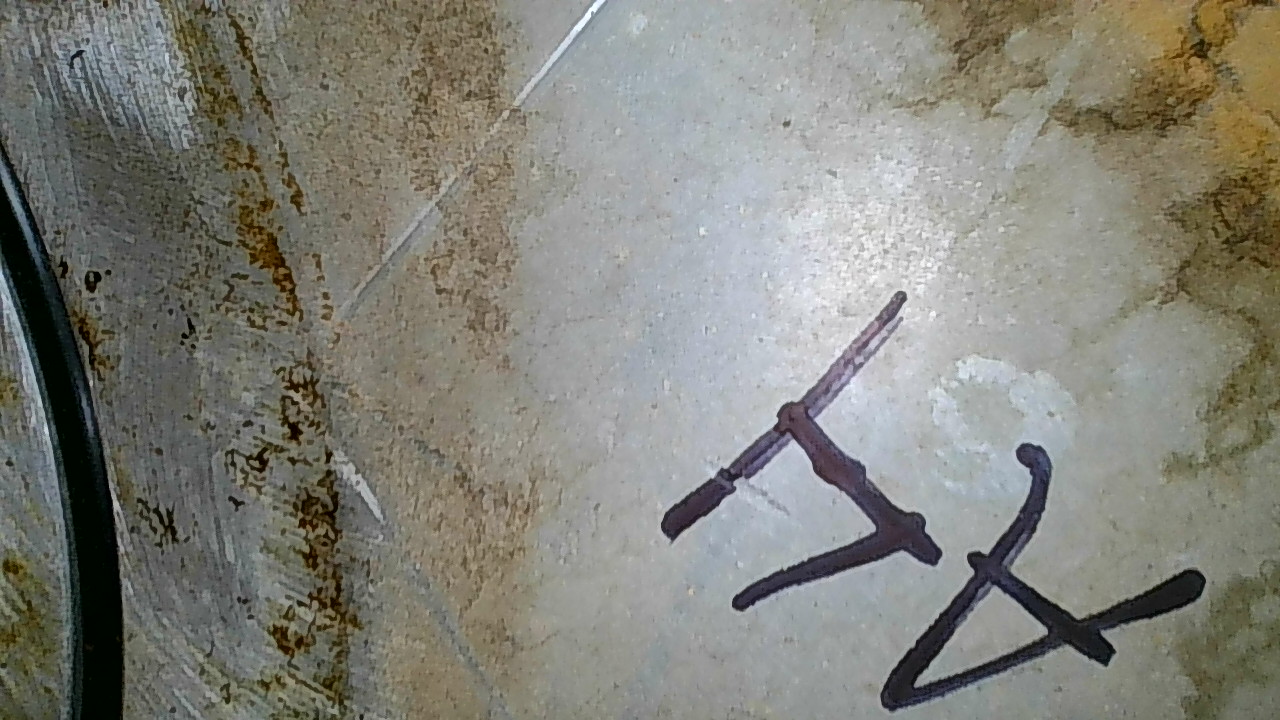

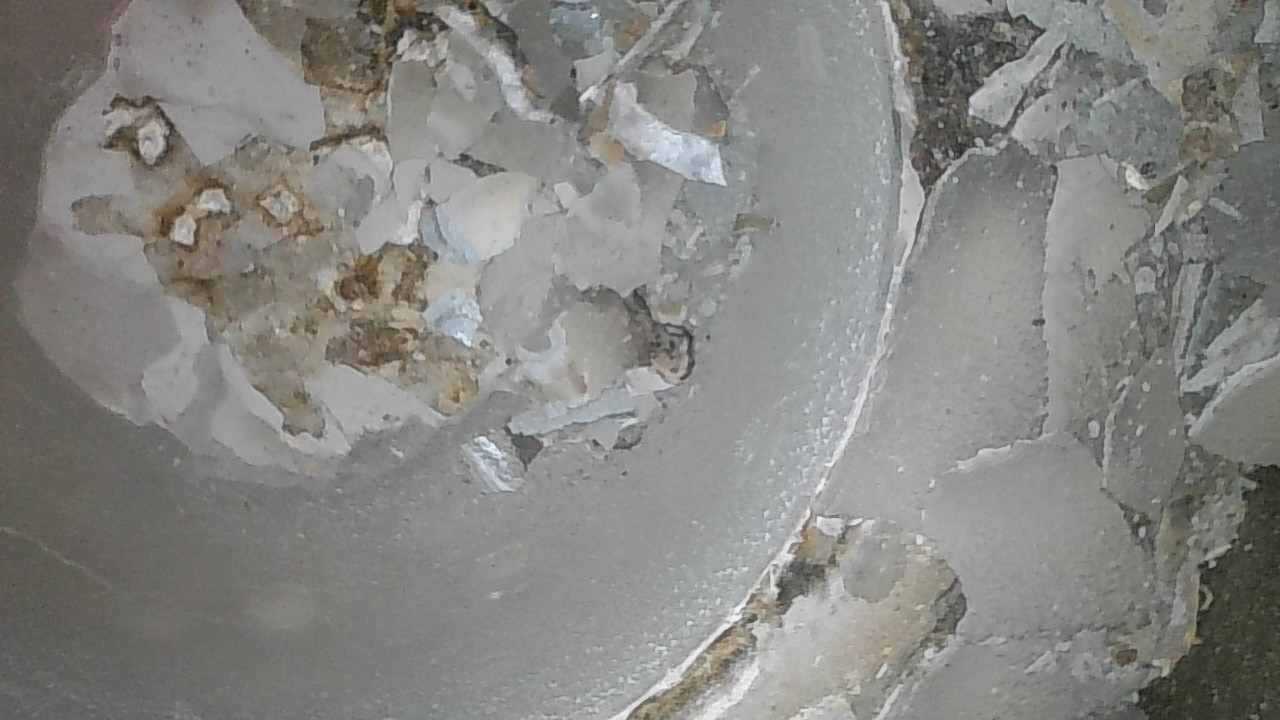

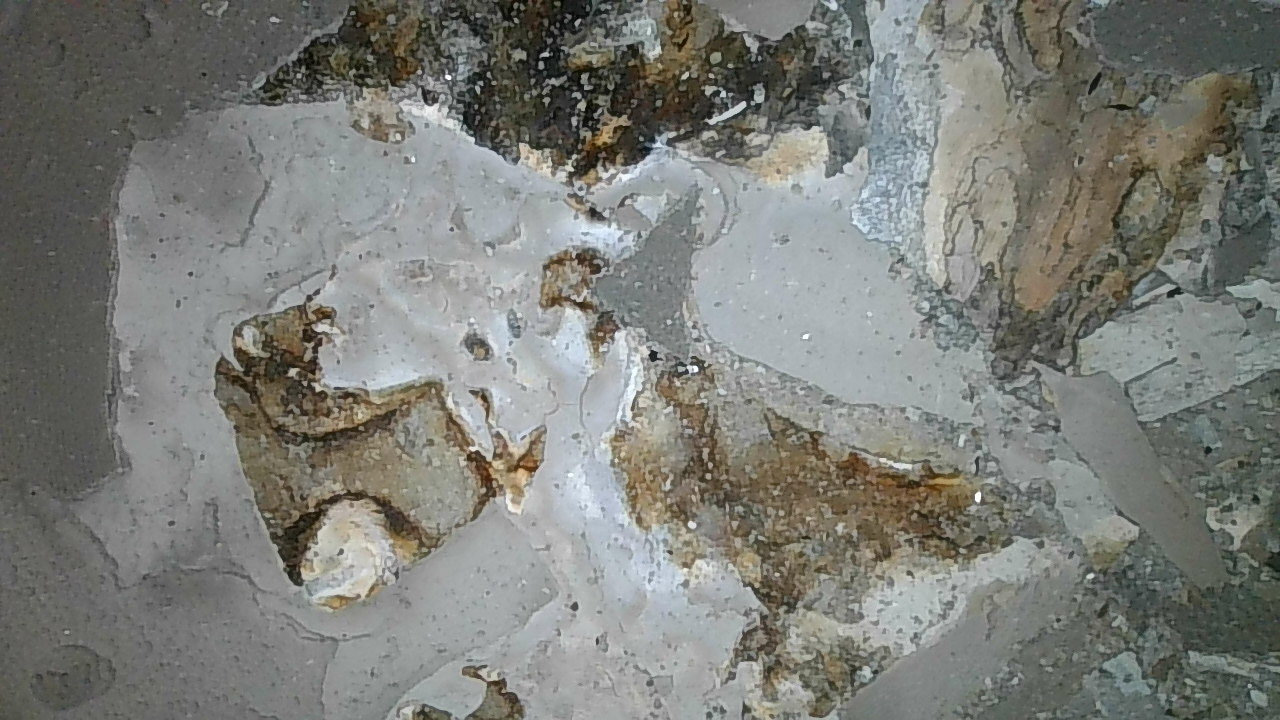

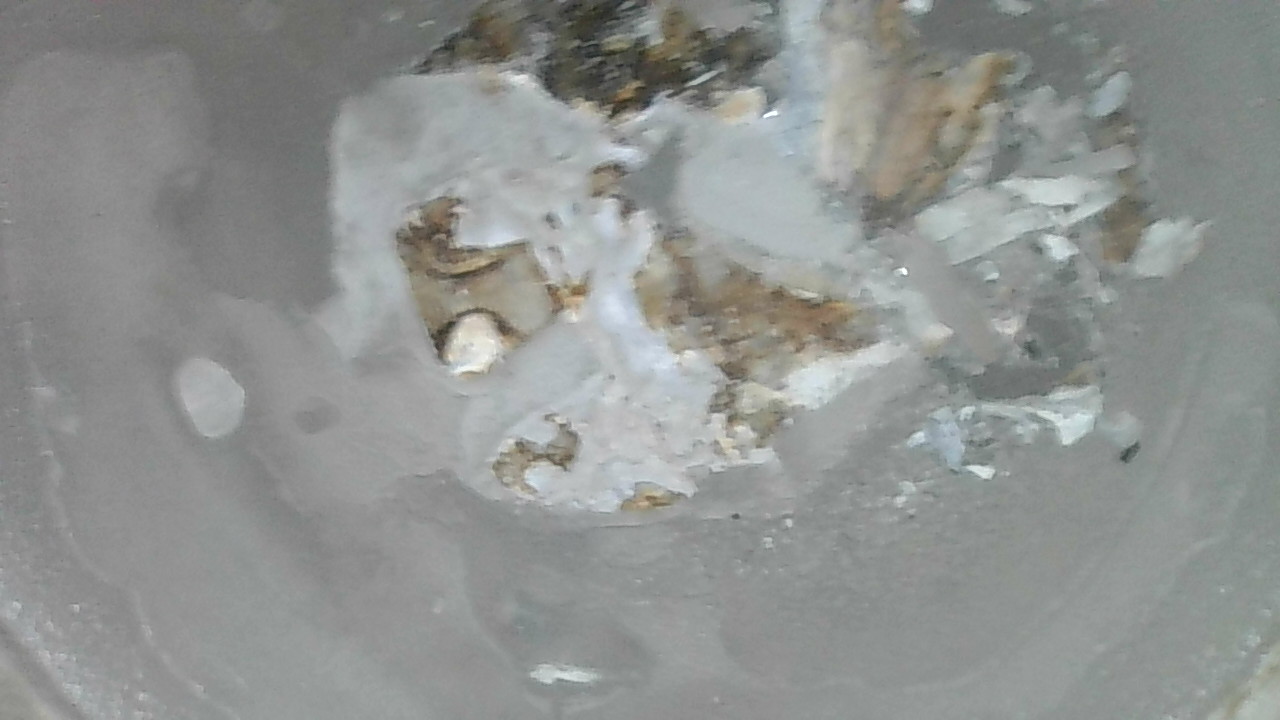

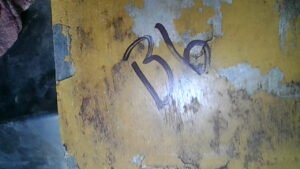

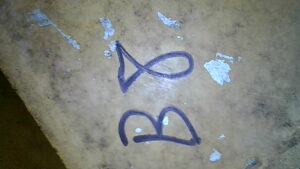

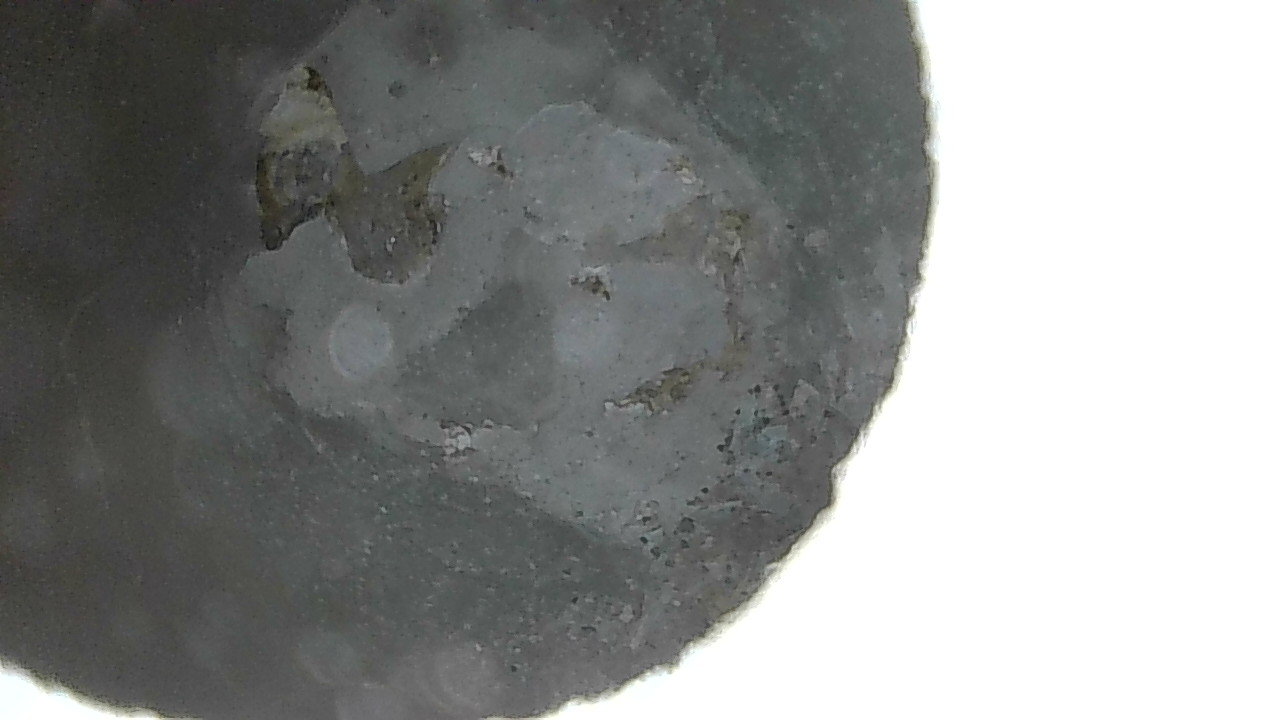

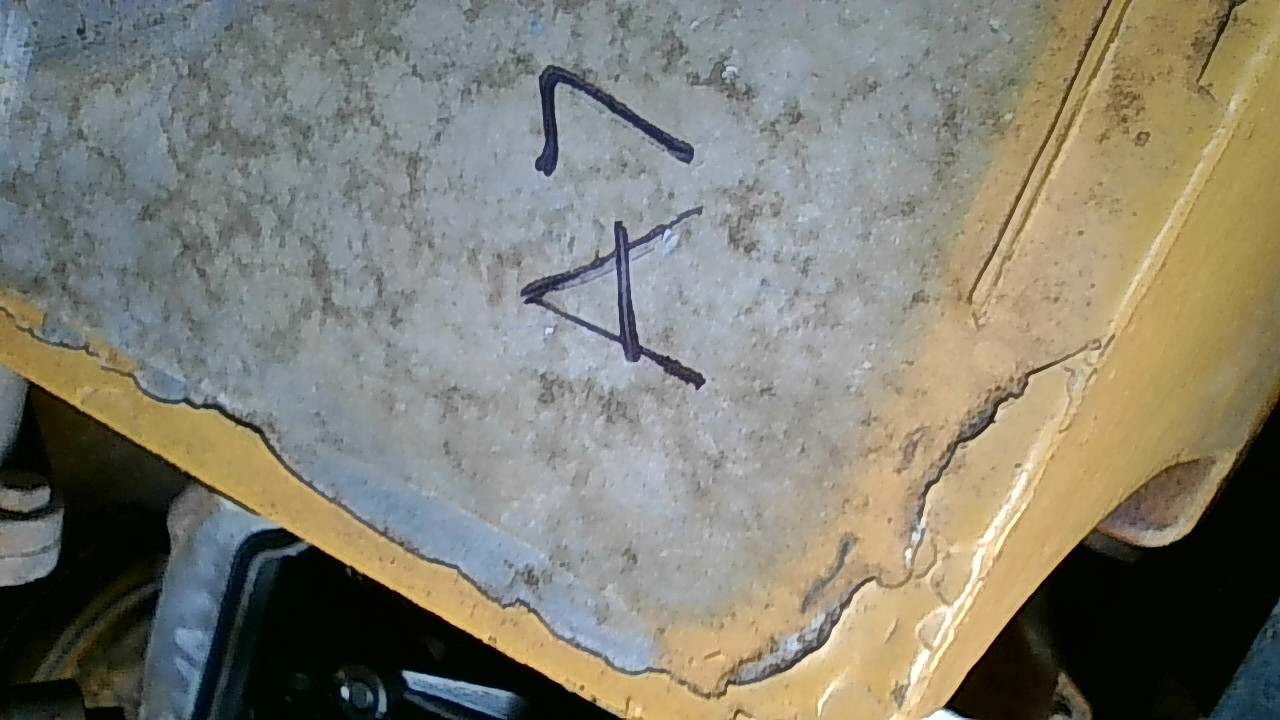

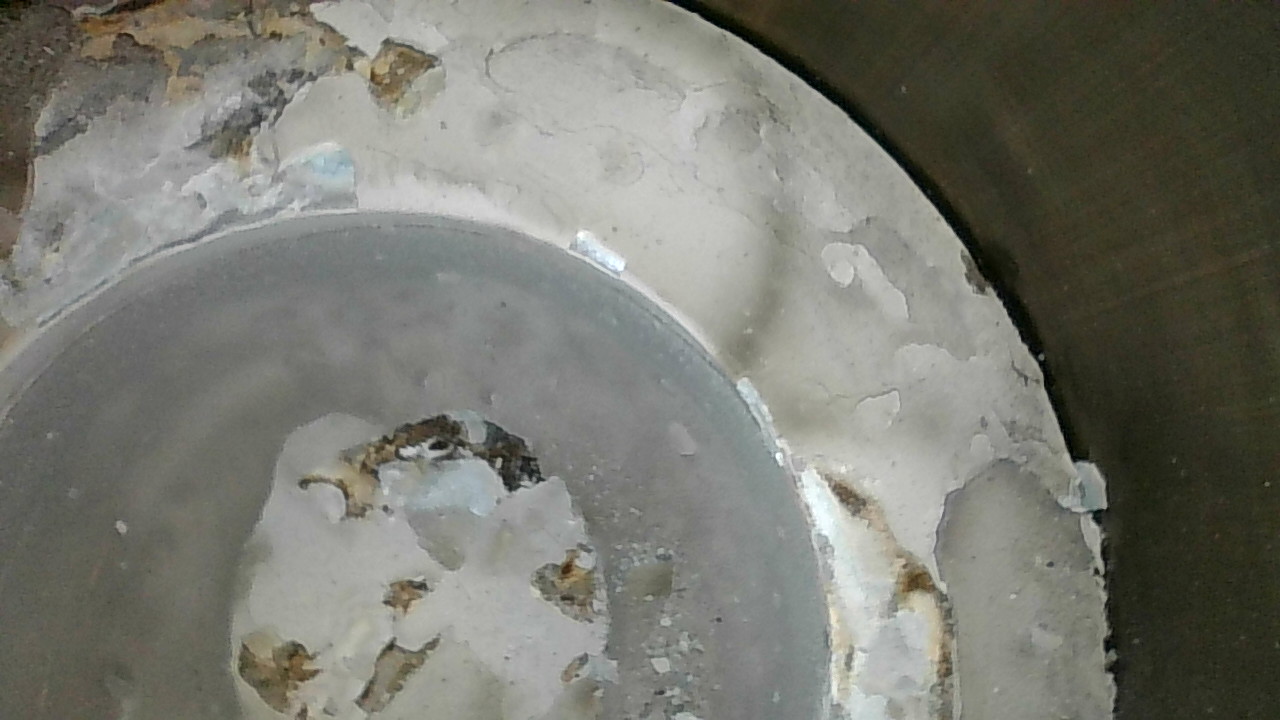

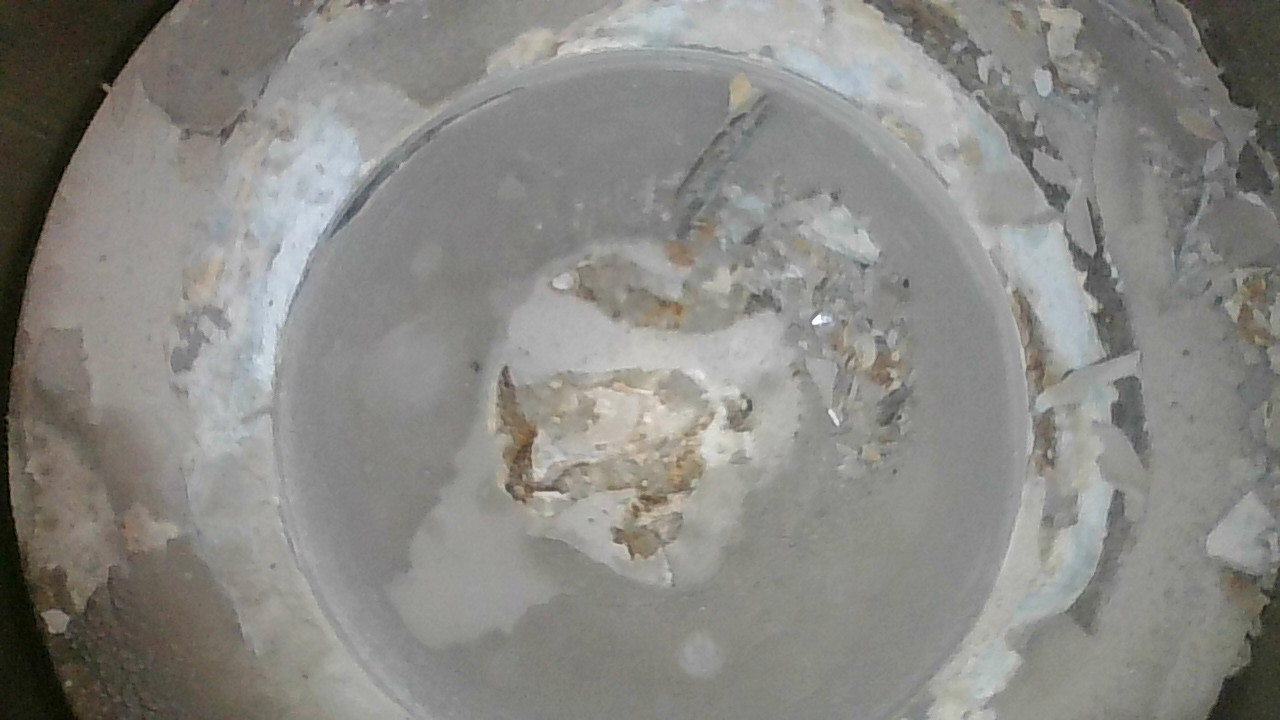

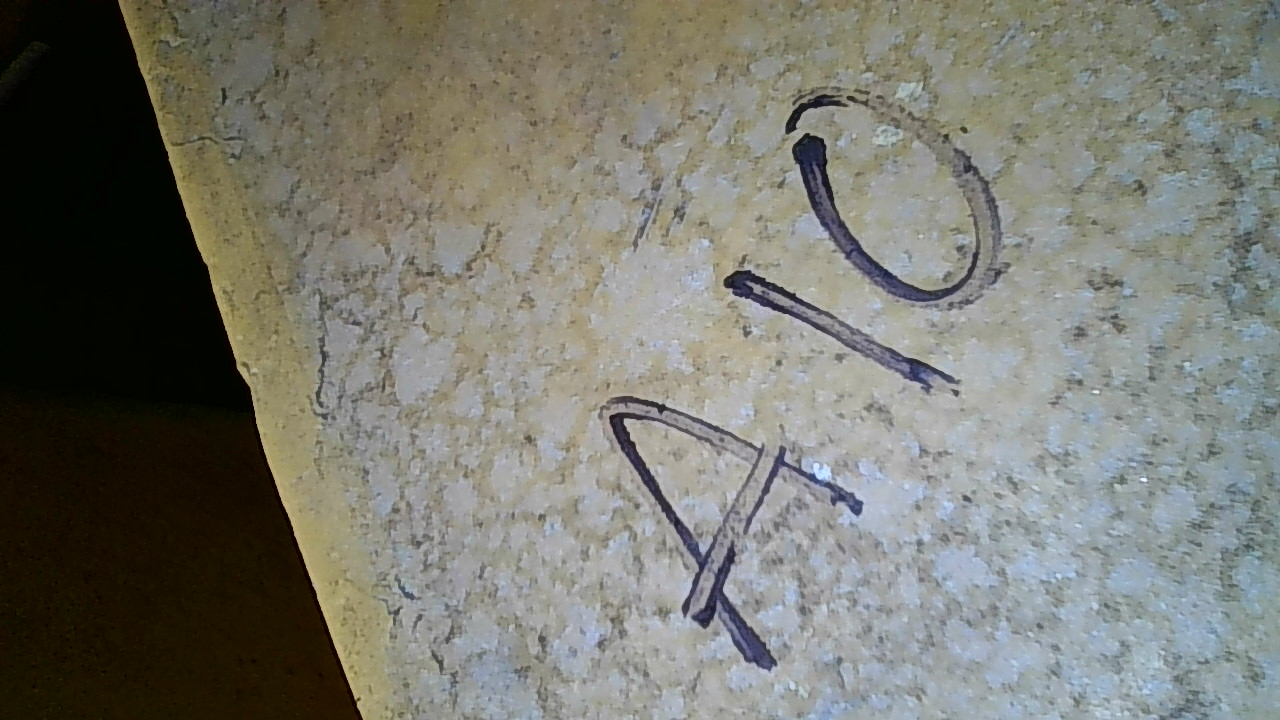

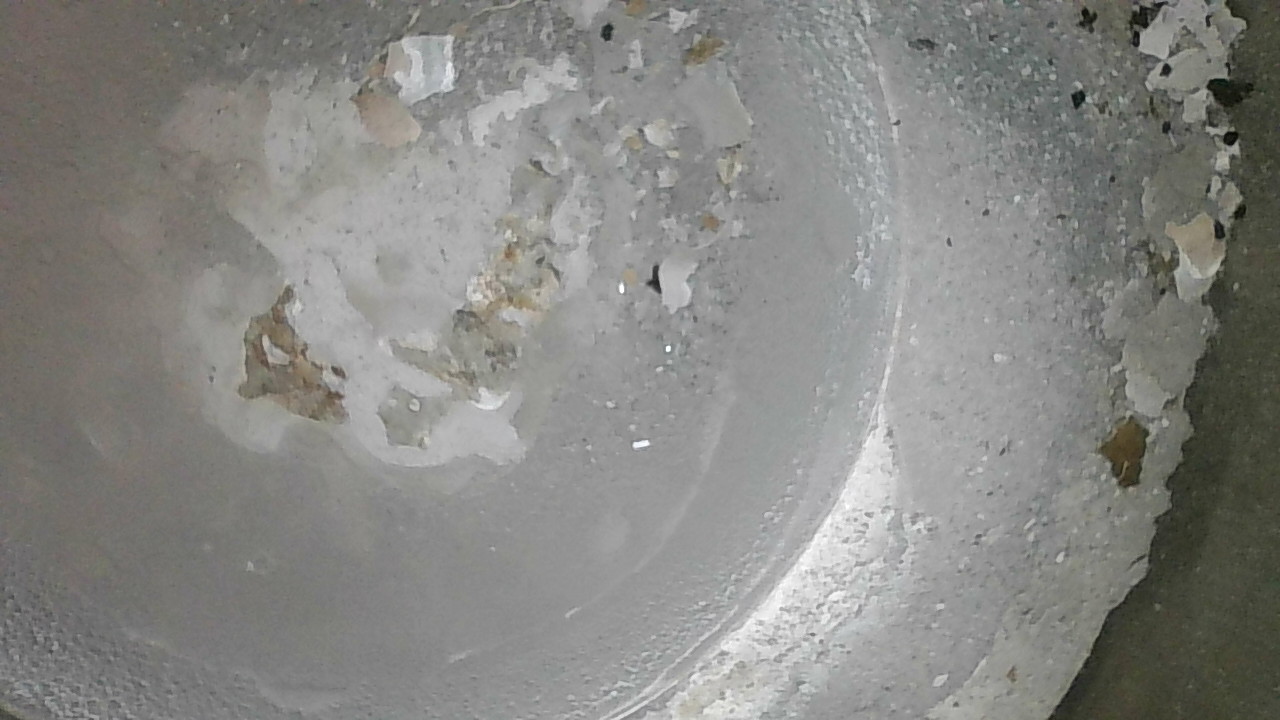

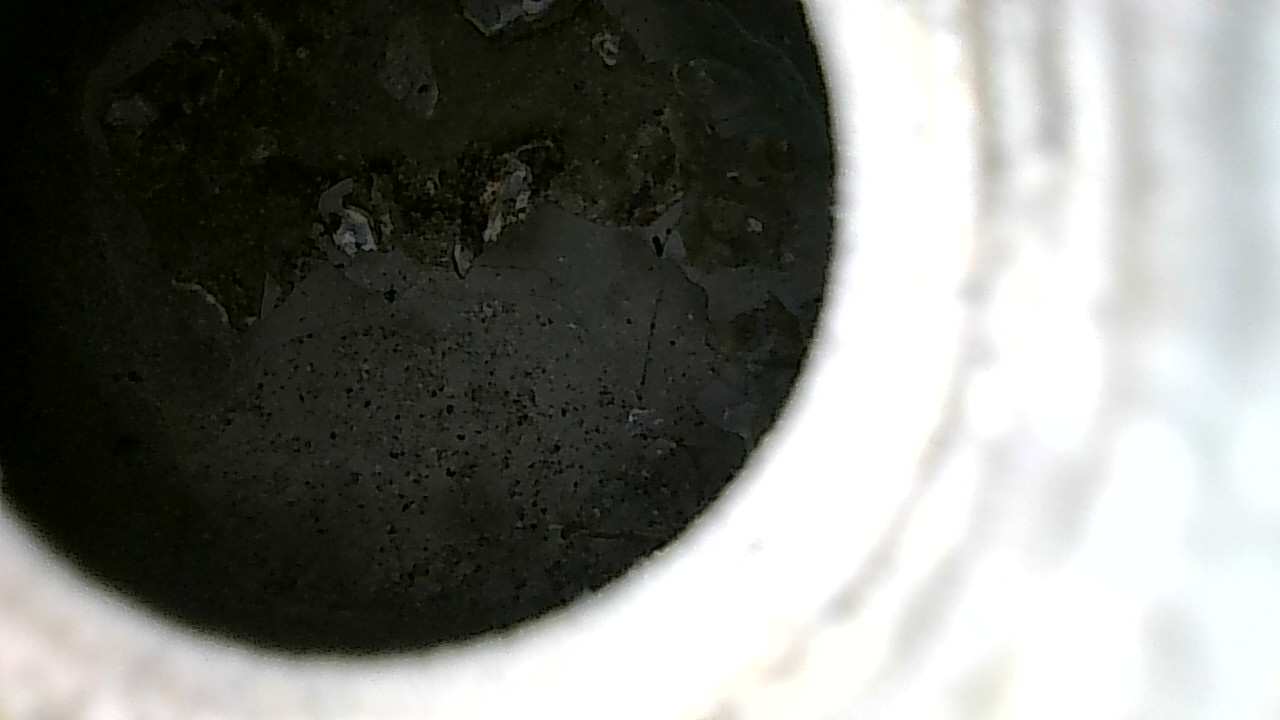

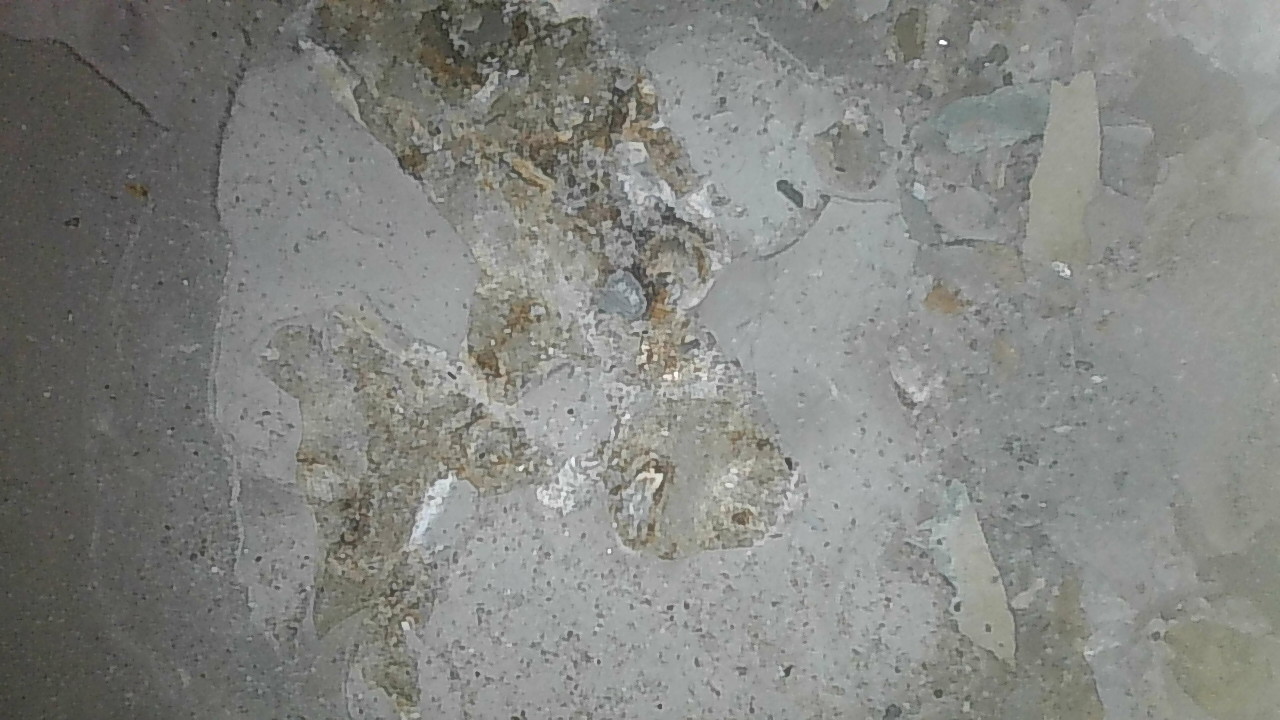

Photos assigned to this engine in the supplied 249-page CAT deck. Unassigned photos appear only on the four-unit package. Photos are historical evidence, not an operating test.

Quantity basis

Individual asset; exact included scope subject to agreement.

Availability last checked

2026-09-22

Equipment overview

Additional listing details

Listing Reference

EE-CAT-ELG-02

Last Overhaul Year

2020

Power-generation specifications

Voltage

4,160 V, 3-phase, Wye / series, 6-wire

Phase

Three Phase

Rated Speed

1,200 RPM

Recorded hours*

69,190* — historical reading; confirm meter date, lifetime basis and overhaul history.

Duty Rating

Continuous

Engine Model

G3520C

Generator-End Model

SR4

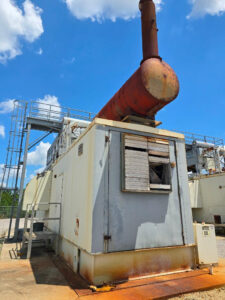

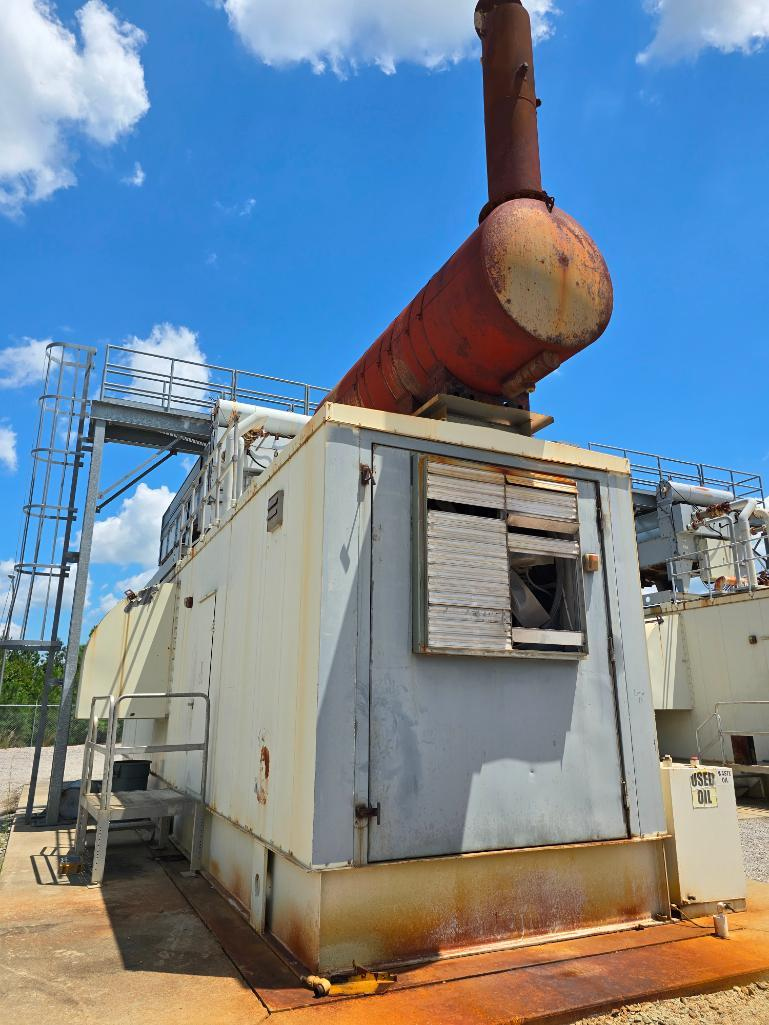

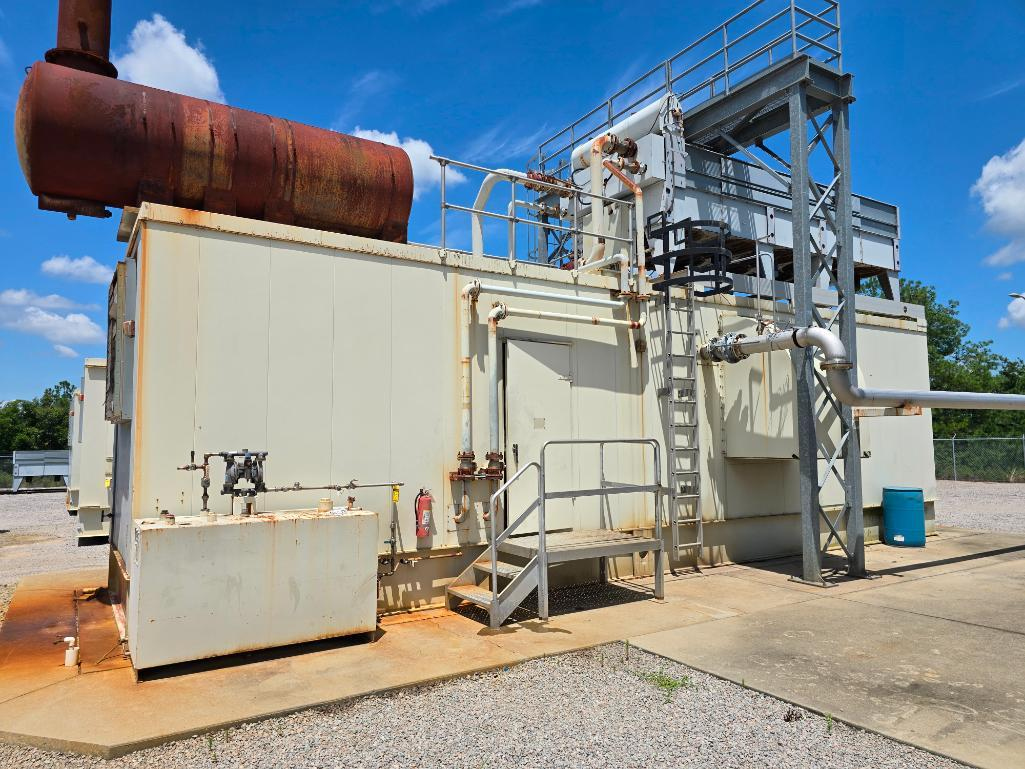

Enclosure / Packaging

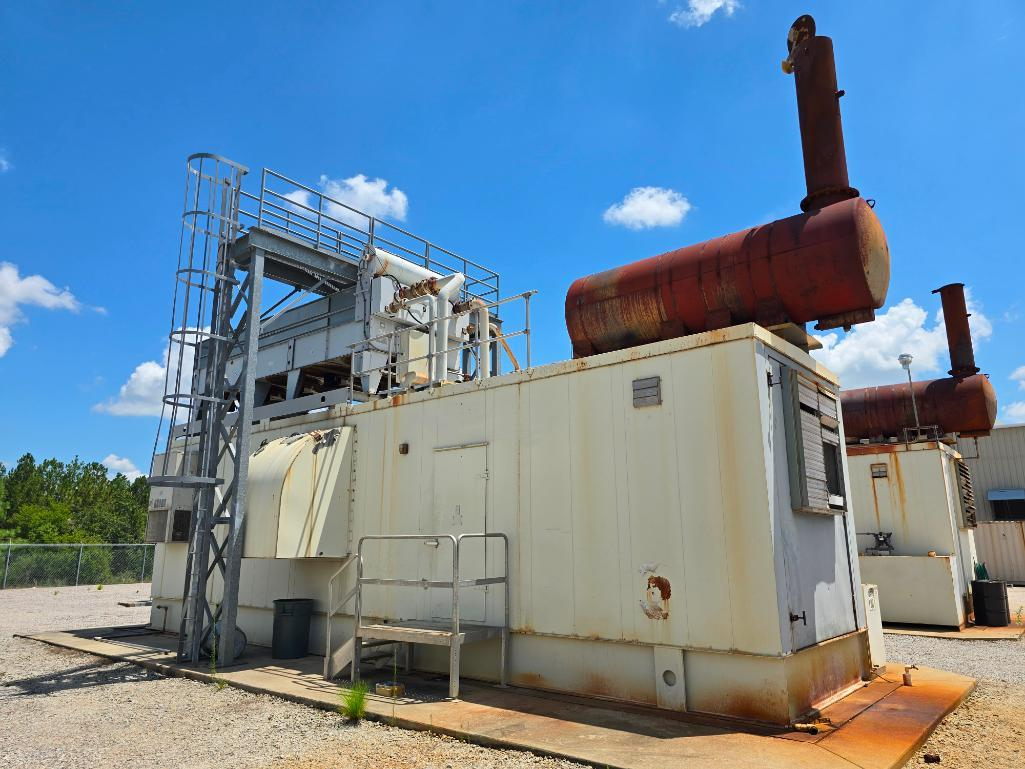

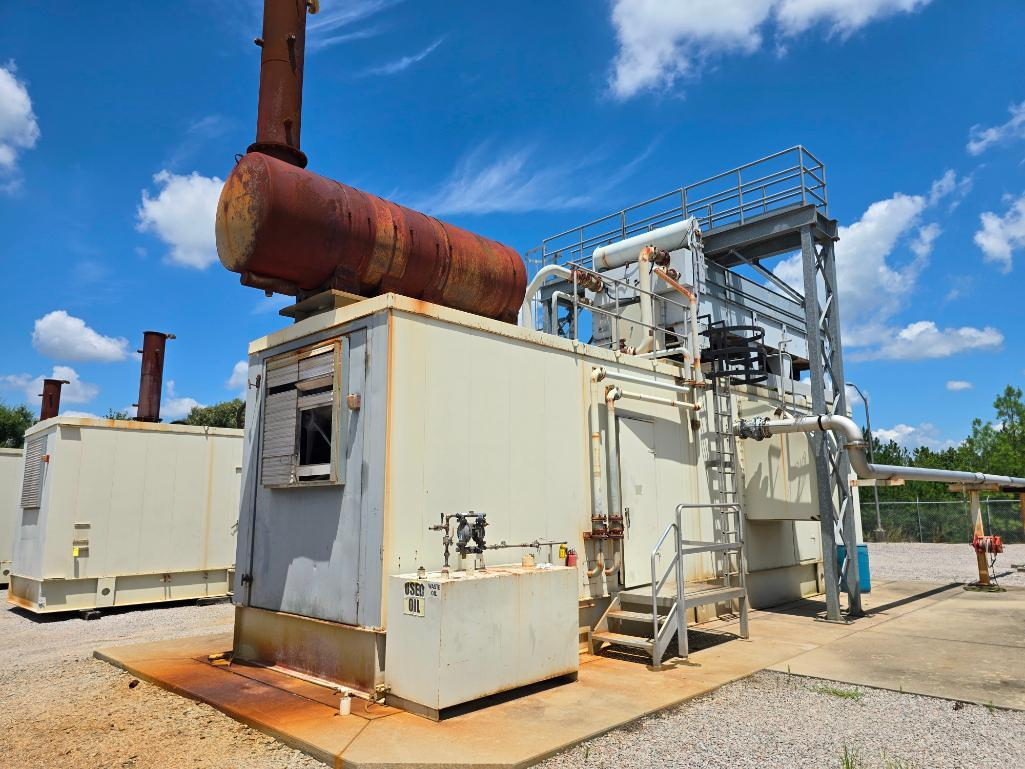

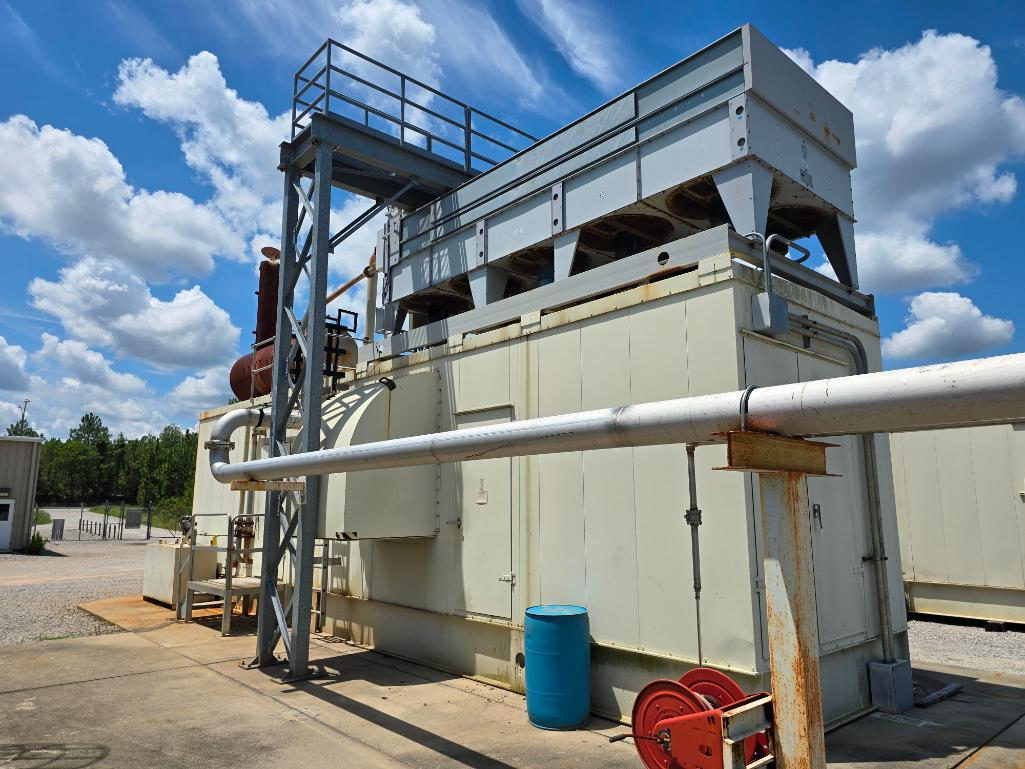

Enclosed package; inspect scope and dimensions

Cooling Arrangement

Fanned radiator with ABB VFD; mezzanine and muffler listed, final scope to confirm

Additional specifications

Engine serial number

GZJ00348

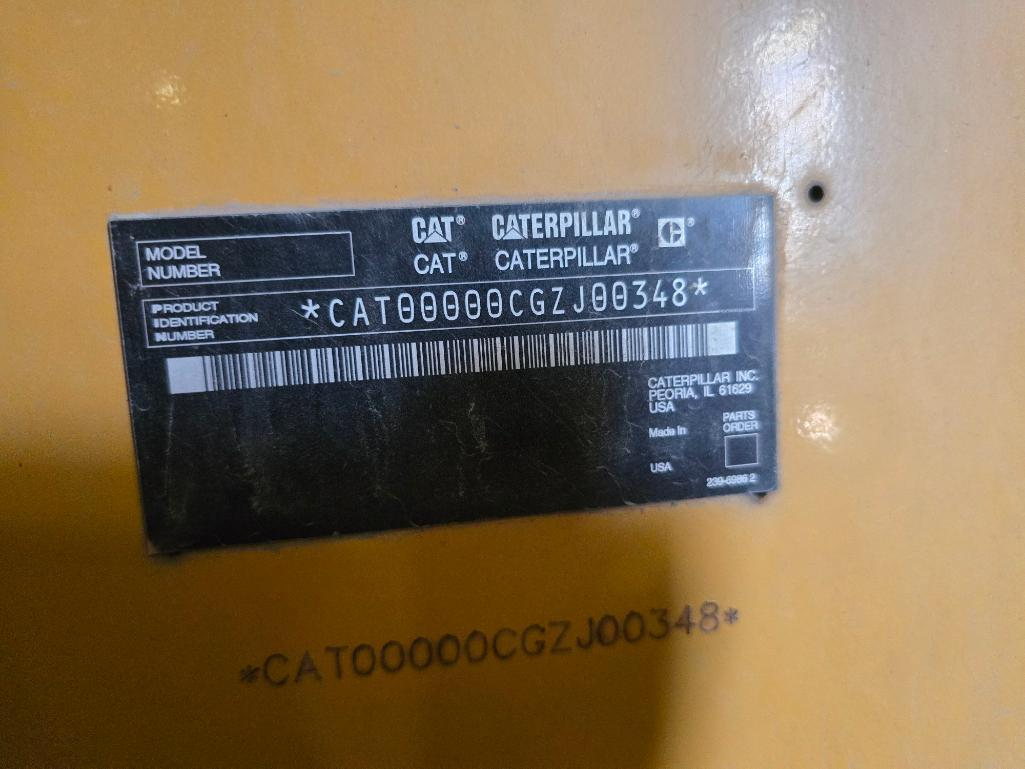

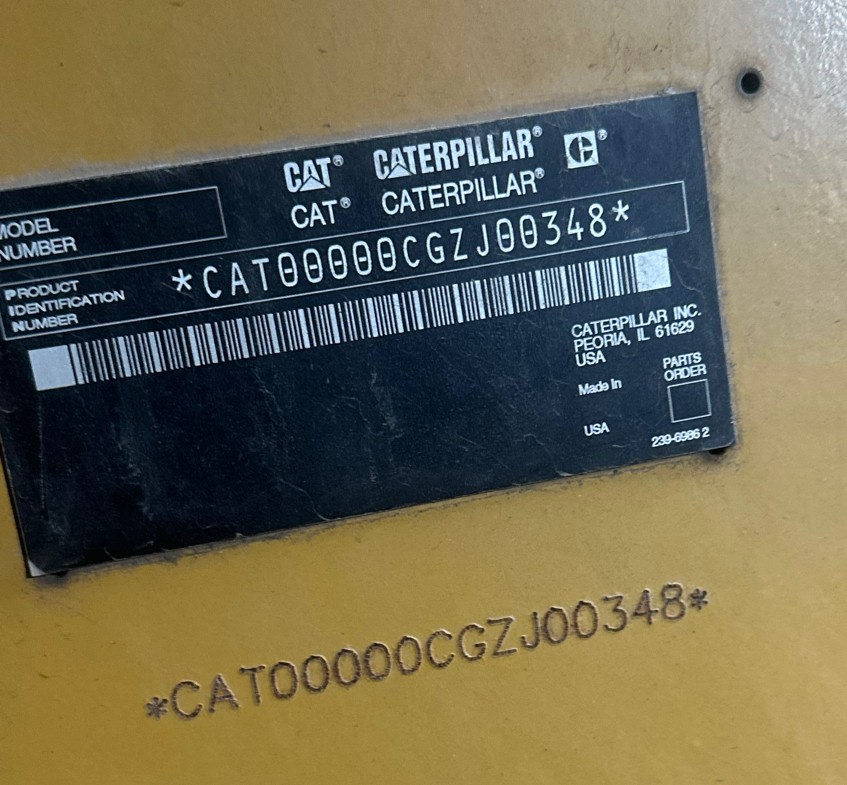

Engine PIN

CAT00000CGZJ00348

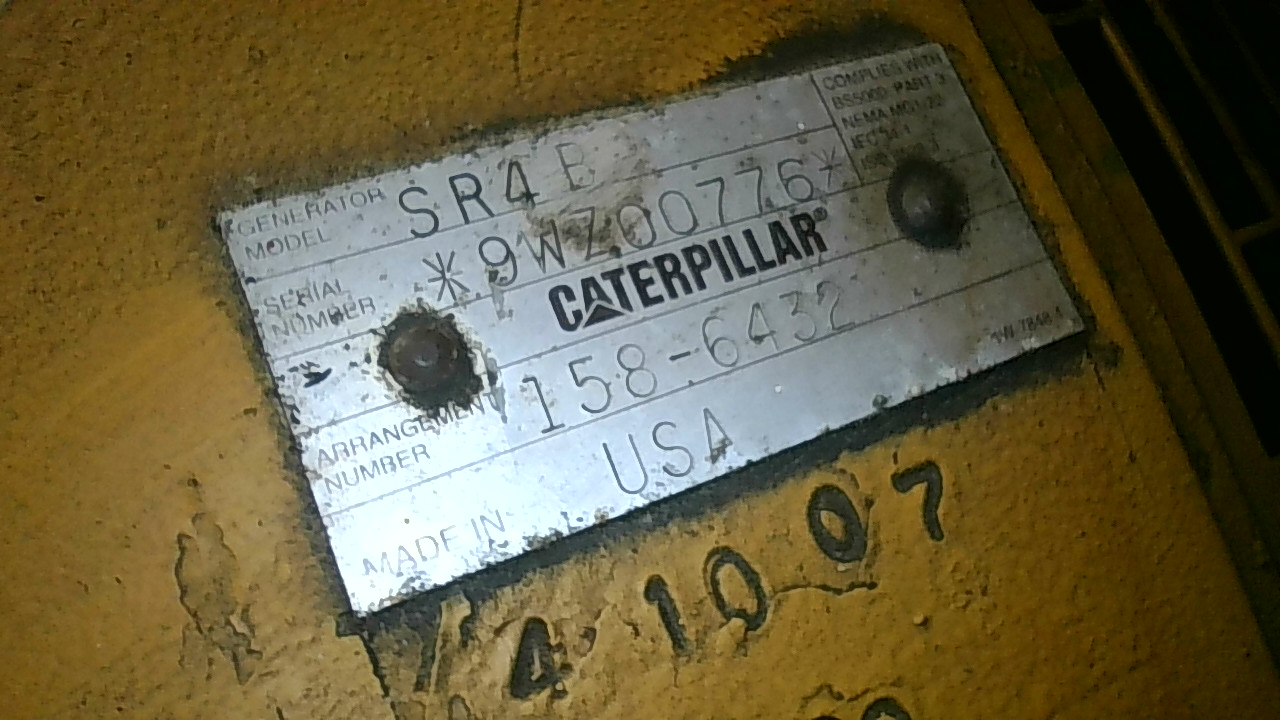

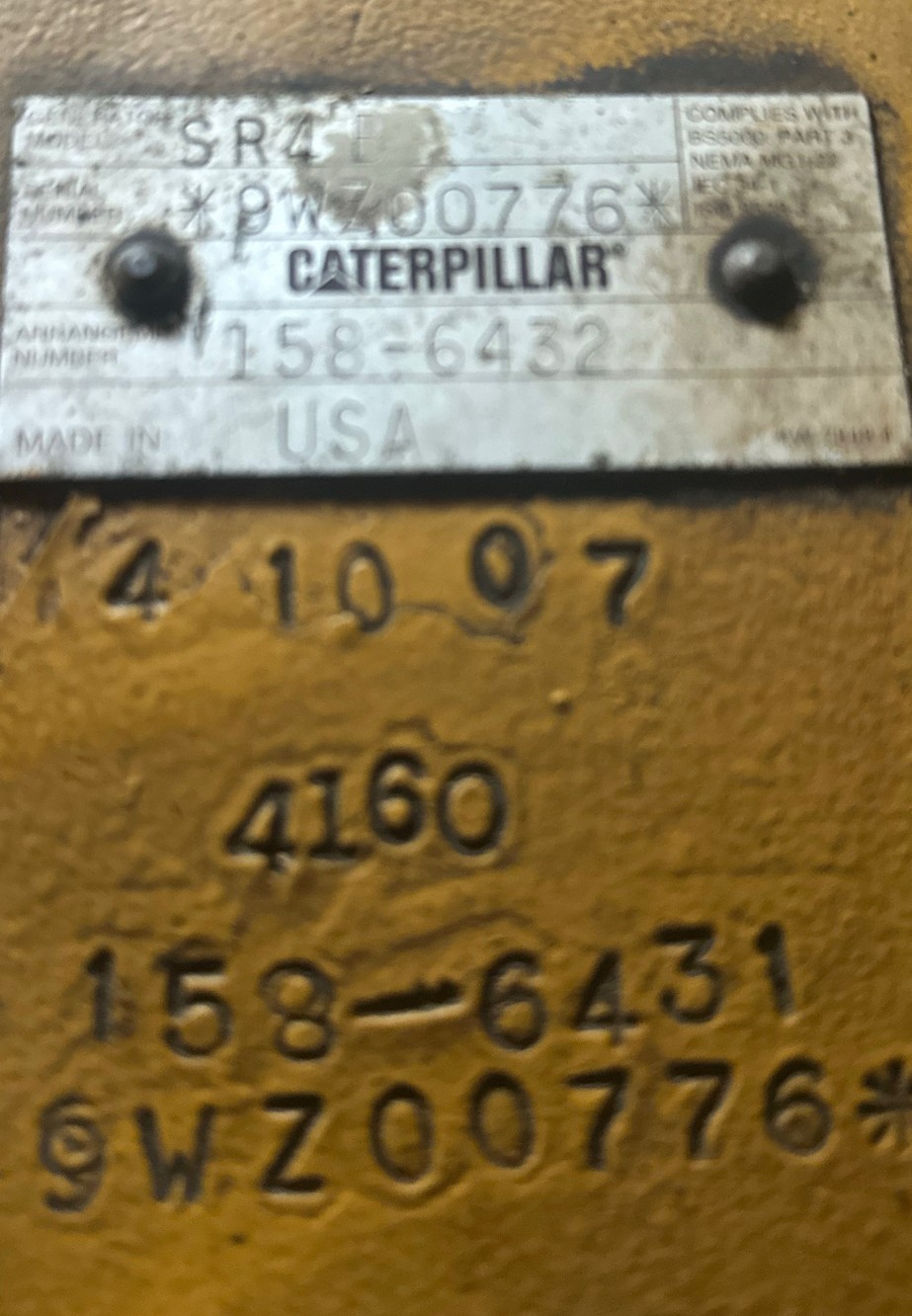

Generator-end serial number

9WZ00776

Generator model

SR4

Generator arrangement

158-6432

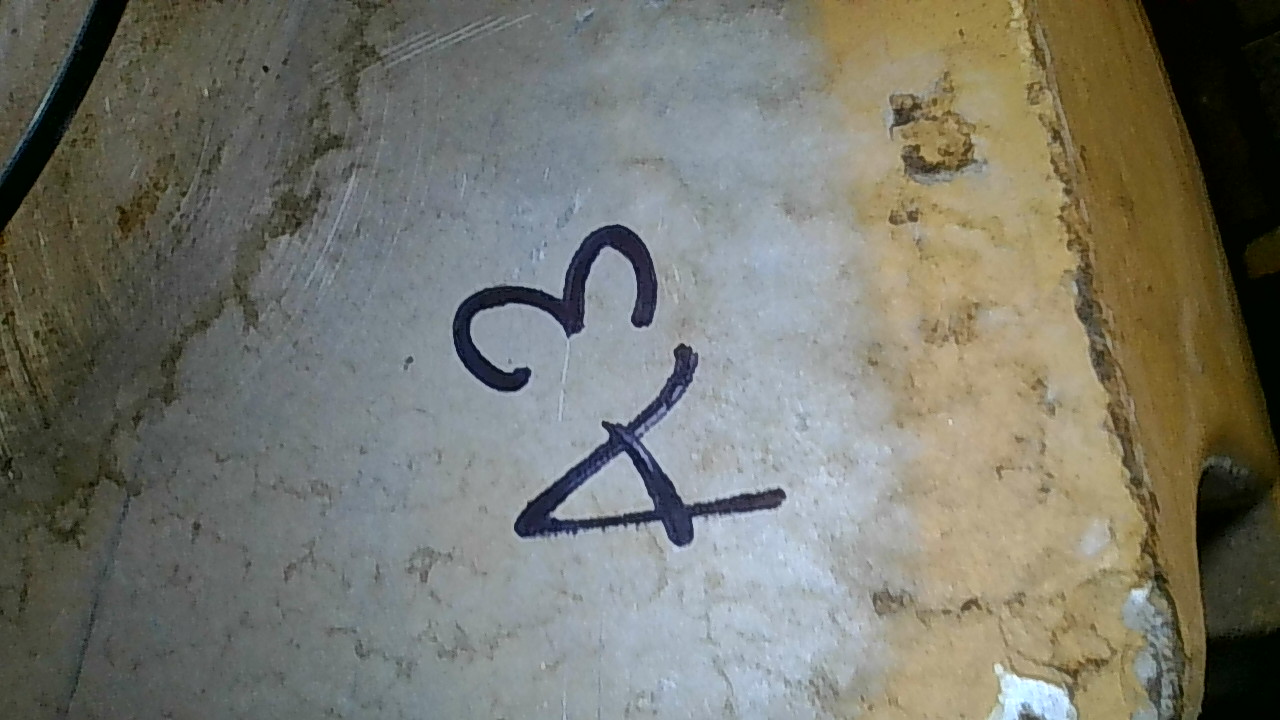

Number stamped on casing

158-6431

ESO code

CZCFQ

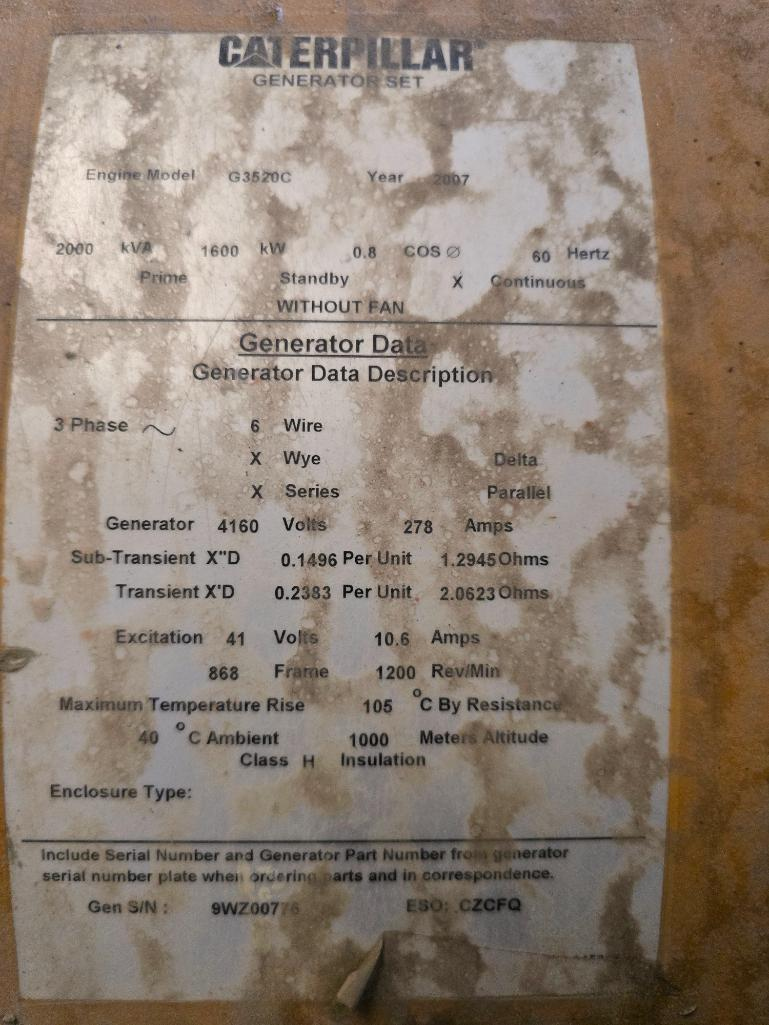

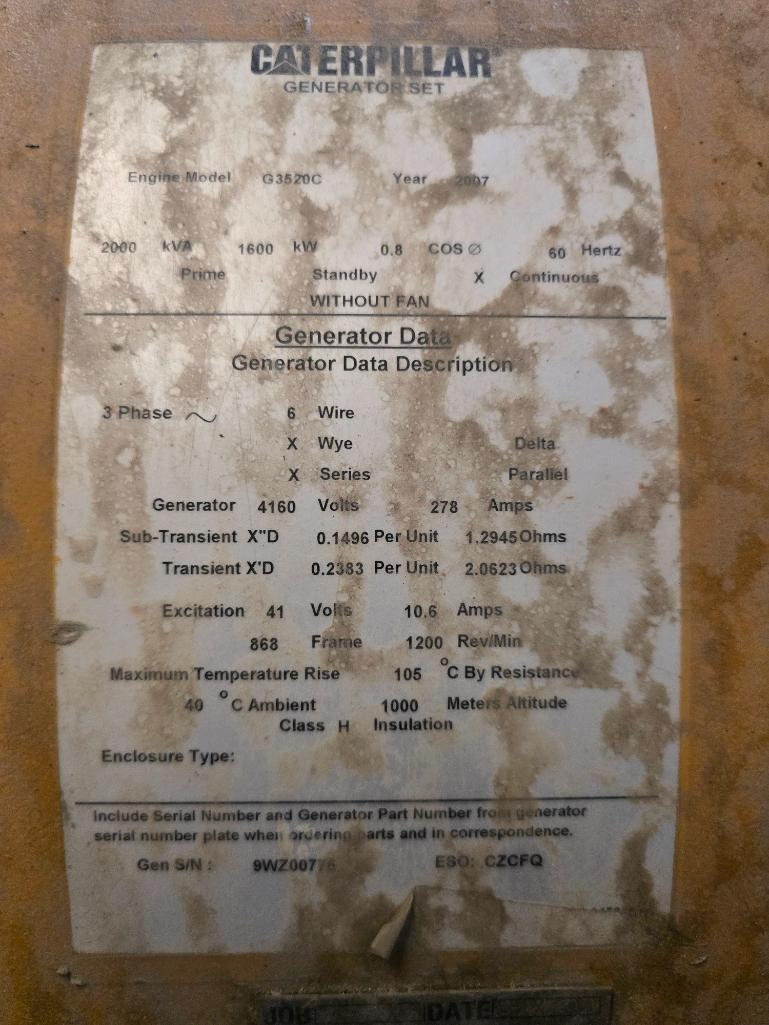

Generator apparent power

2,000 kVA

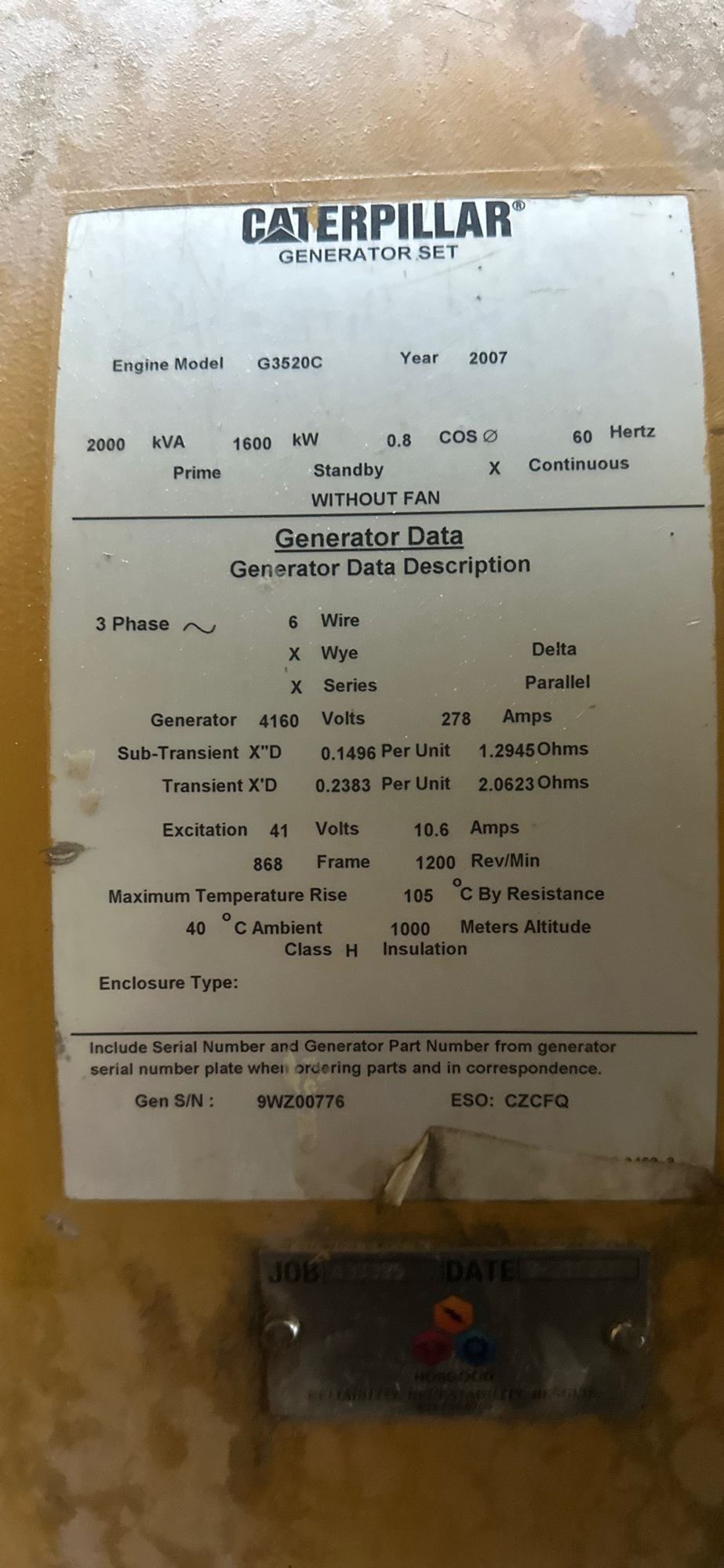

Nameplate rating basis

1,600 kW continuous, without fan; nameplate is not a statement of current operability

Power factor

0.8

Excitation

41 V / 10.6 A

Generator frame

868

Insulation / temperature rise

Class H / 105 °C

Ambient / altitude

40 °C / 1,000 m

Lifetime hours basis

Reported lifetime reading

Hours since major rebuild

31,913 h; major event 2020-11-04 at 37,277 h

Hours since top end

15,947 h; completed 2023-09-26 at 53,243 h

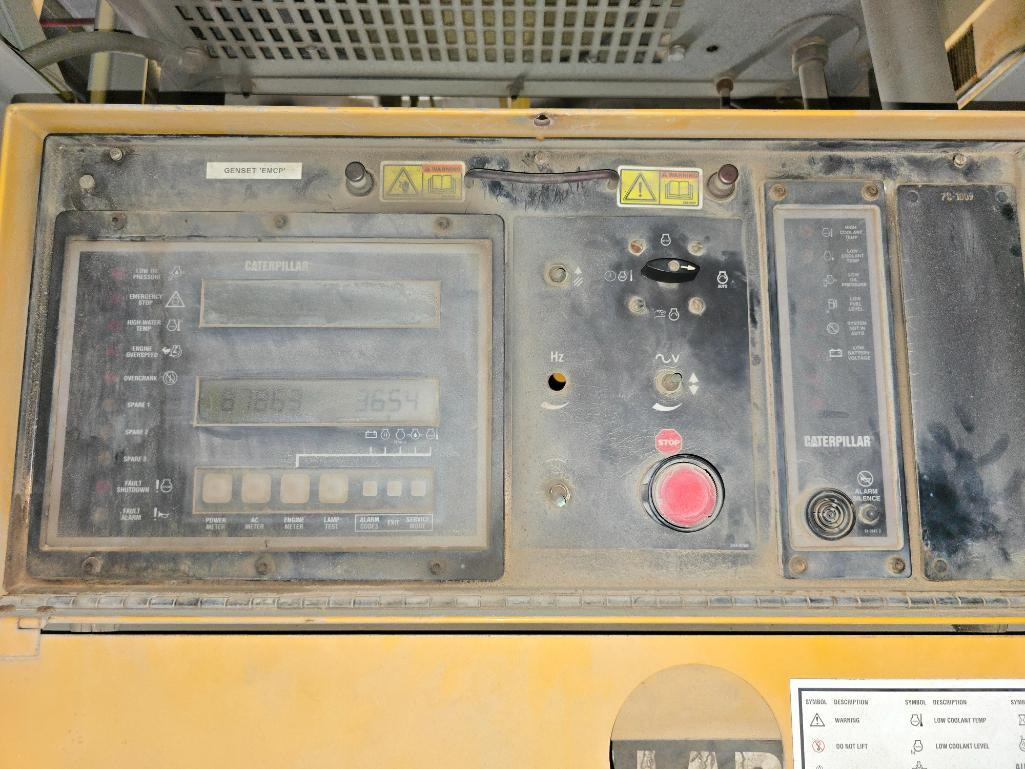

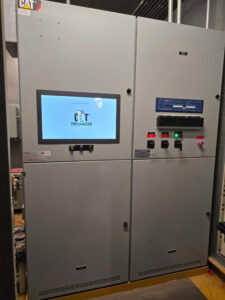

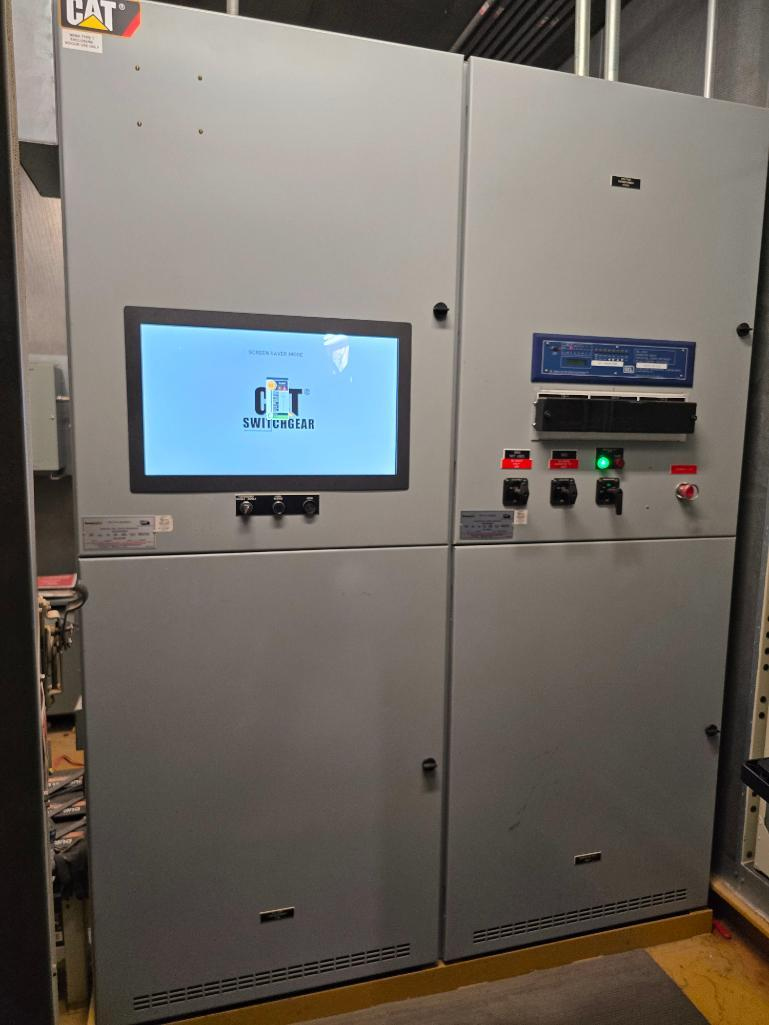

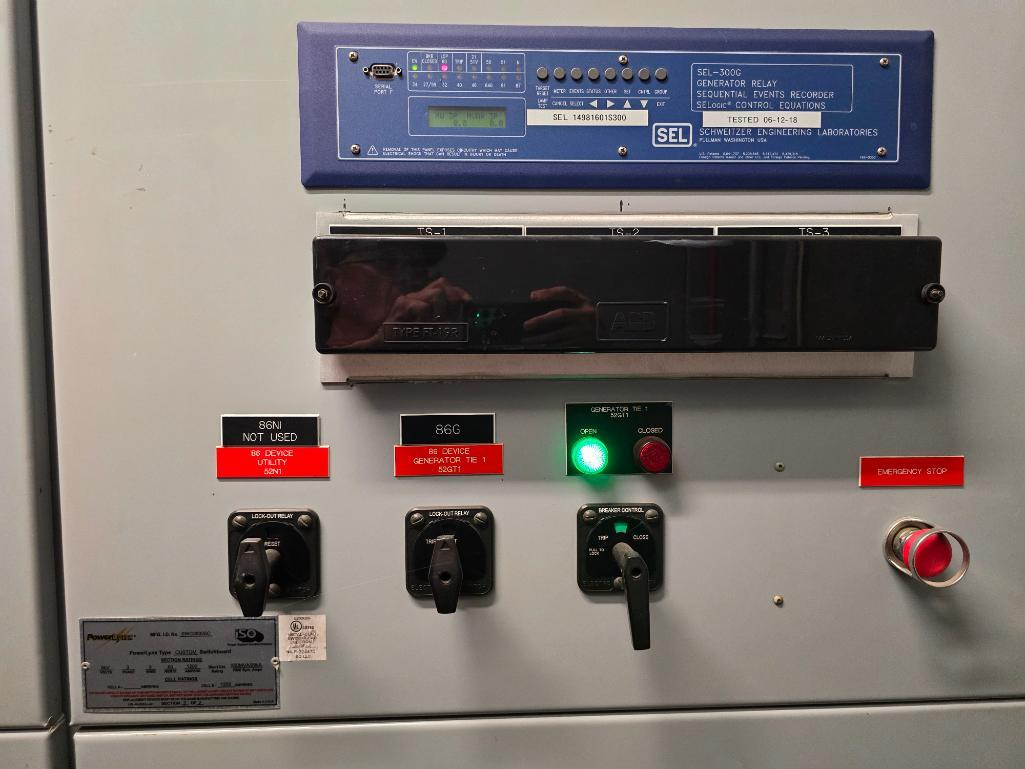

Controls upgrade

Reported installed; details to confirm

Subtransient reactance Xd double-prime

0.1496 pu / 1.2945 ohm

Transient reactance Xd prime

0.2383 pu / 2.0623 ohm
