AvailableNatural Gas Generators

CAT G3520C — 1,600 kW nameplate — Elgin Unit 4 — parts/core

Rating basis: 1,600 kW / 2,000 kVA continuous nameplate, without fan. Present operability and output require verification.

Output voltage
4,160 V
Frequency
60 Hz
Speed
1,200 rpm
Duty
Continuous

1,600 kW per unit · Caterpillar · Elgin, South Carolina, U.S.

Save EquipmentRequest Information
CAT G3520C — 1,600 kW nameplate — Elgin Unit 4 — parts/core
Photo 1 of 16Open full size ↗

Photos assigned to this engine in the supplied 249-page CAT deck. Unassigned photos appear only on the four-unit package. Photos are historical evidence, not an operating test.

History, availability and verification

Engine serial number
GZJ00355
Estimated dispatch
Immediate
Dispatch conditions
Available now per owner update of September 22, 2026. Coordinate loading and transport; condition and included scope remain as described.
Condition notes
Incomplete parts/core: cylinder heads, pistons, liners and connecting rods were removed by the prior owner for core credits. Staged parts in photographs are not confirmed included. No borescope set supplied.
Fuel and application history
Former landfill-gas service. Natural-gas conversion requires engineering and agreed scope.
Maintenance / hours basis
39,050 lifetime hours (calculated: 26,455 h at major rebuild + 12,595 reported hours since rebuild). Major rebuild 2016-05-10 at 26,455 h; 12,595 h since major rebuild. Historical records and calculated intervals do not guarantee present condition, remaining life or current operating hours.
Photograph basis
Photos assigned to this engine in the supplied 249-page CAT deck. Unassigned photos appear only on the four-unit package. Photos are historical evidence, not an operating test.
Quantity basis
Individual asset; exact included scope subject to agreement.
Availability last checked
2026-09-22

Also included in: Four CAT G3520C units — Elgin package, including one parts/core unit. The same asset is counted once.

Photographs & identification

Equipment photographs (14)

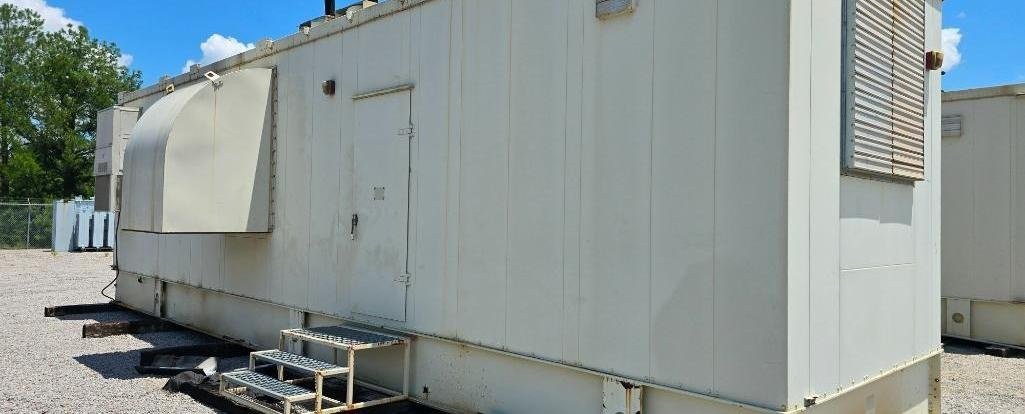

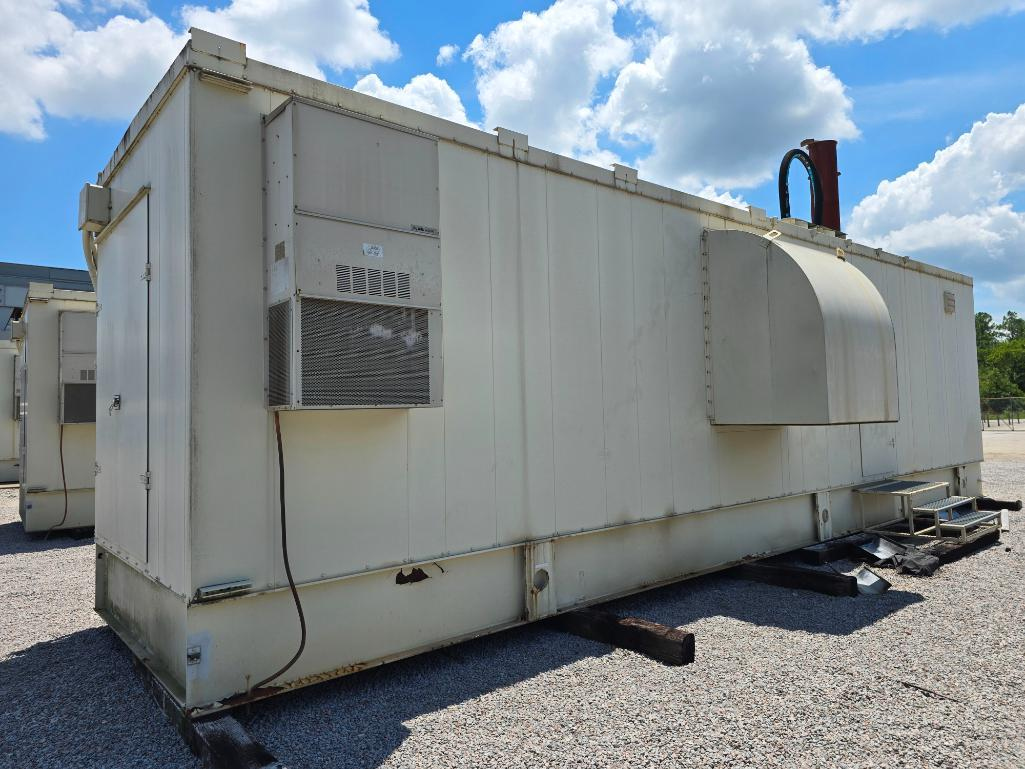

U4-004 · Enclosed package, side view
U4-004 · Enclosed package, side view

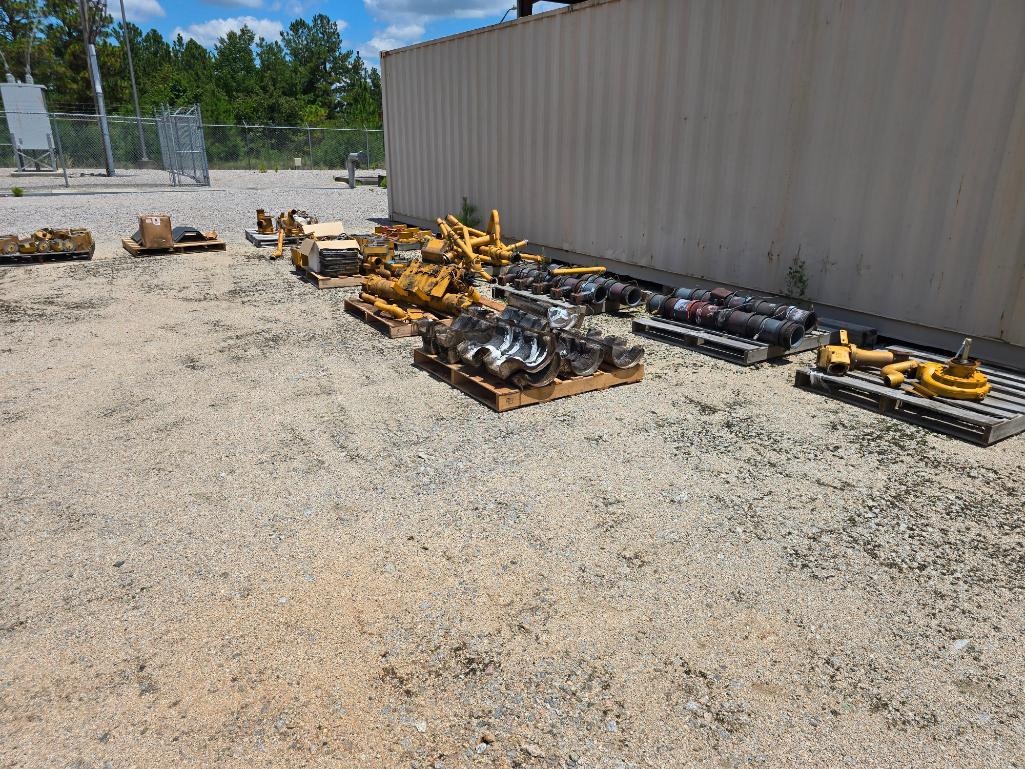

U4-001 · Staged engine components
U4-001 · Staged engine components

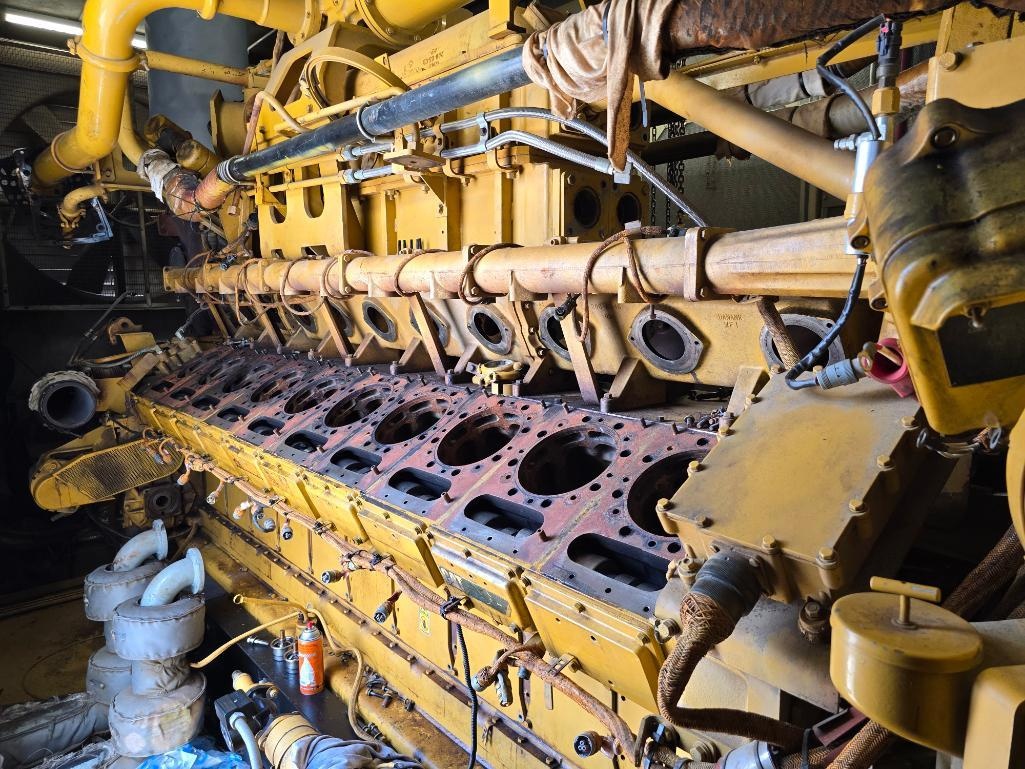

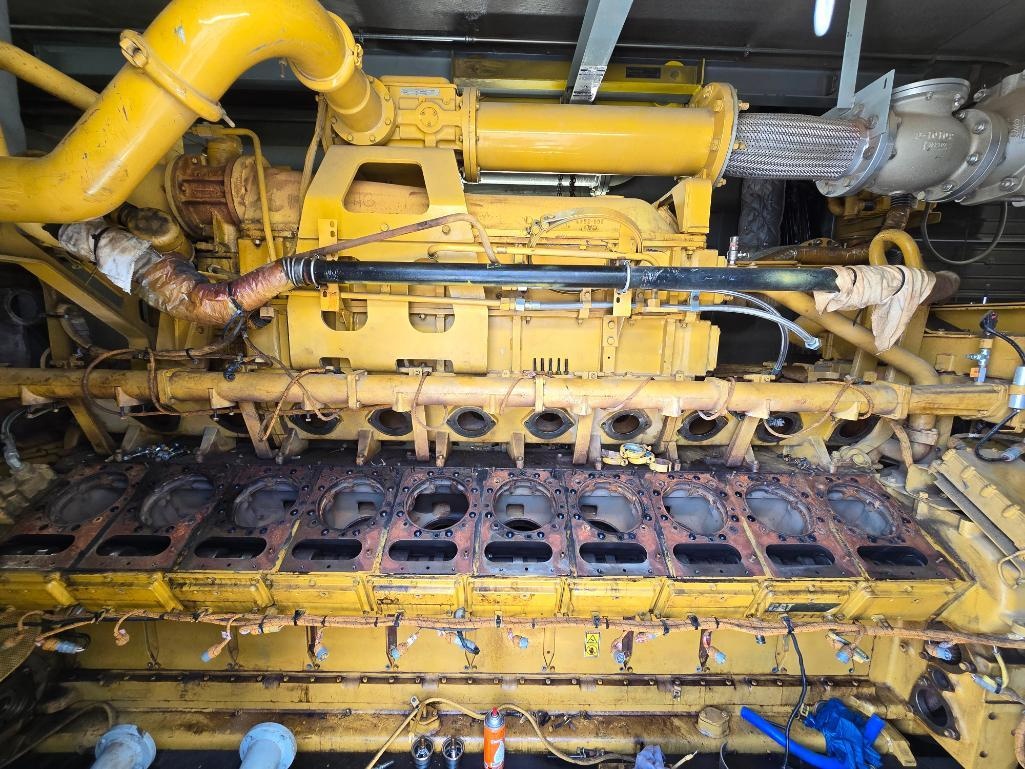

U4-002 · Engine with cylinder heads removed
U4-002 · Engine with cylinder heads removed

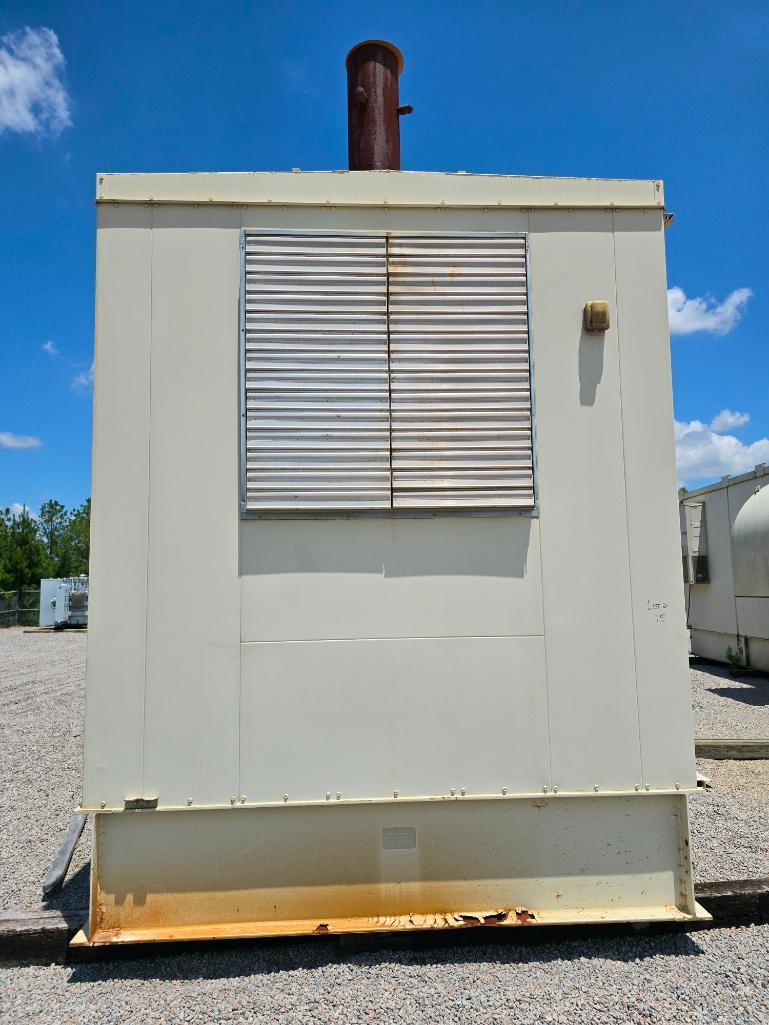

U4-003 · Enclosed package, end view
U4-003 · Enclosed package, end view

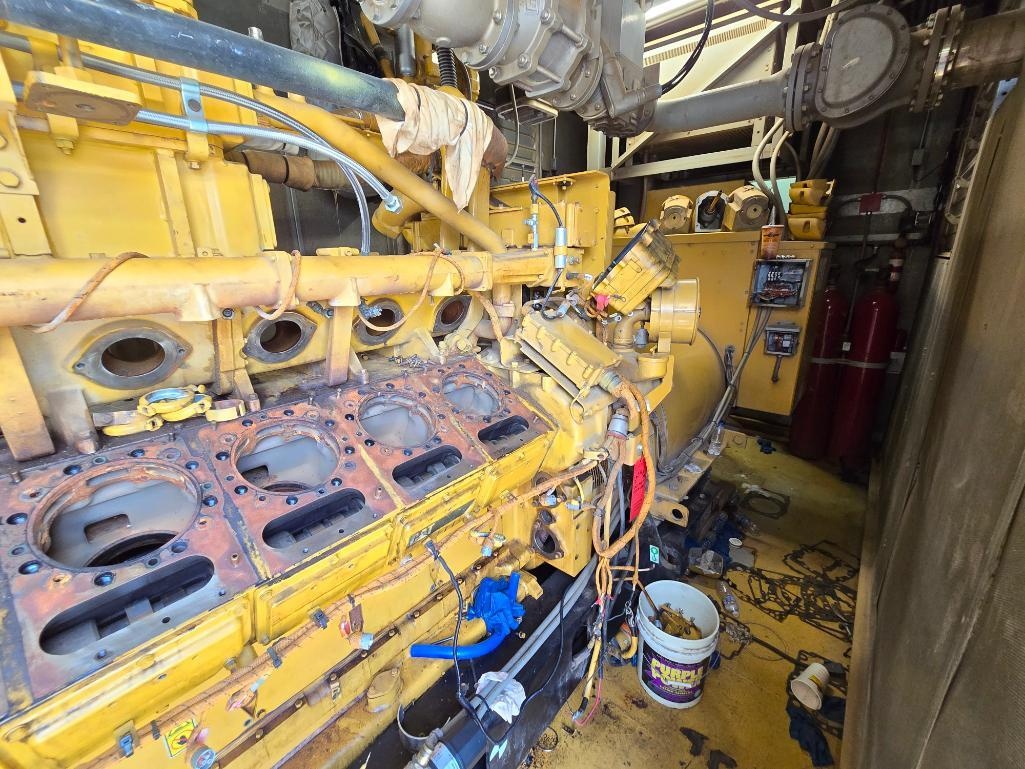

U4-005 · Partially disassembled engine bank
U4-005 · Partially disassembled engine bank

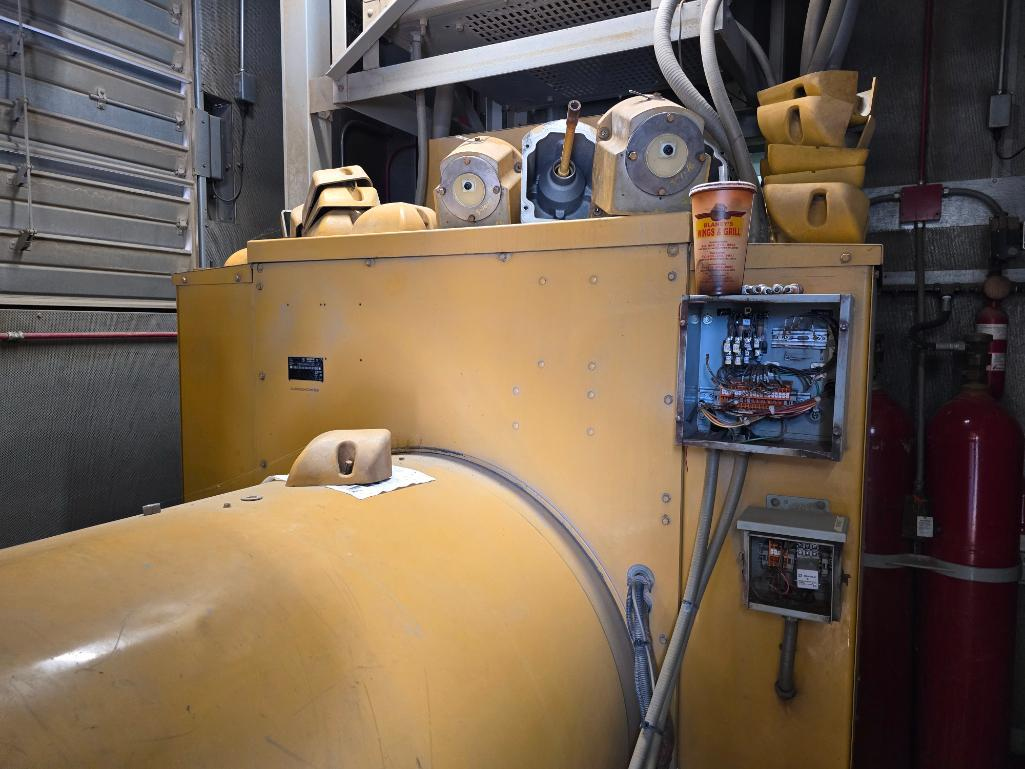

U4-006 · Generator end and controls
U4-006 · Generator end and controls

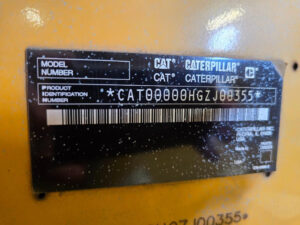

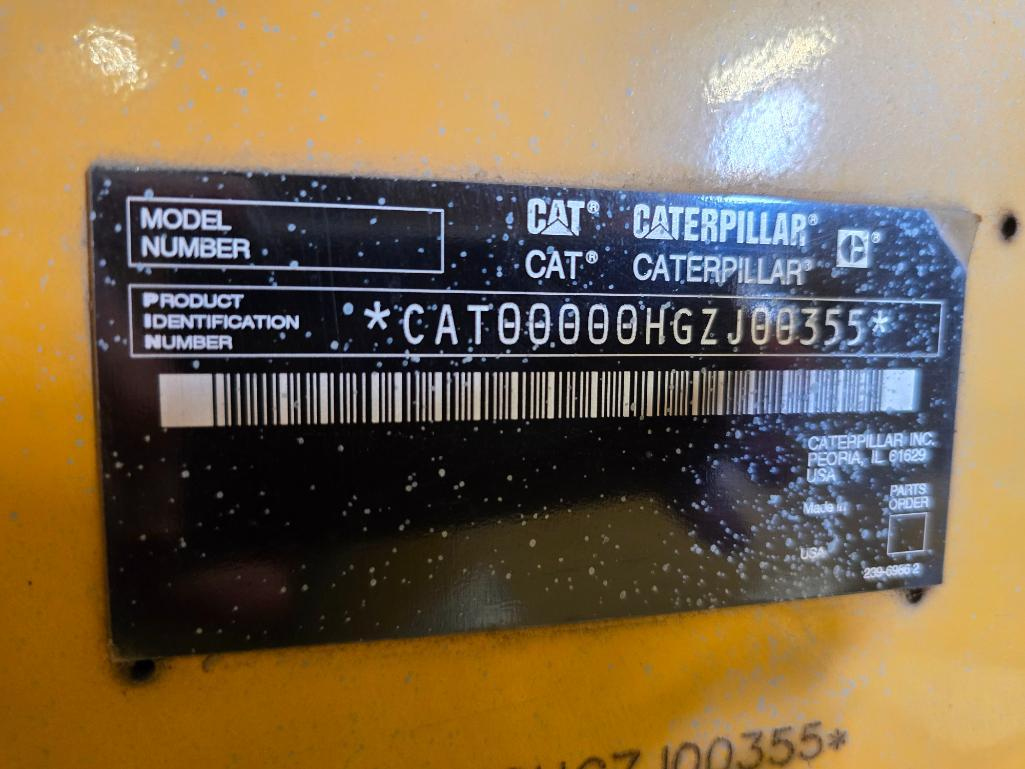

U4-007 · Caterpillar product identification plate
U4-007 · Caterpillar product identification plate

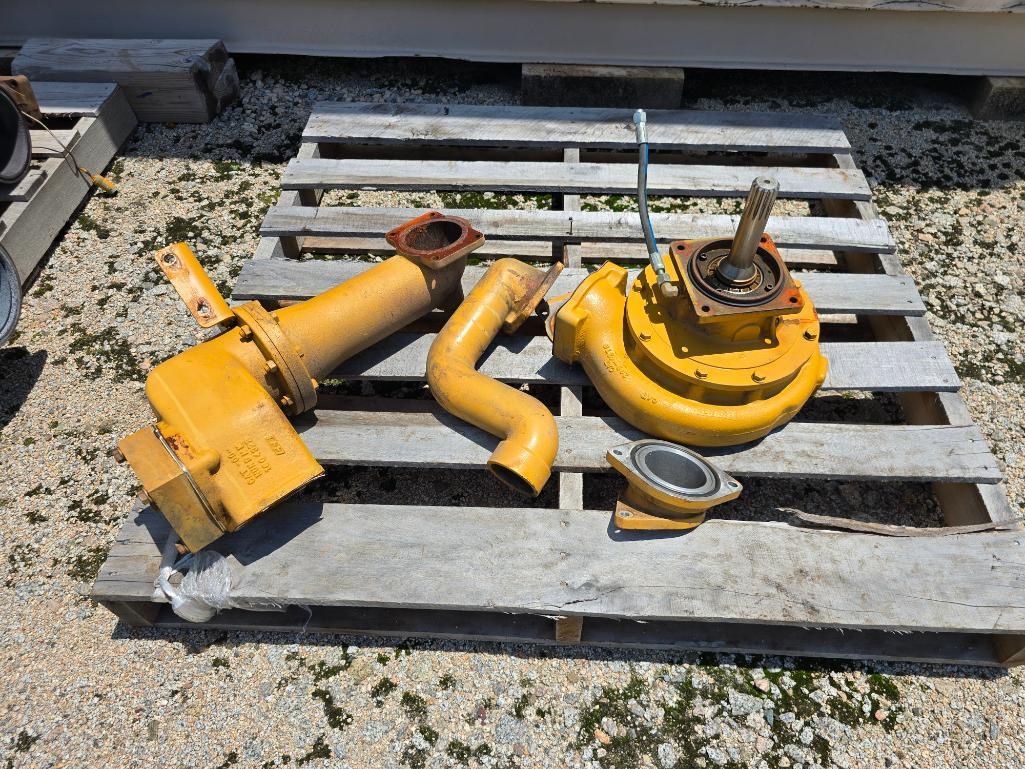

U4-008 · Loose components on pallet
U4-008 · Loose components on pallet
U4-009 · Open cylinder-bank area
U4-009 · Open cylinder-bank area

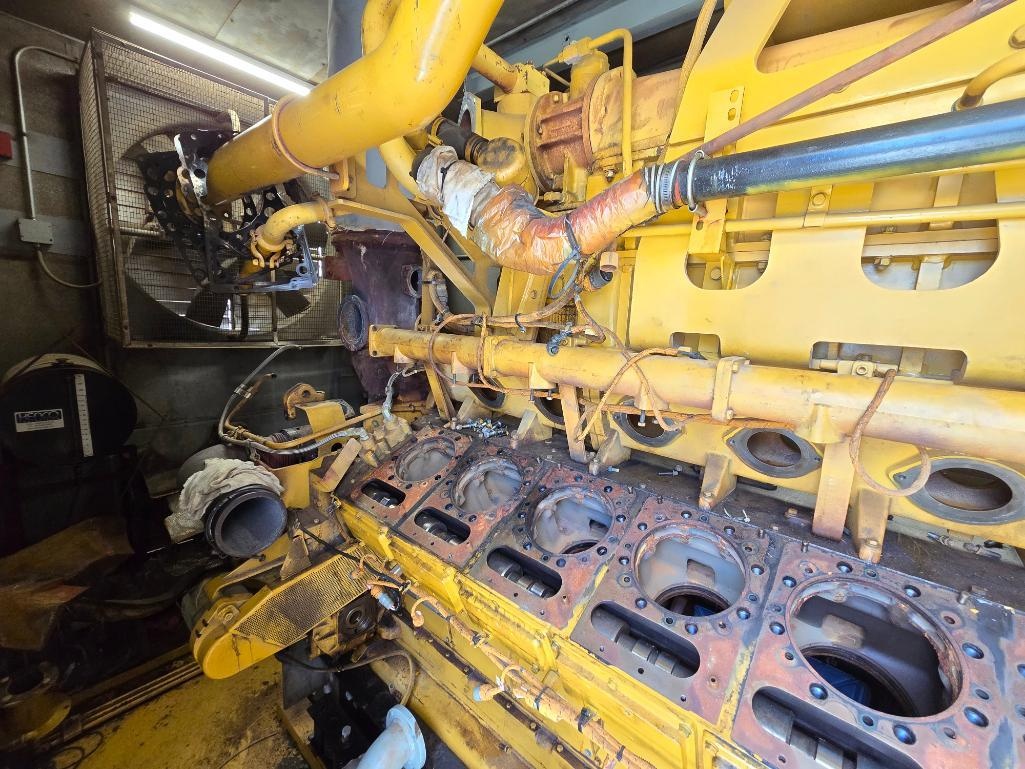

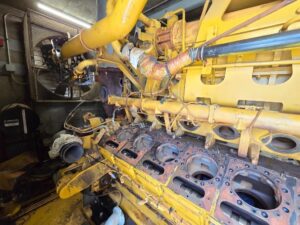

U4-012 · Partially disassembled engine bank
U4-012 · Partially disassembled engine bank

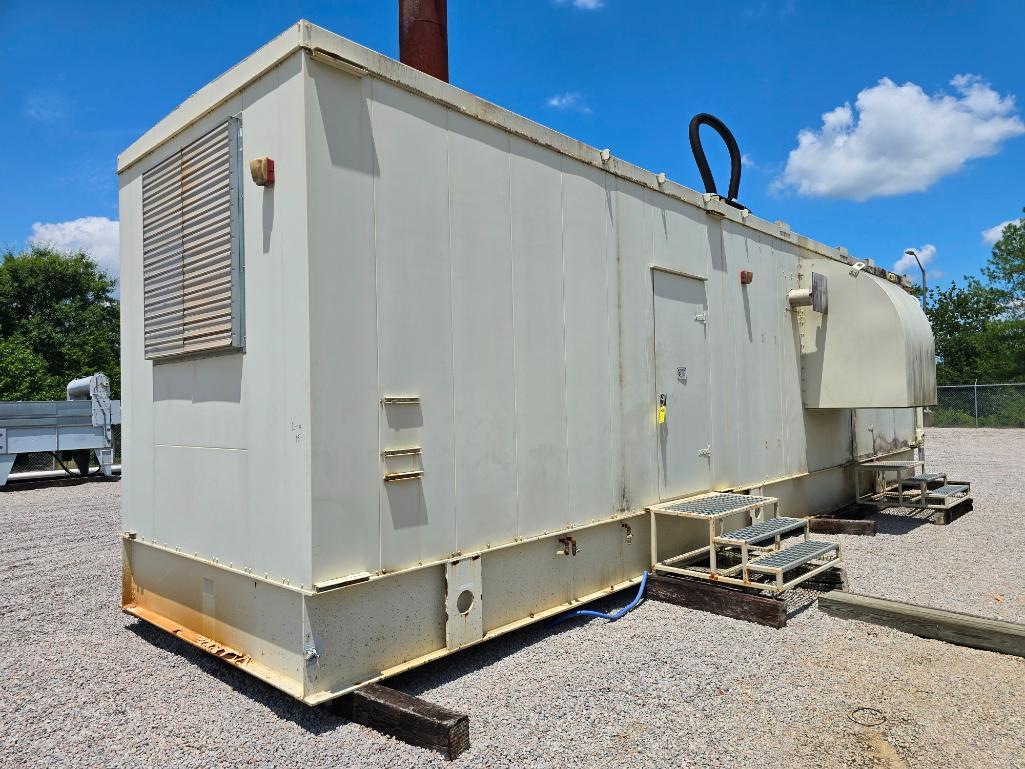

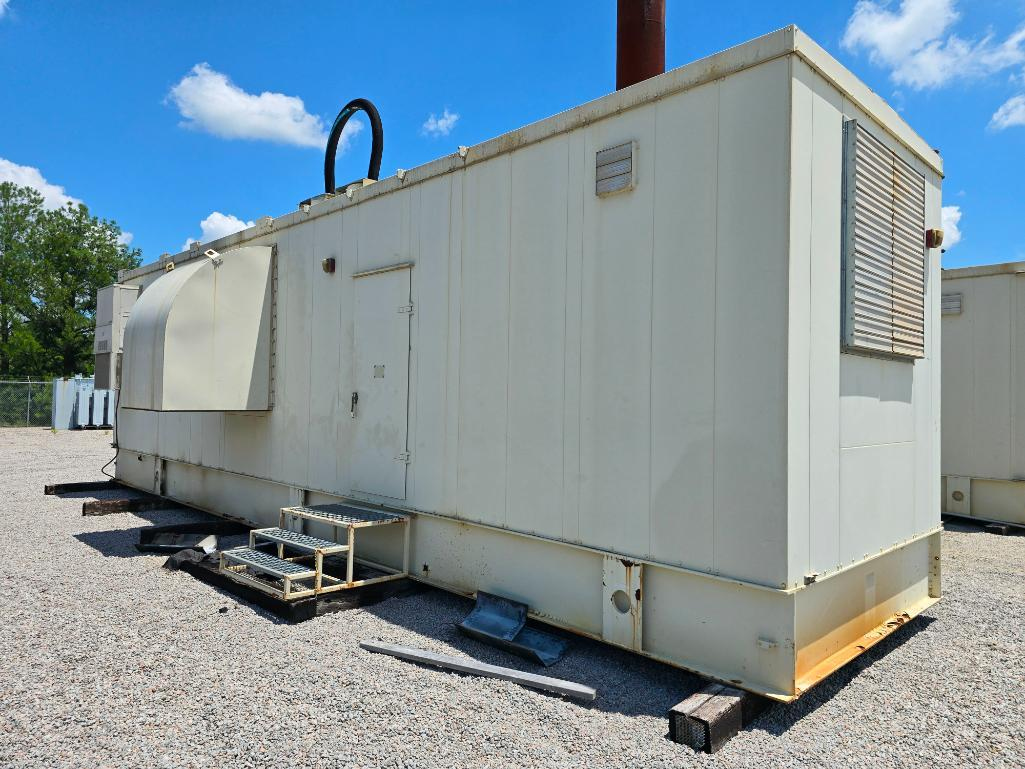

U4-013 · Enclosed package, opposite side
U4-013 · Enclosed package, opposite side

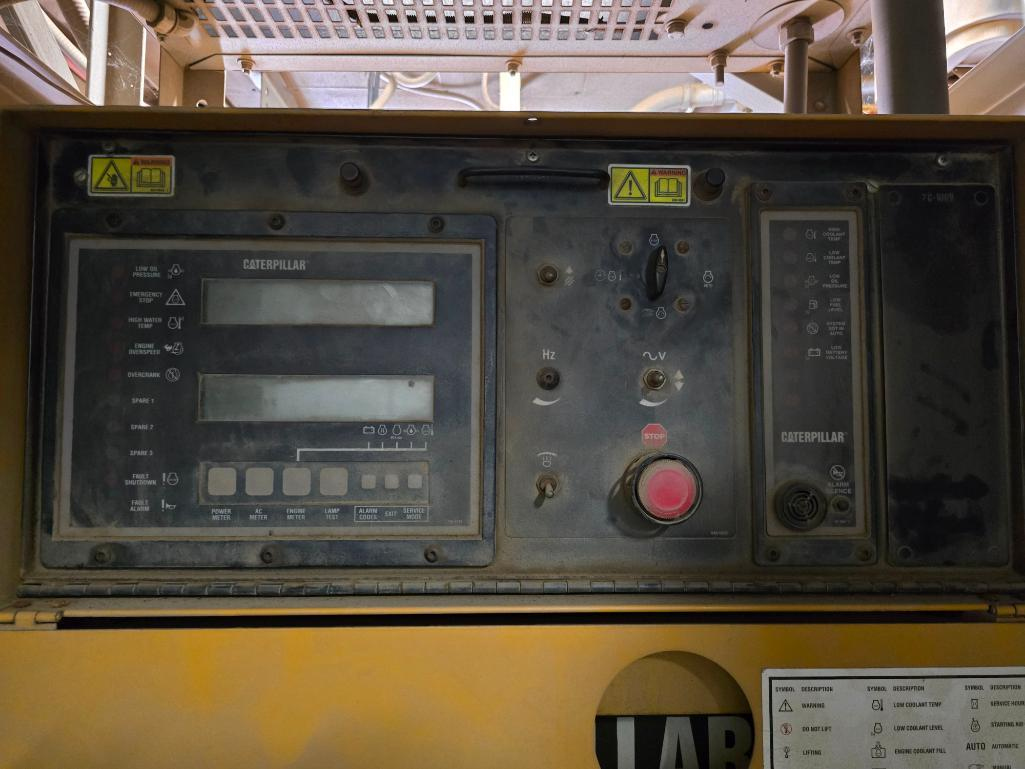

U4-014 · Caterpillar control panel
U4-014 · Caterpillar control panel
U4-015 · Enclosed package, rear view
U4-015 · Enclosed package, rear view

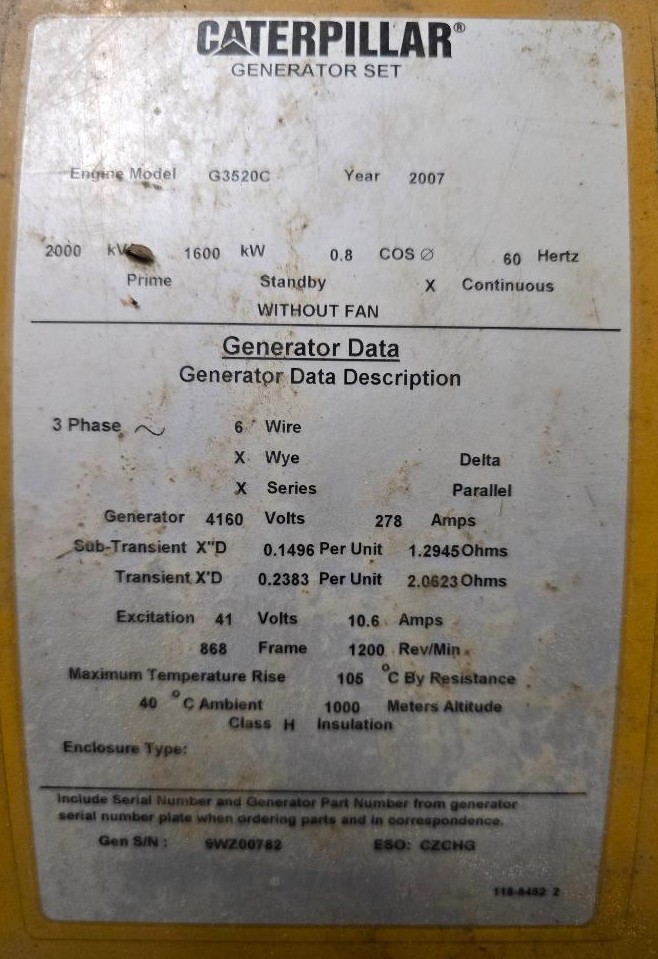

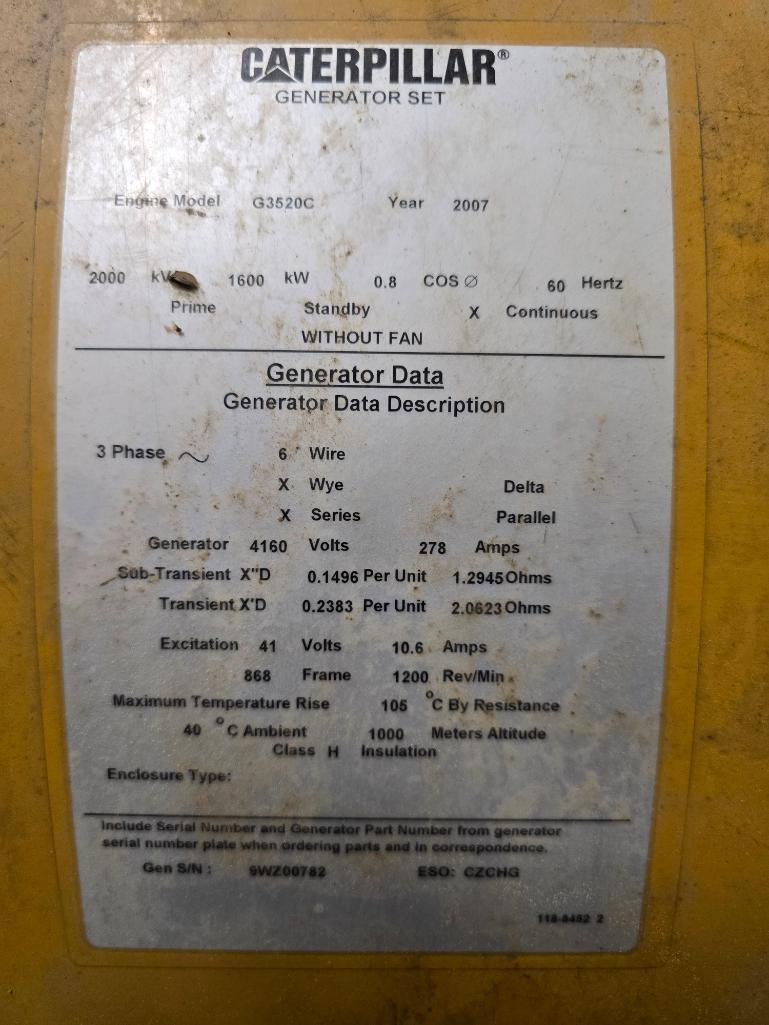

U4-016 · Generator set electrical data plate
U4-016 · Generator set electrical data plate
Identification tags (2)
U4-010 · Generator set electrical data plate
U4-010 · Generator set electrical data plate

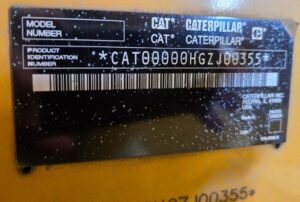

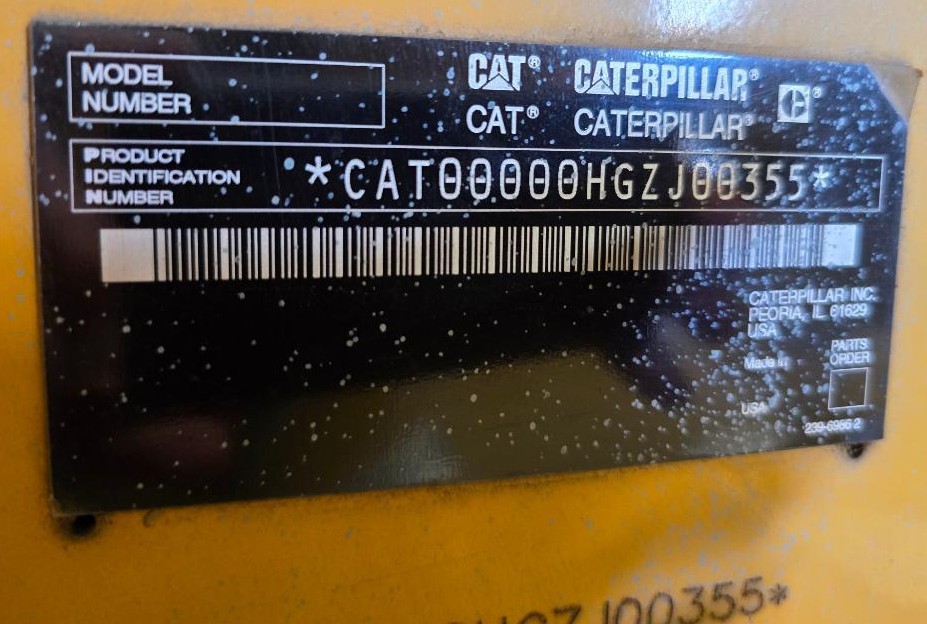

U4-011 · Caterpillar product identification plate
U4-011 · Caterpillar product identification plate

Equipment overview

CAT G3520C Unit 4, Elgin, South Carolina. 1,600 kW / 2,000 kVA continuous nameplate, 4,160 V, 60 Hz. Incomplete parts/core: cylinder heads, pistons, liners and connecting rods were removed by the prior owner for core credits. Staged parts in photographs are not confirmed included. No borescope set supplied.

Engine serial: GZJ00355. Generator-end serial: 9WZ00782. 2007 generator-set plate.

Maintenance history

39,050 lifetime hours (calculated: 26,455 h at major rebuild + 12,595 reported hours since rebuild). Major rebuild 2016-05-10 at 26,455 h; 12,595 h since major rebuild. Historical records and calculated intervals do not guarantee present condition, remaining life or current operating hours.

Configuration and scope

Former landfill-gas application. Any natural-gas conversion, uprating or 480 V configuration requires a separate engineered scope. Fanned radiator / ABB VFD, radiator mezzanine and muffler are listed in the source package; confirm the final included inventory. Shipping dimensions and weights remain unverified.

Additional listing details

Listing Reference
EE-CAT-ELG-04
Last Overhaul Year
2016

Power-generation specifications

Voltage
4,160 V, 3-phase, Wye / series, 6-wire
Phase
Three Phase
Rated Speed
1,200 RPM
Recorded hours*
39,050* — historical reading; confirm meter date, lifetime basis and overhaul history.
Duty Rating
Continuous
Engine Model
G3520C
Enclosure / Packaging
Enclosed package; inspect scope and dimensions
Cooling Arrangement
Fanned radiator with ABB VFD; mezzanine and muffler listed, final scope to confirm

Additional specifications

Engine serial number
GZJ00355
Engine PIN
CAT00000HGZJ00355
Generator-end serial number
9WZ00782
ESO code
CZCHG
Generator apparent power
2,000 kVA
Nameplate rating basis
1,600 kW continuous, without fan; nameplate is not a statement of current operability
Power factor
0.8
Excitation
41 V / 10.6 A
Generator frame
868
Insulation / temperature rise
Class H / 105 °C
Ambient / altitude
40 °C / 1,000 m
Lifetime hours basis
Calculated: 26,455 h at major rebuild + 12,595 reported hours since rebuild
Hours since major rebuild
12,595 h; major event 2016-05-10 at 26,455 h
Subtransient reactance Xd double-prime
0.1496 pu / 1.2945 ohm
Transient reactance Xd prime
0.2383 pu / 2.0623 ohm
