1,100/1,232 kVA ABB transformer — 12.47 kV HV / 480 V delta LV

High-voltage winding12,470 V wyeWye with neutral
Low-voltage winding480 V deltaDelta

Nameplate high side 12,470 V wye; low side 480 V delta. Do not describe this unit as 480Y/277 V.

1,100 kVA per unit · ABB · Ocala, Florida, U.S.

Save EquipmentRequest Information
1,100/1,232 kVA ABB transformer — 12.47 kV HV / 480 V delta LV

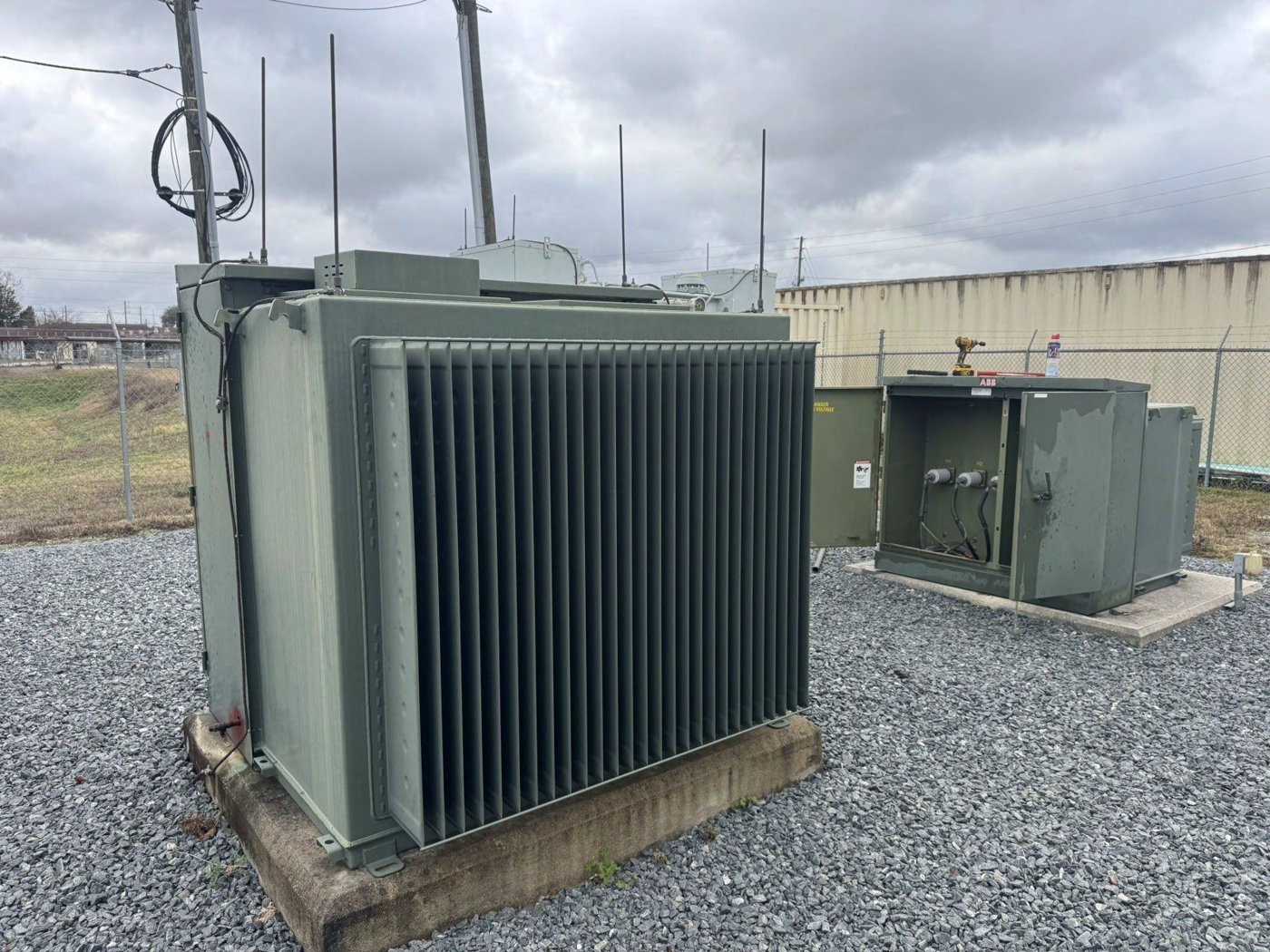

Photo 1 of 1Open full size ↗

History, availability and verification

Estimated dispatch
Immediate
Quantity basis
Individual asset; exact included scope subject to agreement.
Availability last checked
2026-09-22

Voltage configurations

Documented primary winding settings (V)
11850;12160;12470;12780;13095

Equipment overview

Nameplate high side 12,470 V wye; low side 480 V delta. Do not describe this unit as 480Y/277 V.

Actual supplied nameplate reviewed for this transformer. Nameplate 1,100/1,232 kVA at 55/65°C rise; 443 US gallons oil.

Three-phase, 60 Hz, ONAN with aluminum high- and low-voltage windings. Nameplate ratings are not a current test report. Confirm fluid condition, insulation, accessories, taps, grounding, protection, installation and intended direction of operation with a qualified transformer specialist.

The primary and secondary fields preserve the documented application convention. Public high/low labels are ordered by the nominal line-to-line winding voltage; Y/neutral values remain associated with their own winding. Neither a voltage pair nor a search match establishes reversible suitability or site compatibility. Plate images and serials are kept private pending disclosure authorization.

Additional listing details

Listing Reference
EE-OCA-TX-1100

Transformer specifications

Transformer Capacity
1,100 kVA
Primary winding
12,470 V wye
Secondary winding
480 V delta
Primary Connection
Wye with neutral
Secondary Connection
Delta
Tap Range
11,850–13,095 V
Tap Positions
5
Impedance
5.62%
Primary BIL
95 kV
Secondary BIL
30 kV
Cooling Class
ONAN
Winding Material
Aluminum
Insulating Fluid
Mineral oil, per nameplate
Temperature Rise
55/65 °C
View individual tap values
HV plate positions: 13095; 12780; 12470; 12160; 11850 V. Discrete positions only.

Additional specifications

Nameplate basis
Actual supplied plate, All Transformers.pdf page 8; current inspection and testing still required
Additional nameplate information
1,100/1,232 kVA at 55/65°C rise; 443 US gallons oil. Low side is delta, not wye/neutral.
