AvailableTransformers

400/448 kVA ABB transformer — 4.16 kV HV / 480Y/277 V LV

High-voltage winding4,160 V deltaDelta

Low-voltage winding480Y/277 VWye with neutral

Nameplate high side 4,160 V delta; low side 480Y/277 V. Verify selected taps, grounding and application.

400 kVA per unit · ABB · Ocala, Florida, U.S.

Save Equipment Request Information

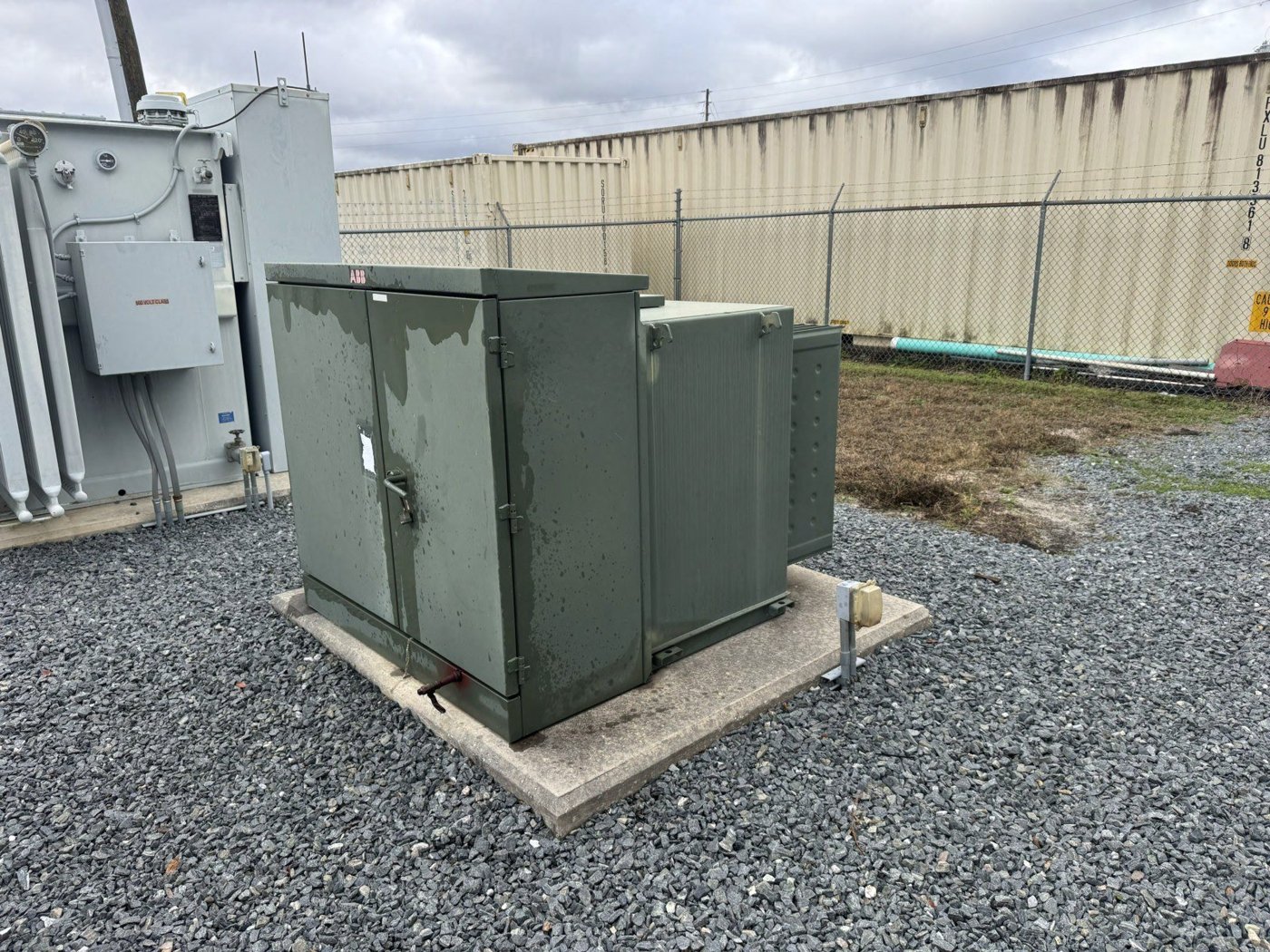

400/448 kVA ABB transformer — 4.16 kV HV / 480Y/277 V LV

Photo 1 of 1Open full size ↗

History, availability and verification

Estimated dispatch: Immediate
Quantity basis: Individual asset; exact included scope subject to agreement.
Availability last checked: 2026-09-22

Voltage configurations

Documented primary winding settings (V): 3950;4055;4160;4265;4370

Equipment overview

Nameplate high side 4,160 V delta; low side 480Y/277 V. Verify selected taps, grounding and application.

Actual supplied nameplate reviewed for this transformer. Nameplate 400/448 kVA at 55/65°C rise; 204 US gallons oil.

Three-phase, 60 Hz, ONAN with aluminum high- and low-voltage windings. Nameplate ratings are not a current test report. Confirm fluid condition, insulation, accessories, taps, grounding, protection, installation and intended direction of operation with a qualified transformer specialist.

The primary and secondary fields preserve the documented application convention. Public high/low labels are ordered by the nominal line-to-line winding voltage; Y/neutral values remain associated with their own winding. Neither a voltage pair nor a search match establishes reversible suitability or site compatibility. Plate images and serials are kept private pending disclosure authorization.

Additional listing details

Listing Reference: EE-OCA-TX-400

Transformer specifications

Transformer Capacity: 400 kVA
Primary winding: 4,160 V delta
Secondary winding: 480Y/277 V
Primary Connection: Delta
Secondary Connection: Wye with neutral
Tap Range: 3,950–4,370 V
Tap Positions: 5
Impedance: 4.5%
Primary BIL: 60 kV
Secondary BIL: 30 kV
Cooling Class: ONAN
Winding Material: Aluminum
Insulating Fluid: Mineral oil, per nameplate
Temperature Rise: 55/65 °C
Enclosure / Mounting: Stainless steel enclosure, nameplate description

View individual tap values

HV plate positions: 4370; 4265; 4160; 4055; 3950 V. Discrete positions only.

Additional specifications

Nameplate basis: Actual supplied plate, All Transformers.pdf page 14; current inspection and testing still required
Additional nameplate information: Nameplate 400/448 kVA at 55/65°C rise; 204 US gallons oil.
